Morningstar SunSaver MPPT Controler 15 AMP 12/24V
SKU: SR-SS-MPPT-15L Learn More»![](/assets/thumbL/SR-SS-MPPT-15L.jpg?20210309070059)
Description

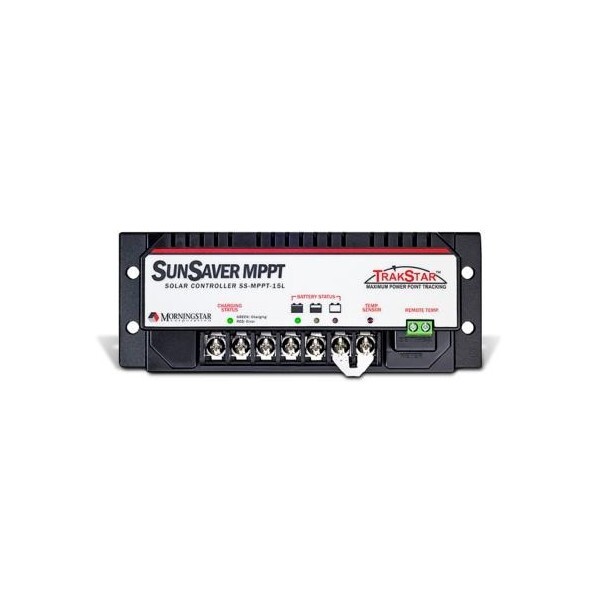

Morningstar SunSaver MPPT Controler 15 AMP 12/24V
The Morningstar SunSaver MPPT with TrakStar technology is an advanced maximum power point tracking controller for off-grid solar systems up to 400Wp.
Specifications:
Amps | 15.0 Amps |
---|---|
Voltage | 12/24 V |
Operating Temperature Range | –40°C to +60°C |
Dimensions (LxWxH mm) | 168 x 55 x 70 |
Input | 200Wp (12V Battery) | 400Wp (24V Battery) |
Open Circuit Voltage Voc(V) | 75 V (Max) |
Max. Battery Current | 15A |
Weight (kg) | 0.6 |
Manufacturers Warranty | 5 Years |
Features:
- In addition to 12 volt crystalline modules, enables the use of high voltage and thin film modules for off-grid battery charging
- Maximum power point tracking provides an increase of amps from the solar array into the battery
- Provides a means to use a 24V solar array to charge a 12V battery, reducing power losses in systems with a long cable run between the solar array and the battery
- Includes up to four programmable timer sequences for PV lighting applications
Specifications
SKU SR-SS-MPPT-15L
Brand Morningstar
Product Category Solar Charge Controllers
Voltage 12/24V
Operating temperature range -40°C -+60°C
Weight (kg) 0.6
Charge Current (A) 15
Dimensions 168x55x70mm (LxWxD)
NOTE: see full product specifications & further product info in the Description section on this page.
