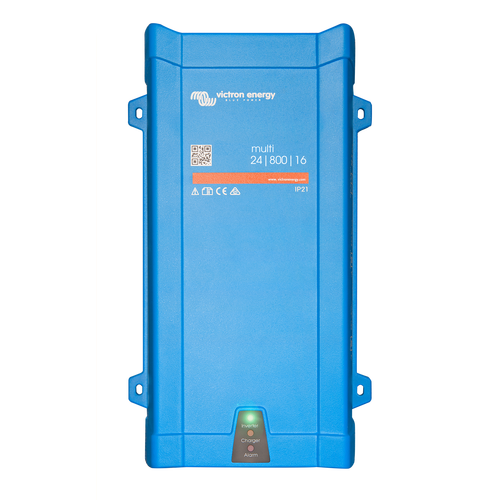

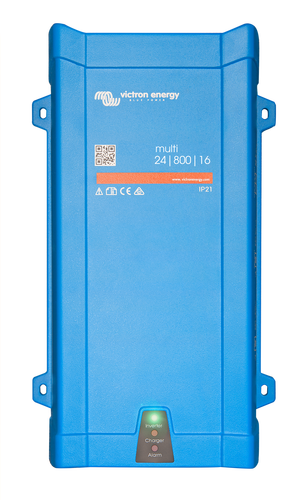

Victron Multiplus Inverter Charger 24/800/16-16
SKU: PMP241800000 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Victron Multiplus Inverter Charger 24/800/16-16
The Multi 500VA is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.
Specifications:
| Output Current Rating (Amps) | 16.0 Amps |
|---|---|
| Wattage | 700W |
| Peak Power | 1600W |
| Output Voltage and Frequency | 230 Vac ± 2% / 50 Hz ± 0.1% |
| Output Power | 700W (continuous output power at 25°C) | 650W (continuous output power at 40°C) | 400W (continuous output power at 65°C) |
| Input Voltage | 19-33V |
| Operating Temperature Range | -40 to +65°C |
| AC Input | 187-265VAC | 45-65Hz |
| Inverter Output Continuous Watts | 700W (continuous output power at 25°C) |
| Charge voltage 'absorption' | 28.8V |
| Charge Voltage Float - Wet (25 degrees)** | 27.6V |
| Charge voltage 'storage' | 26.4V |
| Inverter Output Nominal Efficiency | 93% (maximum) |
| No load power consumption | 7W | 2W in search mode |
| Product Dimensions (mm) LxWxH | 240 x 100 x 360 |
| Net Weight (kg) | 6.4 Kg |
Features:
Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverter is short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
PowerControl
Dealing with limited generator, shore side or grid power (800VA model only) With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.
High start-up power
Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools.
Search Mode
When Search Mode is ‘on’, the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode the Multi, when operating in inverter mode, is switched off in case of no load or very low load, and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again.
Programmable relay
By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).
Remote on / off / charger on
Remote operation can be implemented by connecting a switch to the three pole connector.
Specifications
SKU PMP241800000
Brand Victron
GTIN 8719076038238
Product Category Power Inverter Chargers
Voltage 24V
Wattage (W) 700
Input Voltage 19-33V
Dimensions 240 x 100 x 360mm
Peak Power (W) 1600
Weight (kg) 6.4
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
What size generator should I use for charging a battery?
The below generators are the minimum recommend sizes based on an AVR generator:
- 800VA 2KVA
- 1200VA 2.5KVA
- 1600VA 3KVA
- 3000VA 5KVA
- 5000VA 8KVA
If your generator is smaller than the recommended size for your inverter/charger, you will definitely need to adjust the settings on the inverter/charger and reduce the AC input current limit, and/or a DC charge current limit to prevent overloading the generator. If you do want an inverter based generator get one that is at least 30% larger than required than an equivalent AVR based model to help prevent overloads.
-
Can these chargers take solar input?
No, the battery charging component is an AC input, meaning only AC power (mains power) can charge through this unit.
-
How can I remotely monitor and control my devices?
You need a GX device to get remote monitoring. We recommend the Cerbo GX and an RJ45 UTP cable to connect it to the inverter. You can hardwire an ethernet connection to the unit, or connect it to a Wifi signal.
-
What size Generator can I use with the Multiplus Inverter Chargers?
The below generators are the minimum recommend sizes based on an AVR generator:
Inverter Charger Size Minimum Recommended Generator Size 240V AC Input Current Limit 800VA 2 kVa 5A 1200VA 2.5 kVa 7A 1600VA 3 kVa 10A 3000VA 5 kVa 16A 5000VA 8 kVa 25A If your generator is smaller than the recommended size for your inverter/charger, you will definitely need to adjust the settings on the inverter/charger and reduce the AC input current limit, and/or a DC charge current limit to prevent overloading the generator. If you do want an inverter based generator get one that is at least 30% larger than required than an equivalent AVR based model to help prevent overloads.
