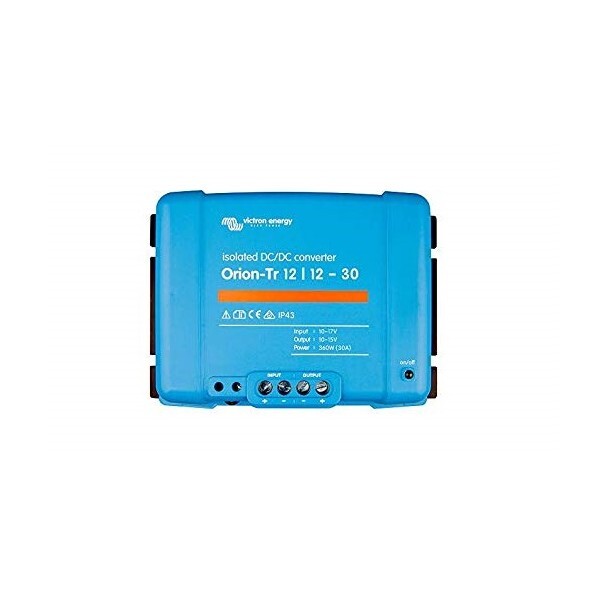

Victron Orion-Tr 12/12V 30A DC to DC Converter with Galvanic Isolation

SKU: ORI121240110 Learn More»
Victron Orion-Tr 12/12V 30A DC to DC Converter with Galvanic Isolation
Free Shipping
$329
$379
In Stock1-2 Days Dispatch
EXTRA $15 OFF! Add to cart to get an instant discount
SALE ENDS:

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Description

Victron Orion-Tr 12/12V 30A DC to DC Converter with Galvanic Isolation

Specifications:

Amps                                                                                                                                      30.0 Amps
DC Input Voltage 10-17V
DC Output Voltage 10-15V +/- 0,2V
Rating (A) 30A
Operating Temperature Range -20 to +55°C (derate 3% per °C above 40°C)
Protection category IP43
Efficiency 87%
Dimensions (LxWxH) mm 70 x 186 x 130
Net Weight (kg) 1.8 Kg
Manufacturers Warranty 5 Year Warranty



Features:

Remote on-off

  • The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch.



Adjustable output voltage: can also be used as a battery charger

  • For example, to charge a 12 Volt starter or accessory battery in an otherwise 24V system.



All models are short circuit proof and can be paralleled to increase output current

  • An unlimited number of units can be connected in parallel.



IP43 protection

  • When installed with the screw terminals oriented downwards.



Screw terminals

  • No special tools needed for installation.



Input fuse

  • On 12V and 24V input models only.



Dometic Harrier Brochures

Dometic Harrier Operation Manual

Show More

Specifications

SKU ORI121240110

Brand Victron

GTIN 8719076038825

Product Category Converters

Current (A) 30

Dimensions 130 x 186 x 70 mm (HxWxD)

Weight (kg) 1.8

DC Output Voltage 10-15V

DC Input Voltage 10-17V

Efficiency 0.87


NOTE: see full product specifications & further product info in the section on this page.
