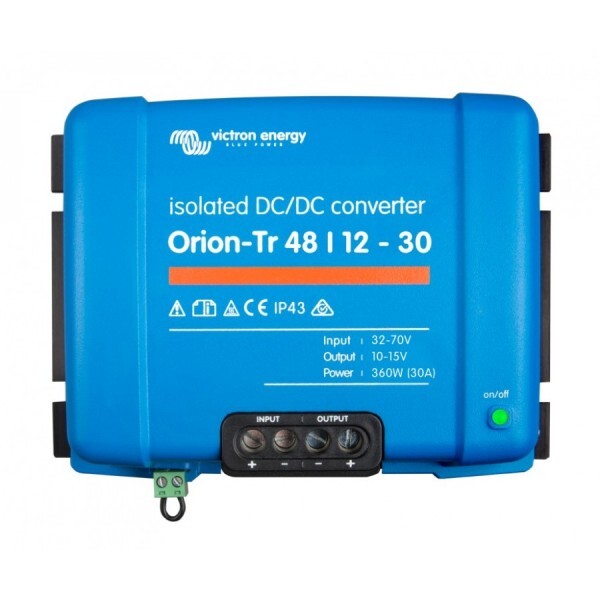

Victron Orion-Tr 48/12V 30A DC to DC Converter with Galvanic Isolation
SKU: ORI481240110 Learn More»
Free Shipping
Description
Victron Orion-Tr 48/12V 30A DC to DC Converter with Galvanic Isolation
Specifications:
| Amps | 30.0 Amps |
|---|---|
| DC Input Voltage | 40-70V |
| DC Output Voltage | 10-15V +/- 0,2V |
| Rating (A) | 30A |
| Operating Temperature Range | -20 to +55°C (derate 3% per °C above 40°C) |
| Protection category | IP43 |
| Efficiency | 87% |
| Dimensions (LxWxH) mm | 70 x 186 x 130 |
| Net Weight (kg) | 1.8 Kg |
| Manufacturers Warranty | 5 Year Warranty |
Features:
Remote on-off
- The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch.
Adjustable output voltage: can also be used as a battery charger
- For example, to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current
- An unlimited number of units can be connected in parallel.
IP43 protection
- When installed with the screw terminals oriented downwards.
Screw terminals
- No special tools needed for installation.
Input fuse
- On 12V and 24V input models only.
Show More
Specifications
SKU ORI481240110
Brand Victron
GTIN 8719076038870
Product Category Converters
Current (A) 30
Dimensions (D x H x W) 70 x 130 x 186 mm
Weight (kg) 1.8
DC Output Voltage 10-15V
DC Input Voltage 40-70V
Efficiency 0.87
