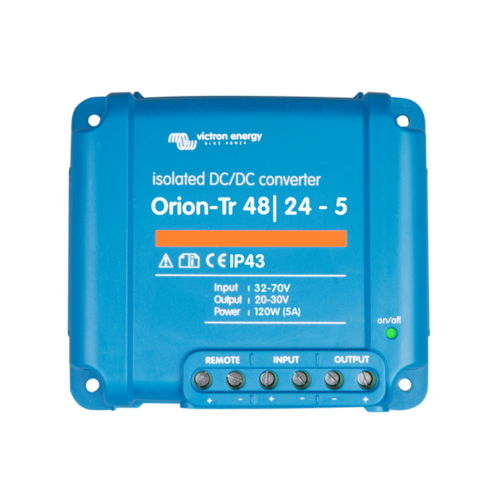

Victron Orion-Tr 48/24V 5A DC to DC Converter with Galvanic Isolation
SKU: ORI482410110 Learn More»
Description
Victron Orion-Tr 48/24V 5A DC to DC Converter with Galvanic Isolation
Specifications:
| Amps | 5.0 Amps |
|---|---|
| DC Input Voltage | 32-70V |
| DC Output Voltage | 20-30V +/- 0,2V |
| Rating (A) | 5A |
| Operating Temperature Range | -20 to +55°C (derate 3% per °C above 40°C) |
| Protection category | IP43 |
| Efficiency | 86% |
| Dimensions (LxWxH) mm | 47 x 113 x 100 |
| Net Weight (kg) | 0.4 Kg |
| Manufacturers Warranty | 5 Year Warranty |
Features:
Remote on-off
- The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch.
Adjustable output voltage: can also be used as a battery charger
- For example, to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current
- An unlimited number of units can be connected in parallel.
IP43 protection
- When installed with the screw terminals oriented downwards.
Screw terminals
- No special tools needed for installation.
Input fuse
- On 12V and 24V input models only.
Specifications
SKU ORI482410110
Brand Victron
GTIN 8719076016779
Product Category Converters
Current (A) 5
Dimensions (D x H x W) 47 x 100 x 113 mm
Weight (kg) 0.42
DC Output Voltage 20-30V
DC Input Voltage 32-70V
Efficiency 0.86
NOTE: see full product specifications & further product info in the Description section on this page.
