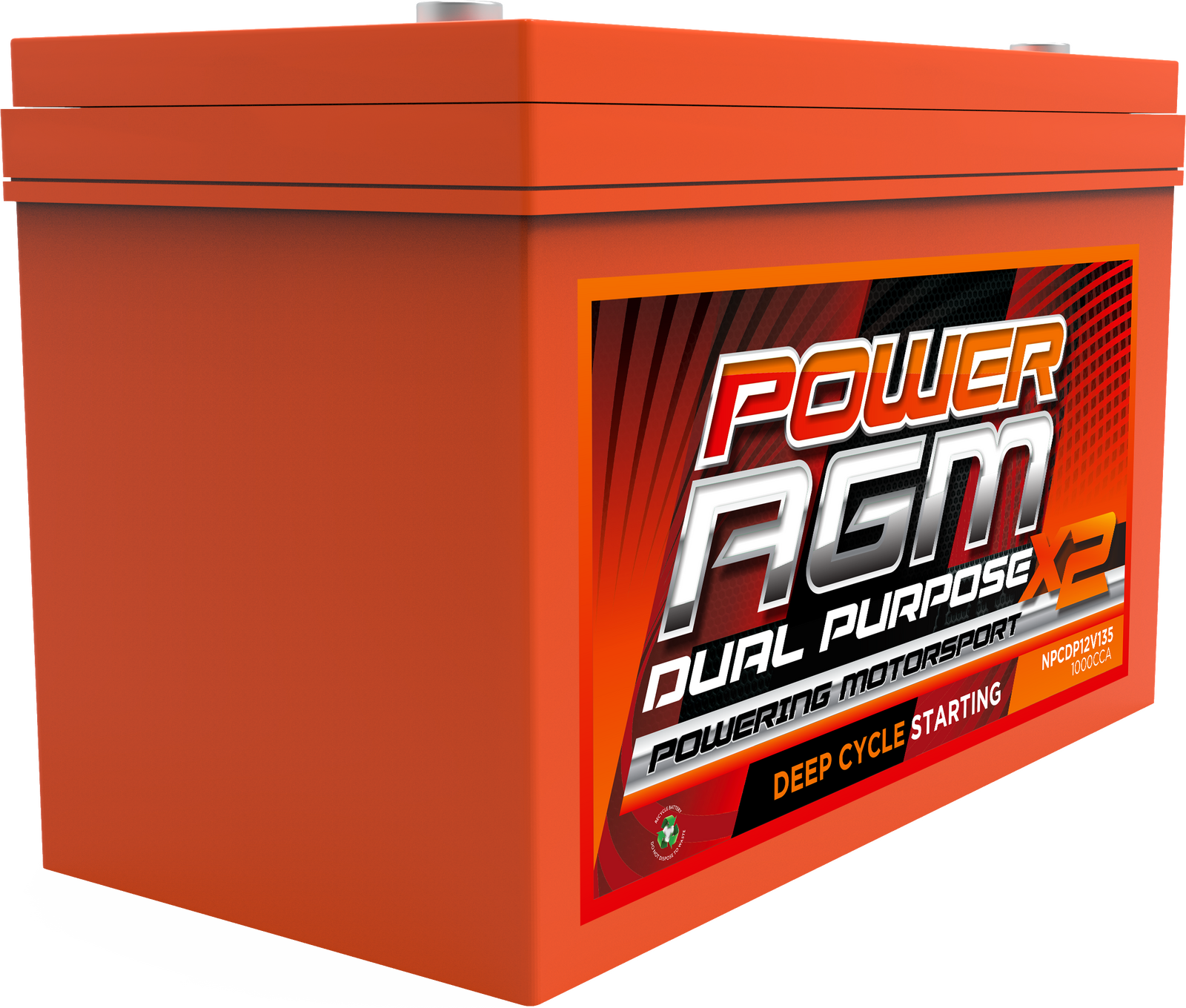

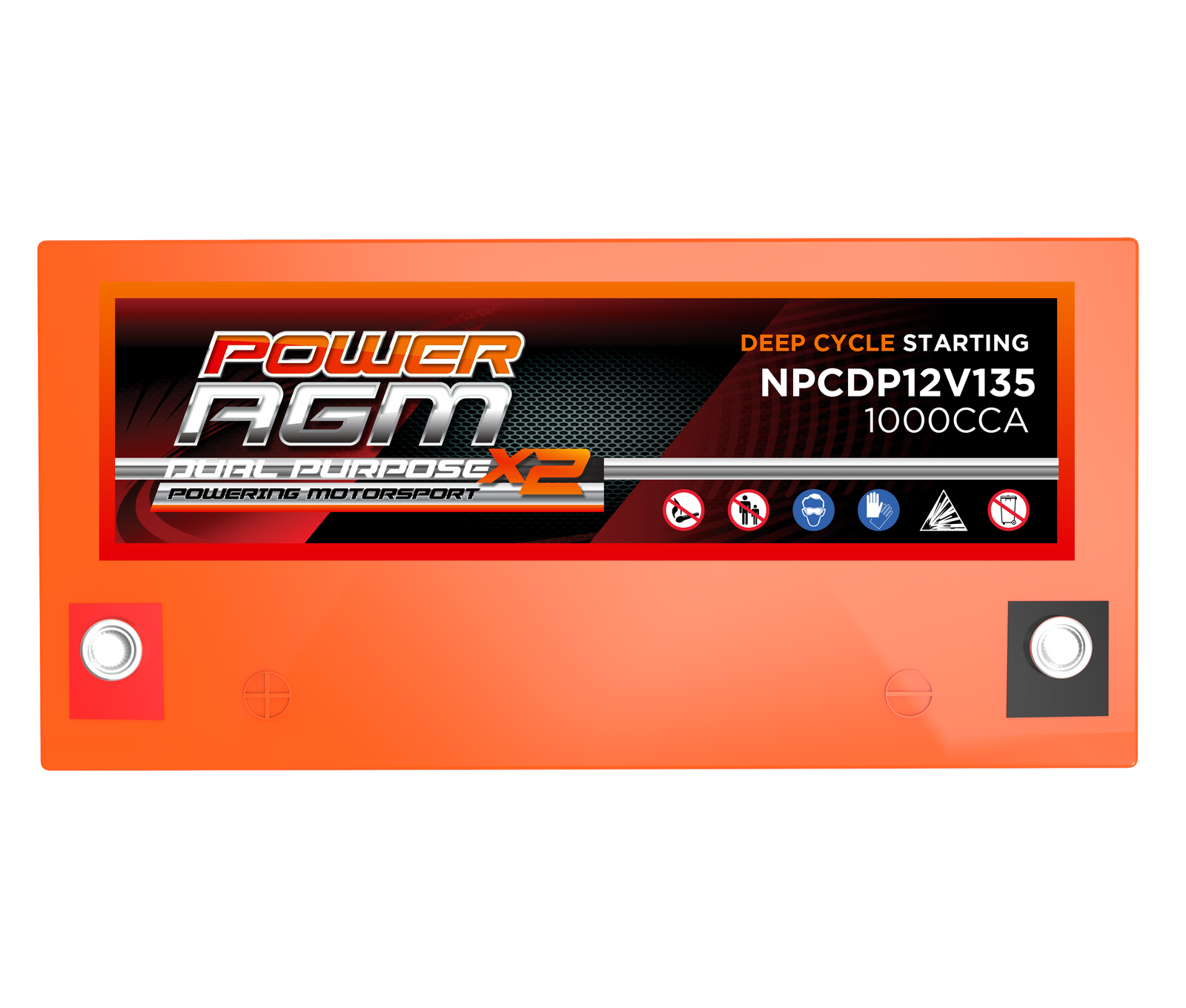

Power AGM 12V 135Ah Dual Purpose Battery
SKU: NPCDP12V135AH Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Description
Power AGM 12V 135Ah Dual Purpose Battery
The Power AGM NPCDP12V135AH Dual Purpose Car Battery will keep your car on the road for longer – built tough and reliable to withstand the harshest conditions.Also from the Power AGM family comes a product that is AGM, but also “under bonnet” rated. The AGM Dual Purpose has many size and polarity options. Ideal for 4WD start and dual battery setups.The rechargeable batteries are lead-lead dioxide systems. The dilute sulphuric acid electrolyte is absorbed by separators and thus immobilised.
Should the battery be accidentally overcharged producing hydrogen and oxygen, special one-way valves allow the gases to escape thus avoiding excessive pressure build-up. Otherwise, the battery is completely sealed and is, therefore, maintenance-free, leak-proof and usable in any position.
Features:
- Using oxygen recombination technology: maintenance-free
- PbCaSn alloy for plate grids:low self discharge rate than 3% per month
- High quality AGM separator: extend cycle life and prevent micro short circuitretardant
- High purity raw material: 99.99% pure lead
Applications:
- Cable Television
- Communication
- Equipment
- Security System
- UPS
- Control Equipment
- Medical Equipment
- Emergency Power
Specifications:
- Battery Type: AGM Deep Cycle Battery
- Capacity:
- 20HR(7.15A,1.80V) - 143Ah
- 10HR(13.5A,1.80V) - 135Ah
- 5HR(25.3A,1.75V) - 127Ah
- 1HR(89.1A,1.60V) - 894.1Ah
- Dimensions: 330 x 171 x 214mm (LxWxH)
- Weight: 34.5kg
- Internal Resistance: Full charged at 20°C: 0.0038 Ohm
- CCA: 1000
- Self Discharge: 3% of capacit y declined per month at (20 oC)
- Capacity Affected by Temperature (10HR):
- 40°C - 109%
- 20°C - 100%
- 0°C - 85%
- -15°C -65%
- Charge Voltage (20°C):
- Cycle Use - 14.1-14.8V(-30mV/°C), max. Current: 33.75A
- Float Use - 13.6-13.8V(-18mV/° C)
NOTE: 12 month Warranty when installed under bonnet
.png)
Specifications
SKU NPCDP12V135AH
Brand Power AGM
Product Category Batteries
Battery Voltage 12V
Amp Hours (Ah) 135
Battery Length (mm) 330
Battery Width (mm) 171
Battery Height (mm) 214
Battery Weight (kg) 34.5
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
What size battery do I need for my caravan?
Great question! Your deep cycle battery for your caravan will be a minimum of 100 Amp Hours (Ah).
The average size for a Caravan is 200Ah. Usually, 2 x 100Ah connected in Parallel. However, if your budget allows to upgrade to a Lithium battery you can get a lot more power for the size of the battery. For example, a 200Ah lithium battery can be equivalent to up to 360 Ah of an AGM battery.
To work out exactly what size you require you need to first look at the load you are planning on drawing. The load should be calculated in Amps per hour, or Amp Hours (Ah). Batteries are rated in Amp Hours (Ah) as well.
So, if you are drawing a 50Ah per day, a 100Ah AGM battery can provide power for about 1 day as you do not want to draw more than 50% from your battery. However, it is not always easy to find what each appliance draws. Some popular examples are following:
- 150L 12V Fridge = 2.5 Amps per hour (2.5Ah) - runs for 24 hours a day
- 12V Water Pump = 3.5 Amps per hour (3.5Ah) - only runs for 1 hour a day
- Phone Charger = 0.5 Amps per hour (0.5Ah) - Maybe 4 hours per day
- 12V Fan = 4 Amps per hour (4Ah) - Maybe 4 hours per day
Then you will need to factor in how much charge you are putting in Daily. The charge comes in the way of Solar and in car charging via a DC to DC charger.
Ideally you want enough charge input per day to cover the load drawn, then enough battery storage to last 2 - 3 days without charge.
-
What is best - AGM or lithium battery?
The answer is simple. Lithium is a better product than AGM.
Lithium is lighter, more compact, and powerful, it will also last longer.
However, a lithium battery will cost more, because it is a highly sort after product. Almost everything that has a battery nowadays will have a lithium battery. Mobile phone, Electric Car, Electric Bike and Skateboard just to name a few.
There are situations where you can get away with an AGM battery. If you only need about 100ah (most 4 x 4 set ups), you can purchase 1 x 100ah battery and a battery box and away you go.
However, once you start getting into the larger amperages (200+) it really makes more sense to turn to lithium.
-
How do I charge my caravan battery?
There are three ways to charge your caravan Battery. Either:
- AC to DC - This is using a traditional battery charger that plugs into mains power.
- DC to DC - This is a battery charger connected between the start battery of your tow vehicle and the Caravan Battery. This will charge the battery whilst driving.
- Solar - Solar panels on your roof can be connected to a solar charge controller then to your Caravan Battery.
-
How much solar do I need to keep my caravan battery charged?
Ideally, you want use as much solar as you can fit on the roof. Extra portable solar panels are also good idea if you want to park your van in the shade and run a portable panel from a lead in the sun � please see our solar range here.
Solar is cheap relative to the rest of your system, and it provides so much of your power when you are camping off grid.
However, the solar required depends on the load. Please feel free to contact our team for any specific questions on your battery - 1800 787 278!
