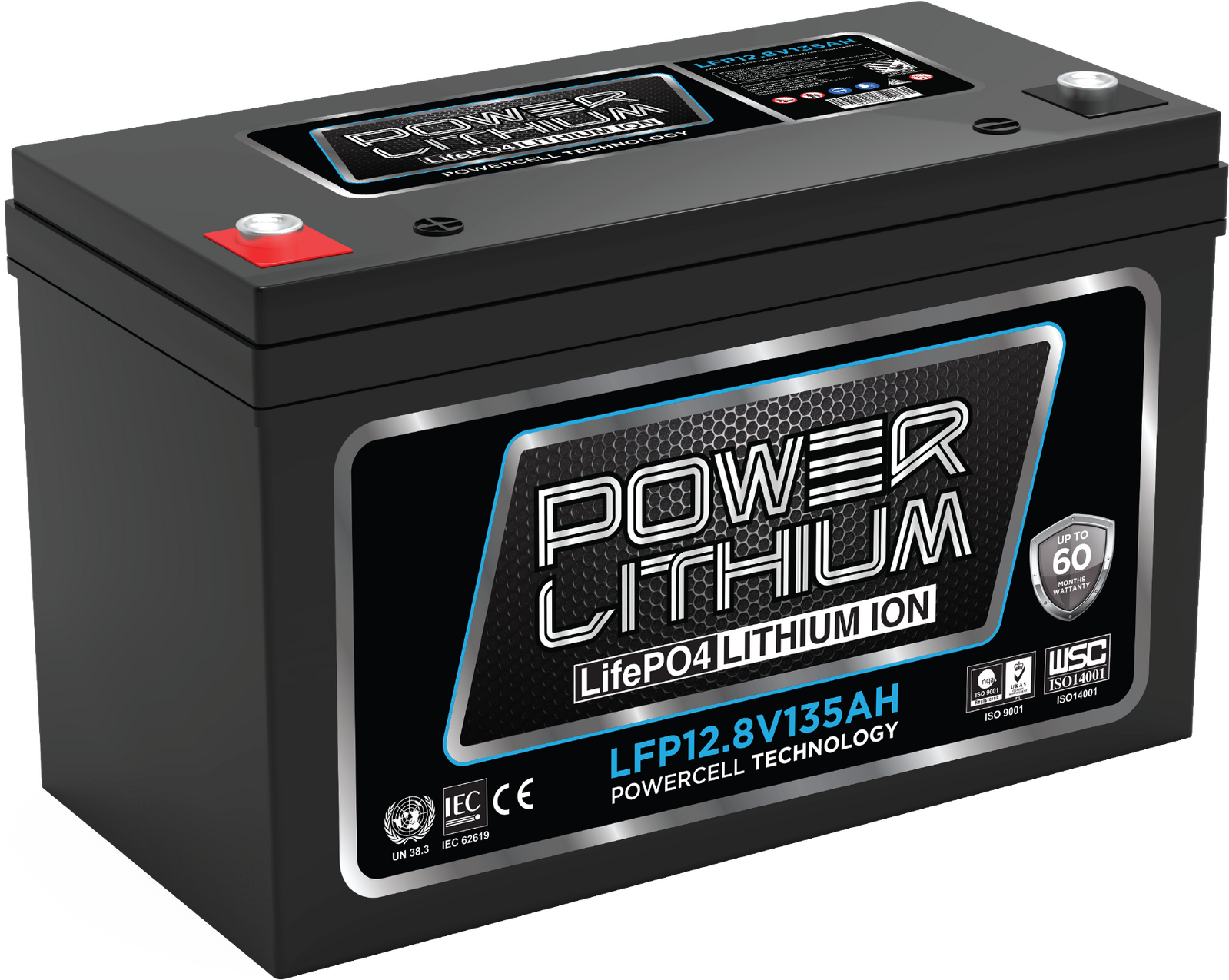

Power Lithium 12V 135Ah Battery
SKU: LFP12.8V135AH Learn More»

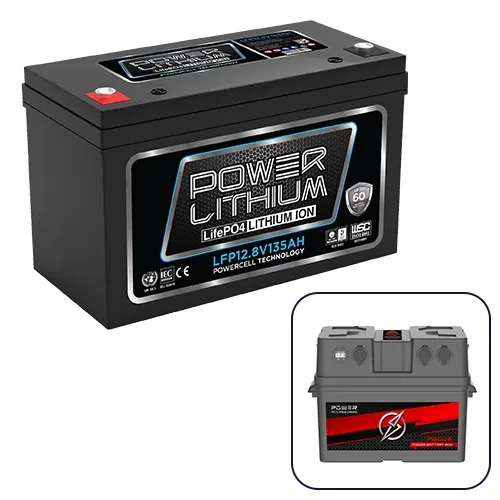

Currently FREE with the Power Lithium 12V 135Ah Battery is:
Description
Power Lithium 12V 135Ah Battery
Features:
- Longer Cycle Life: Offers up to 20 times longer cycle life, in five times, longer float, or calendar life, than lead acid battery, helping to minimize replacement costs, and reduce total cost of ownership.
- Lighter Weight: about 40% of the weight of a comparable, lead acid battery. A drop-in replacement for acid batteries.
- Higher Power: delivers twice power of lead, acid, battery, even high discharge rate while maintaining high energy capacity.
- Wider Temperature Range: - 20°C- 60°C
- Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation.
- Increased Flexibility: Modular design enables deployment of up to four batteries in series and up to 10 batteries in parallel.
Application:
- Electric vehicles, electric mobility
- Solar/Wind energy storage system
- UPS, backup power
- Telecommunication
- Medical equipment
- Lighting
Specifications:
Electrical Characteristics
- Nominal Voltage: 12.8V
- Nominal Capacity: 135Ah (C5,25℃)
- Energy: 1728Wh
- Internal Resistance: ≤20mΩ
- Cycle Life: >2000 cycles @1C 100%DOD
- Months Self Discharge: <3%
- Efficiency of Charge: 100% @0.5C
- Efficiency of Discharge: 96~99% @1C
Standard Charge
- Charge Voltage: 14.6 ±0.2V
- Charge Mode: 0.2C to 14.6V, charge current to 0.02C (CC/CV)
- Charger Current: 55A
- Max. Charge Current: 110A
- Charge Cut-off Voltage: 15.6±0.2V
Standard Discharge
- Continuous Current: 110A
- Max. Pulse Current: 400A(<3s)
- Discharge Cut-off Voltage: 8V
Environmental
- Charge Temperature: 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
- Discharge Temperature: -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
- Storage Temperature: 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
- Water/Dust Resistance: IP56
Mechanical
- Cell & Method: 26650 4S35P
- Plastic Case: ABS
- Dimensions (mm.):330x173x212mm
- Weight (kg.):15.6kg
- Terminal: M8
- Protocol (optional): SMBus/RS485/RS232
- SOC (optional): LED
.png)
Specifications
SKU LFP12.8V135AH
Brand Power Lithium
Product Category Batteries
Battery Voltage 12V
Amp Hours (Ah) 135
Battery Length (mm) 330
Battery Width (mm) 173
Battery Height (mm) 212
Battery Weight (kg) 15.6
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
What size battery do I need for my caravan?
Great question! Your deep cycle battery for your caravan will be a minimum of 100 Amp Hours (Ah).
The average size for a Caravan is 200Ah. Usually, 2 x 100Ah connected in Parallel. However, if your budget allows to upgrade to a Lithium battery you can get a lot more power for the size of the battery. For example, a 200Ah lithium battery can be equivalent to up to 360 Ah of an AGM battery.
To work out exactly what size you require you need to first look at the load you are planning on drawing. The load should be calculated in Amps per hour, or Amp Hours (Ah). Batteries are rated in Amp Hours (Ah) as well.
So, if you are drawing a 50Ah per day, a 100Ah AGM battery can provide power for about 1 day as you do not want to draw more than 50% from your battery. However, it is not always easy to find what each appliance draws. Some popular examples are following:
- 150L 12V Fridge = 2.5 Amps per hour (2.5Ah) - runs for 24 hours a day
- 12V Water Pump = 3.5 Amps per hour (3.5Ah) - only runs for 1 hour a day
- Phone Charger = 0.5 Amps per hour (0.5Ah) - Maybe 4 hours per day
- 12V Fan = 4 Amps per hour (4Ah) - Maybe 4 hours per day
Then you will need to factor in how much charge you are putting in Daily. The charge comes in the way of Solar and in car charging via a DC to DC charger.
Ideally you want enough charge input per day to cover the load drawn, then enough battery storage to last 2 - 3 days without charge.
-
What is best - AGM or lithium battery?
The answer is simple. Lithium is a better product than AGM.
Lithium is lighter, more compact, and powerful, it will also last longer.
However, a lithium battery will cost more, because it is a highly sort after product. Almost everything that has a battery nowadays will have a lithium battery. Mobile phone, Electric Car, Electric Bike and Skateboard just to name a few.
There are situations where you can get away with an AGM battery. If you only need about 100ah (most 4 x 4 set ups), you can purchase 1 x 100ah battery and a battery box and away you go.
However, once you start getting into the larger amperages (200+) it really makes more sense to turn to lithium.
-
How do I charge my caravan battery?
There are three ways to charge your caravan Battery. Either:
- AC to DC - This is using a traditional battery charger that plugs into mains power.
- DC to DC - This is a battery charger connected between the start battery of your tow vehicle and the Caravan Battery. This will charge the battery whilst driving.
- Solar - Solar panels on your roof can be connected to a solar charge controller then to your Caravan Battery.
-
How much solar do I need to keep my caravan battery charged?
Ideally, you want use as much solar as you can fit on the roof. Extra portable solar panels are also good idea if you want to park your van in the shade and run a portable panel from a lead in the sun � please see our solar range here.
Solar is cheap relative to the rest of your system, and it provides so much of your power when you are camping off grid.
However, the solar required depends on the load. Please feel free to contact our team for any specific questions on your battery - 1800 787 278!
