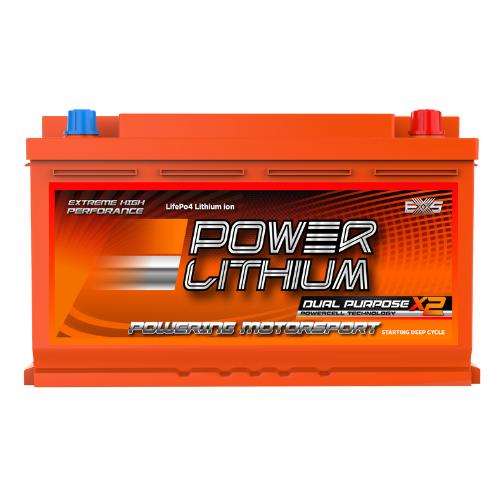

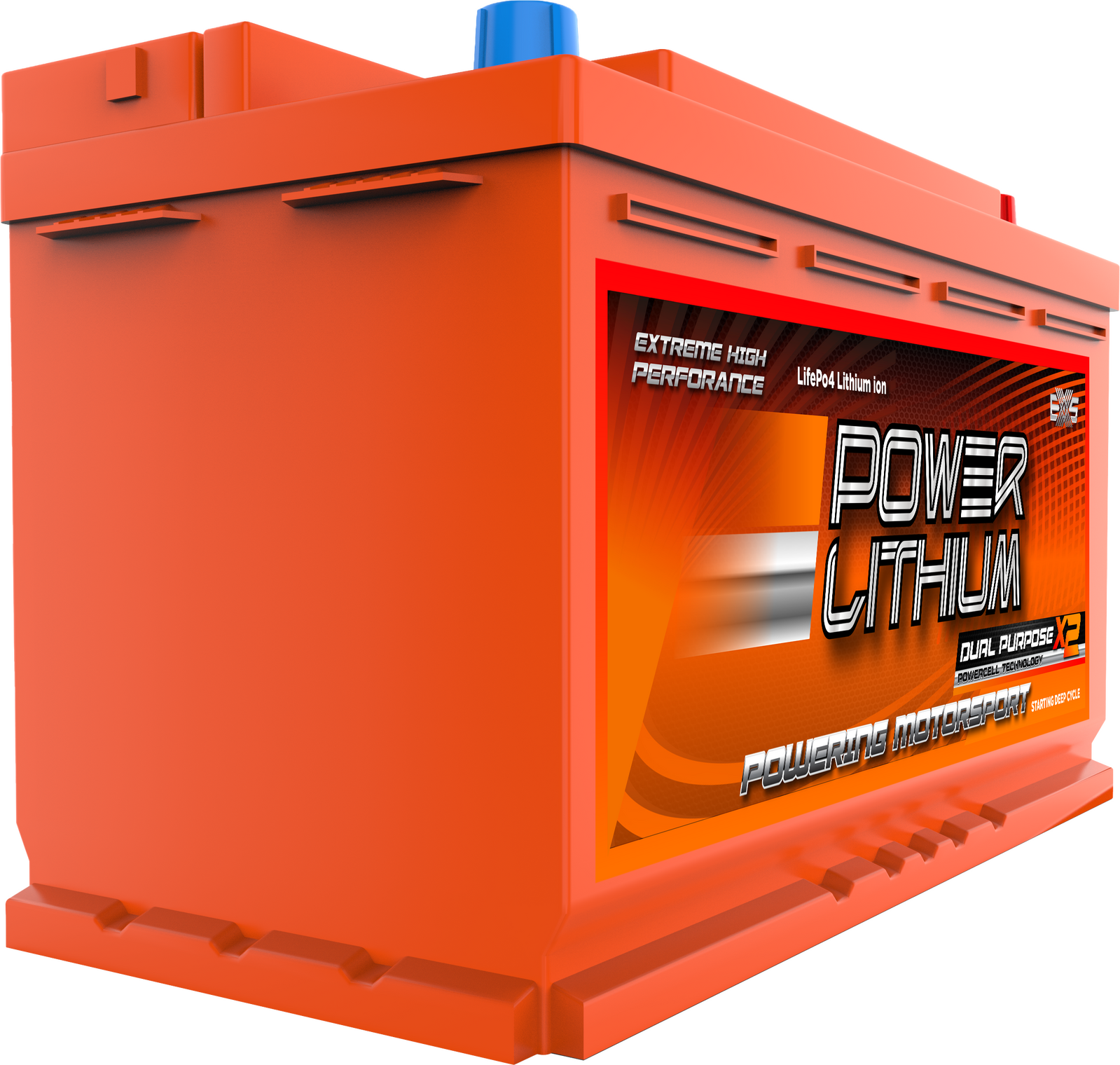

Power Lithium 80Ah 1600CCA Dual Purpose Lithium Starting Battery

Description

Power Lithium 80Ah 1600CCA Dual Purpose Lithium Starting Battery

Features:

• Longer Cycle Life: LiFePO4 batteries would be is five times than SLA batteries on cycle life
• High Power & Light weight: LiFePO4 batteries performance twice power of SLA batteries, while half weight helpful for transport and installation
• Intelligent management control: Intelligent BMS system covered by LFP batteries to ensure that batteries work on safety and perfect condition
• Lower Self-discharge rate: Lower Self-discharge rate to guarantee LFP batteries be stored more longer than SLA batteries

SPECIFICATIONS:

Electrical Characteristics:

• Chemistry: LiFePO4
• Nominal Voltage: 12.8V
• Nominal Capacity: 80Ah
• Energy: 1024Wh
• Cold Cranking Amps: 1600CCA
• Internal Resistance: ≤2.2 mΩ
• Cycle Life: ≥1500 cycles
• Self Discharge Rate: ≤30uA
• Efficiency of Charge: 100% @0.5C
• Efficiency of Discharge: 96-99% @1C

Standard Charge:

• Charge Voltage: 14.6±0.2V
• Charge Mode: 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
• Rated Charge Current:≤40A
• Max. Charge Current: ≤80A
• BMS Charge Cut-off Voltage: 15.6V
• Over Charge Recovery Voltage: 15.2V

Standard Discharge:

• Continuous Discharge Current: ≤180A
• Instantaneous Discharge Current: 1600A(5S)
• BMS Discharge Cut-off Voltage: 8V
• Over Discharge Recovery Voltage: 9.2V
• Charge Temperature: 0 °C to 45 °C (32Fto 113F) @60±25% Relative Humidity
• Discharge Temperature: -20 °C to 60 °C (-4F to 140F) @60±25% Relative Humidity
• Storage Temperature: 0 °C to 40 °C (32Fto 104F) @60±25% Relative Humidity
• Water Dust Resistance: IP56

Mechanical:

• BMS Withstand voltage value: 30V
• Plastic Case: ABS
• Dimensions (in./mm.): 315*174*190*190mm ± 2mm
• Weight (lbs./kg.): 8.0kg(17.6Ibs)
• Terminal: Brass
