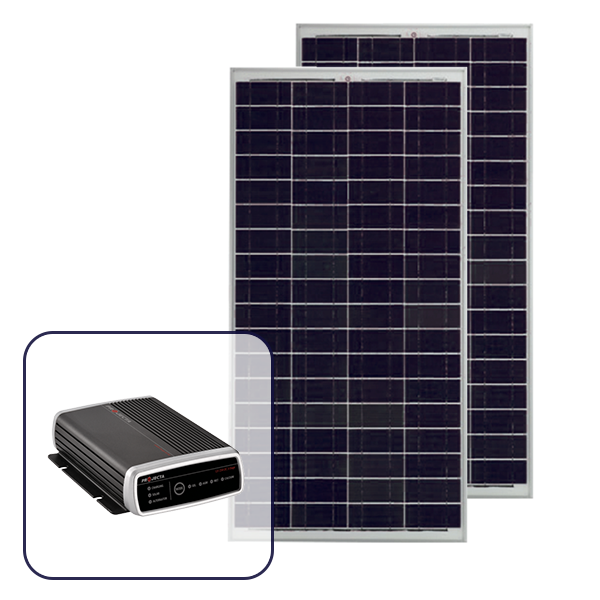

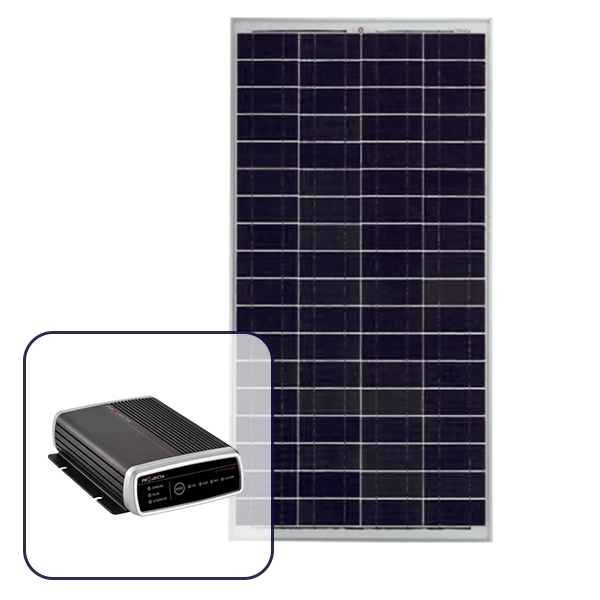

Projecta 160W Polycrystalline Fixed Solar Panel & 25Amp Lead Acid Charger Bundle

Description

Projecta 12V 160W Polycrystalline Fixed Solar Panel & 25Amp Lead Acid Charger Bundle

Bundle Includes:

• 1 x or 2 x Projecta SPP160-MC4 Polycrystalline 12V 160W Fixed Solar Panel with MC4 Connector
• 1 x Projecta IDC25 Automatic 9-32V 25A 3 Stage DC/Solar Battery Charger

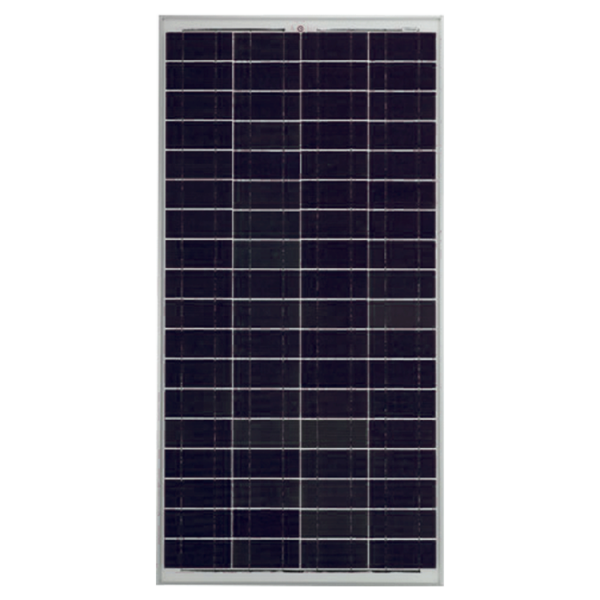

Projecta SPP160-MC4 Polycrystalline 12V 160W Fixed Solar Panel with MC4 Connector

These panels are ideal for caravans, motor homes, house boats, remote holiday shacks and farming applications where power is required to charge battery banks servicing multiple or larger appliances.

Specifications:

• Wattage 160W
• Maximum Power Voltage 17.5V Vm
• Maximum Power Current 9.15A Im
• Open Circuit Voltage 21V Voc
• Short Circuit Current 10.07A Isc
• Test Conditions 1000W/m2, 25°C
• Height 1490 mm
• Width 665 mm
• Depth 35 mm
• Voltage 12VDC
• Cell Type Polycrystalline
• Battery Automotive 500-1800CCA
• Battery Marine 600-2000MCA
• Battery Deep Cycle 60-280Ah
• Battery Charging Time 7-35 h
• Warranty 1 Year

Features:

• Standardised MC4 connector fitted for ease of installation where MC4 connectors are used
• Provides better impact resistance and improved light transmission
• Superior strength and durability

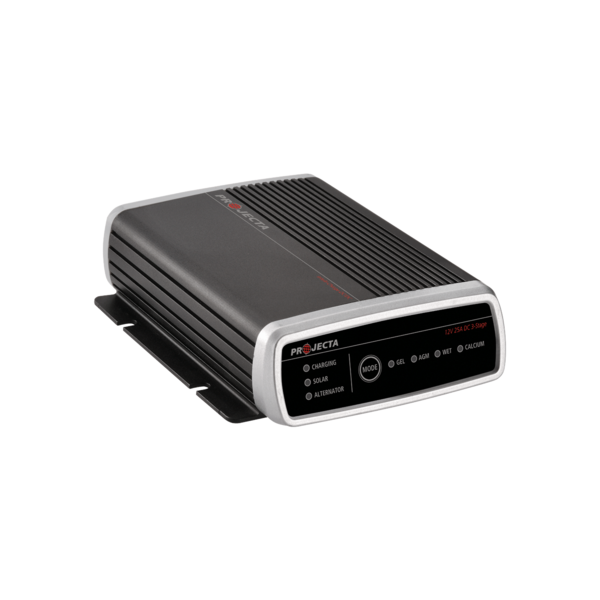

Projecta IDC25 Automatic 9-32V 25A 3 Stage DC/Solar Battery Charger

A truly sophisticated dual battery management system ideal for 4WD and camper trailer applications. Provides an advanced 3 stage charge simultaneously from both solar and alternator inputs. Able to charge simultaneously from both solar and alternator (9–32V) inputs, IDC25 can also function as an MPPT solar controller and features dual charging modes for compatibility with both smart and conventional alternators. Loaded with a host of safeguard features, the easy to install unit includes over/under voltage, anti-sparking, reverse connection and over temperature protection systems to ensure peace of mind.

• Output Current Rating 25.0 Amps
• Charging Control Gel: 14.1V | AGM: 14.4V | WET: 14.7V | Calcium: 15.4V
• Dimensions 149 x 122 x 42 mm
• Back Current Drain 9.5-10.5mA (on AUX Battery)
• Battery Capacity 75-300 Ah
• Weight 0.8 kg
• Temperature Range -10°C to +80°C
• Maximum Solar Watt Input 23Vdc, 385W
• Input Voltage 9-32Vdc
• Charger Type 3 Stage

• Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C
• Engineered to work with both smart and conventional alternators
• Set the charging profile to suit battery chemistry type: Wet, Calcium AGM or Gel
• Simultaneous dual battery charging from both solar and alternator inputs
• Over temperature, reverse connection, over/under and spark free protection
• Simultanous dual battery charging from both solar and alternator inputs, no manual switching required
• IDC25 can safely operate (at a reduced charge rate) in extreme temperatures up to 80° C, as found in engine bays in hotter climates
• Continually adjust its charge rate to suit the battery temperature, protecting it from overcharge and overheating
• Adjust battery chemistry at the touch of a button for optimum charging.
