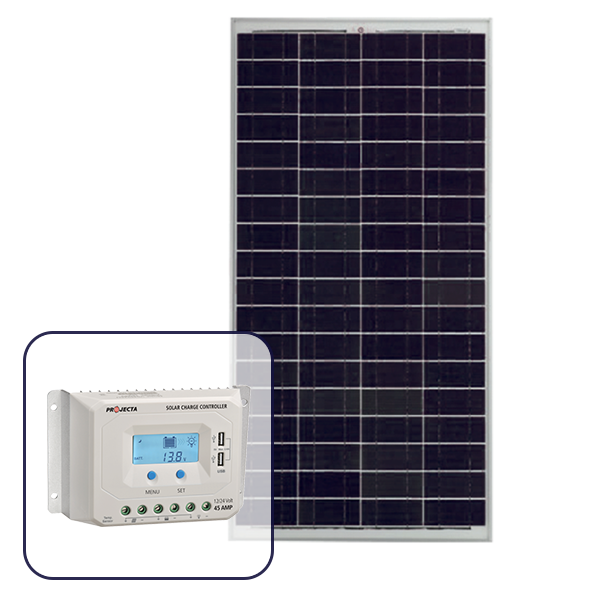

Projecta 12V 160W Polycrystalline Fixed Solar Panel & 30Amp Solar Charger Controller Bundle
SKU: SPP160-MC4-SC245 Learn More»
Free Shipping
Projecta Solar Bundle
Description
Projecta 12V 160W Polycrystalline Fixed Solar Panel & 30Amp Solar Charger Controller Bundle
Included in the Bundle:
- 1 x SPP160-MC4 - Projecta SPP160-MC4 Polycrystalline 12V 160W Fixed Solar Panel with MC4 Connector
- 1 x SC245 - Projecta SC245 Automatic 12/24V 45A 4 Stage Solar Charge Smart Controller

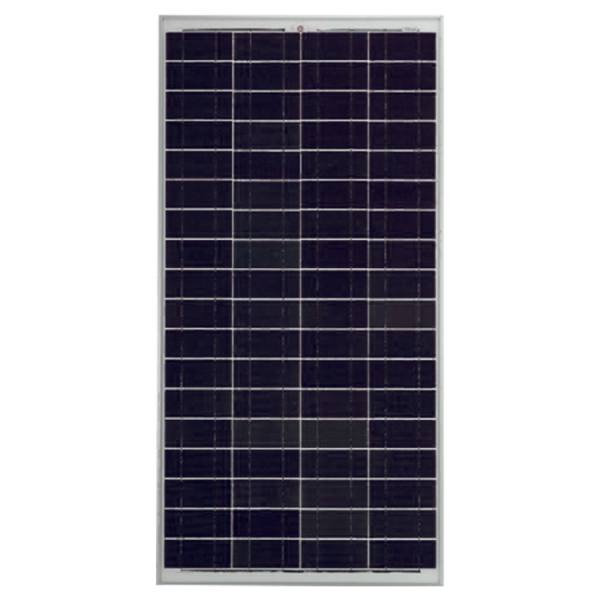

Projecta SPP160-MC4 Polycrystalline 12V 160W Fixed Solar Panel with MC4 Connector
These panels are ideal for caravans, motor homes, house boats, remote holiday shacks and farming applications where power is required to charge battery banks servicing multiple or larger appliances.
Specifications:
- Wattage 160W
- Maximum Power Voltage 17.5V Vm
- Maximum Power Current 9.15A Im
- Open Circuit Voltage 21V Voc
- Short Circuit Current 10.07A Isc
- Test Conditions 1000W/m2, 25°C
- Height 1490 mm
- Width 665 mm
- Depth 35 mm
- Voltage 12VDC
- Cell Type Polycrystalline
- Battery Automotive 500-1800CCA
- Battery Marine 600-2000MCA
- Battery Deep Cycle 60-280Ah
- Battery Charging Time 7-35 h
- Warranty 1 Year
Features:
- Standardised MC4 connector fitted for ease of installation where MC4 connectors are used
- Provides better impact resistance and improved light transmission
- Superior strength and durability

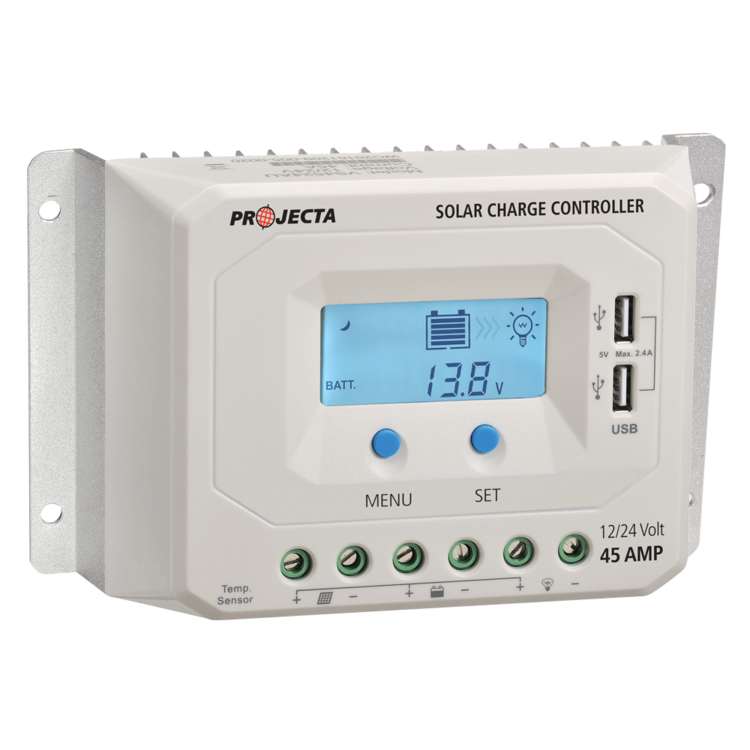

Projecta SC245 Automatic 12/24V 45A 4 Stage Solar Charge Smart Controller
Specifications:
- Dimensions 194 x 118.4 x 63.8 mm
- Input Voltage 12V
- Warranty 1 Year
Features:
- Displays battery voltage, charging current, charging capacity, fault codes and more
- 5V 2.4A USB ports for powering direct from controller.
- Set the charging profile to suit battery chemistry type: Wet, AGM or Gel, or user settings
- Low voltage disconnect enables you to protect your battery from over discharge
- Built-in sensor enables unit to optimise charge performance and offer additional protection
Show More
Specifications
SKU SPP160-MC4-SC245
Brand Projecta
Product Category Solar Bundles
Watts (W) 160
Solar Panel Cell Type Polycrystalline
Solar Panel Type Fixed Solar Panels
-Weight 15 kg
NOTE: see full product specifications & further product info in the Description section on this page.
