Projecta 12V 25A DC Power Management Board with 1500W Inverter
SKU: ICB1500 Learn More»Description

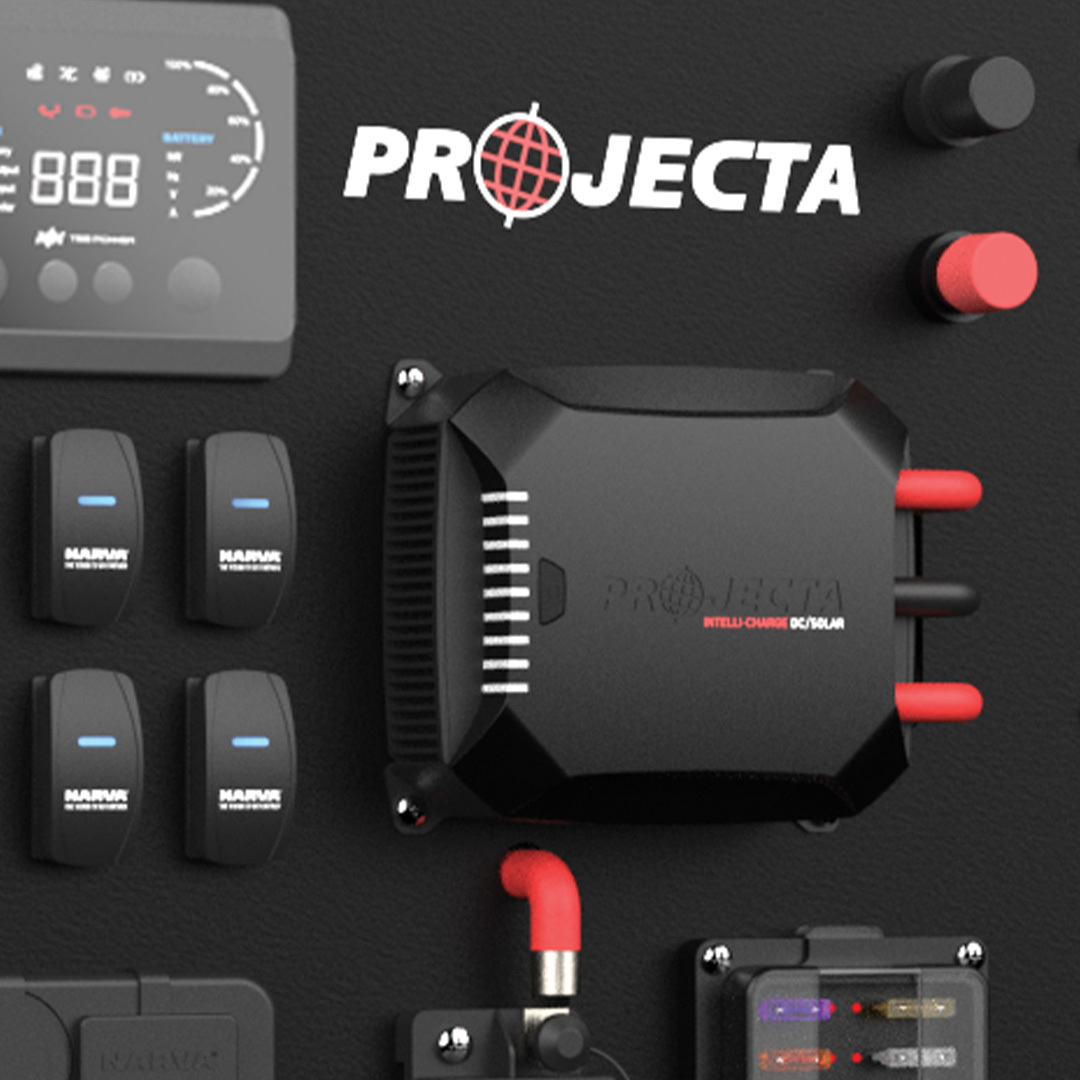

Projecta 12V 25A DC Power Management Board with 1500W Inverter
Utilising the latest premium ‘Intelli’ power management equipment, this board features the multi-chemistry 25Amp DC to DC dual battery charger, 1500W pure sine wave inverter and more.
This sophisticated system is ideal for ute canopies and RV applications. Pre-built, these all-in-one units enable quick and easy installation.
Features:

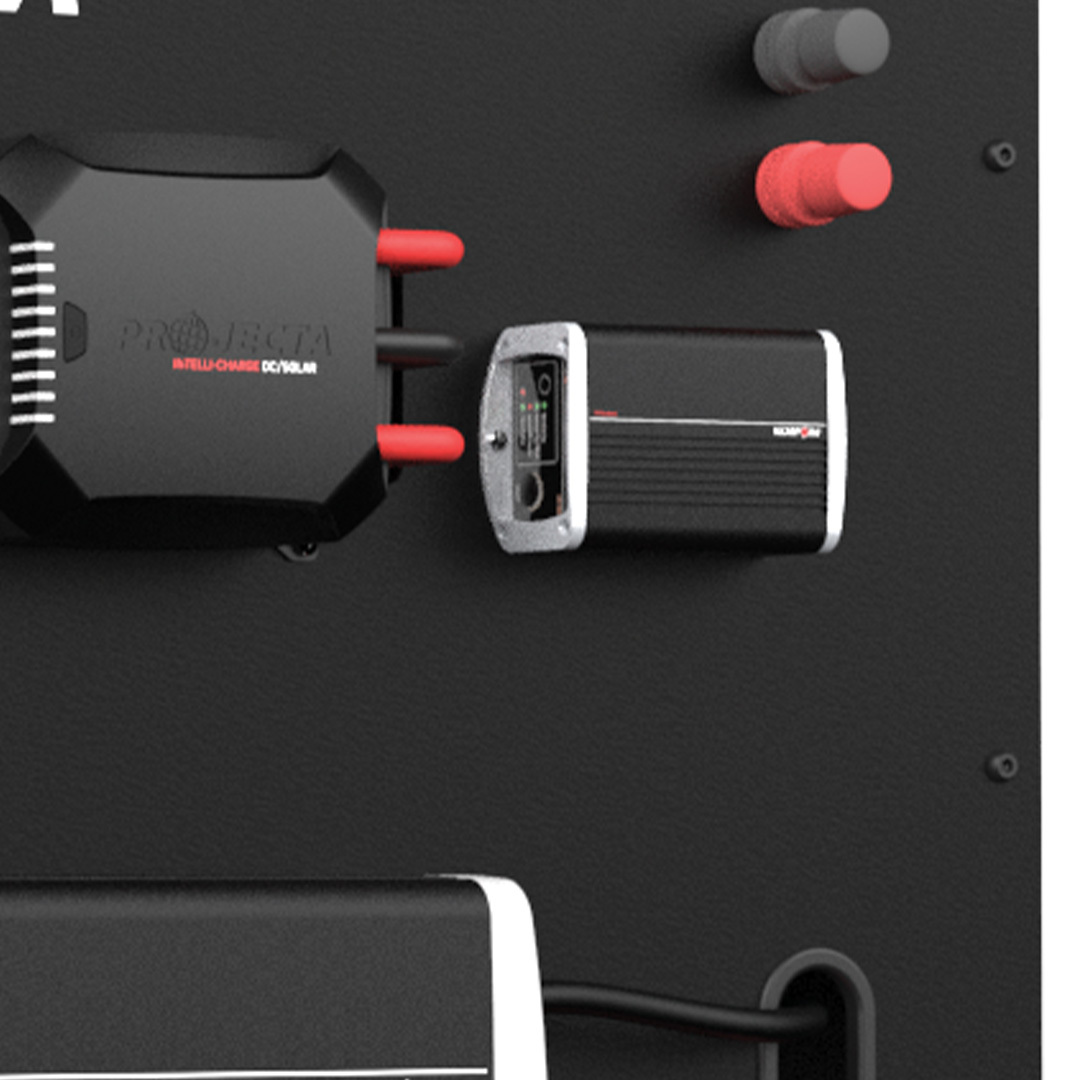

- DC-DC CHARGER (IDC25X): Providing a 3 or 5 stage charge simultaneously from both solar and alternator inputs, this dual battery management system is ideal for many applications
- 1500W PURE SINE WAVE INVERTER (IP1500): Converts 12V power to 240V to allow the use of devices such as laptops through to
coffee machines whilst off grid - BATTERY MONITOR (BM500-BT): An intelligent and compact battery meter ideal for monitoring SOC% and general status

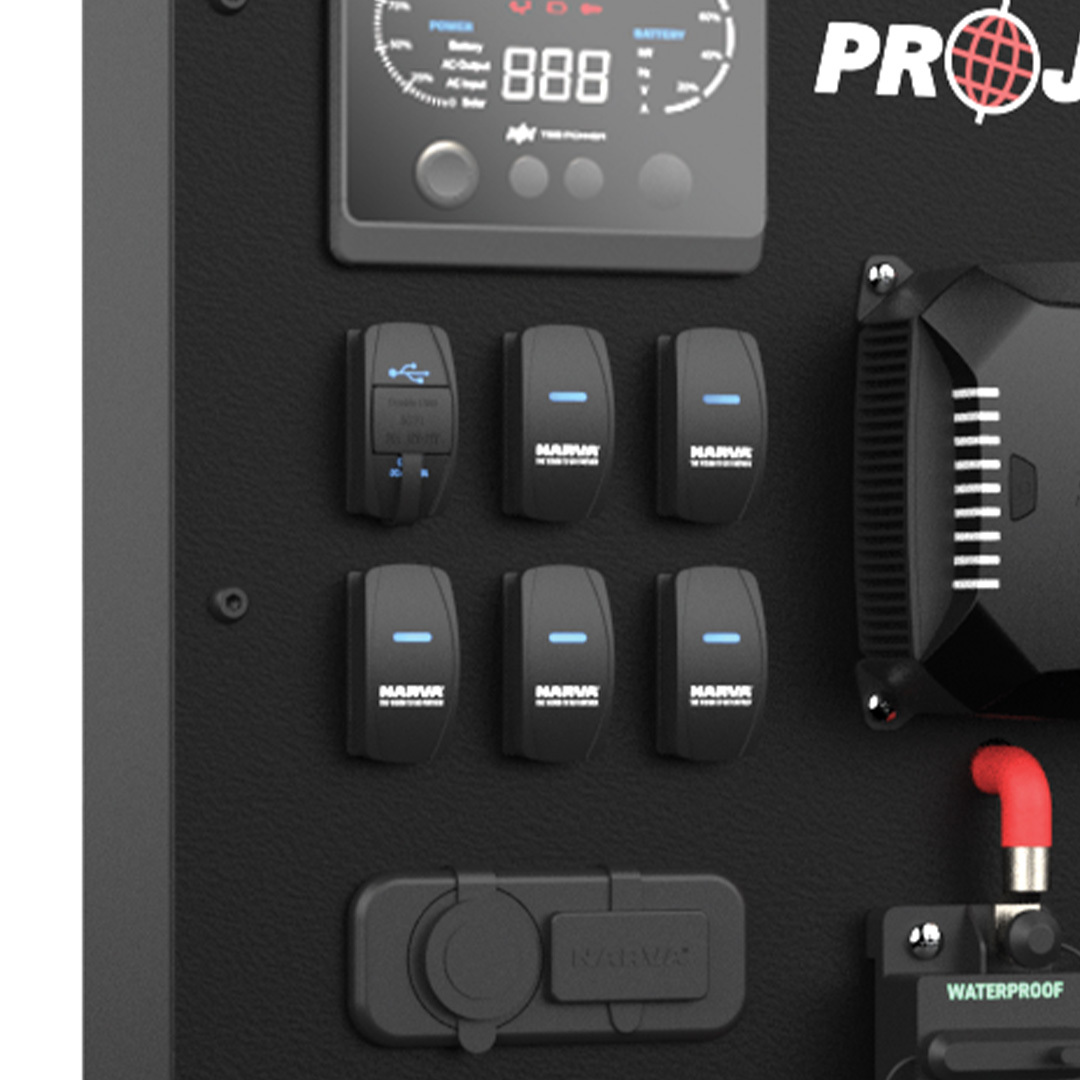

- SOCKETS & SWITCH PANEL: Power and charge 12V devices with 3.1A USB sockets, a merit socket and a cigarette lighter socket. 5 switches are included to control all your connections
- LOW VOLTAGE DISCONNECT: A robust and compact unit that protects expensive deep cycle batteries from damage caused by over-discharge

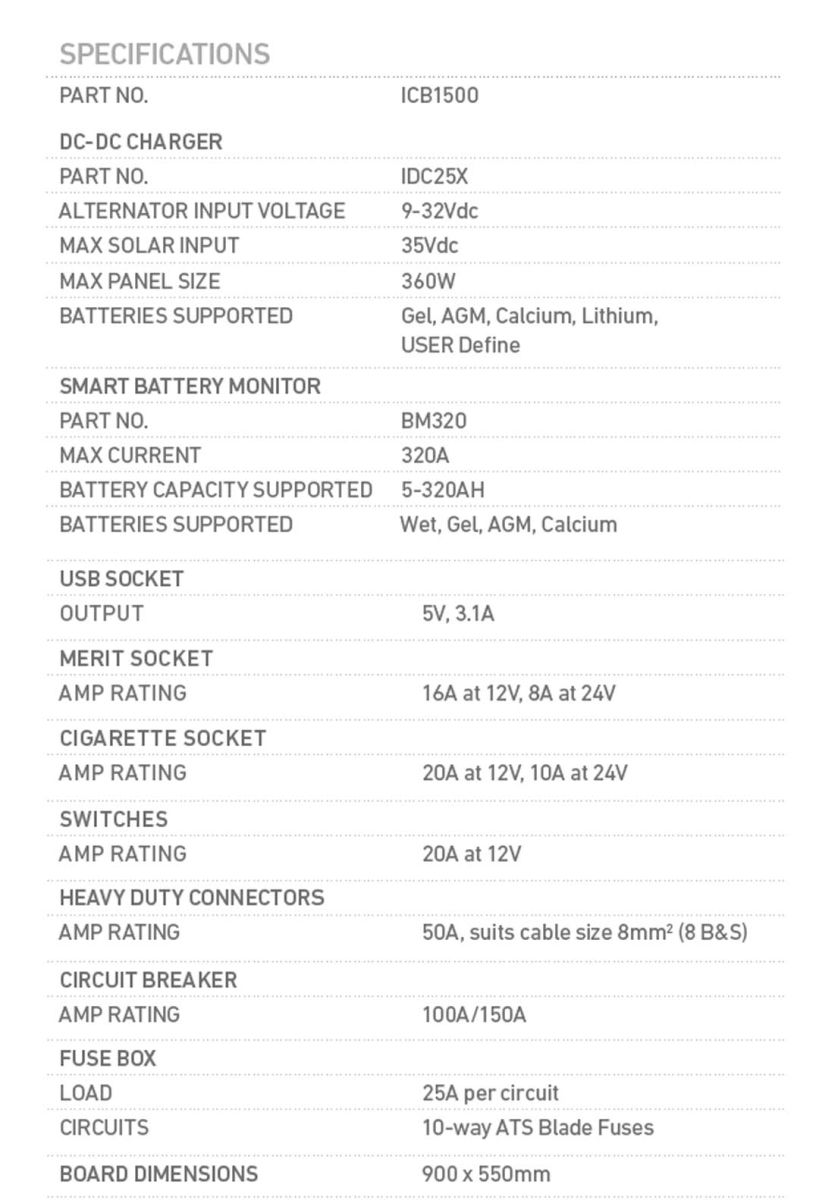

Specification:
DC-DC Charger:
- Input Voltage: 9-32Vdc
- Maximum Solar Input: 35Vdc
- Maximum Panel Size: 360W
- Batteries Supported: Gel, AGM, Calcium, Lithium
Smart Battery Monitor:
- Maximum Current: 320A
- Batteries Capacity Supporte: 5~320Ah
- Batteries Supported: Wet, Gel, AGM, Calcium
USB Pocket:
- Output: 5V,3.1A
Meri Socket:
- Amp Rating: 16A at 12V, 8A at 24V
Cigarette Socket:
- Amp Rating: 20A at 12V, 10A at 24V
Switches:
- Amp Rating: 20A at 12V
Heavy Duty Connector:
- Amp Rating: 50A, suits cable size 8mm2 (8B&S)
Circuit Breaker:
- Amp Rating: 100A/150A
Fuse Box:
- Load: 25A per circuit
- Circuits: 10-way ATS Blade Fuses
Board Dimensions: 900mm x 550mm
Specifications
SKU ICB1500
Brand Projecta
GTIN 9315219003485
Product Category Power Systems
Voltage 12V
Output Current Rating (Amps) 25
Watts (W) 1500
Input Voltage 9-32V DC ( DC-DC alternator)
Max Solar Input Voltage\ 35Vdc
Batteries Supported Gel, AGM, Calcium & Lithium
Battery Supported Capacity 5-320Ah
NOTE: see full product specifications & further product info in the Description section on this page.
