Projecta 3000W Mobile Power System with 7inch Bluetooth Monitor & 400Ah Lithium Battery
SKU: IG3-BT7 Learn More»
Description
Projecta 3000W Mobile Power System with 7inch Bluetooth Monitor & 400Ah Lithium Battery
The 3000W powerhouse system, like the IG2-BT7, is full of features and has a 30Amp DCDC charger to charge on the road.

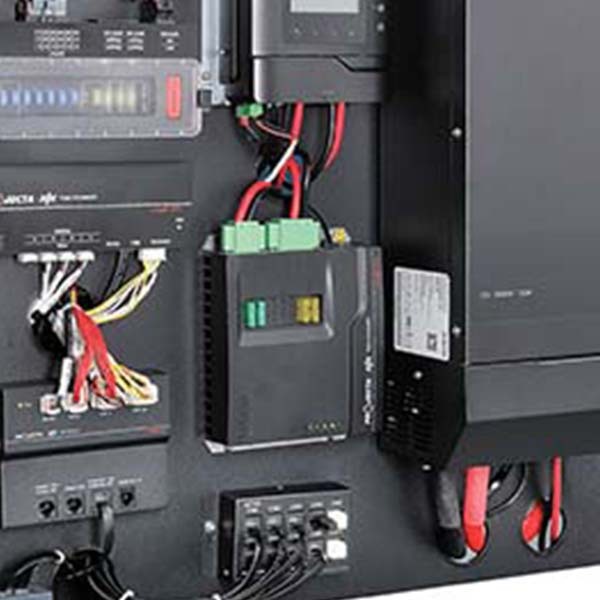

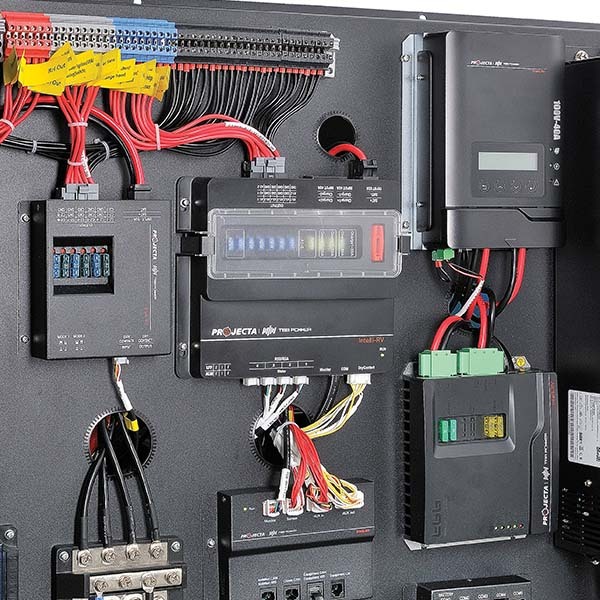

System Components:
- 7” Monitor with App
- 2KW/3KW Inverter/Charger with AC change over swtich
- MPPT Solar controller
- DC-DC Charger
- Controller Box
- Constant Output Module with 12 outputs
- Auxiliaries Controller with 9 outputs & Water Tank Measurement
- Lights Module with 6 outputs
- 200Ah/400Ah Lithium Battery
- Wireless Switch (Not supplied)
- 4 Water tank sensors (Not supplied)
Features:
- INVERTER & GRID POWER: 2000/3000W inverter with 120/180Amp charging, grid power booster and AC transfer switch. AS/NZS 3001 ready
- LITHIUM BATTERY: An advanced and powerful 200/400Ah lithium battery perfectly matched to the Intelli-Grid system provides the ultimate power for off gird requirements
- MULTIPLE CHARGING OPTIONS: 30/60A DC-DC charging and 40A MPPT solar charging for charging from vehicle or when sun is shining
- BLUETOOTH MONITOR: Bluetooth 7” Colour monitor showing SOC, full control of the RV, its water, lighting and hardware
- ADAPTABLE MODULES: Water and lighting modules are fitted to fully control your RV.
- 5 YEAR WARRANTY: Ensured durability with our 5 year warranty

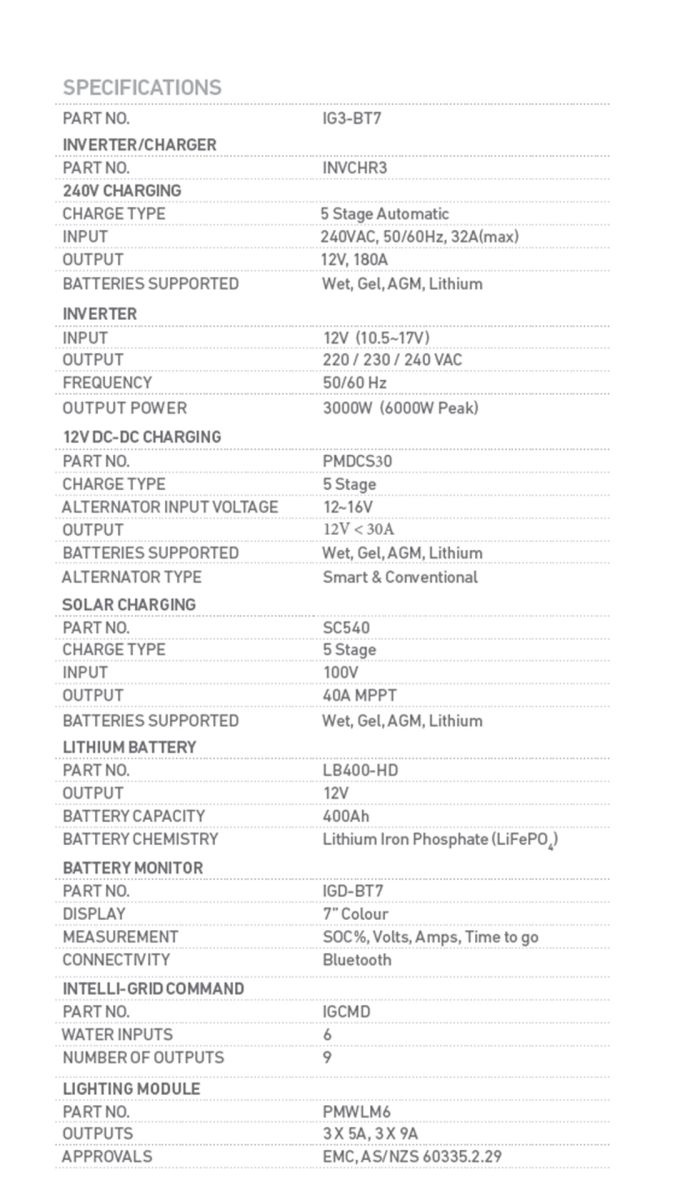

Specifications:
240V Charging:
- Charge Type: 5 Stage Automatic
- Input: 240VAC, 50/60Hz, 32A(max)
- Output: 12V, 180A
- Batteries Supported: Wet, Gel, AGM, Lithium
Inverter:
- Input: 12V (10.5~17V)
- Output: 220/230/240 VAC
- Frequency: 50/60Hz
- Output Power: 3000W (6000W Peak)
12 DC-DC Charging:
- Charge Type: 5 Stage
- Alternator Input Voltage: 12~16V
- Output: 12V, <30A
- Batteries Supported: Wet Gel, AGM<,Lithium
- Alternator Type: Smart & Conventional
Solar Charging:
- Charge Type: 5 Stage
- Input: 100V
- Output: 40A MPPT
- Batteries Supported: Wet, Gel, AGM, Lithium

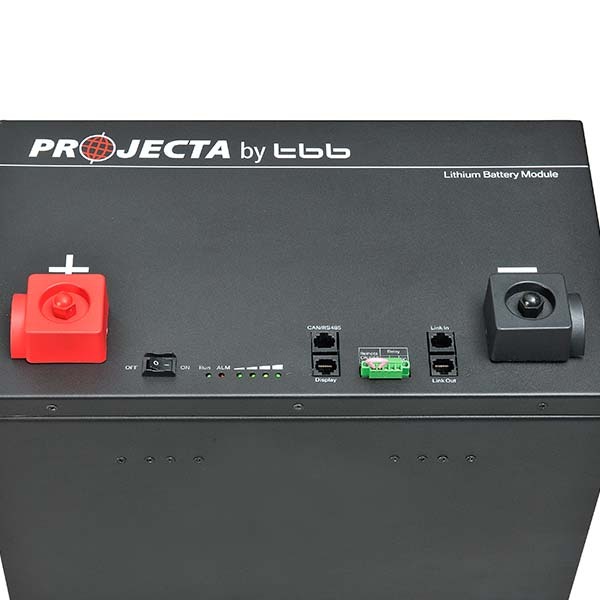

Lithium Battery:
- Output: 12V
- Battery Capacity: 400A hr
- Battery Chemistry: Lithium Phosphate (LiFePO4)
Battery Monitor:
- Display: 7" Colour
- Measurement: SOC%, Volts, Amps, Time to go
- Connectivity: Bluetooth
Intelli-Grid Command:
- Water Inputs: 6
- Number of Outputs: 9
Lighting Module:
Outputs: 3x5A, 3x9A
Specifications
SKU IG3-BT7
Brand Projecta
Product Category Power Systems
Voltage 12V
Output Current Rating (Amps) 60
Watts (W) 2000
Battery Capacity 400Ah
-Weight 21kg
Dimensions 950 x 370 x 160mm
Frequency 50/60 Hz
NOTE: see full product specifications & further product info in the Description section on this page.
