Description

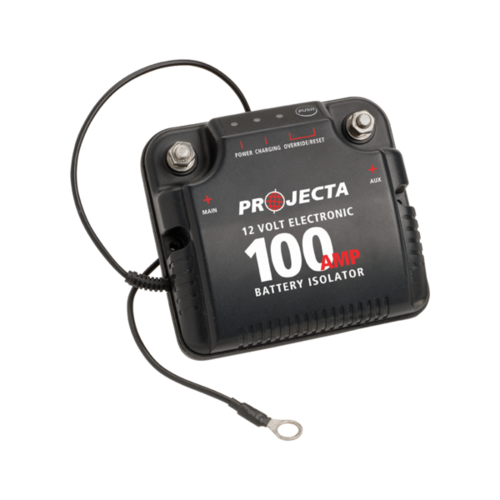

Projecta DBC100 100A Battery Isolator

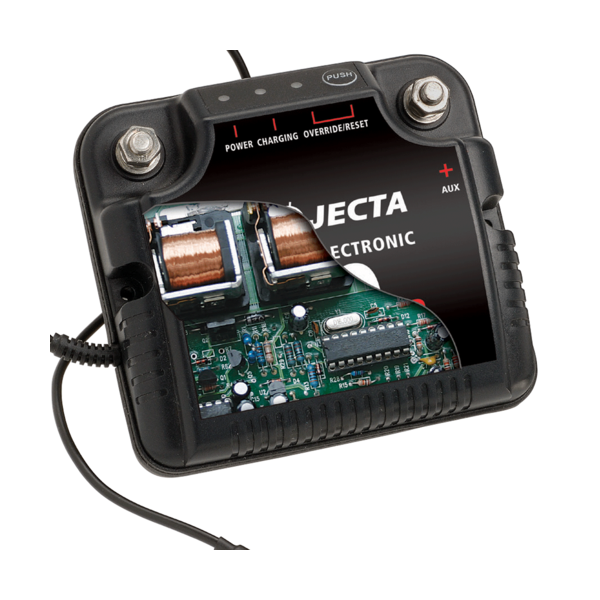

This battery isolator is a sophisticated electronic isolator that allows you to run powerful accessories such as fridges, lights and inverters without flattening your starting battery. This 100 Amp unit is ideal for use with mid-sized 4WDs through to SUVs.
Specifications:
| Cut-in Voltage | 13.4V |
|---|---|
| Cut-out Voltage | 12.8V |
| Cut-out Delay | 60 Seconds |
| Charging Control | MCU |
| Current Draw | Charging 500mA (standby 30mA) |
| Input | Minimum Operating Volatge One battery above 7.5V |
| Total Charge Current | 75A (Continuous) 100A (Peak) |
| Approvals | EMC |
| Protections | Built-in |
| Voltage | 12V |
| Charger Type | Parallel |
Features:
- Priority charging ensures main battery is charged before connecting to auxiliary

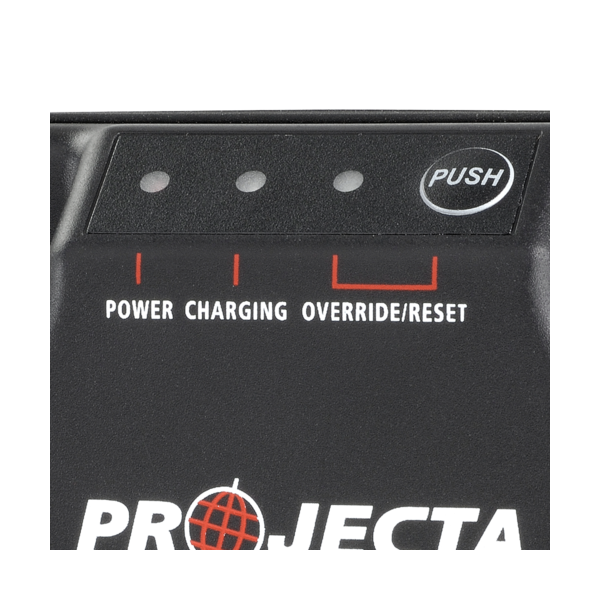

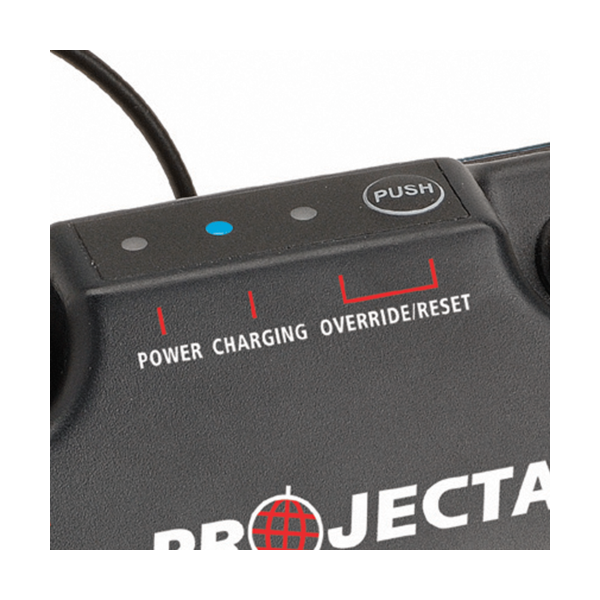

- L.E.D illuminates to highlight charge status
- The manual override allows batteries to be manually paralleled for jumpstarting
- Built-in over current and surge protection

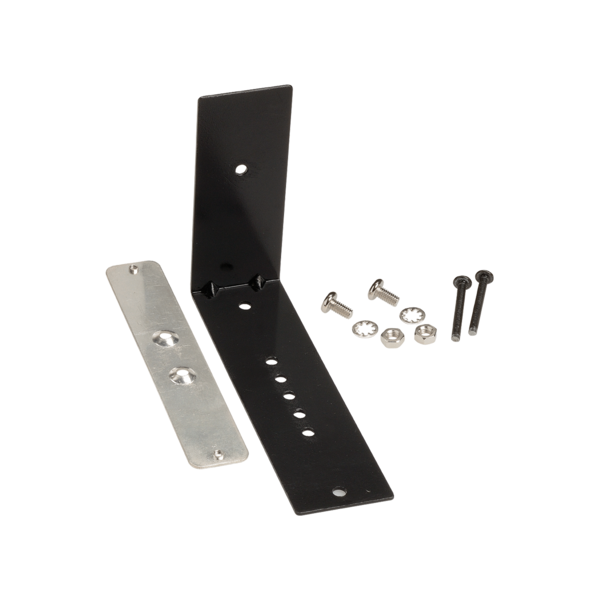

- Supplied with bracket and screws for mounting
Show More
Specifications
SKU DBC100
Brand Projecta
GTIN 9315219100559
Product Category Batteries Other
Voltage 12V
Current draw Charging 500mA (standby 30mA)
NOTE: see full product specifications & further product info in the Description section on this page.
