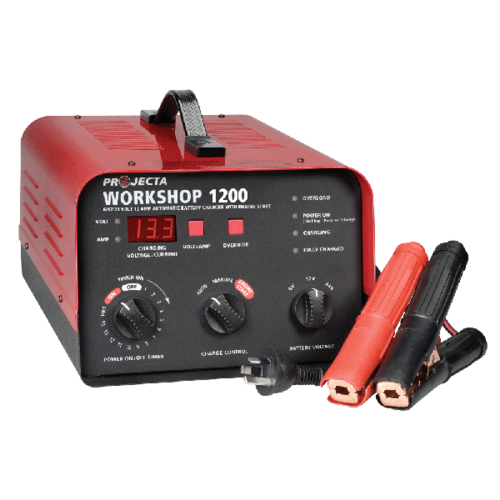

Projecta HDBC20 6/12/24V Automatic & Manual 12 AMP 2 Stage Battery Charger

SKU: HDBC20 Learn More»

Quantity

Postcode

Suburb

Description

Specifications:

Output Current Rating 12.0 Amps
Charging Control 6V: 7.1V; 6.7V; 0.0V | 12V: 14.2V; 13.4V; 0.0V | 24V: 28.4V; 26.8V; 0.0V (Cut out; Cut in; Start)
Input 240V, 50Hz, 324W
Output 12.0A at 6.0V; 12.0A at 12.0V; 7.7A at 26.0V
Start Voltage 6V: 50A at 3.6V | 12V: 50A at 7.2V | 24V: 25A at 14.4V
Approvals Electrical Satefy, EMC
Charger Type 2 Stage Automic & Manual
Warranty 1 Year

Features:

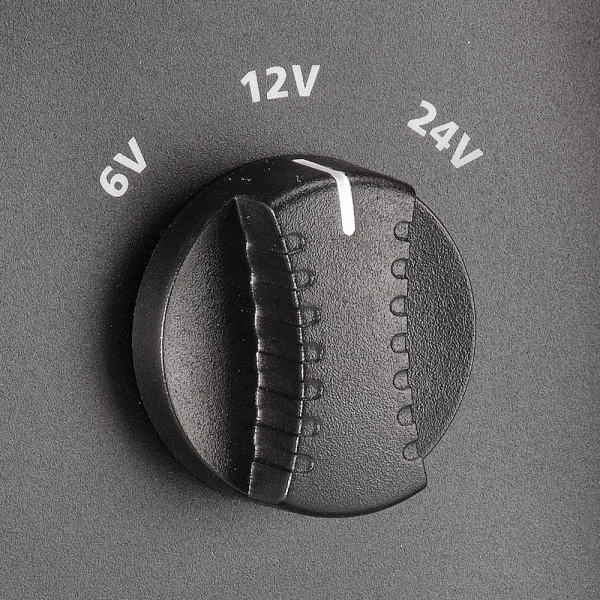

Adjustable to suit 6, 12 or 24 Volt operation

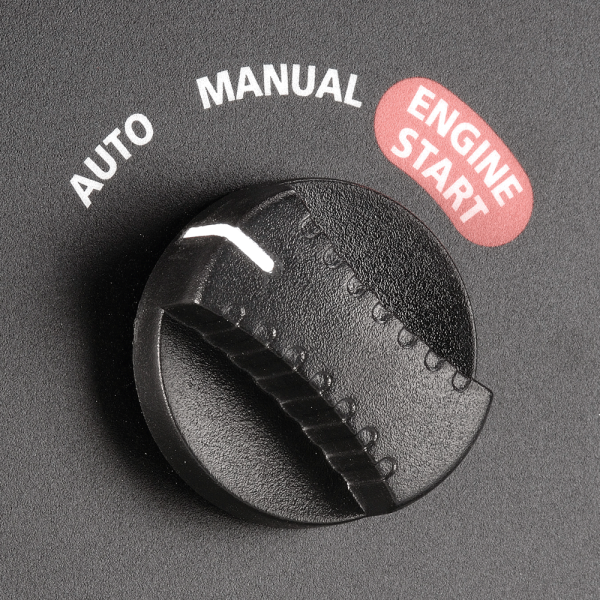

Charging options keep the operator in control

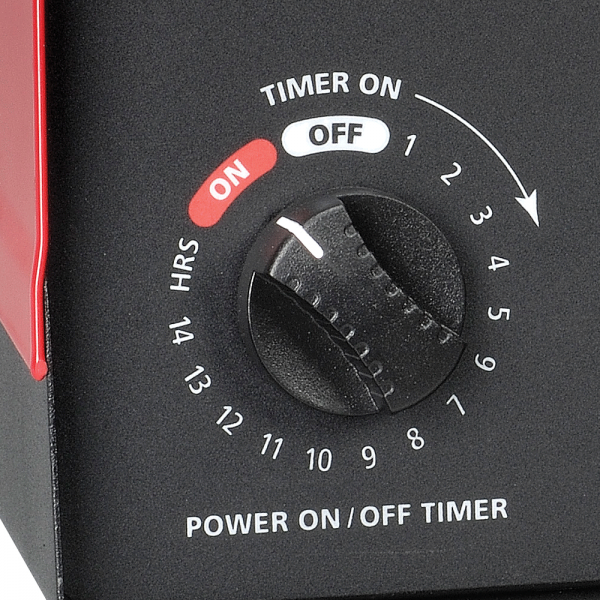

Automatically turns charger off at set time
Starts vehicle with a flat battery after a controlled 5 minute charge (subject to battery condition)

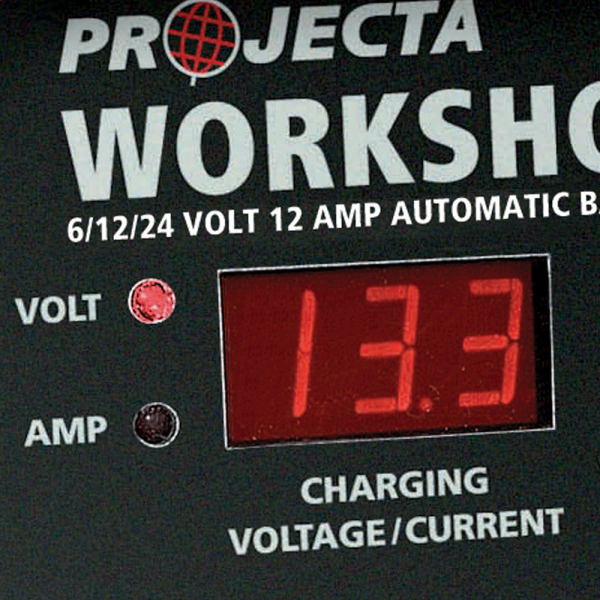

Displays Volt and Amp readings for accurate charge status
The Workshop charger range features multi-voltage operation, ideal for industrial environments where 6V, 12V or 24V batteries are often utilised
Fully automatic and spark-free
Automatic charging functionality, and depending on the level of sophistication required for the job at hand are available in either 2 stage (HDBC20 & HDBC35) or 8 stage (HDBM4000) options

SKU HDBC20

Brand Projecta

GTIN 9315219802804

Product Category Battery Chargers

Output Current Rating (Amps) 12

Dimensions 301 x 264 x 161 (LxWxH) mm

Weight (kg) 8.6

Charger Voltage 6/12/24V

NOTE: see full product specifications & further product info in the Description section on this page.
