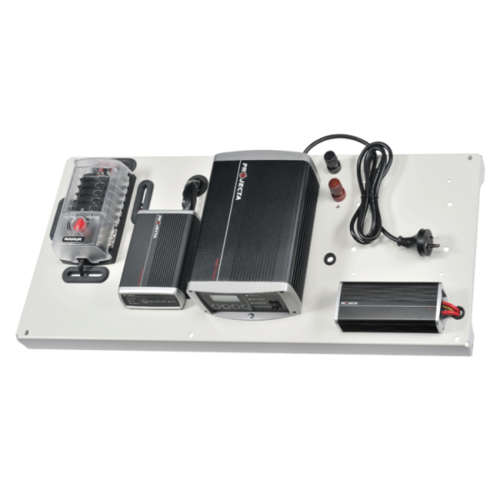

Projecta ICB3500 12V 35A Power Management Board
Utilising the latest range of premium ‘Intelli’ power management equipment, these 35 Amp power boards are a sophisticated and complete system that is ideal for caravan and motor home applications. Pre-built, these all-in-one units enable quick and easy installation.

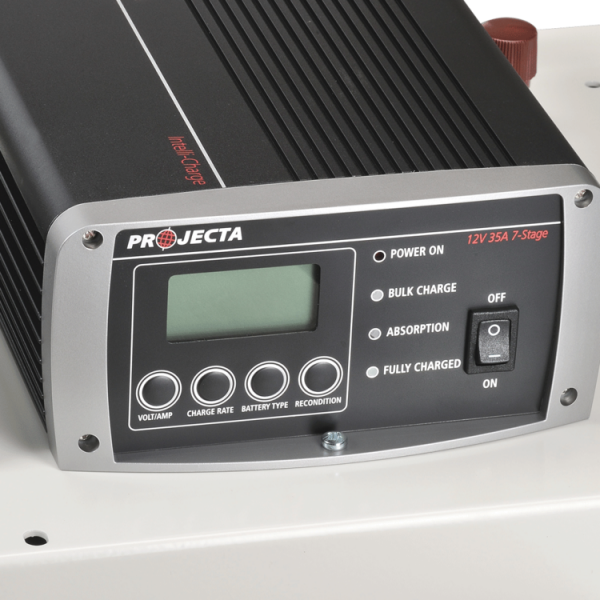

240V Charging Specifications:
- Charge Type 7 Stage Automatic
- Input 240VAC, 50Hz, 570W
- Output 12V
- Output Current 2, 8,16, 35A
- Batteries Supported Gel, AGM, Wet & Calcium

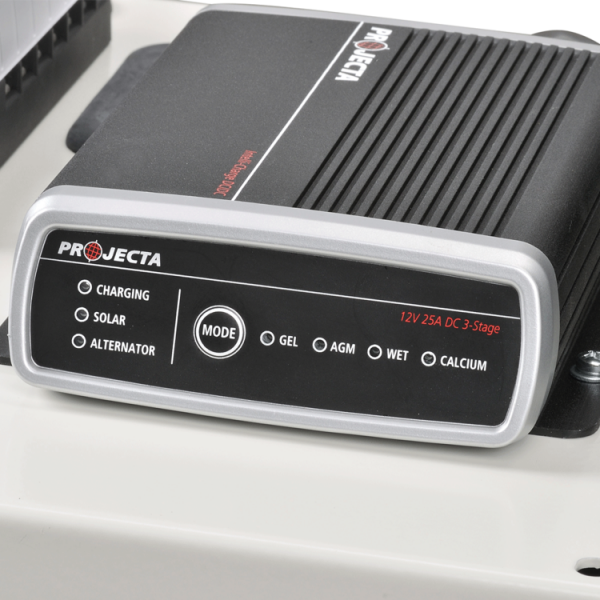

Solar Controller Specifications:
- Charge Type 3 Stage
- Input 9-32Vdc
- Max Solar Input 23Vdc, 385W
- Batteries Supported GEL, AGM & WET
- Alternator type Smart & Conventional

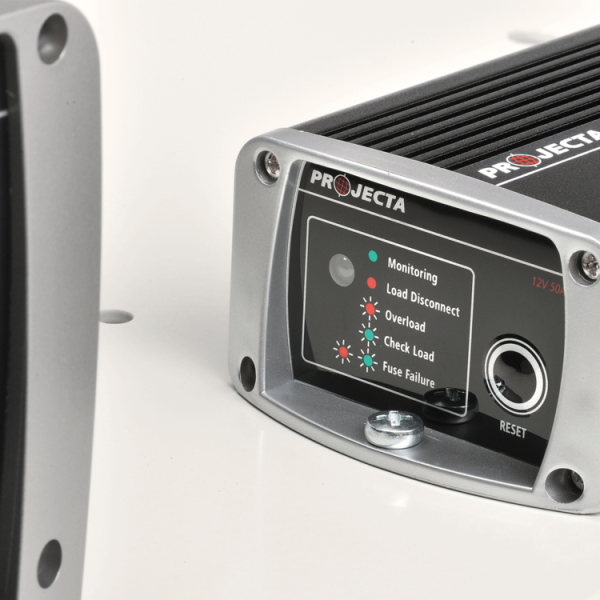

LVD CONTROL Specifications:
- Input Voltage 10-16V
- Output Current 50A
- Disconnect Voltage Setpoints 10.0V, 10.5V, 11.0V, 12.0V
- Reconnect Voltage 13.0V

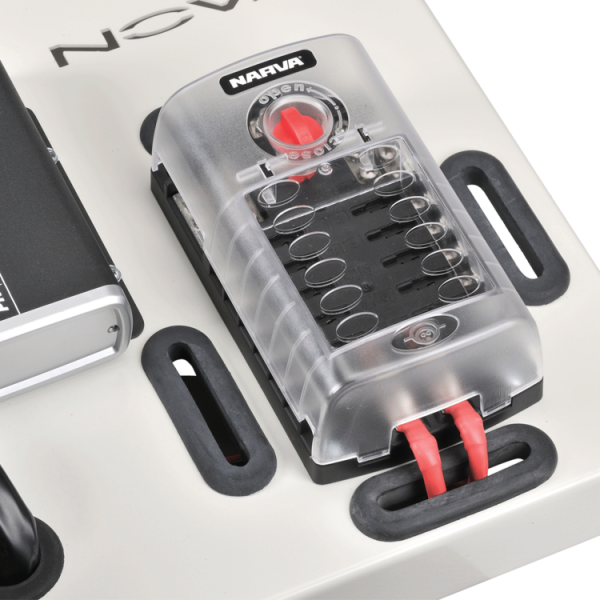

Fuse Block Specifications:
- Load 30A per circuit, 120A per block at 12V
- Circuits 6-Way ATS Blade Fuses
Features:
- A sophisticated 7A automatic charger that features multi-chemistry selection and adjustable output to match your battery type
- Advanced battery charger that utilises both solar and the tow vehicle’s power to deliver a comprehensive 3 stage charge
- A robust and compact unit that protects expensive deep cycle batteries from damage caused by over-discharge
- A 12-way standard ATS blade fuse/circuit breaker block with single grounding and dual power inputs

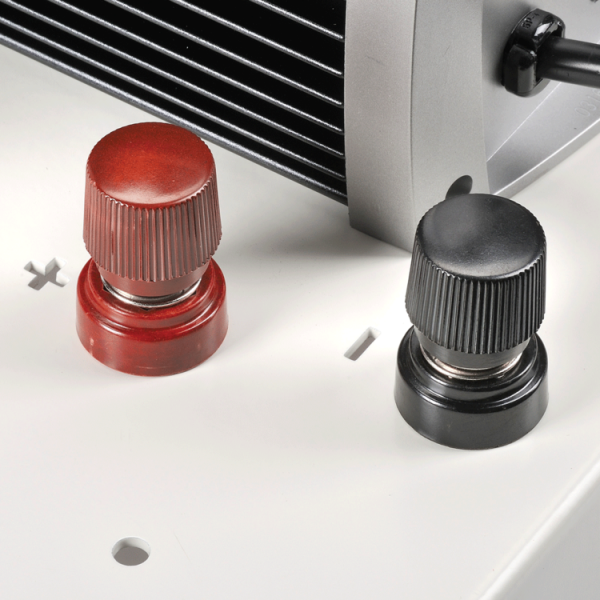

- Heavy-duty positive and negative terminal posts allow for quick and direction connection to the batteries (P/No. INVPOSTS)
- Dimensions 860mm x 345mm x 45mm
Specifications
SKU ICB3500
Brand Projecta
GTIN 9315219010070
Product Category Power Systems
Voltage 12V
NOTE: see full product specifications & further product info in the Description section on this page.
