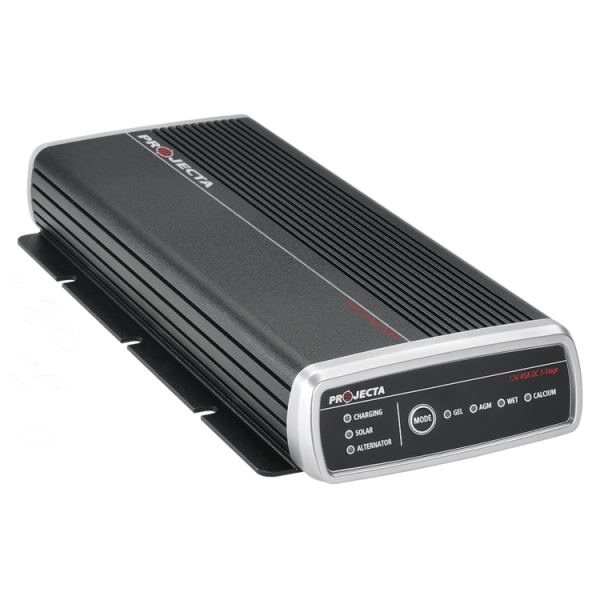

Projecta IDC45 45A 3 Stage DC/Solar Battery Charger
SKU: IDC45 Learn More»
Description
Projecta IDC45 45A 3 Stage DC/Solar Battery Charger
Following the enormous success of the IDC25 DC/Solar Battery Charger, Projecta has now released a 45 Amp version that combines many of the market-leading features of the original, with a much larger output designed to deliver faster charging and handle more demanding applications. Allowing you to charge your 12V second/auxiliary deep cycle battery on the go, the IDC45 is shock, vibration and dust proof. The unit is also water resistant, making it suitable for both in-vehicle and under-bonnet installation. Able to charge simultaneously from both solar and alternator (9–32V) inputs, IDC45 can also function as an MPPT solar controller and features dual charging modes for compatibility with both smart and conventional alternators. This easy to install Projecta DC-DC Charger is loaded with a host of safeguard features, including over/under voltage, anti-sparking, reverse connection and over temperature protection systems to ensure peace of mind.
Specifications:
- Output Current Rating 45 Amps
- Charging Control Gel: 14.1V | AGM: 14.4V | WET: 14.7V | Calcium: 15.4V

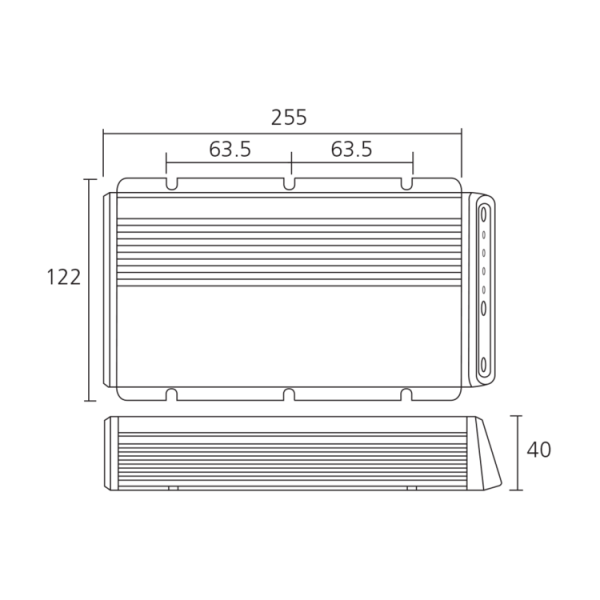

- Dimensions 255 x 122 x 40 mm
- Back Current Drain < 5mA (on AUX Battery)
- Battery Capacity 150-600 Ah
- Weight 1.5 kg
- Temperature Range -10°C to +80°C
- Maximum Solar Watt Input 28Vdc, 693W
- Input Voltage 9-32Vdc
- Charger Type 3 Stage
- Warranty 1 Year
Features:
- Simultanous dual battery charging from both solar and alternator inputs, no manual switching required

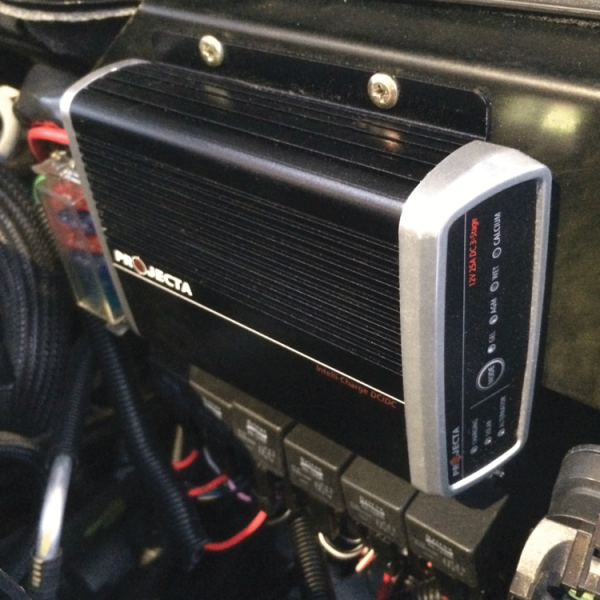

- Sealed to IP67, IDC45 will resist dust, water and shock damage, making it ideal for under bonnet installation
- This Projecta DC-DC Charger can safely operate (at a reduced charge rate) in extreme temperatures up to 80° C, as found in engine bays in hotter climates
- IDC45 will continually adjust its charge voltage to suit the battery temperature, protecting it from overcharge and overheating
- Adjust battery chemistry at the touch of a button for optimum charging
Show More
Specifications
SKU IDC45
Brand Projecta
GTIN 9315219252555
Product Category Battery Chargers
Output Current Rating (Amps) 45
Dimensions 255 x 122 x 40 (LxWxH) mm
Weight (kg) 1.54
Charger Voltage 12V
NOTE: see full product specifications & further product info in the Description section on this page.
Reviews
dc-dc charger projecta 45 amp dc/solar
By: DANIEL NEEDHAM on15 March 2021
work,s great charging 5/130 amp/hour batteries-running a 600 and 1500 watt invert,s off them
