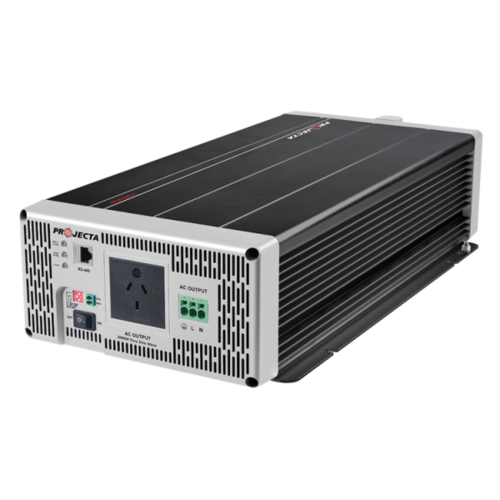

Projecta IP3000-24 24V 3000W Intelli-Wave Pure Sine Wave Inverter
SKU: IP3000-24 Learn More»
Description
Projecta IP3000-24 24V 3000W Intelli-Wave Pure Sine Wave Inverter

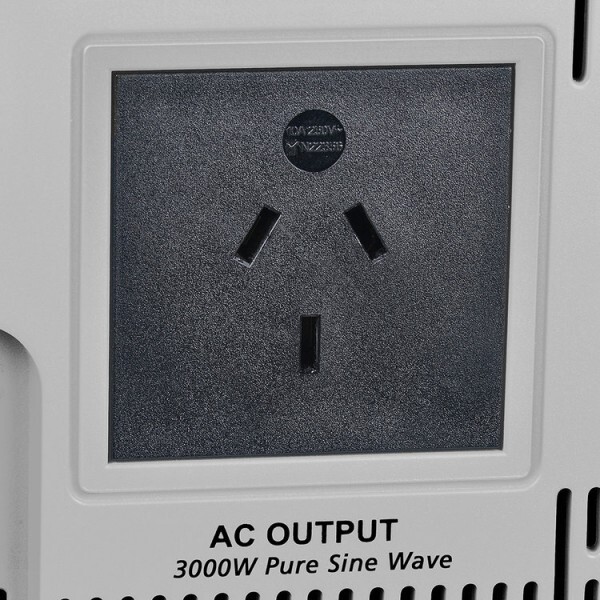

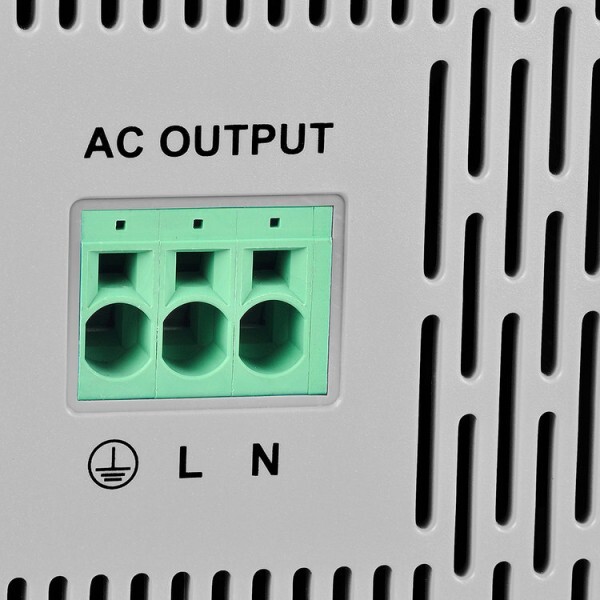

Designed to power up and run the most demanding appliances with ease and reliability, Projecta’s new IP3000-24 inverter joins the Intelli-wave family as our most powerful inverter to date. This Projecta inverter is a pure sine wave powerhouse that offer an incredible 6000W of peak power for up to 3 seconds and 4500W for up to 10 seconds, overcoming the most demanding appliance start up requirements. With 2400W/10A of continuous power provided by its 240V AC socket, and 3000W/13A when hardwired via the included wiring kit, there is little on the go that the IP3000-24 Projecta Inverter can’t operate with complete safety and peace of mind.

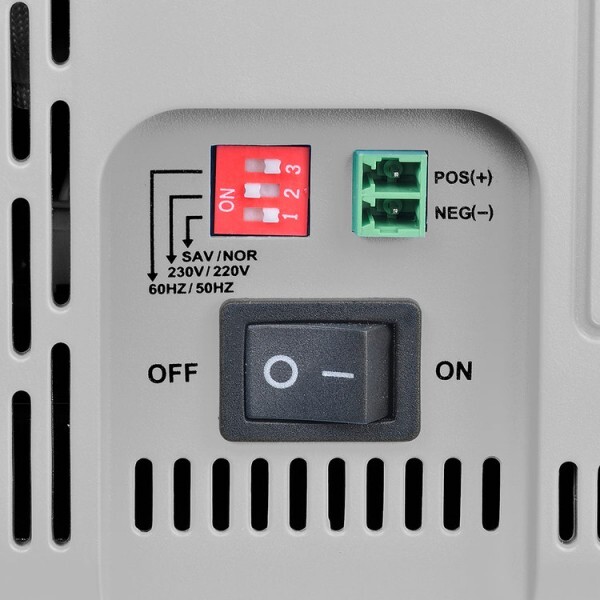

This Projecta inverter can be wired for remote activation via the switch node, allowing it to be neatly installed out of view or in the case of OEM applications. A selectable “eco mode” allows the inverter to shut off output if load value is less than 50VA, preserving power. A fully isolated unit, complies with AS/NZS 4763 standards, IP3000-24 incorporates a host of advanced safety features, including voltage, temperature, fault and overload protections, safeguarding against injury and damage to sensitive appliances, electrical systems or batteries. Input voltage, output load level and fault code LED indicators plus an audible alarm ensure easy error diagnosis.
Specifications:
- Wattage 3000W
- Input 24VDC, 150A Max
- Output 240VAC, 50Hz (Pure Sine Wave)
- Warranty 1 Year
- Output Power 3000W Continuous (6000W Peak)
- Battery Low Alarm Protection 21.6V
- Battery Low Shutdown Protection 21.6V (±0.2V)
- Ideal Battery Type 50–250Ah
- Dimensions 507 x 249 x 116 mm
- Output Wave Form True Sine Wave
- Over Voltage Shutdown 65°C (±5°C)
- Efficiency 85-90%
- Approvals Electrical Safety, EMC

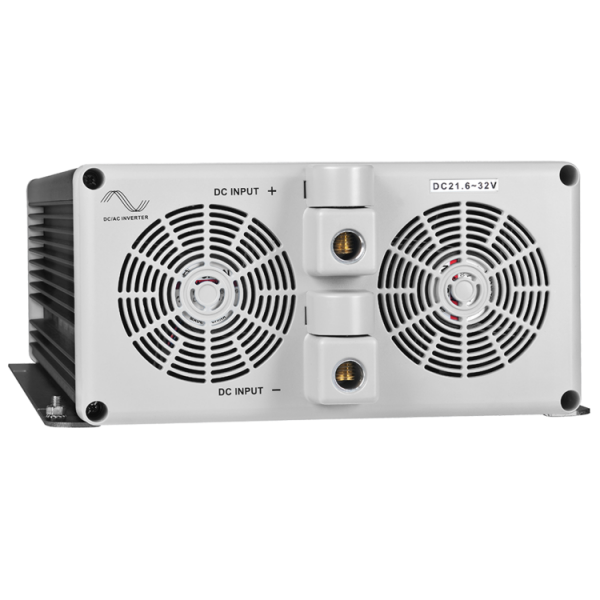

- Cooling Automatic Temperature Controlled Fan
- Weight 7.6 kg
Features:
- Enormous 6900W Surge Power, 6000W for 3 seconds
- Up to 13A (3000W) constant output
- Selectable power saving mode
- Output for remote activation
- Thermostatically controlled cooling fan
- Fully isolated, complies with AS/NZS 4763
- Voltage, temperature, fault and overload protection

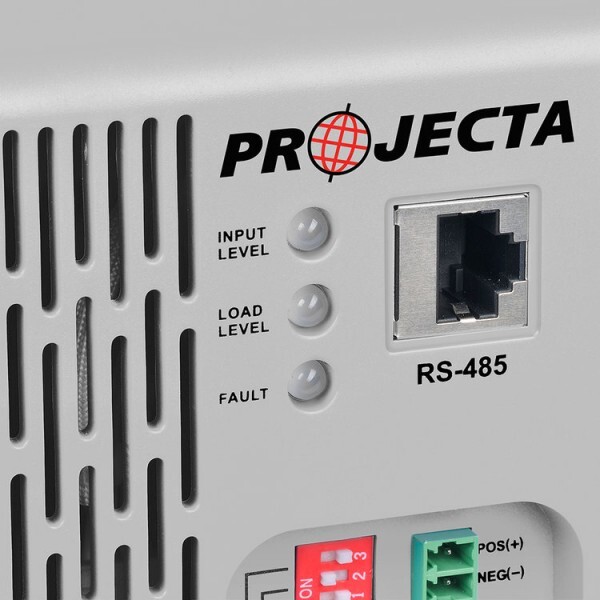

- Input voltage, output load level and fault code indicators
- Pre-terminated wiring kit included for easy connection
Specifications
SKU IP3000-24
Brand Projecta
GTIN 9315219919014
Product Category Power Inverters
Voltage 24V
Wattage (W) 3000
Dimensions 249 x 116 x 507mm (WxHxD)
Peak Power (W) 6000
Weight (kg) 7.6
NOTE: see full product specifications & further product info in the Description section on this page.
