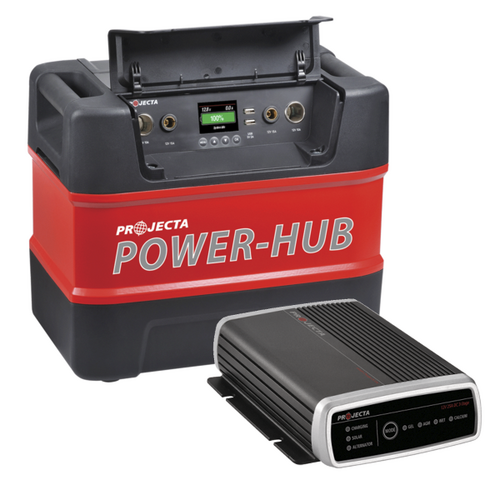

Projecta PH125 12V Portable Power-Hub & IDC25 Automatic 9-32V 25A 3 Stage DC/Solar Battery Charger Bundle

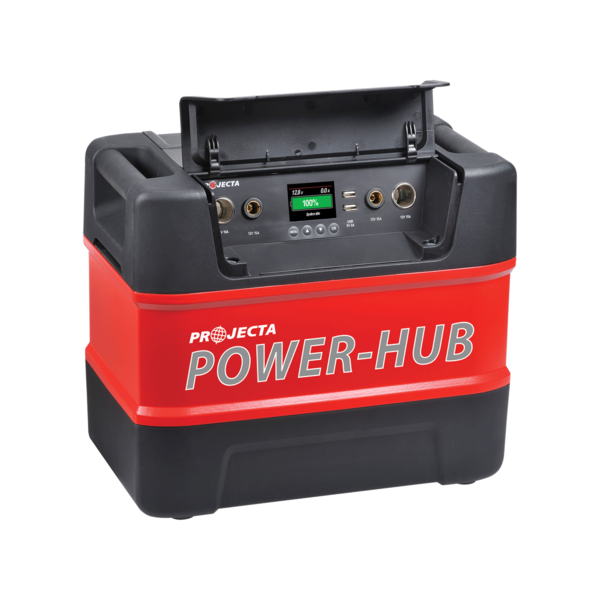

Power-Hub turns your battery into a versatile user friendly option for powering and charging a wide range of accessories and appliances while you are ‘off the grid’. It is the ideal alternative to a conventional dual battery system, giving you the freedom to take power away from your vehicle. Projecta’s PH125 Portable Power-Hub is designed to make power available anywhere at any time. Power-Hub turns your 12 volt battery into a convenient, versatile and user friendly device allowing you to venture further off the beaten track than ever before while still having power available to charge and run all your devices and appliances.

With a staggering 10 power outlets, the Power-Hub allows you total freedom to charge or power multiple devices simultaneously. Power outlets include a 240V AC socket providing clean ‘Pure Sine Wave’ power, USB, Cigarette Lighter, Engel, 50A Heavy Duty and Merit sockets as well as DC Terminals. The Power-Hub is an ideal alternative to a conventional dual battery system with the added bonus of allowing you to take power away from your vehicle and its versatility makes it ideal for a wide range of applications including camping, caravanning, on the work site, in the backyard or on 4WD expeditions.

The Power-Hub is ergonomically designed for outdoor applications with gutters moulded into the top housing to allow water to drain away from vital electrics, weatherproof covers to shield the plugs and sockets with a slot allowing the cords to remain plugged in while the cover is closed. Soft touch over-moulded handles provide maximum grip comfort and double as tie down points to secure it from moving around your vehicle.

• 2.4” colour LCD monitor utilises patented ‘self-learning’ technology to provide comprehensive battery status information
• 300 Watt pure sine wave inverter for powering sensitive electrical equipment
• Compatible with a wide range of battery sizes and chemistry types. Simply fit your chosen battery and you’re good to go

• Camping and caravanning
• 4WD and Leisure
• On the worksite

Sutiable for Century Batteries:

• C12-105XDA - Century 12V 105Ah AGM Deep Cycle Battery
• C12-120XDA - Century 12V 120Ah AGM Deep Cycle Battery
• Century 120Ah AGM Deep Cycle Battery & eArc 100W Flexible Solar Panel Bundle
• Century 105Ah AGM Deep Cycle Battery & eArc 100W Flexible Solar Panel Bundle

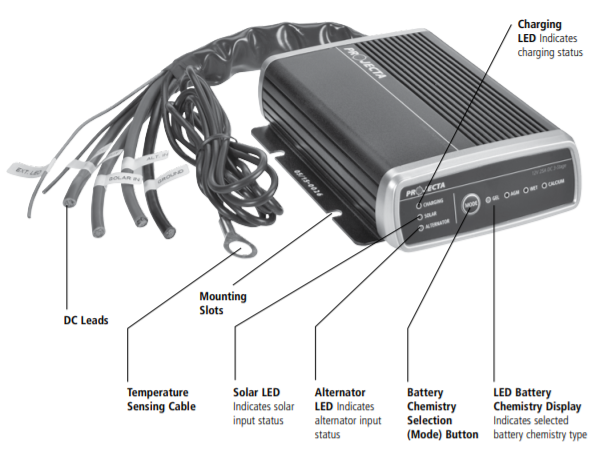

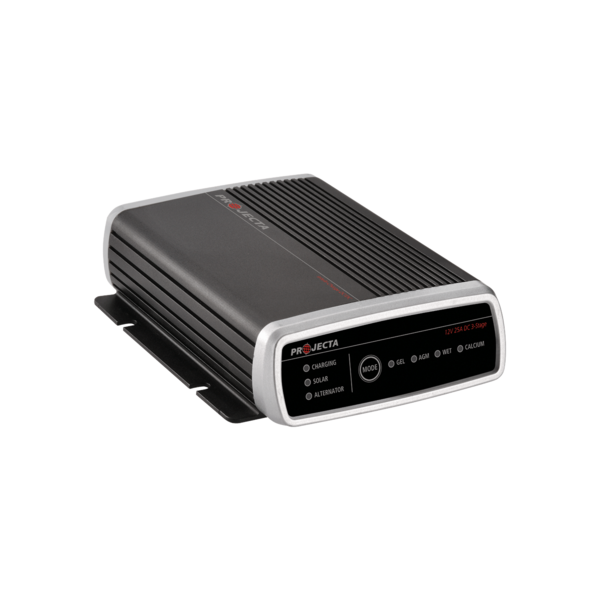

Projecta IDC25 Automatic 9-32V 25A 3 Stage DC/Solar Battery Charger

A truly sophisticated dual battery management system ideal for 4WD and camper trailer applications. Provides an advanced 3 stage charge simultaneously from both solar and alternator inputs. Able to charge simultaneously from both solar and alternator (9–32V) inputs, IDC25 can also function as an MPPT solar controller and features dual charging modes for compatibility with both smart and conventional alternators. Loaded with a host of safeguard features, the easy to install unit includes over/under voltage, anti-sparking, reverse connection and over temperature protection systems to ensure peace of mind.



Specifications:

• Output Current Rating 25.0 Amps
• Charging Control Gel: 14.1V | AGM: 14.4V | WET: 14.7V | Calcium: 15.4V
• Dimensions 149 x 122 x 42 mm
• Back Current Drain 9.5-10.5mA (on AUX Battery)
• Battery Capacity 75-300 Ah
• Weight 0.8 kg
• Temperature Range -10°C to +80°C
• Maximum Solar Watt Input 23Vdc, 385W
• Input Voltage 9-32Vdc
• Charger Type 3 Stage





Features:

• Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C
• Engineered to work with both smart and conventional alternators
• Set the charging profile to suit battery chemistry type: Wet, Calcium AGM or Gel
• Simultaneous dual battery charging from both solar and alternator inputs
• Over temperature, reverse connection, over/under and spark free protection
• Simultanous dual battery charging from both solar and alternator inputs, no manual switching required
• IDC25 can safely operate (at a reduced charge rate) in extreme temperatures up to 80° C, as found in engine bays in hotter climates
• Continually adjust its charge rate to suit the battery temperature, protecting it from overcharge and overheating
• Adjust battery chemistry at the touch of a button for optimum charging.
