Description

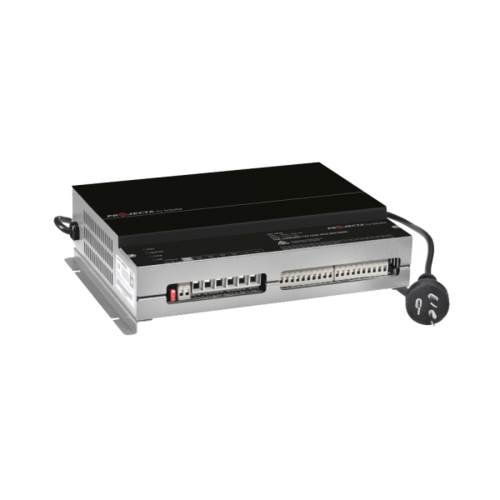

Projecta PM100 RV Power Management System



The entry level system for set-and-forget battery system management. Includes centralised unit for neat and easy wiring of lighting and electricals, 35A power supply, 5 stage charging via DC 100A VSR* or 20A charge via AC plug. PM100 connects your service/caravan battery to the vehicle starter battery and ensures alternator charge prioritises the starter battery first. It protects the voltage of the starter battery so you can start your car every single time, even with a heavy load on the auxiliary. Features 10 channel fused output via screw terminals, L.E.D status indicators and charge or power supple switch.


Specifications:
Power 35A
Charging Voltage 12V
Output Fuse Rating 10
Dimensions (LxWxH) mm 270 x 197 x 70
Battery Range 12.8-16VDC (Starter) | 10.5-16VDC (Service)
Net Weight (kg) 2.6 Kg


Features:
  • Voltage Sensitive Relay engages & disengages with engine
  • 20A Charger, 35A Power Supply
  • Screw terminals for input and output
  • Charge or Power Supply Switch
  • LVD to protect the battery from deep discharge



Dometic Harrier Operation Manual



Show More

Specifications

SKU PM100

Brand Projecta

GTIN 9315219110015

Product Category Battery Management System

Voltage 12V

Operating temperature range -40°C~+65°C (50°C full load; 60°C20A;65°C

Dimensions 270 x 197 x 70 mm (L x W x H)

Weight (kg) 2.6

Nominal Voltage 240 ± 10% VAC | 50/60Hz (Input) | 12.8 0.2 VDC (Output)


NOTE: see full product specifications & further product info in the section on this page.
