Projecta PM300 RV Power Management System & 160W Polycrystalline Fixed Solar Panel & MC4 Connector Bundle

SKU: PM300-Solar Learn More»
Projecta PM300 RV Power Management System & 160W Polycrystalline Fixed Solar Panel & MC4 Connector Bundle
Free Shipping

PM300-1xSPP160-MC4

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Description

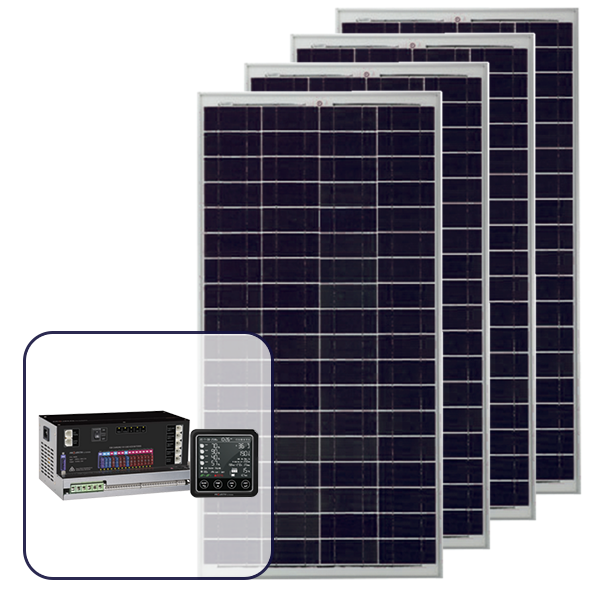

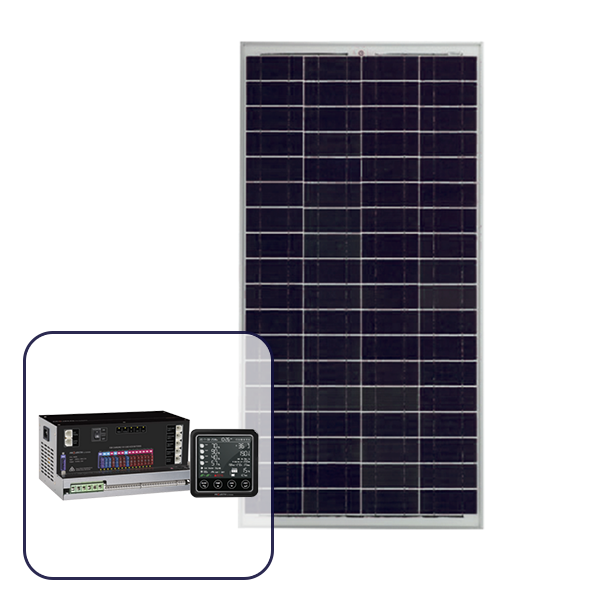

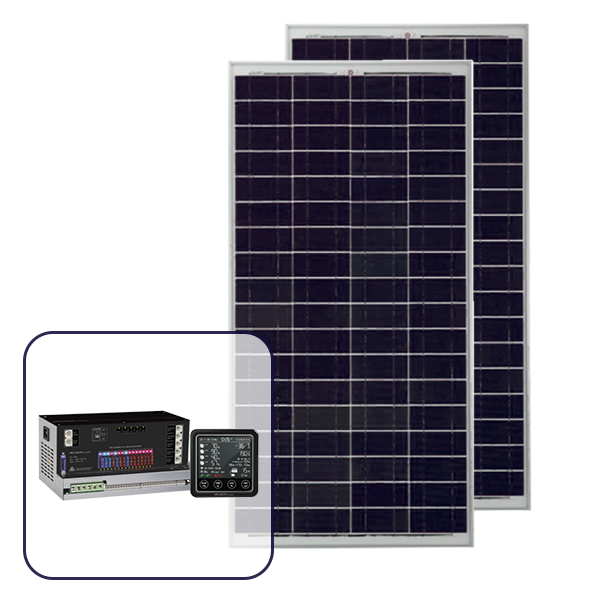

Projecta PM300 RV Power Management System & Projecta 12V 160W Polycrystalline Fixed Solar Panel Bundle

Bundle Includes:

  • 1 - 4 x Projecta SPP160-MC4 Polycrystalline 12V 160W Fixed Solar Panel with MC4 Connector
  • 1 x Projecta PM300 RV Power Management System

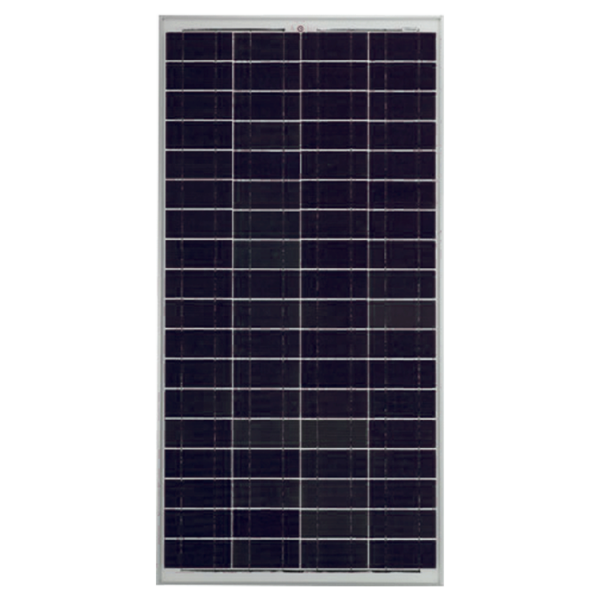

1 - 4 x Projecta SPP160-MC4 Polycrystalline 12V 160W Fixed Solar Panel with MC4 Connector

These panels are ideal for caravans, motor homes, house boats, remote holiday shacks and farming applications where power is required to charge battery banks servicing multiple or larger appliances.

Specifications:

  • Wattage 160W
  • Maximum Power Voltage 17.5V Vm
  • Maximum Power Current 9.15A Im
  • Open Circuit Voltage 21V Voc
  • Short Circuit Current 10.07A Isc
  • Test Conditions 1000W/m2, 25°C
  • Height 1490 mm
  • Width 665 mm
  • Depth 35 mm
  • Voltage 12VDC
  • Cell Type Polycrystalline
  • Battery Automotive 500-1800CCA
  • Battery Marine 600-2000MCA
  • Battery Deep Cycle 60-280Ah
  • Battery Charging Time 7-35 h
  • Warranty 1 Year

Features:

  • Standardised MC4 connector fitted for ease of installation where MC4 connectors are used
  • Provides better impact resistance and improved light transmission
  • Superior strength and durability

Dometic Harrier Brochures

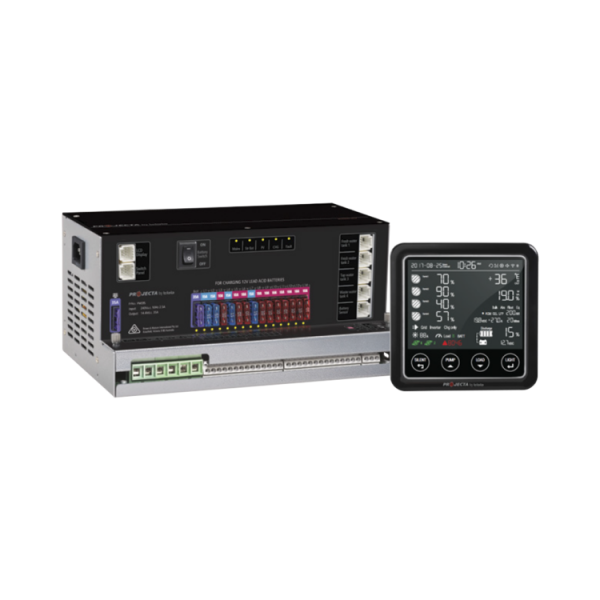

Projecta PM300 RV Power Management System

A comprehensive system building on all the functionality of PM200, but with a remote LCD display offering advanced monitoring of battery, solar, water and electrical systems, plus a full MPPT 30A solar charge controller. PM300’s remote LCD control features battery and charging information (Volts, AMPs, SOC, time remaining), up to 4 water tank level inputs with pump control, a load switch, night mode and silent mode for quiet operation. 14 channel fused output and WAGO® terminals, plus a host of protection features and sensors ensure easy, safe operation and monitoring of your electricals.

Specifications:
Power 35A
Charging Voltage 12V
Output Fuse Rating 4 x 15A: 10 x 10A
Dimensions (LxWxH) mm 266 × 165 × 129
Net Weight (kg) 3.0 Kg
Included LCD Remote Control

Features:
  • Voltage Sensitive Relay engages & disengages with engine
  • 20A Charger, 35A Power Supply
  • Wago® Terminals for easy wiring
  • Manual Battery Switch connection for remote & local operation
  • MPPT Solar Input
  • Water Level & Pump Control

Dometic Harrier Operation Manual

Show More

Specifications

SKU PM300-Solar

Brand Projecta

Product Category Solar Bundles

Voltage 12V

Watts (W) 160

Watts (W) 640

Watts (W) 320

Watts (W) 480

Solar Panel Cell Type Polycrystalline

Solar Panel Type Fixed Solar Panels


NOTE: see full product specifications & further product info in the section on this page.
