Purpleline Quattro Platinum - Single axle up to 2250kg
SKU: EGO500T Learn More»
Description

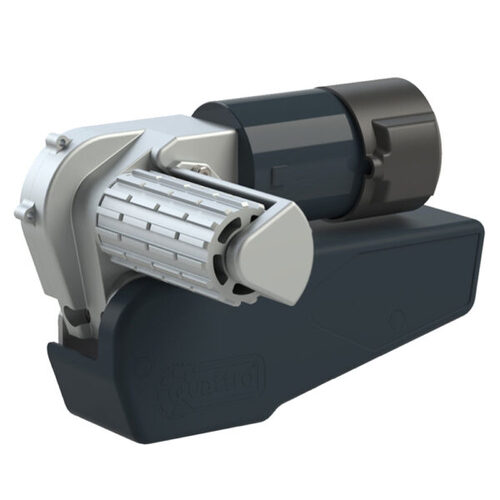

Purpleline Quattro Platinum Caravan Mover
The caravan mover of choice for big Aussie vans up to 3000kgs on twin axles, the Quattro Platinum 500 comes with large 180mm wide rollers and an adjustable wind-on engager. Unlike powered jockey wheels, the Platinum drives the wheels of the van directly, where 90% of the caravan’s weight is located, rather than on the a-frame that only carries 10% of the van’s weight.
Strong, reliable, and robust – you’ll be able to manoeuvre without the need for any manual labour. The Quattro Platinum incorporates Quattro technology – the intelligent modular system, featuring soft-start mechanics that can be used on single, twin and 4WD caravans.
Excellent value lightweight auto-engaging caravan mover with protective and smart electronics. The powerful and efficient motor makes for stress-free caravan manoeuvring.
Option of:
- Single axle up to 2250kg
- Twin axle up to 3000kg
Safety Features:
- An isolation switch was fitted to prevent accidental use of the remote
- Unique double press ‘on’ button on the handset to prevent accidental operation
- The control unit and the handset will shut down automatically after 60 seconds if the handset is not used in that time
- The control unit will shut down if the mover is working constantly in one direction for 3 minutes
- Built-in motor overload protection (current and temperature) – no requirement for a fuse
- Automatically brakes immediately as soon as the handset button is released
Features:
- Suitable for single and twin-axle caravans
- Auto-engage effortlessly moves caravans up to 3000kg

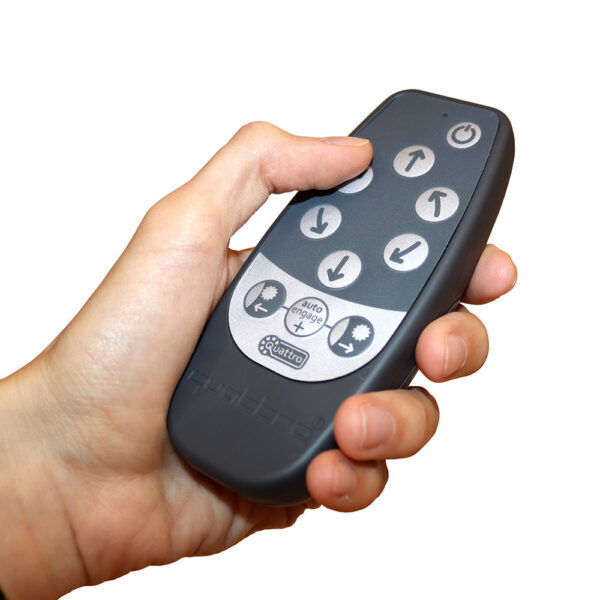

- Easy manoeuvring with Smart Handset
- Market-leading 2-year warranty
Specifications:
- Operational Voltage: 12V DC
- Avg Current Consumption: 25 Amps
- Max Current Consumption: 120 Amps
- Max Speed: 12cm / sec
- Weight: 31kg (includes fit kit)
- Minimum Width (caravan/trailer):1800mm
- Maximum Width (caravan/trailer): 2500mm
- Safe Working Load (SWL) (3000kg - 4 motors): up to 2.5 tonnes on a 20% incline
- Dimensions - 780L x 390W x 310H (mm)
Specifications
SKU EGO500T
Brand Purpleline
GTIN 5060048880281
Product Category Caravan Movers
Weight (kg) 31
Operational Voltage 12V DC
Avg Current Consumption 25 Amps
Max Current Consumption 120 Amps
Max Speed 12cm/sec
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Is the Quattro suitable for tough Australian road conditions?
Yes, each Quattro is a sealed, anodised, alloy unit that is very tough and rugged, ideally suited to the demands of outback Australian roads.
-
Will the Quattro fit my caravan?
There are many deciding factors that affect whether a Quattro will fit, it is best to contact your local Quattro installer as they will be able to say if it will fit on your caravan..
-
Will the Quattro fit on twin axle caravans?
The Quattro is suitable for single and twin axle caravans.
-
Does the Quattro have soft start and stop?
It has precision control operation and provides excellent accuracy.
-
Where is the best location for the mover?
The best location for most Quattro movers is in front of the axle. However, if this is not possible it is usually possible to fit behind the axle.
-
Does it fit on a caravan with shock absorbers?
Yes.
-
Is there an override if the auto engage fails?
Yes! You will need to put a hex head socket over the hex head bolt, then attach a drill to wind or unwind the roller.
