Purpleline Quattro Quickey - Single axle up to 2250kg
SKU: EQR130T Learn More»
Description

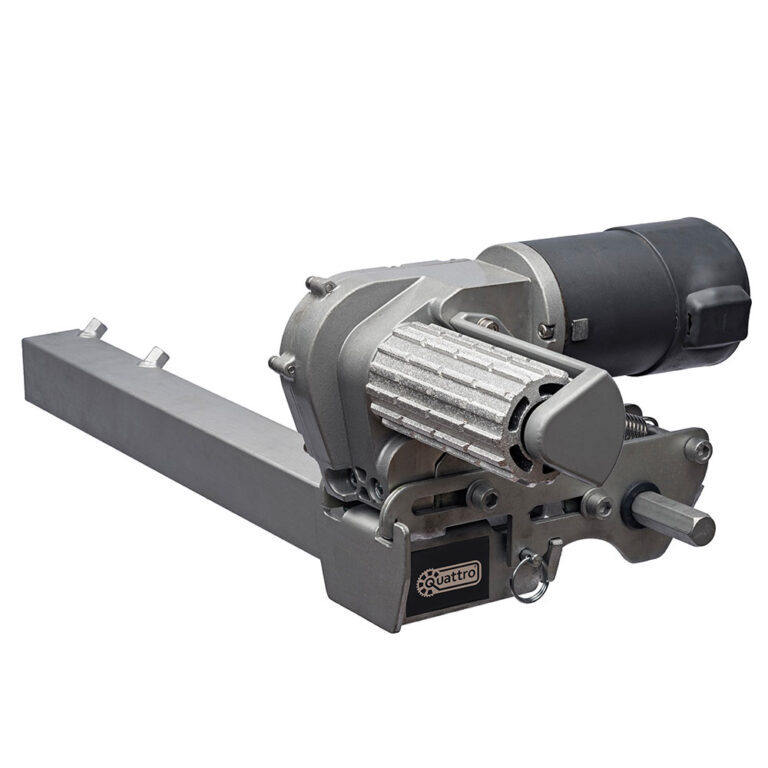

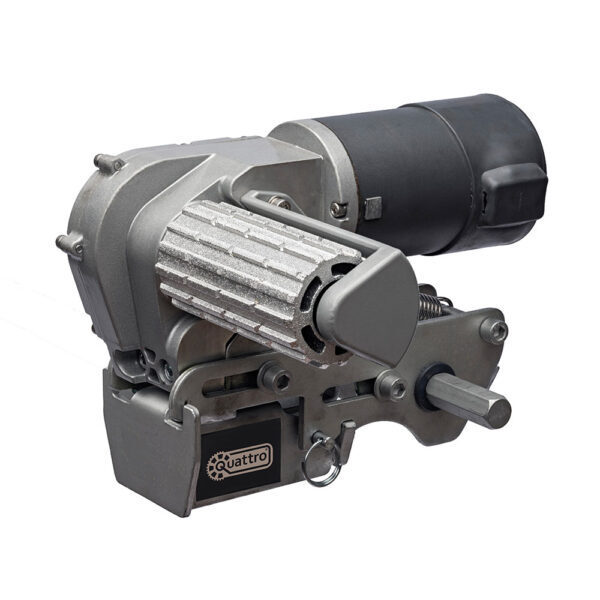

Purpleline Quattro Quickey Caravan Mover
The patented Quattro QuicKEY is the convenient, quick-release caravan mover you can remove for travelling and the ‘go to’ solution for super-tough off-roading, providing maximum ground clearance while keeping the movers out of harm’s way.
Removed in seconds take your QuicKEY set-up with you, or simply leave them at home.
Replacing the movers is just as easy: slip them on, insert the pin and plug them in for safe, effortless manoeuvring. As with all Quattro models, QuicKEY movers are easy to fit. And, if your payload is limited, Quattro QuicKEY keeps on-board weight to a minimum.
All hardware and electrical components are supplied along with a detailed User Manual.
Option of:
- Single axle up to 2250kg
- Twin axle up to 3000kg
Safety Features:
- An isolation switch was fitted to prevent accidental use of the remote
- Unique double press ‘on’ button on the handset to prevent accidental operation
- The control unit and the handset will shut down automatically after 60 seconds if the handset is not used in that time
- The control unit will shut down if the mover is working constantly in one direction for 3 minutes
- Built-in motor overload protection (current and temperature) – no requirement for a fuse
- Automatically brakes immediately as soon as the handset button is released
Features
- Precision cast 130mm aluminium rollers
- Powerful motor and custom gearbox for efficient power transfer
- Easy-to-use cordless remote
- 2-year Warranty
Specifications:
- Operational Voltage: 12V DC
- Avg Current Consumption: 25 Amps
- Max Current Consumption: 76 Amps
- Power Output: 585 kg
- Max Speed: 12cm / sec
- Weight: 37kg (includes fit kit)
- Minimum Width (caravan/trailer):1800mm
- Maximum Width (caravan/trailer): 2500mm
- Safe Working Load (SWL) (2250kg - 2 motors): up to 1.5 tonnes on a 25% incline
- Dimensions: 720 x 400 x 310mm (L x W x H )(EQR130)
Specifications
SKU EQR130T
Brand Purpleline
GTIN 9347296000163
Product Category Caravan Movers
Weight (kg) 37
Operational Voltage 12V DC
Avg Current Consumption 25 Amps
Max Current Consumption 76 Amps
Max Speed 12cm/sec
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Is the Quattro suitable for tough Australian road conditions?
Yes, each Quattro is a sealed, anodised, alloy unit that is very tough and rugged, ideally suited to the demands of outback Australian roads.
-
Will the Quattro fit my caravan?
There are many deciding factors that affect whether a Quattro will fit, it is best to contact your local Quattro installer as they will be able to say if it will fit on your caravan..
-
Will the Quattro fit on twin axle caravans?
The Quattro is suitable for single and twin axle caravans.
-
Does the Quattro have soft start and stop?
It has precision control operation and provides excellent accuracy.
-
Where is the best location for the mover?
The best location for most Quattro movers is in front of the axle. However, if this is not possible it is usually possible to fit behind the axle.
-
Does it fit on a caravan with shock absorbers?
Yes.
