Purpleline Quattro Titanium - Single axle up to 2250kg
SKU: EGO400T Learn More»
Description

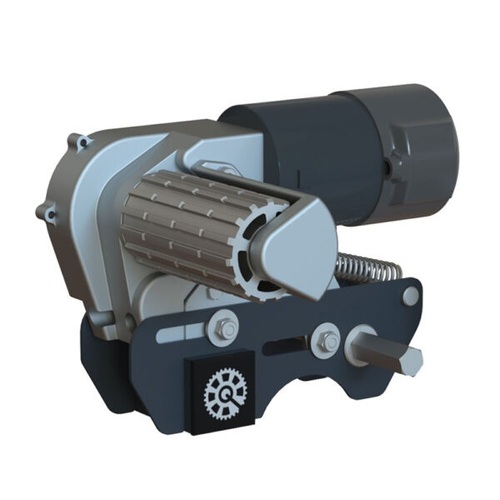

Purpleline Quattro Titanium Caravan Mover
Quattro Titanium is Australia’s best-value caravan mover, combining a simple over-center engager with the same high-torque motors used with all Quattro movers.
Powerful motors and precision-cut gears move your caravan safely and surely over loose and sloping surfaces and protect against slipping or rolling backward. Strong, lightweight alloy construction makes Quattro Titanium up to 10kgs lighter than other movers while delivering heavy-duty performance and safety at an unbeatable price.
As with all Quattro movers, the Quattro Titanium comes with all the required fittings, cables, and instructions for DIY or professional installation, and is covered by a 2-year no-quibble warranty. Order a two-motor set for single-axle installations or a four-motor set for dual-axle options.
Option of:
- Single axle up to 2250kg
- Twin axle up to 3000kg
Safety Features:
- An isolation switch was fitted to prevent accidental use of the remote
- Unique double press ‘on’ button on the handset to prevent accidental operation
- The control unit and the handset will shut down automatically after 60 seconds if the handset is not used in that time
- The control unit will shut down if the mover is working constantly in one direction for 3 minutes
- Built-in motor overload protection (current and temperature) – no requirement for a fuse
- Automatically brakes immediately as soon as the handset button is released
Features:
- Strong, precision cast 130mm aluminium rollers
- Powerful motor and custom gearbox for efficient power transfer
- Easy-to-use cordless remote control
- 2-year Warranty
Specifications:
- Operational Voltage: 12V DC
- Avg Current Consumption: 25 Amps
- Max Current Consumption: 120 Amps
- Max Speed: 12 cm/sec
- Weight: 29kg (includes fit kit)
- Minimum Width (caravan/trailer):1800mm
- Maximum Width (caravan/trailer): 2500mm
- Safe Working Load (SWL) (2250kg - 2 motors): up to 1.5 tonnes on a 25% incline
- Dimensions: 730L x 390W x 310H (EGO400)
Specifications
SKU EGO400T
Brand Purpleline
GTIN 5060048880304
Product Category Caravan Movers
Weight (kg) 29
Operational Voltage 12V DC
Avg Current Consumption 25 Amps
Max Current Consumption 120 Amps
Max Speed 12cm/sec
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Is the Quattro suitable for tough Australian road conditions?
Yes, each Quattro is a sealed, anodised, alloy unit that is very tough and rugged, ideally suited to the demands of outback Australian roads.
-
Will the Quattro fit my caravan?
There are many deciding factors that affect whether a Quattro will fit, it is best to contact your local Quattro installer as they will be able to say if it will fit on your caravan..
-
Will the Quattro fit on twin axle caravans?
The Quattro is suitable for single and twin axle caravans.
-
Does the Quattro have soft start and stop?
It has precision control operation and provides excellent accuracy.
-
Where is the best location for the mover?
The best location for most Quattro movers is in front of the axle. However, if this is not possible it is usually possible to fit behind the axle.
-
Does it fit on a caravan with shock absorbers?
Yes.
Reviews
Purple Caravan Mover Review
By: John Mercieca on5 November 2024
Installed myself, would only suggest you do it yourself provided you have mechanical aptitude & can follow a basic wiring diagram. Wiring was the easiest part of the install. They work well. Making it easy to maneuver in tight spots.
