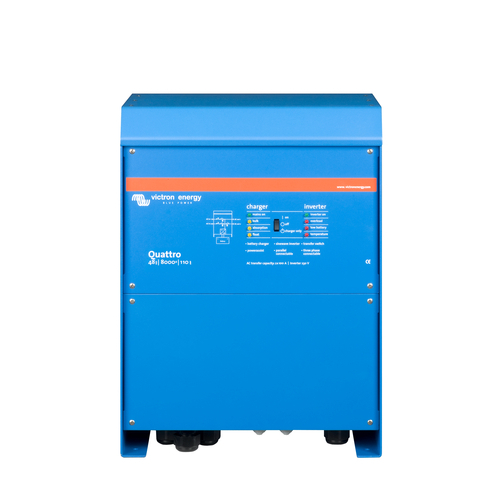

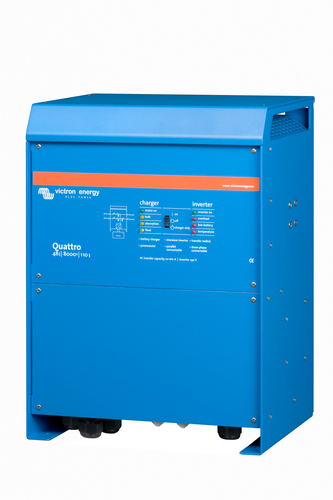

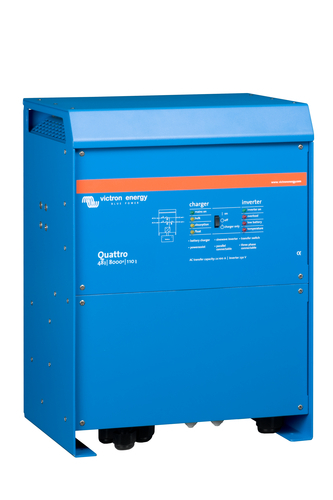

Victron Quattro Inverter Charger 48/8000/110- 100/100
SKU: QUA488024000 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Victron Quattro Inverter Charger 48/8000/110- 100/100
Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.
Specifications:
| Output Current Rating (Amps) | 110.0 Amps |
|---|---|
| Wattage | 6500W |
| Peak Power | 16000W |
| Output Voltage and Frequency | 230 Vac ± 2% / 50 Hz ± 0.1% |
| Output Power | 6500W (continuous output power at 25°C) | 5500W (continuous output power at 40°C) | 3600W (continuous output power at 65°C) |
| Input Voltage | 38-66V |
| Operating Temperature Range | -40 to +65°C |
| AC Input | 187-265VAC | 45-65Hz | 1 |
| Inverter Output Continuous Watts | 6500W (continuous output power at 25°C) |
| Charge voltage 'absorption' | 57.6V |
| Charge Voltage Float - Wet (25 degrees)** | 55.2V |
| Charge voltage 'storage' | 52.8V |
| Inverter Output Nominal Efficiency | 96% (maximum) |
| No load power consumption | 50W | 20W in search mode |
| Product Dimensions (mm) LxWxH | 350 x 280 x 470 |
| Net Weight (kg) | 41.0 Kg |
Features:
Two AC Outputs
The main output has no-break functionality. The Quattro takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, like a water heater for example, can be connected to this output.
Virtually unlimited power thanks to parallel operation
Up to 6 Quattro units can operate in parallel. Six units 48/10000/140, for example, will provide 48kW / 60kVA output power and 840 Amps charging capacity.
Three phase capability
Three units can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected to provide 144kW / 180kVA inverter power and more than 2500A charging capacity.
Power Control – Dealing with limited generator, shore side or grid power
The Quattro is a very powerful battery charger. It will therefore draw a lot of current from the generator or shore side supply (16A per 5kVA Quattro at 230VAC). A current limit can be set on each AC input. The Quattro will then take account of other AC loads and use whatever is spare for charging, thus preventing the generator or mains supply from being overloaded.
Power Assist – Boosting shore or generator power
This feature takes the principle of Power Control to a further dimension allowing the Quattro to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the Quattro will make sure that insufficient mains or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.
Solar energy: AC power available even during a grid failure
The Quattro can be used in off grid as well as grid connected PV and other alternative energy systems.
Loss of mains detection software is available.
System configuring
- In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure.
- Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software.
- Off grid, grid interactive and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications).
On-site Monitoring and control
Several options are available: Battery Monitor, Multi Control Panel, Ve.Net Blue Power panel, Colour Control panel, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).
Remote Monitoring and control;
Victron Ethernet Remote, Venus GX and the Colour Control Panel.
Data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.
Remote configuring;
When connected to the Ethernet, systems with a Colour Control panel can be accessed and settings can be changed.
Specifications
SKU QUA488024000
Brand Victron
GTIN 8719076032953
Product Category Power Inverter Chargers
Voltage 48V
Wattage (W) 6500
Input Voltage 38-66V
Dimensions 350 x 280 x 470mm
Peak Power (W) 16000
Weight (kg) 41
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Can these chargers take solar input?
No, the battery charging component is an AC input, meaning only AC power (mains power) can charge through this unit.
