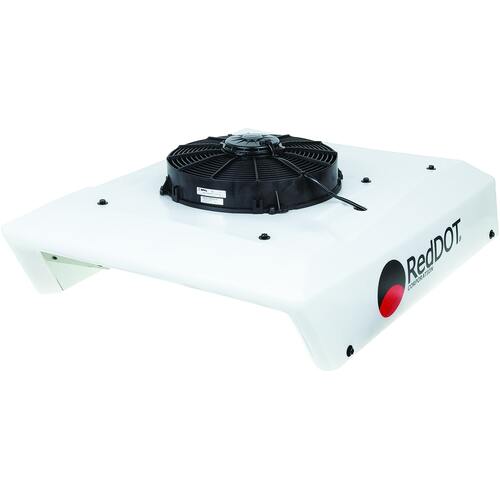

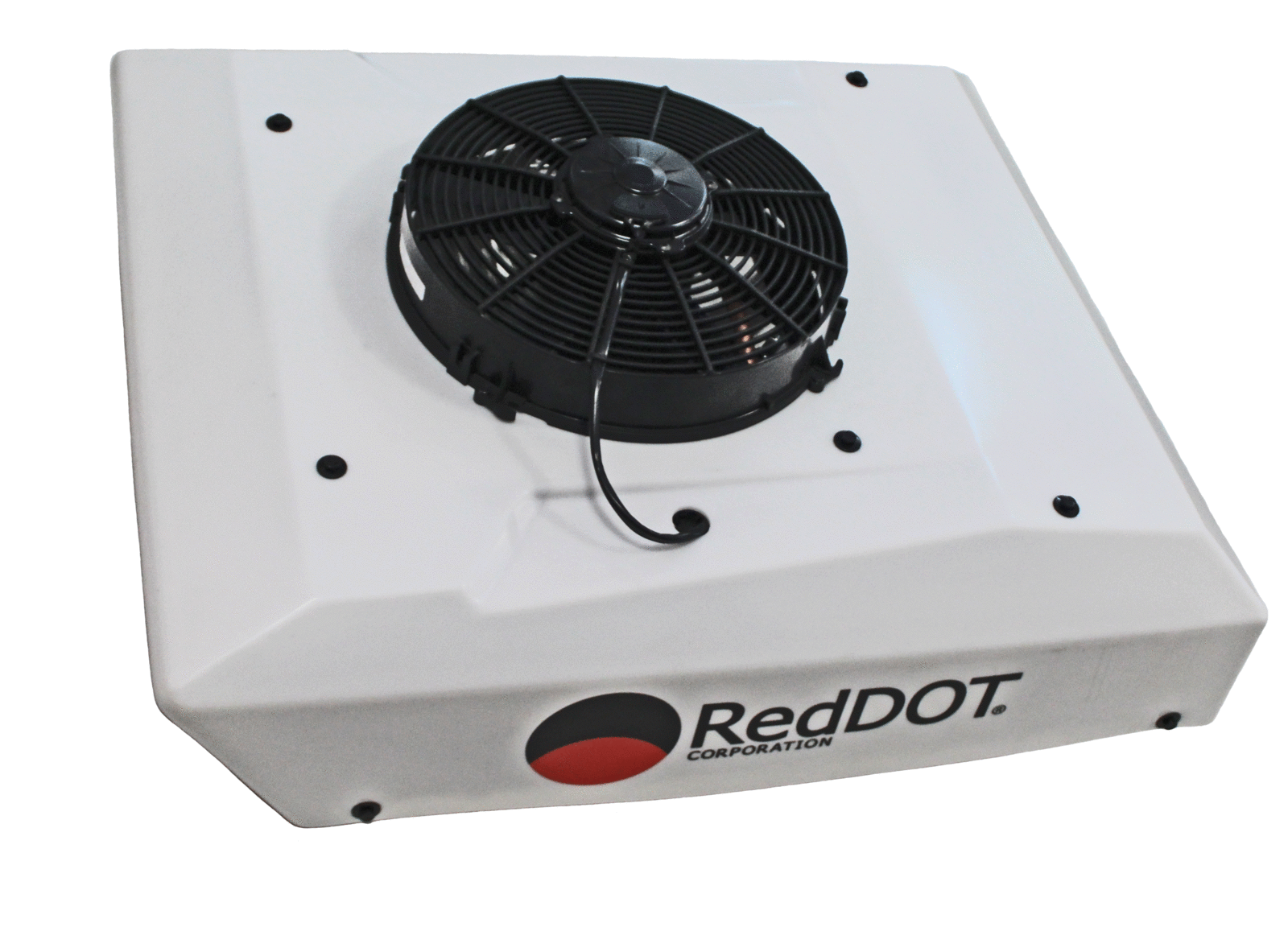

RedDot 24V Electric Rooftop Truck Air Conditioner Unit
SKU: E6100024P Learn More»Description
RedDot 24V Electric Rooftop Truck Air Conditioner Unit
Suited for use in on-highway heavy duty, pneumatic tyred construction, agricultural and light duty mining vehicles. These electric rooftop units offer a fully self-contained solution alternative to off engine drive versions. With no need for an external compressor or hose runs the unit only requires power, earth and a drain tube to be run.
Specifications:
- Air Flow: 299cfm
- Cooling Capacity: 15000BTU
- Fitting Type: MIOR - FOR
- Inlet Fitting: #8 FOR
- Depth / Thickness: 188mm
- Outlet Fitting: #10 MIOR
- TX Valve: RD568680P
- Voltage: 24
- Weight 45kg
- Length: 790mm
- Width: 642mm
- Height: 642mm
- Evap Mount Type: Rooftop Mount
- Roof Top Type: Evaporator / Condenser
- Current: 60 - 100A
- Unit does not come precharged with refrigerant. Recommended refrigerant charge 1.3Kg/3 pounds

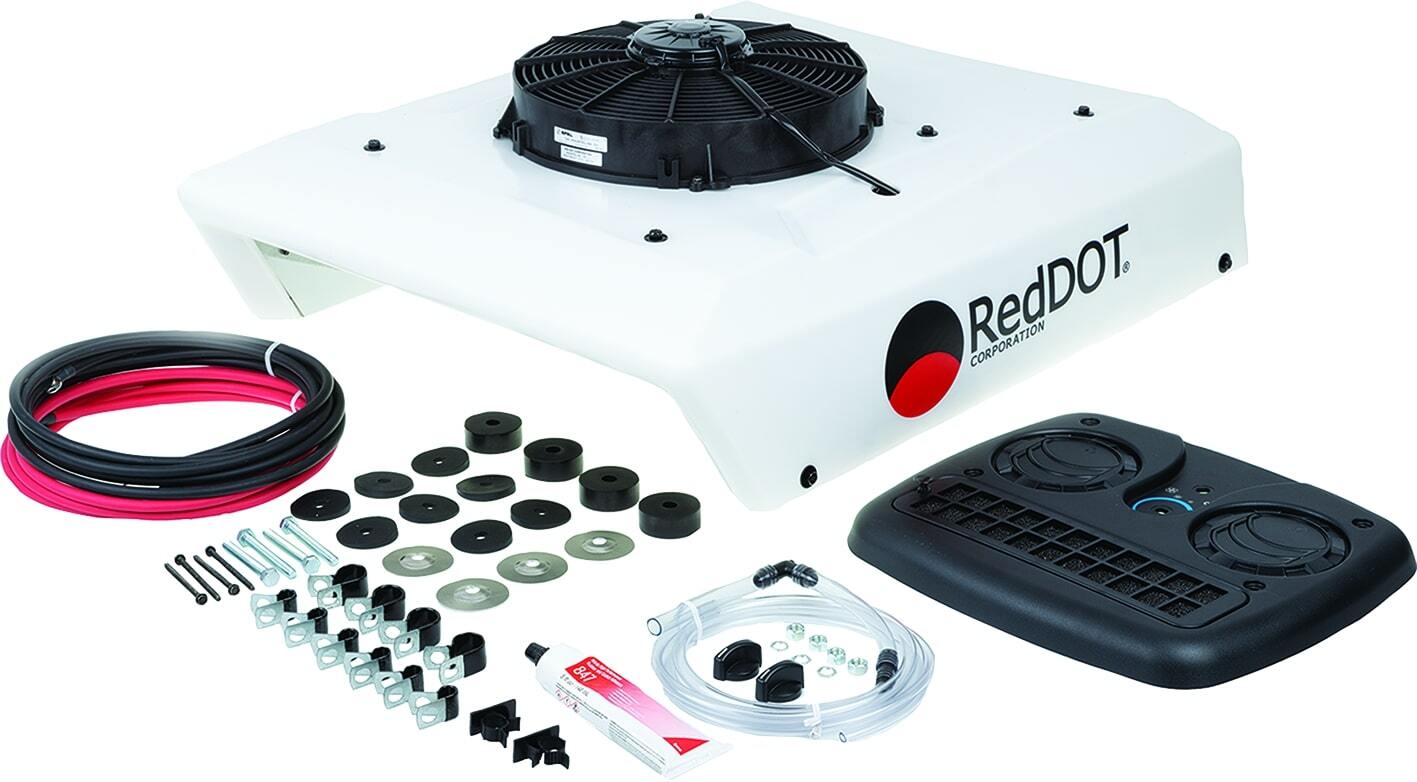

- Fitting and Install instructions come with the unit, but it is advised a qualified installer (electrical contractor) undertakes the installation.
Specifications
SKU E6100024P
Brand RedDOT
GTIN 9315275951850
Product Category Truck Air Conditioners
Dimensions 642mm x 642mm x 790mm
Weight (kg) 45
Cooling Capacity 15000BTU
NOTE: see full product specifications & further product info in the Description section on this page.
