Renogy 100Ah Lithium Battery, 50A DC-DC Charger & Bluetooth Module
SKU: RBT12100LFP-DC Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
.png)
Description

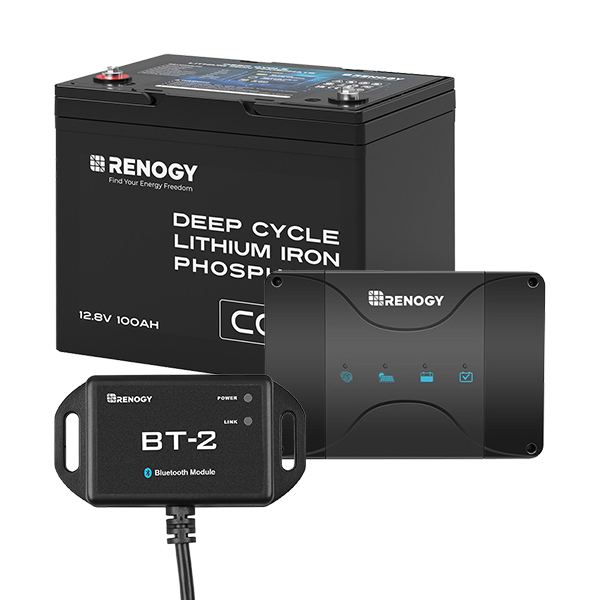

Renogy 100Ah Lithium Battery and Charger Bundle
Included in bundle:
- Renogy 12V 100Ah Core Series Deep Cycle Lithium Iron Phosphate Battery - RBT12100LFP
- Renogy BT-2 Bluetooth Module for Renogy Products with RS485 Port - RCM-BT2
Optional Chargers:
- Renogy DCC30S 12V 30A Dual Input DC to DC Battery Charger with MPPT - RBC30D1S
- Renogy DCC50S 12V 50A Dual Input DC to DC Battery Charger with MPPT - RBC50D1S
Note: This bundle includes 1 x Renogy Bluetooth Module (BT-2). You can connect this to the Renogy DCDC charger for monitoring via The Renogy DC Home App, One core or Renogy M1.
The Renogy Core batteries do not come with Bluetooth. To monitor these via the Renogy app/ One Core or M1 you would need to purchase and connect the Renogy Battery Shunt 300 and connect to it via bluetooth.
To effectively manage your power system with a Renogy 100Ah Lithium battery, a 30A/50A DC2DC charger, and a Bluetooth Module, it's important to know how these components interact in your energy setup.
- 100Ah Lithium Battery: Meet Renogy 12V 100Ah Core Series Battery, your trusted, one-stop solution for upgrading from Lead to Lithium. Compatible with Renogy's solar panels, solar charge controllers, and inverters, this battery delivers a seamless upgrade experience without compatibility issues.With a positive capacity tolerance of up to 6%, the Core series batteries provide extra power beyond their rated capacity, ensuring that you're covered during outages, hurricane season, and other emergencies. Connect multiple batteries in series-parallel to keep your system running longer and it can be used in trolling motor.Off-grid living can be challenging, but the Renogy 12V 100Ah Core Battery offers a true 100A battery management system (BMS), low-temp cut-off (for charging), and IP65 protection, giving you the confidence to tackle any obstacles. Whether you are planning an upgrade from old lead-acid batteries, or starting to build your first-ever off-grid power system, the Renogy 12V 100Ah Core LiFePO4 Battery is your go-to option to get your project done right in an easier & faster way.

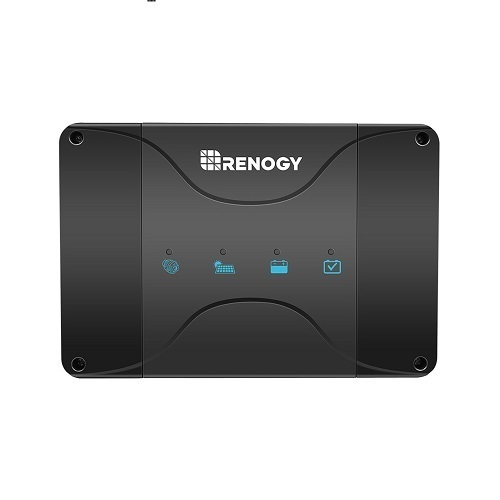

- 30A / 50A DC2DC Charger: Renogy's DC to DC MPPT on-board Battery Charger is designed to give you options! This multi-stage, multi-input battery charger can charge a service battery from a starting battery linked to an alternator or by utilizing solar panels connected directly to the unit. While your vehicle's alternator prioritizes your starting battery, this unit will allow your solar system to charge your service battery first! It's the smart way to keep yourself fully charged and off-grid longer! And with multi-stage charging and multi-chemistry functionality, Renogy's DC to DC MPPT Charger has you covered whether you're using Flooded, Gel, AGM, or Lithium batteries. With RJ45 communication port featured, you can unlock monitoring features exclusively using the BT-2 Bluetooth Module and Renogy DC Home App, control and monitor the device remotely through your phone in real time.
- BT-2 Bluetooth Module: The Renogy BT-2 is the new generation Bluetooth module for select Renogy solar charge controllers, DC-DC battery chargers, and smart lithium batteries. Powered by its RJ45 communication port, the BT-2 provides wireless monitoring of the system data and allows users to change parameters through the Renogy DC Home smartphone App. The Renogy DC Home App can help make your off-grid power system smarter by giving you access to configure, monitor, update, and diagnose your Renogy products from the convenience of your smartphone or tablet. Connect the BT-2 to the component's RJ45 communication port to wirelessly check and adjust your system's parameters through the DC Home App (available in both the App Store and Google Play).
Battery Information:
.png)
30A DC2DC Charger Information:
50A DC2DC Charger Information:
Bluetooth Module Infomation:
Specifications
SKU RBT12100LFP-DC
Brand Renogy
Product Category Battery Bundle
Battery Voltage 12V
Amp Hours (Ah) 100
Battery Length (mm) 260
Battery Width (mm) 169
Battery Height (mm) 211
Battery Weight (kg) 10.5
DC Charger Output Current Rating (Amps) 30/50
Cycle Life (DOD – 80% under controlled conditions) 5000 Cycles
Maximum Charge Current 100A
Maximum Discharge Current 100A
Operating temperature range 0°C to 55°C (charge) | -20°C to 60°C (discharge)
IP Rating IP65
Battery type Lithium Iron Phosphate
Charge Voltage 14.4V
Storage temperature -25°C to 65°C
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Can this battery connect to my phone?
No, the battery doesn't have Bluetooth. However you can connect the Renogy Bluetooth Mdule BT-2 via the RS485 port on the DC-DC charger to monitor your system.
-
Will this DC-DC charger work with smart alternators?
Yes, the Renogy DC-DC range work with both standard and newer smart alternators. You will need a connection to your ignition. The charger will include a IGN Signal Wire for ignition connection.
-
What information does the Bluetooth module tell me?
Effectively manage real-time operational data for solar power generation, energy storage and inverter.
-
Can I hook up solar panels to this kit?
Yes! The DC-DC charger has an inbuilt MPPT regulator for solar. You will have to keep the panels within 400w and 25 VOC for the 30a charger. If you opt for the larger 50a charger, you will need to keep within 660w and 25 VOC.
-
How long will the battery in this bundle last?
This battery is capable of delivering 5000 cycles at the recommended 80% discharge.
