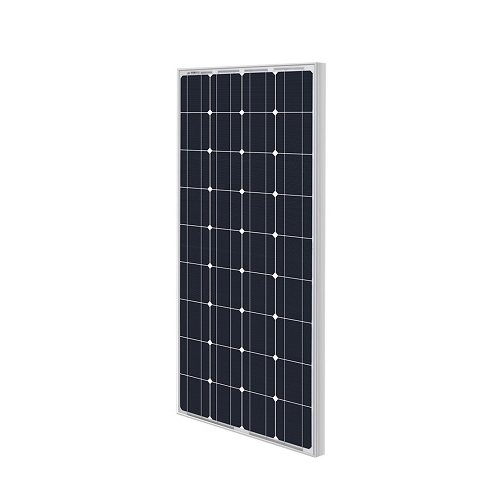

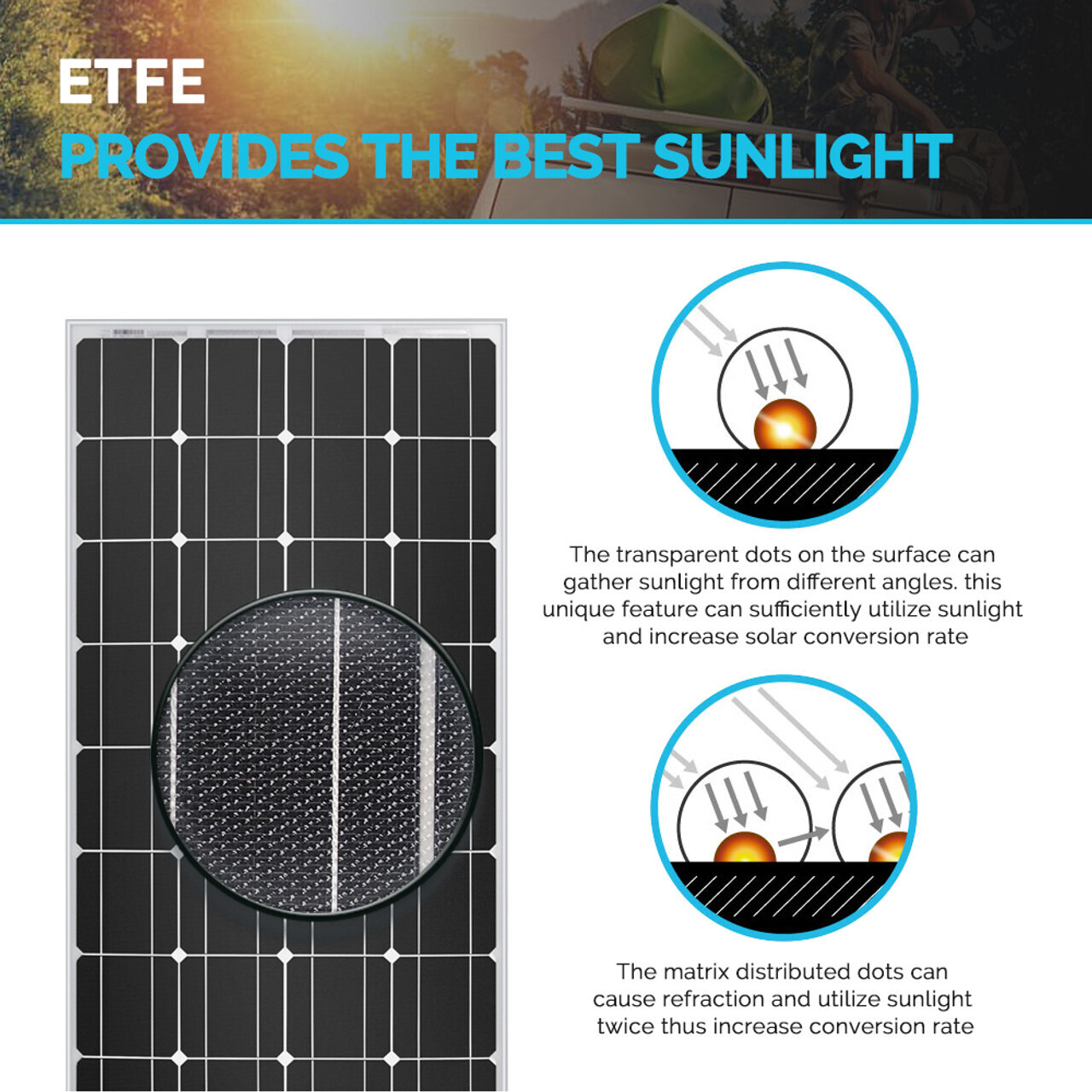

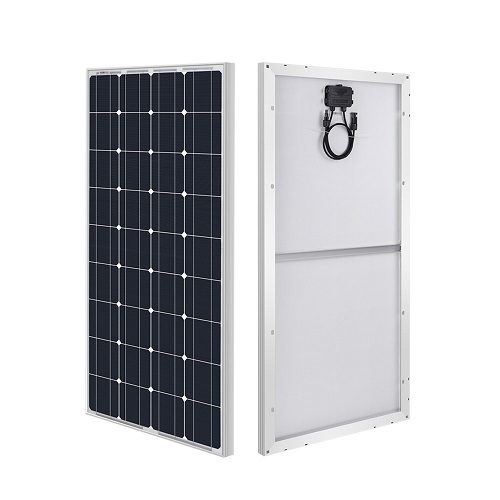

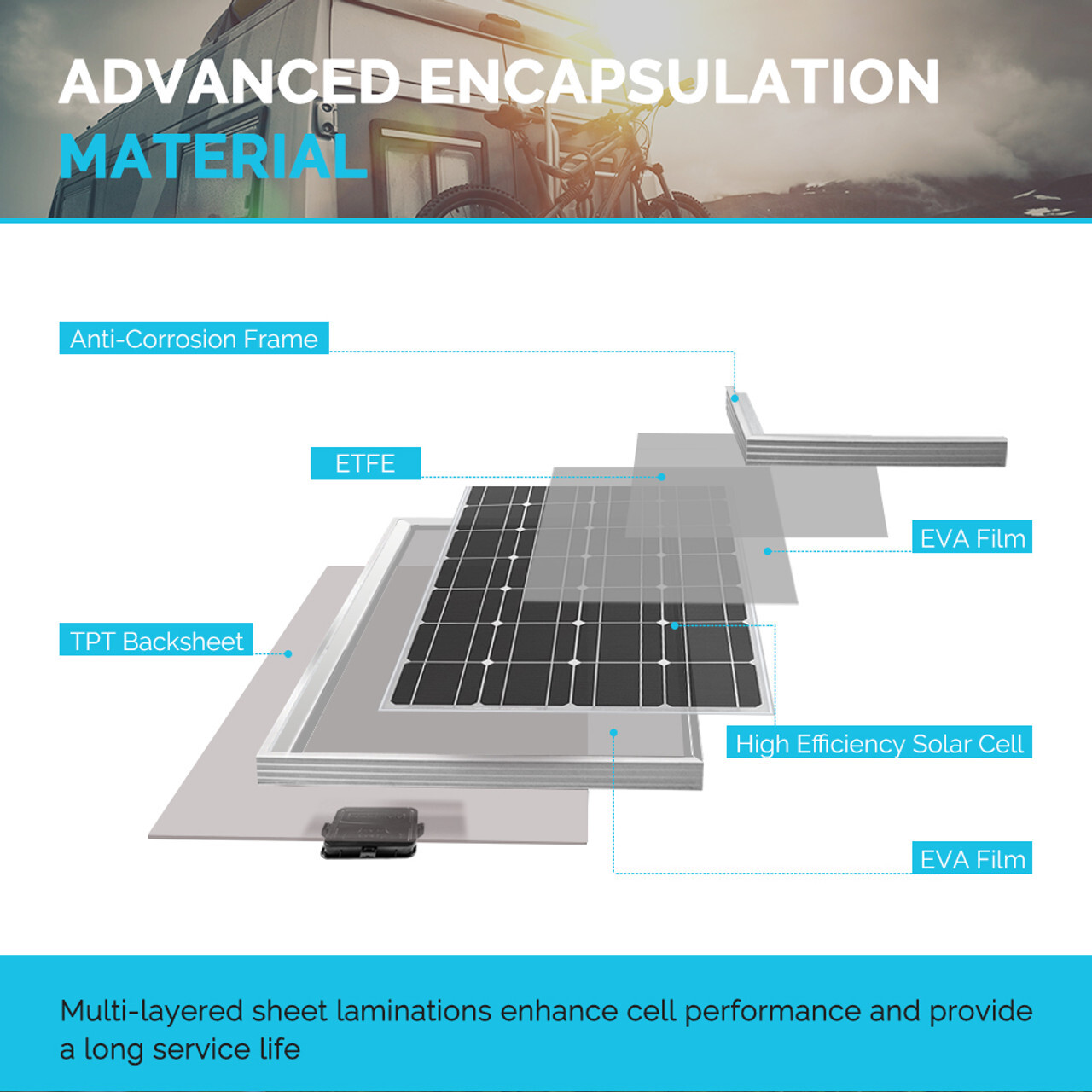

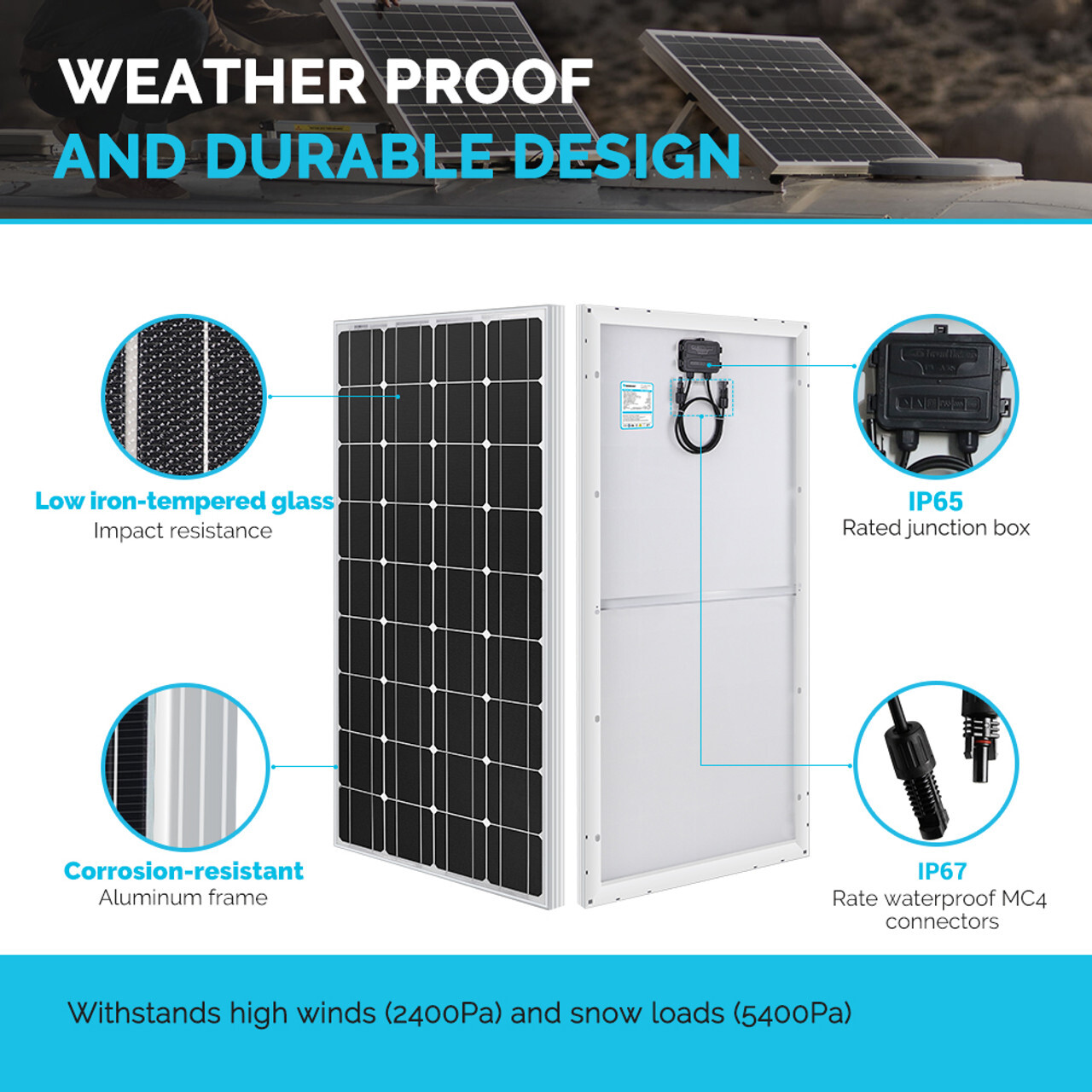

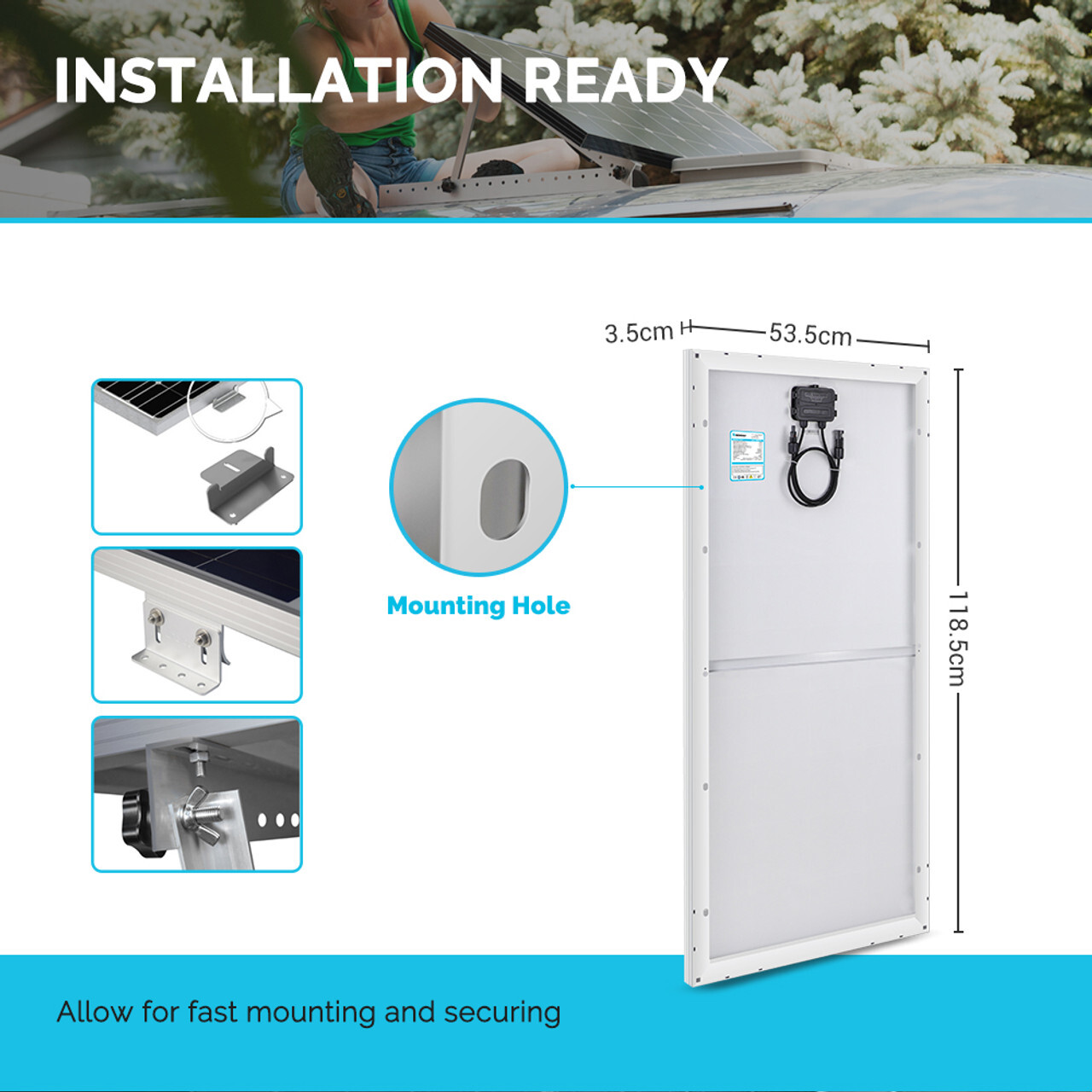

Renogy 100W 12V Lightweight ETFE Monocrystalline Fixed Solar Panel

Renogy Rover Li 12/24V 40A MPPT Solar Charge Controller

The Renogy 40A Rover MPPT Charge Controller is the most efficient type of charge controller. With up to 99% tracking efficiency, the Rover ensures maximum power point solar charging that gets more energy to your battery bank. Capable of automatically detecting 12V/24V lead acid battery systems, this crucial component is preset to also work with Gel, Flooded (wet cell), and Sealed batteries（manual setting is required for 24V Lithium battery）. When paired with the Renogy BT-2 Module and DC Home app you can view system performance in real-time and make parameter changes without having to get up!

Innovative MPPT Design

• Die-cast aluminium design ensuring excellent heat dissipation and Renogy Maximum Power Point Tracking technology with a high tracking efficiency of up to 99% and peak conversion efficiency of 98%. It is the best charging solution even in cloudy environments where the max power point of the solar panels will fluctuate all day.

12V/24V Automatically Detect

• Automatically detects 12V or 24V DC system voltages (for Non-Lithium battery types), and the LCD screen and multiple LED indicators display the solar charging and battery operation information, customizable parameters, and error codes

Full System Protection

• Meant to safeguard your system, the self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery over-discharging, overload, short-circuiting, and reverse current.

4-Stage Safely Charging

• Features 4-stage charging (Bulk, Absorption, Float, and Equalization) of Lead Acid Batteries and 2-stage charging (Bulk and Absorption) for Lithiuim batteries as well as Lithium Reactivation

Diverse Load Control

• Connect DC appliances directly to the optional Load Terminals and monitor consumption or set up timer controls directly from the controller

Remote Monitoring

•      RS232 communication port allows the Renogy Rover to communicate with the Renogy BT-2 Bluetooth module (NOT included in the package, highly recommend to add-on ) that will enable you to monitor the status and productivity of your panels through the Renogy DC Home App.

Included:

• Rover Li 40 Amp MPPT Charge Controller
• Remote Temperature Sensor

Optional Accessory:

• BT-2 Bluetooth Module

Specifications:

• Nominal Voltage: 12/24V Auto Recognition
• Rated Charge Current: 40 A
• Max. PV Input Power: 12V/520W, 24V/1040W
• Max. PV Input Voltage: 100 VDC
• Self-Consumption: < 100mA/12V; < 58mA/24V
• Equalization Voltage: Sealed:14.6V; Flooded: 14.8V; Gel: N/A; Lithium(LFP): N/A
• Float Voltage:    Sealed:13.8V; Flooded: 13.8V; Gel: 13.8V; Lithium(LFP): N/A
• Boost Voltage:     Sealed: 14.4V; Flooded: 14.6V; Gel: 14.2V ; Lithium(LFP): 14.4V
• Operating Temperature: -35°C to 45°C; -31°F to 113°F
• Temperature Compensation: -3mV/°C/2V
• Dimensions: 238 x 172 x 77 mm
• Weight:    2kg

Renogy 15A MC4-PV Diode Waterproof Connector

This product is a backflow prevention diode with MC4 connector. For example if solar panel is in shadow or has a fault in the process of paralleling solar panels, it prevents current from flowing to the solar panel with the lower voltage.

Features:

• System voltage <600V
• ISC≤15A
• IP67
• Aging resistance, UV resistance

Specifications:

• Rating Voltage: 600/1000V
• IP 67 Protection
• Max. Current: 15A
• Contact resistance:  ≤5mΩ
• Material:Brass,Tin plated
• Terminal size:4.0mm
• Safety Level: Class Ⅱ
• MC4 connector
• Temperature: -40°F to +185°F
• Flame class: UL94-V0

Renogy 10Ft 16AWG Solar Connector to 5.5x2.1mm DC Connector Adapter Cable

Effortlessly connect any solar panels with solar connectors to PHOENIX 200 Portable Power Station with the Solar Connector to a 5.5x2.1mm DC Connector Adapter Cable. The 10-foot length ensures that the portable power station can be placed in the shade while allowing maximum sunlight exposure on the solar panels. The durable construction guarantees reliable performance in harsh outdoor environments and extended service life.

Features:

• Plug-n-Play Design: With universal solar connectors on one end for the solar panel connection and a 5.5x2.1 mm DC connector on the other end for the portable power station connection, the adapter cable connects almost any solar panels to PHOENIX 200 Portable Power Station without the need of additional tools.

• Premium Quality: Meets the requirements of UL standards for extremely safe operation.

• Durable Construction: The PVC insulation jacket ensures that the adapter cable can deliver charging current as expected under high temperatures up to 80°C (176°F) and be bent freely without cracking under low temperatures down to -40℃（-40℉).

• Extra Length: 10-foot length ensures that the portable power station can be placed in the shade while allowing maximum sunlight exposure on the solar panels.

Specifications:

• Length: 10 ft (3.05 m)
• Wire Gauge: 16AWG
• Rated Voltage: 300V
• Maximum Current: 10A
• Conductor Material: Tinned Stranded Copper
• Insulation Material: PVC
• Jacket Material: PVC
• Terminal Type: Solar Connectors, 5.5x2.1 mm DC Connector
• Rated Temperature: '80°C / 176°F
