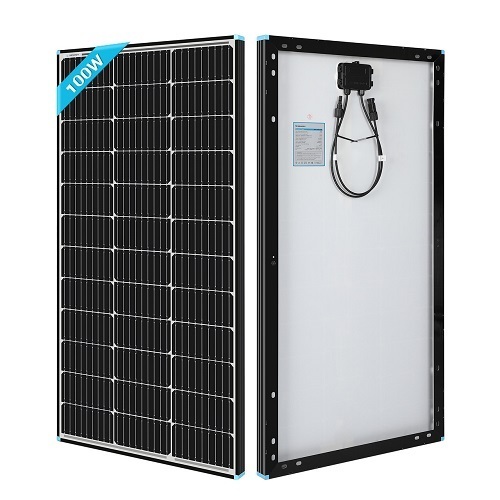

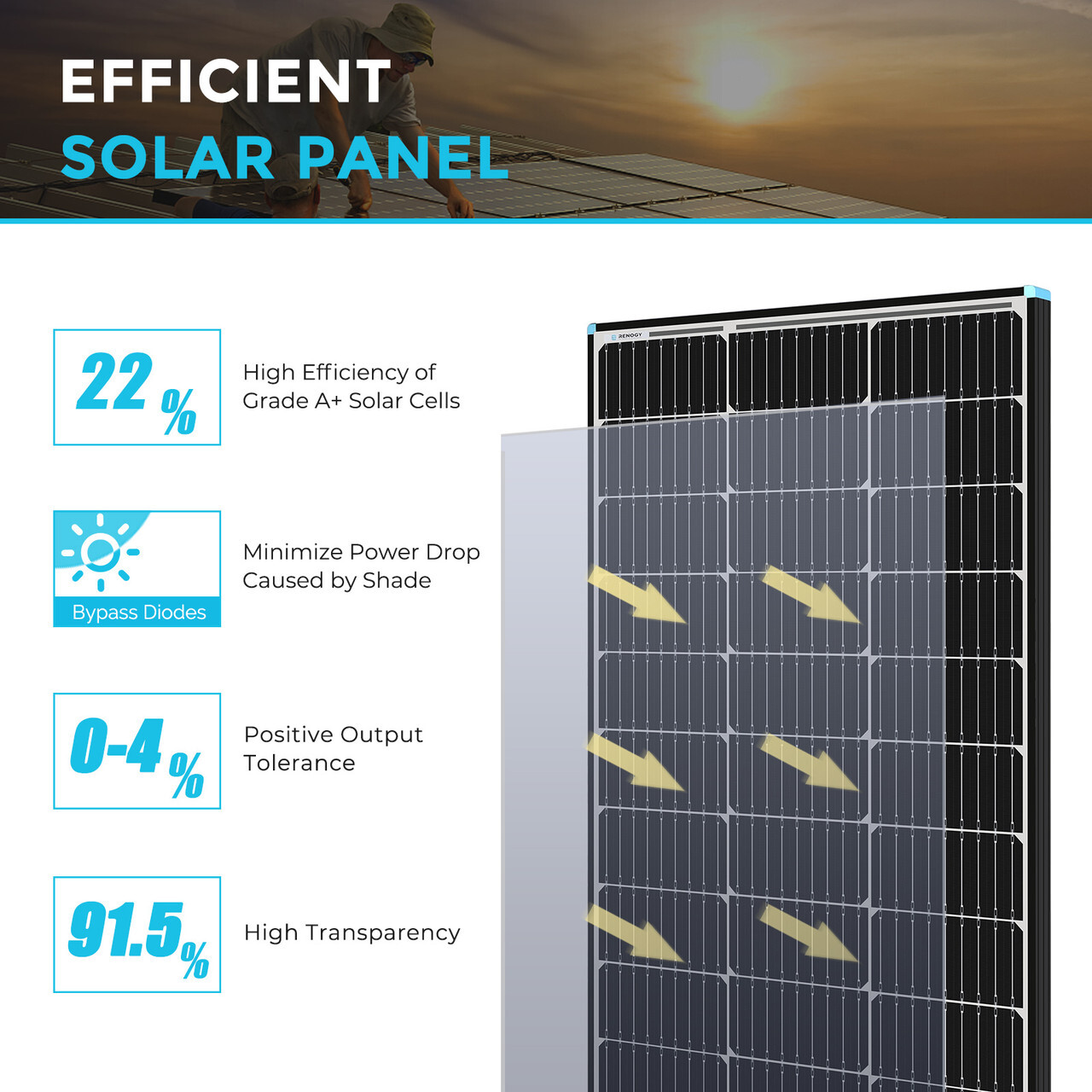

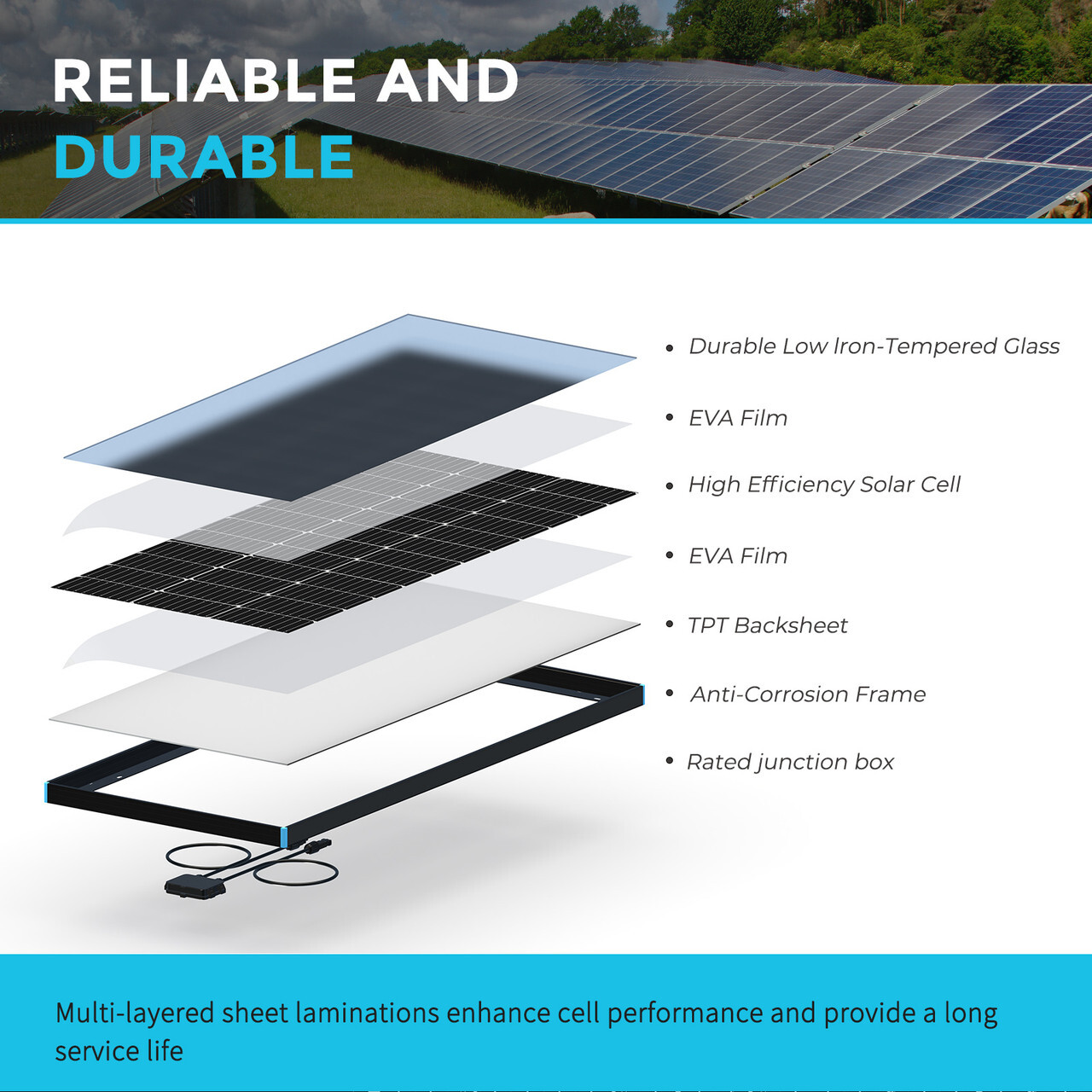

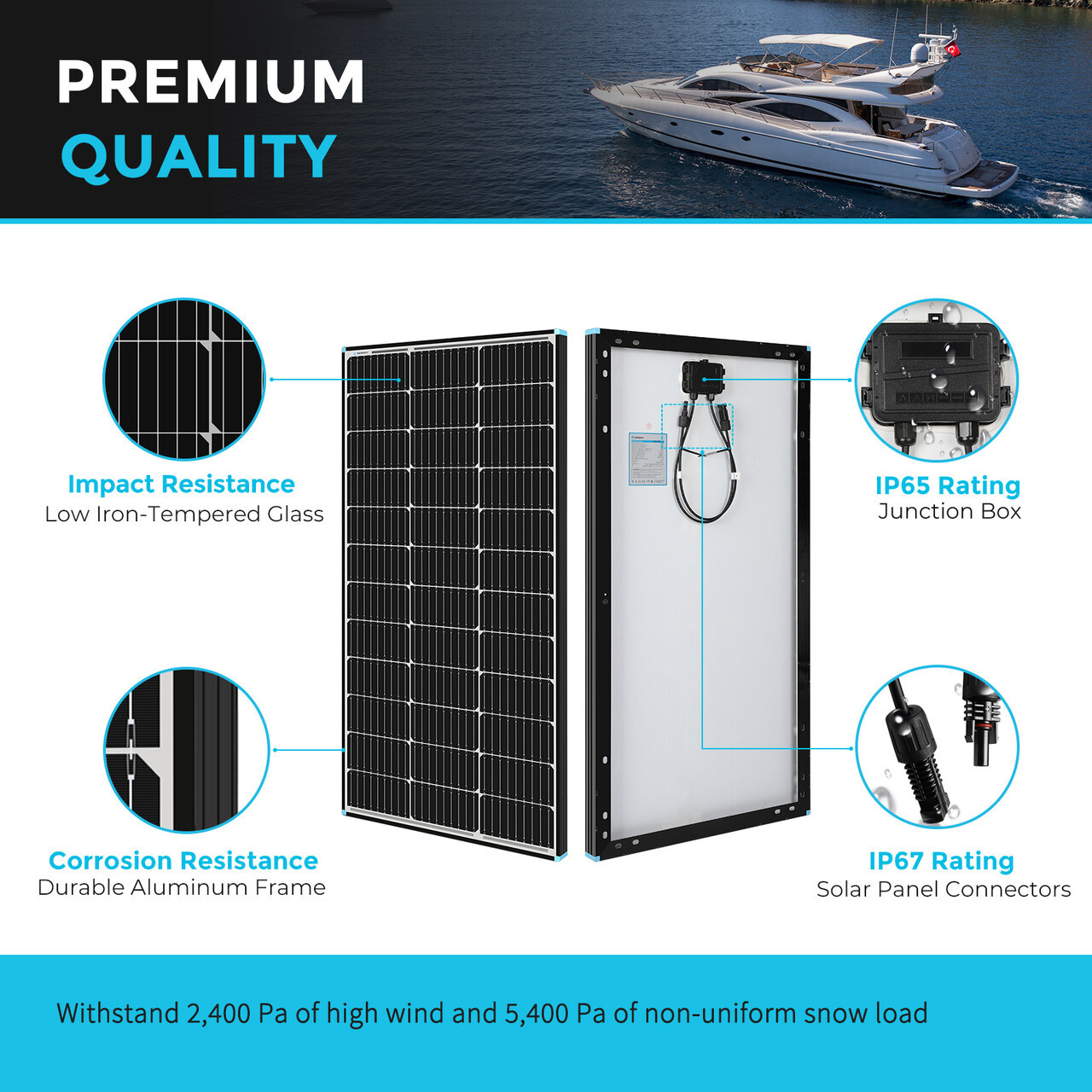

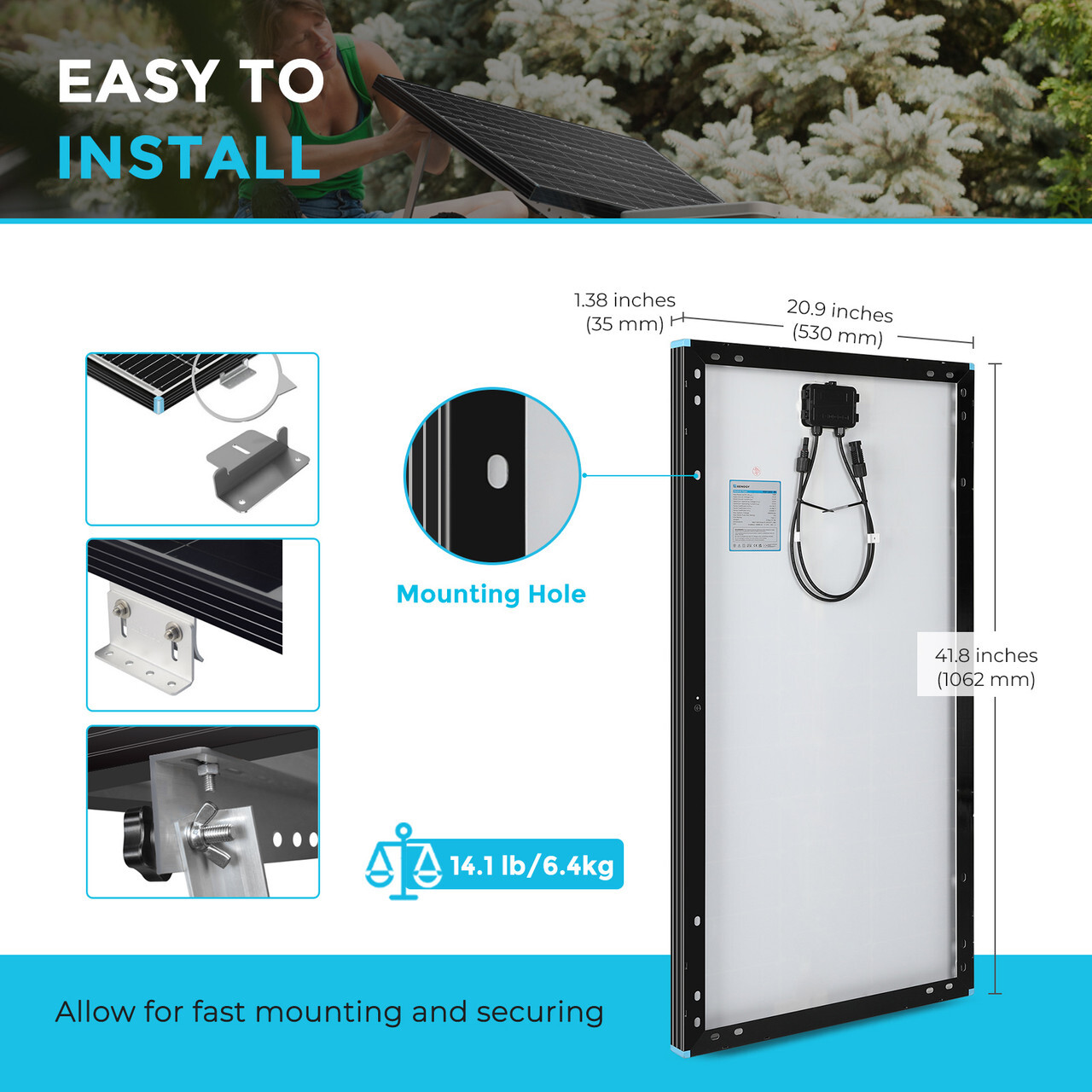

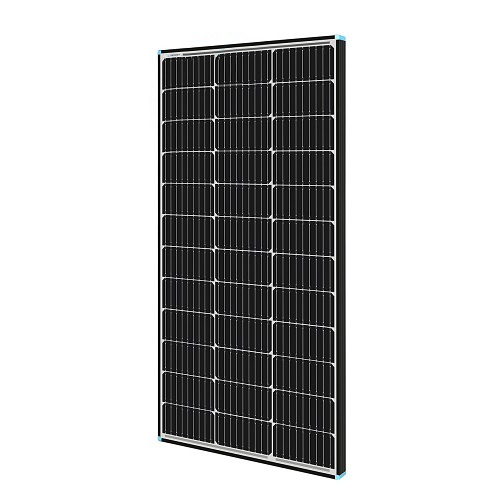

Renogy 100W 12V Monocrystalline Black Frame Fixed Solar Panel

Renogy Rover Li 12/24V 40A MPPT Solar Charge Controller

The Renogy 40A Rover MPPT Charge Controller is the most efficient type of charge controller. With up to 99% tracking efficiency, the Rover ensures maximum power point solar charging that gets more energy to your battery bank. Capable of automatically detecting 12V/24V lead acid battery systems, this crucial component is preset to also work with Gel, Flooded (wet cell), and Sealed batteries（manual setting is required for 24V Lithium battery）. When paired with the Renogy BT-2 Module and DC Home app you can view system performance in real-time and make parameter changes without having to get up!

Innovative MPPT Design

• Die-cast aluminium design ensuring excellent heat dissipation and Renogy Maximum Power Point Tracking technology with a high tracking efficiency of up to 99% and peak conversion efficiency of 98%. It is the best charging solution even in cloudy environments where the max power point of the solar panels will fluctuate all day.

12V/24V Automatically Detect

• Automatically detects 12V or 24V DC system voltages (for Non-Lithium battery types), and the LCD screen and multiple LED indicators display the solar charging and battery operation information, customizable parameters, and error codes

Full System Protection

• Meant to safeguard your system, the self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery over-discharging, overload, short-circuiting, and reverse current.

4-Stage Safely Charging

• Features 4-stage charging (Bulk, Absorption, Float, and Equalization) of Lead Acid Batteries and 2-stage charging (Bulk and Absorption) for Lithiuim batteries as well as Lithium Reactivation

Diverse Load Control

• Connect DC appliances directly to the optional Load Terminals and monitor consumption or set up timer controls directly from the controller

Remote Monitoring

•      RS232 communication port allows the Renogy Rover to communicate with the Renogy BT-2 Bluetooth module (NOT included in the package, highly recommend to add-on ) that will enable you to monitor the status and productivity of your panels through the Renogy DC Home App.

Included:

• Rover Li 40 Amp MPPT Charge Controller
• Remote Temperature Sensor

Optional Accessory:

• BT-2 Bluetooth Module

Specifications:

• Nominal Voltage: 12/24V Auto Recognition
• Rated Charge Current: 40 A
• Max. PV Input Power: 12V/520W, 24V/1040W
• Max. PV Input Voltage: 100 VDC
• Self-Consumption: < 100mA/12V; < 58mA/24V
• Equalization Voltage: Sealed:14.6V; Flooded: 14.8V; Gel: N/A; Lithium(LFP): N/A
• Float Voltage:    Sealed:13.8V; Flooded: 13.8V; Gel: 13.8V; Lithium(LFP): N/A
• Boost Voltage:     Sealed: 14.4V; Flooded: 14.6V; Gel: 14.2V ; Lithium(LFP): 14.4V
• Operating Temperature: -35°C to 45°C; -31°F to 113°F
• Temperature Compensation: -3mV/°C/2V
• Dimensions: 238 x 172 x 77 mm
• Weight:    2kg

Renogy 15A MC4-PV Diode Waterproof Connector

This product is a backflow prevention diode with MC4 connector. For example if solar panel is in shadow or has a fault in the process of paralleling solar panels, it prevents current from flowing to the solar panel with the lower voltage.

Features:

• System voltage <600V
• ISC≤15A
• IP67
• Aging resistance, UV resistance

Specifications:

• Rating Voltage: 600/1000V
• IP 67 Protection
• Max. Current: 15A
• Contact resistance:  ≤5mΩ
• Material:Brass,Tin plated
• Terminal size:4.0mm
• Safety Level: Class Ⅱ
• MC4 connector
• Temperature: -40°F to +185°F
• Flame class: UL94-V0

Renogy 4 to 1 Solar Branch Connectors MMMMF+FFFFM Pair

Make wiring parallel solar panels a breeze with these extended 4 to 1 Solar Branch connectors. Primarily suitable for 400W kits, these connectors allow you to install panels in portrait or landscape orientations without the messy wires in your way. Each package comes in pairs.

Features:

• Hard plastic
• Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
• Including one male to four female and one female to four male

Specifications:

• Withstanding voltage: 1000V DC(TUV), 600V(UL)
• Test Voltage: 6500V (50HZ, 5Min)
• Wiring Size: Main: 10AWG; Branch: 12AWG
• Length: Overall: 3.5ft; Branch: 1.5ft
• Protection Degree: IP67
• Rated Current: 30A
• Insulation Material: PC/PA
• Contact Material: Copper, silver plated
• Temperature: -40°F to +194°F


Renogy Solar Connectors for Solar Panels 5 Pairs Male & Female

This connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions. For permanent installations.

Renogy solar Cable Connectors are made with highest quality materials. They are both heavier and sturdier than many other brands; ensuring long term reliability and performance. These connectors are designed to complete a solar panel (PV) array; typically in parallel applications. These connectors are also waterproof and resist dust build up.

Features:

• Hard plastic
• IP Rating:67

Specifications:

• One pair of solar panel cable connectors
• Two silver-plated copper
• Rated Current: 30A
• Maximum Voltage: 1000VDC
• Wiring Size Range: 10; 12 AWG
• Contact Material: Silver Plated Copper
• Insulation Material: PA/PC
• Protection Class: IP67

Renogy Solar Y Branch Connectors MMF+FFM Pair

Renogy Solar Branch Connectors are used for parallel wiring solar panels (PV modules). Sold as a pair, these “Y-Connectors” will maintain the voltage of the solar panel configuration to match the battery size. These connectors are solely compatible with solar connectors and come with one male (MMF) and one female (FFM) connector. Use these Solar Branch Connectors to make tight, waterproof connections.

Features:

• Hard plastic
• One FFM and one MMF

Specifications:

• Withstanding voltage: 1000V DC(TUV), 600V(UL)
• Contact Resistance: 1m
• Protection Class: Class II
• Temperature: -40°F to +194°F
• Protection Degree: IP67, mated
• Unmating Force:147.51Ft·lb
• Insulation Material: PC/PA
• Contact Material: Copper, silver plated
• Flame Class: UL94-V0 or UL94-5VA

Renogy 3 to 1 Solar Branch Connectors MMMF+FFFM Pair

The Limited Branch Connector is a perfect solution for connecting three panels in parallel. These connectors have high aging resistance and UV endurance, making them weather-proof and able to withstand harsh environments. A rivet and lock are used to connect the cable and no extra tools are required for assembly or disassembly of plugs.

Features:

• Rated Current: 30A
• Insertion Force: < 50N
• Maximum working voltage: DC1000V

Specifications:

• Maximum working voltage: DC1000V
• Rated Current: 30A
• Flame class: UL94-V0
• Pollution degree: 2
• Contact resistance: ≤5mmΩ
• Shell Protection degree: IP65
• Ambient temperature range: -40°C to +85°C
• Safety Level: class ‖
• Insertion force: ≤50N
• Withdrawal force: ≥50N

Renogy Solar Panel Roof Drill-Free Corner Bracket Mount

The Renogy Corner Bracket Mount is a great drill-free alternative mount for your solar system. These light weight brackets can be used with virtually any aluminum framed solar panels to provide drill-free and secure mounting to flat surfaces. This well constructed mount lifts your solar panel to provide an optimum height that establishes an air gap between the panel and the surface, assuring your panel stays cool in high temperatures. With the Renogy Corner Bracket installation on most motorhomes, caravans, RVS, and boats are cleaner and flexible.

Features:

• Non-corrosive, long lasting, and high quality ABS plastic construction.
• 100% recyclable and UV resistant.
• Drill-free mounting.
• Designated for virtually any aluminum framed solar panels.
• Best suitable for flat roofs of aluminum, wood, or GRP material.
• Easier and more flexible installation.
• Compatible with all Renogy solar panels.

Renogy Cable Entry Housing

The Renogy Cable Entry Housing is an ideal solution for cable entry through roofs. Made from ABS plastic, this waterproof and UV-resistant housing allows an easy cable entry solution for any condition. With its dual cable entry, this Renogy housing easily passes through solar cables for a smooth installation on virtually any roof surface.

Features:

• 100% recyclable and UV resistant.
• Waterproof rated cable entry glands.
• Designated for virtually any aluminum framed solar panels.
• Easier and more flexible installation.
• Compatible with all Renogy solar panels.

Specifications:

• Material: UV-resistant ABS Plastic
• Weight (each component): 4.3 oz.
• Recommended Adhesive: Sikaflex 252 or alike
• Dimensions (l x w x h): 3.9 x 3.5 x 2.0 in
• Cable Gland Diameter Range: 6mm – 12mm

Renogy Single Side 27.4in Pole Mount Support For Solar Panel

The Renogy Solar Panel Pole Mount is designed for off-grid applications when mounting to a roof is not ideal. It comes complete with all fasteners to secure itself to the installation surface. The mount makes the installation of small solar systems easy, affordable and quick.

Recommended Tools (Not Provided):

• Socket Wrench
• Torque extension
• Box-Leveler
• Tape measure
• 18mm wrench or socket for larger hex nut
• 13mm wrench or socket for smaller hex nut

Caution:

• Do not attach solar panel to pole mount until mount is securely fit, and pole base has been secured.
• The chance to strip nuts and bolts exists.
• Multiple people for installation is suggested.

Please Note:

• The mount is only compatible with Renogy 80W and 100W solar panels.
• The pole not included. A pole with a diameter of 4 inch is necessary to work with the mount.

Features:

• 5052-H32 aluminum construction
• Stainless steel fasteners
• High-tensile strength
• Corrosion Free
• Withstands 50 psf (140 mph) wind loads
• Attractive brushed aluminum finish
• Infinitely adjustable between 15-65 degrees
• Precision hole positioning and alignment
• Easy, rapid assembly
• Well-illustrated instructions

Included:

• Two T-Slotted Brackets
• Two L-Channels
• Four L-Brackets
• Two Support Arms
• Two U-Bolts
• Eight T-Bolts
• Ten Cap Head Bolts and Eighteen Spring Washers
• Eighteen Washers (Small)
• Four End Clamps
• Eight Nuts (Small)
• Four Washers (Large)
• Eight Nuts (Large)

Renogy Solar Panel Mounting Z Bracket, 1 Set Pack

The Renogy Z-Bracket Mount System is designed to support the installation of single solar panel units, generally in off-grid installations. These units are ideal for installation on RV roofs and non-inhabited dwellings such as sheds or garages. It is also suited as attachment to a user made structure such as a wooden frame. The system comes complete with all fasteners to secure the system to the installation surface. This system makes the installation of small solar systems easy, affordable and quick.

Please Note: Not recommended for panels over 150 watt. If you do want to use this product for panels over 150 watt, you would need 2 sets of this Z bracket per panel.

Features:

• Lightweight
• Aluminum corrosion-free construction.
• Ease of installation
• Ideal for mounting small solar panels.
• Mounts panels to RVs, trailers, boats or yachts.
• Perfect for irregular surfaces
• Pre-assembled with bolts and washers

Included:

• Four Z Shape Solar Panel Brackets
• Four M6-16 Hex Cap Bolt
• Four M6 Split Lock Washer
• Eight M6 Flat Washer
• Four M6 Hexagonal Nut
• Eight #11 Self-Drilling Cap Screw and Plastic Retaining Ring

Renogy Solar Connector Assembly Tool

The Solar Assembly Tool is a hard plastic material that is very handy for both the assembly of custom solar wires, making it easier for new and veteran users to quickly and easily tighten and take apart the connectors.

Please Note: The Renogy Solar Assembly Tool is not compatible with the Solar Connections found in any of Renogy's Solar Suitcase Products.

Features:

• Hard plastic
• Double-quick screw down.

Renogy 10Ft 16AWG Solar Connector to 5.5x2.1mm DC Connector Adapter Cable

Effortlessly connect any solar panels with solar connectors to PHOENIX 200 Portable Power Station with the Solar Connector to a 5.5x2.1mm DC Connector Adapter Cable. The 10-foot length ensures that the portable power station can be placed in the shade while allowing maximum sunlight exposure on the solar panels. The durable construction guarantees reliable performance in harsh outdoor environments and extended service life.

Features:

• Plug-n-Play Design: With universal solar connectors on one end for the solar panel connection and a 5.5x2.1 mm DC connector on the other end for the portable power station connection, the adapter cable connects almost any solar panels to PHOENIX 200 Portable Power Station without the need of additional tools.

• Premium Quality: Meets the requirements of UL standards for extremely safe operation.

• Durable Construction: The PVC insulation jacket ensures that the adapter cable can deliver charging current as expected under high temperatures up to 80°C (176°F) and be bent freely without cracking under low temperatures down to -40℃（-40℉).

• Extra Length: 10-foot length ensures that the portable power station can be placed in the shade while allowing maximum sunlight exposure on the solar panels.

Specifications:

• Length: 10 ft (3.05 m)
• Wire Gauge: 16AWG
• Rated Voltage: 300V
• Maximum Current: 10A
• Conductor Material: Tinned Stranded Copper
• Insulation Material: PVC
• Jacket Material: PVC
• Terminal Type: Solar Connectors, 5.5x2.1 mm DC Connector
• Rated Temperature: '80°C / 176°F

Renogy Solar Adaptor Kit Cables 6mm² Connecting Solar Panel to Controller, 3 Metre

Cable Length Options:

• 10FT (3M)
• 20T (6M)
• 30FT (9M)
• 40FT (12M)

The Renogy Adaptor Kit is a set of two wires designed specifically for connecting a Renogy solar panel to a charge controller. The Adaptor Kit includes MC4 connectors on one end for effortless connection to the solar panel, and exposed wire on the other end to lead directly into the charge controller. This wiring kit is essential for off-grid solar installations, roof or ground level, and is offered in a wide range of sizes. The wiring is weatherproof and designed to withstand extreme heat and cold. This wiring kit is ideal for Renogy Off-Grid Kits ranging from 100W to 400W.

Renogy offers a wide range of lengths, as well as two different gauge sizes to choose from. The different sizes allow for customization based on a customer's unique needs. The Renogy 10ft 10AWG Adaptor Kit allows for 10 feet of length between the solar panel and charge controller.

Features:

• Hard plastic connectors at each end.
• Female and male connectors for an unbreakable connection.
• Weatherproof, insullated wiring.
• Exposed ends for connection to the solar charge controller.
• Essential for off-grid solar power system setup.
• Black sunlight resistant cable.
• Extends and locks built-in cables.

Renogy Solar Adaptor Kit Cables 6mm² Connecting Solar Panel to Controller, 6 Metre

Cable Length Options:

• 10FT (3M)
• 20T (6M)
• 30FT (9M)
• 40FT (12M)

The Renogy Adaptor Kit is a set of two wires designed specifically for connecting a Renogy solar panel to a charge controller. The Adaptor Kit includes MC4 connectors on one end for effortless connection to the solar panel, and exposed wire on the other end to lead directly into the charge controller. This wiring kit is essential for off-grid solar installations, roof or ground level, and is offered in a wide range of sizes. The wiring is weatherproof and designed to withstand extreme heat and cold. This wiring kit is ideal for Renogy Off-Grid Kits ranging from 100W to 400W.

Renogy offers a wide range of lengths, as well as two different gauge sizes to choose from. The different sizes allow for customization based on a customer's unique needs. The Renogy 10ft 10AWG Adaptor Kit allows for 10 feet of length between the solar panel and charge controller.

Features:

• Hard plastic connectors at each end.
• Female and male connectors for an unbreakable connection.
• Weatherproof, insullated wiring.
• Exposed ends for connection to the solar charge controller.
• Essential for off-grid solar power system setup.
• Black sunlight resistant cable.
• Extends and locks built-in cables.

Renogy Solar Adaptor Kit Cables 6mm² Connecting Solar Panel to Controller, 9 Metre

Cable Length Options:

• 10FT (3M)
• 20T (6M)
• 30FT (9M)
• 40FT (12M)

The Renogy Adaptor Kit is a set of two wires designed specifically for connecting a Renogy solar panel to a charge controller. The Adaptor Kit includes MC4 connectors on one end for effortless connection to the solar panel, and exposed wire on the other end to lead directly into the charge controller. This wiring kit is essential for off-grid solar installations, roof or ground level, and is offered in a wide range of sizes. The wiring is weatherproof and designed to withstand extreme heat and cold. This wiring kit is ideal for Renogy Off-Grid Kits ranging from 100W to 400W.

Renogy offers a wide range of lengths, as well as two different gauge sizes to choose from. The different sizes allow for customization based on a customer's unique needs. The Renogy 10ft 10AWG Adaptor Kit allows for 10 feet of length between the solar panel and charge controller.

Features:

• Hard plastic connectors at each end.
• Female and male connectors for an unbreakable connection.
• Weatherproof, insullated wiring.
• Exposed ends for connection to the solar charge controller.
• Essential for off-grid solar power system setup.
• Black sunlight resistant cable.
• Extends and locks built-in cables.

Renogy Solar Adaptor Kit Cables 6mm² Connecting Solar Panel to Controller, 12 Metre

Cable Length Options:

• 10FT (3M)
• 20T (6M)
• 30FT (9M)
• 40FT (12M)

The Renogy Adaptor Kit is a set of two wires designed specifically for connecting a Renogy solar panel to a charge controller. The Adaptor Kit includes MC4 connectors on one end for effortless connection to the solar panel, and exposed wire on the other end to lead directly into the charge controller. This wiring kit is essential for off-grid solar installations, roof or ground level, and is offered in a wide range of sizes. The wiring is weatherproof and designed to withstand extreme heat and cold. This wiring kit is ideal for Renogy Off-Grid Kits ranging from 100W to 400W.

Renogy offers a wide range of lengths, as well as two different gauge sizes to choose from. The different sizes allow for customization based on a customer's unique needs. The Renogy 10ft 10AWG Adaptor Kit allows for 10 feet of length between the solar panel and charge controller.

Features:

• Hard plastic connectors at each end.
• Female and male connectors for an unbreakable connection.
• Weatherproof, insullated wiring.
• Exposed ends for connection to the solar charge controller.
• Essential for off-grid solar power system setup.
• Black sunlight resistant cable.
• Extends and locks built-in cables.
