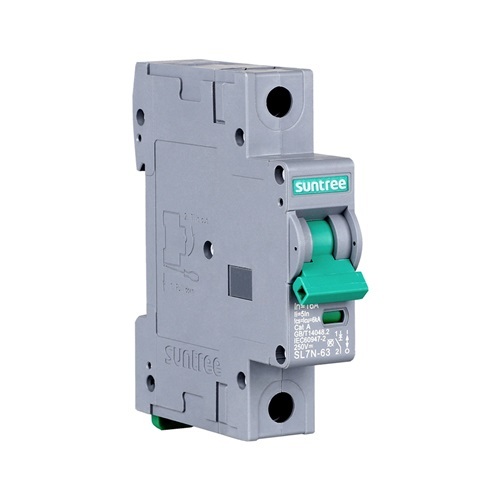

Renogy 10A 1P DC Miniature Circuit Breaker
SKU: SUNDCCB Learn More»Description
Renogy 10A/16A/32A/50A/63A 1P DC Miniature Circuit Breaker

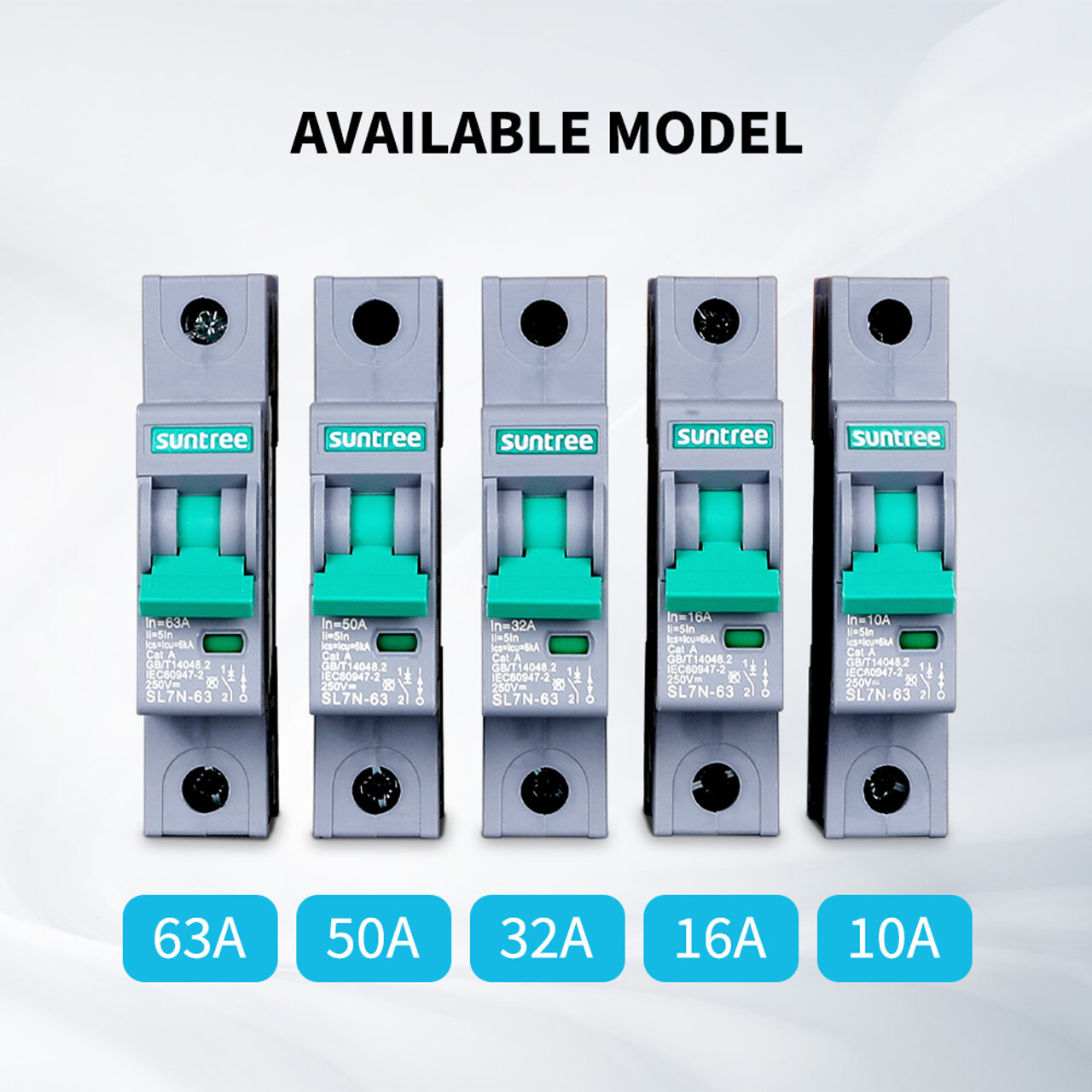

Current Rating Options:
- 10A
- 16A
- 32A
- 50A
- 63A

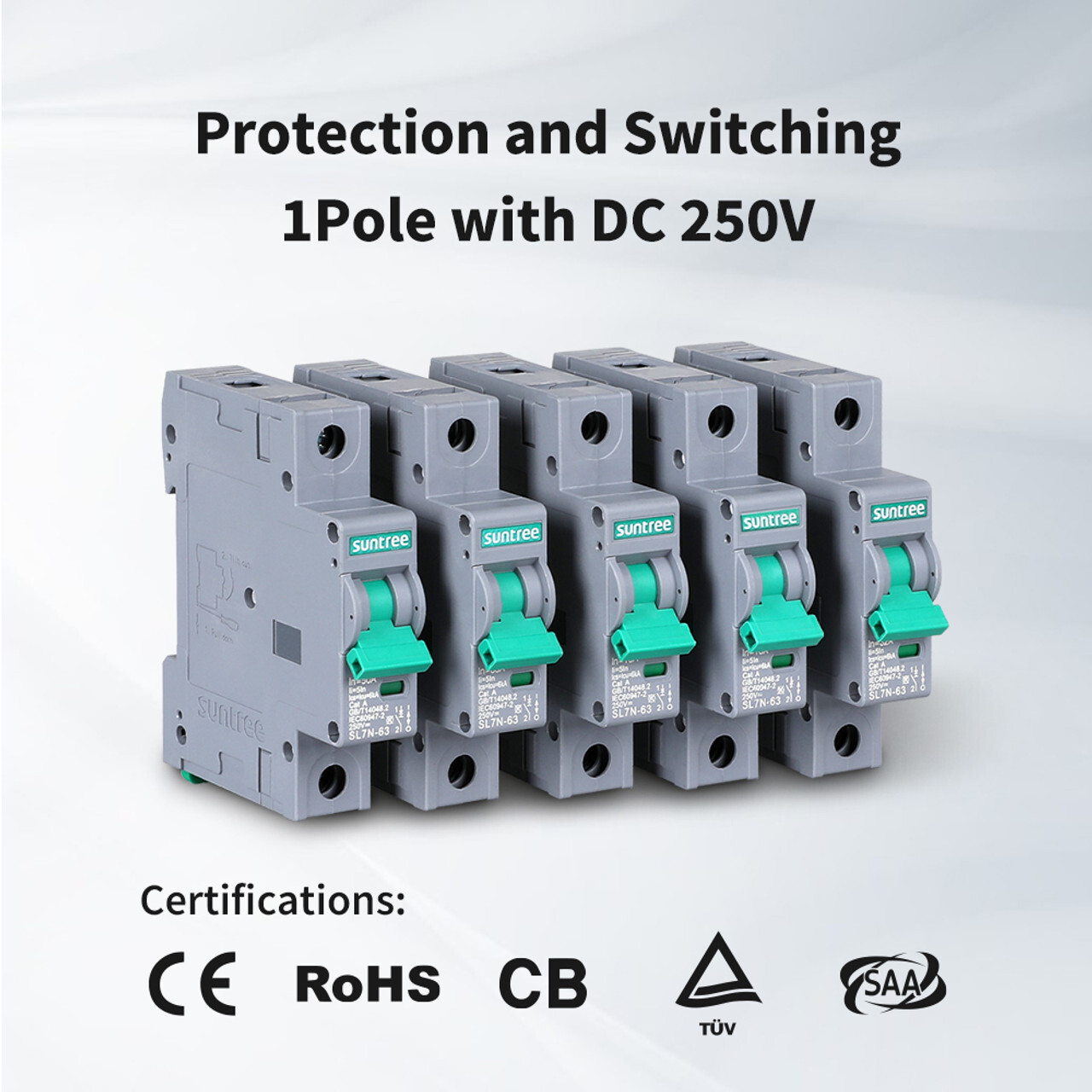

The Suntree DC Miniature Circuit Breaker is designed to protect DC electrical installations against overloads and short circuits, with both the thermal and magnetic tripping mechanism equipped. Once a fault is detected, the circuit breaker automatically switches off the electrical circuit to prevent damage to wires and avoid the risk of fire. The circuit breaker can also be manually opened under the full rated load without any damage when electrical maintenance needs to be performed. Engineered for reversible connection, the circuit breaker is allowed to be wired in either direction and functions under bidirectional current. The built-in indicator window helps identify the contact position of the circuit breaker at a glance. The buckle design enables easy installation on the standard DIN rail.
Features:
- DOUBLE SECURITY. Equipped with both the thermal and magnetic tripping mechanism for reliability and safety.

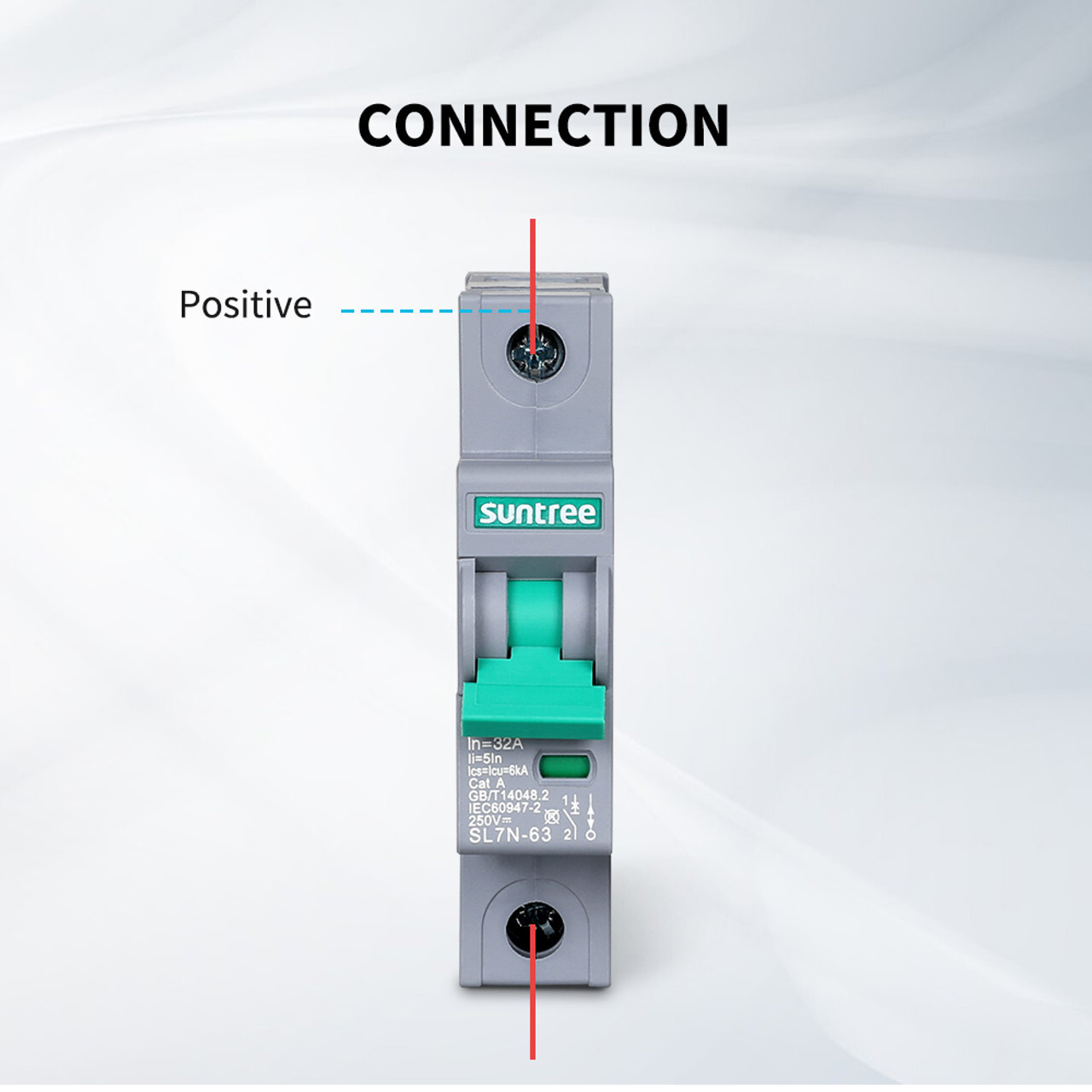

- SAFE TO USE. Offers reversible connection for worry-free wiring and bidirectional protection.

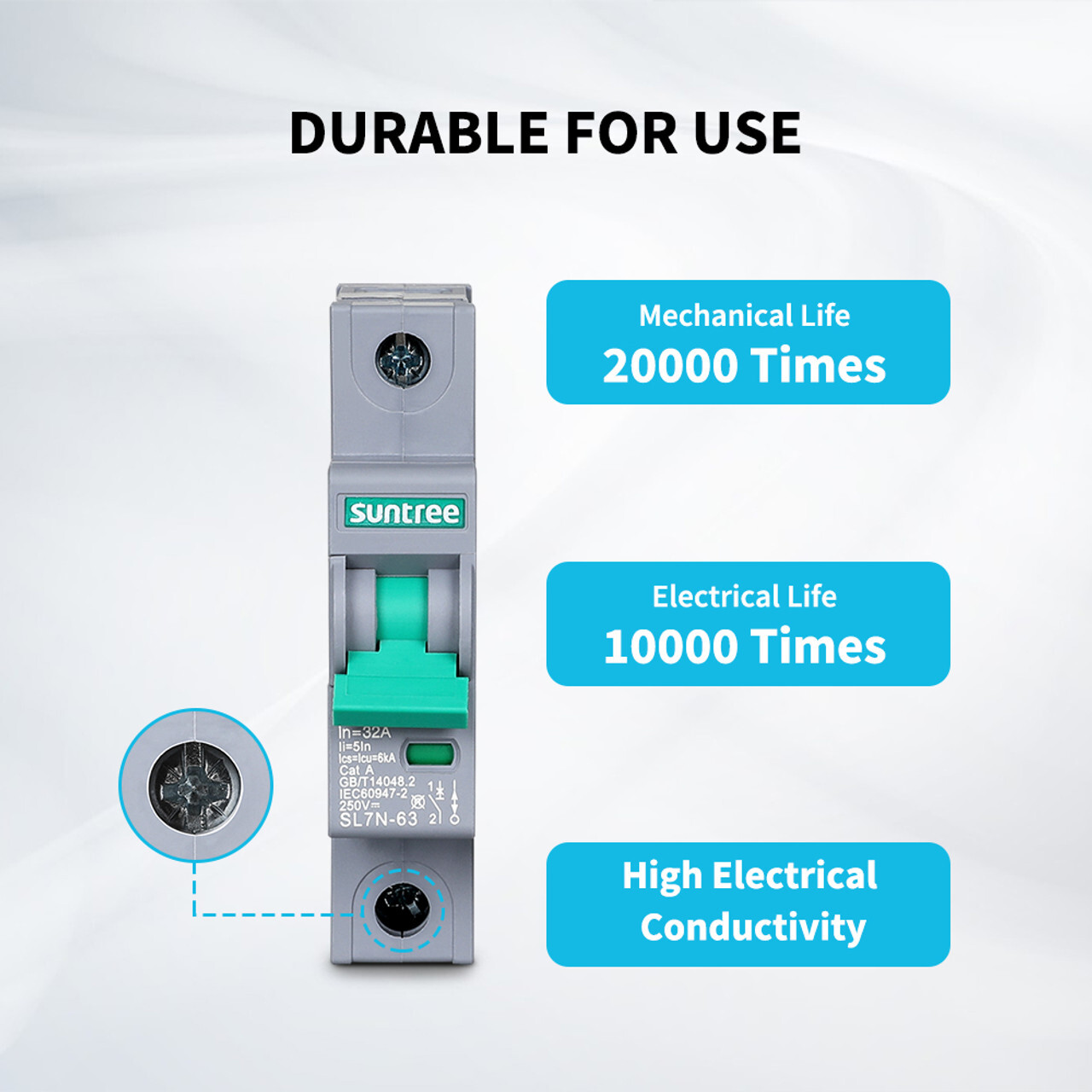

- DURABLE FOR USE. After the circuit breakers is disconnected, only reset is needed and there will be no damage.

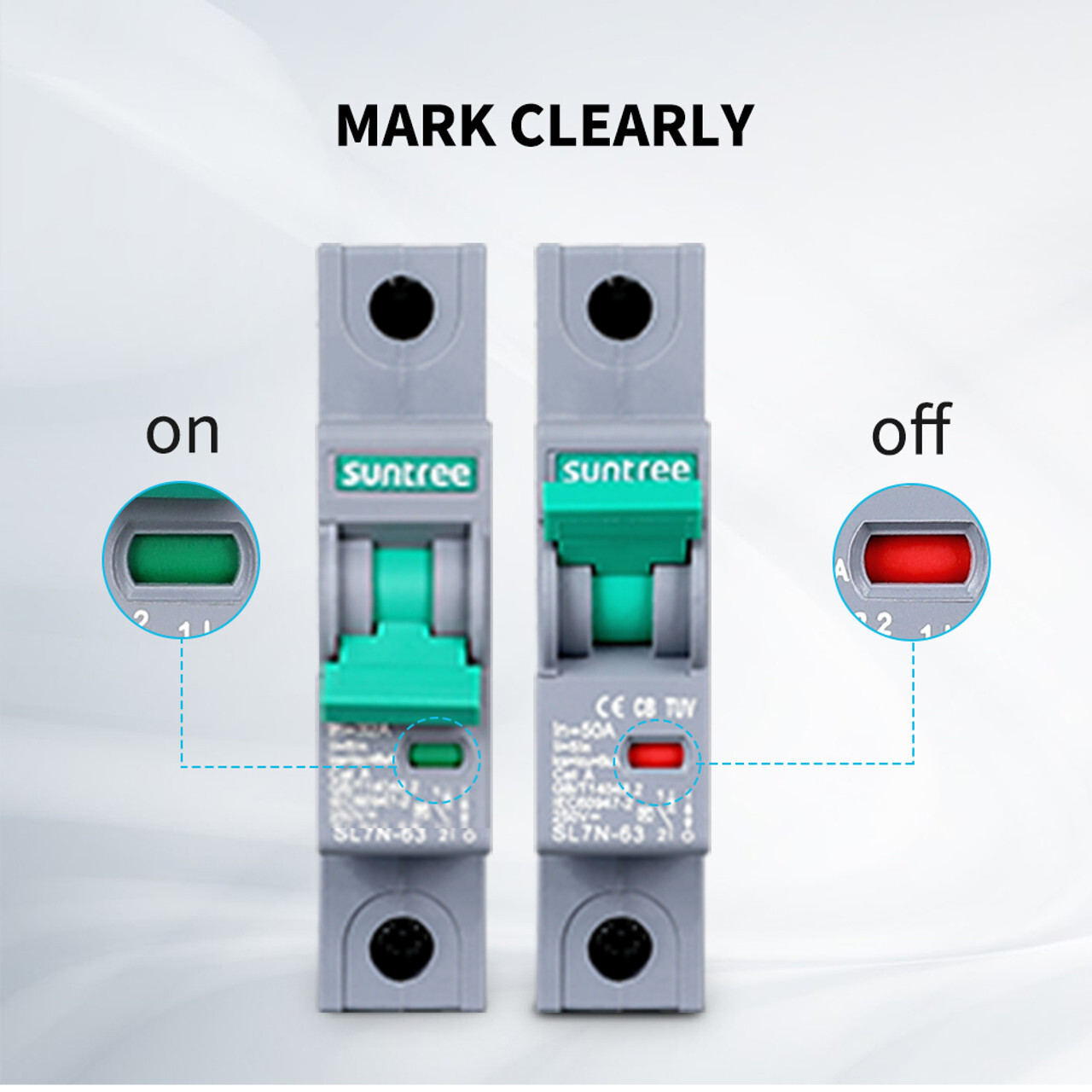

- EASY TO SEE. Built-in indicator window helps identify the contact position.
- QUICK TO INSTALL. Easily install on the standard DIN rail with the buckle design
Specifications
SKU SUNDCCB
Brand Renogy
Product Category Fuses and Breakers
Operating temperature range -30℃~70℃

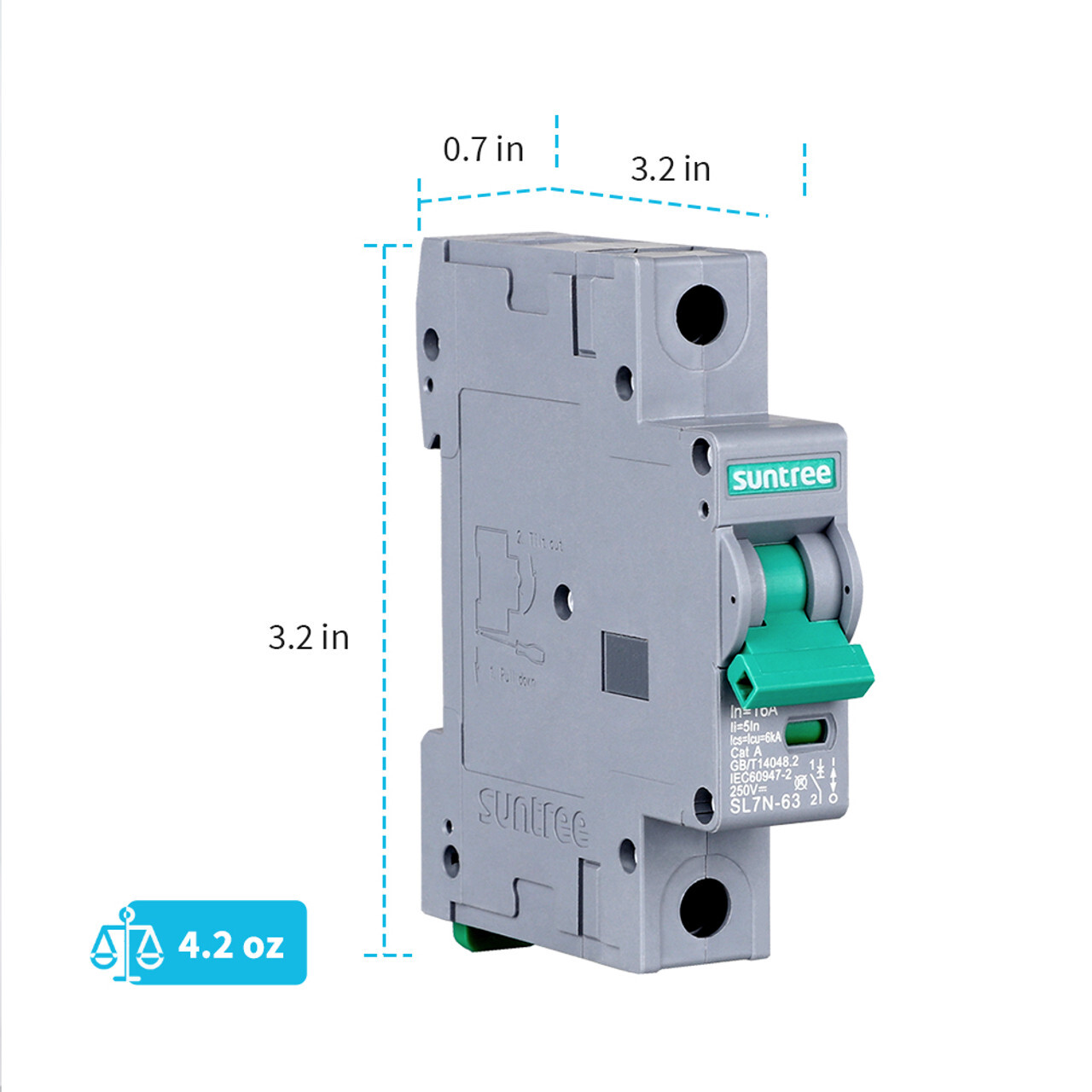

Dimensions 82 x 76 x 18 mm
Weight (kg) 0.120
Storage temperature -40℃~85℃
Operating Humidity ≤95%
NOTE: see full product specifications & further product info in the Description section on this page.
