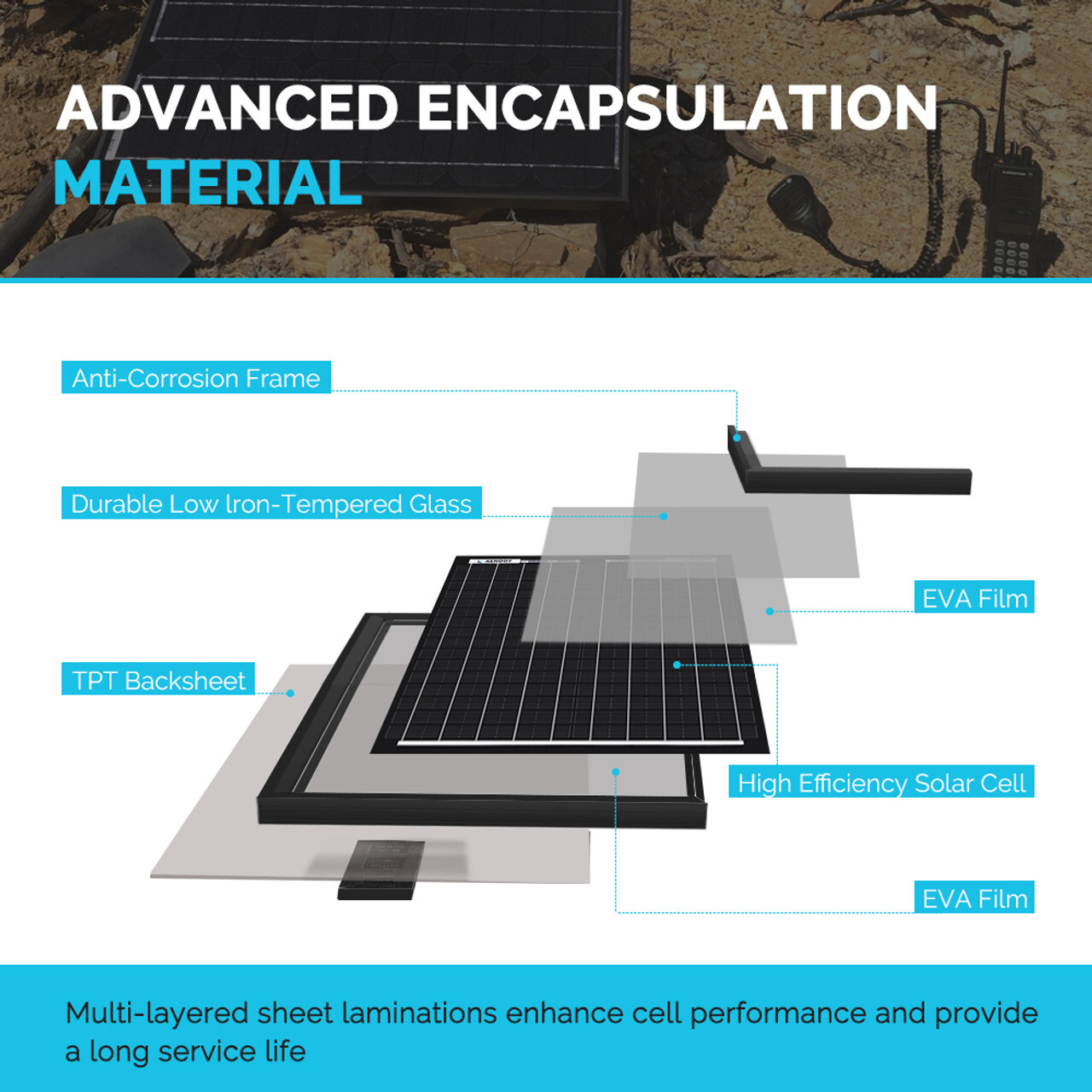

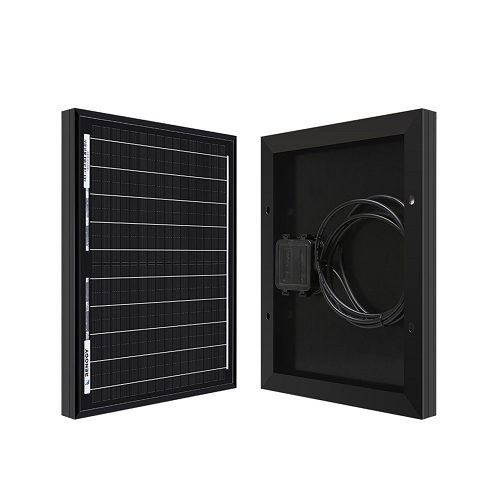

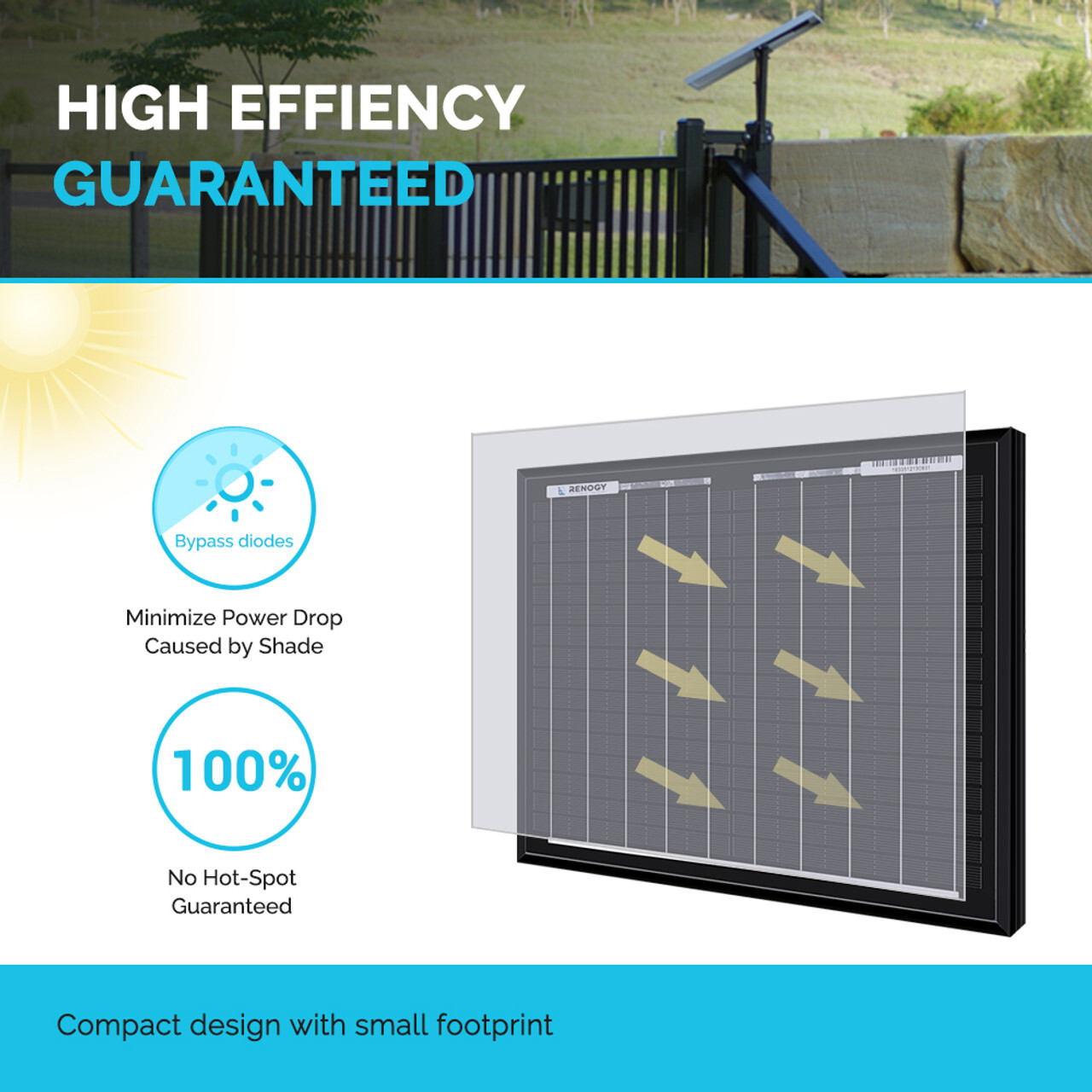

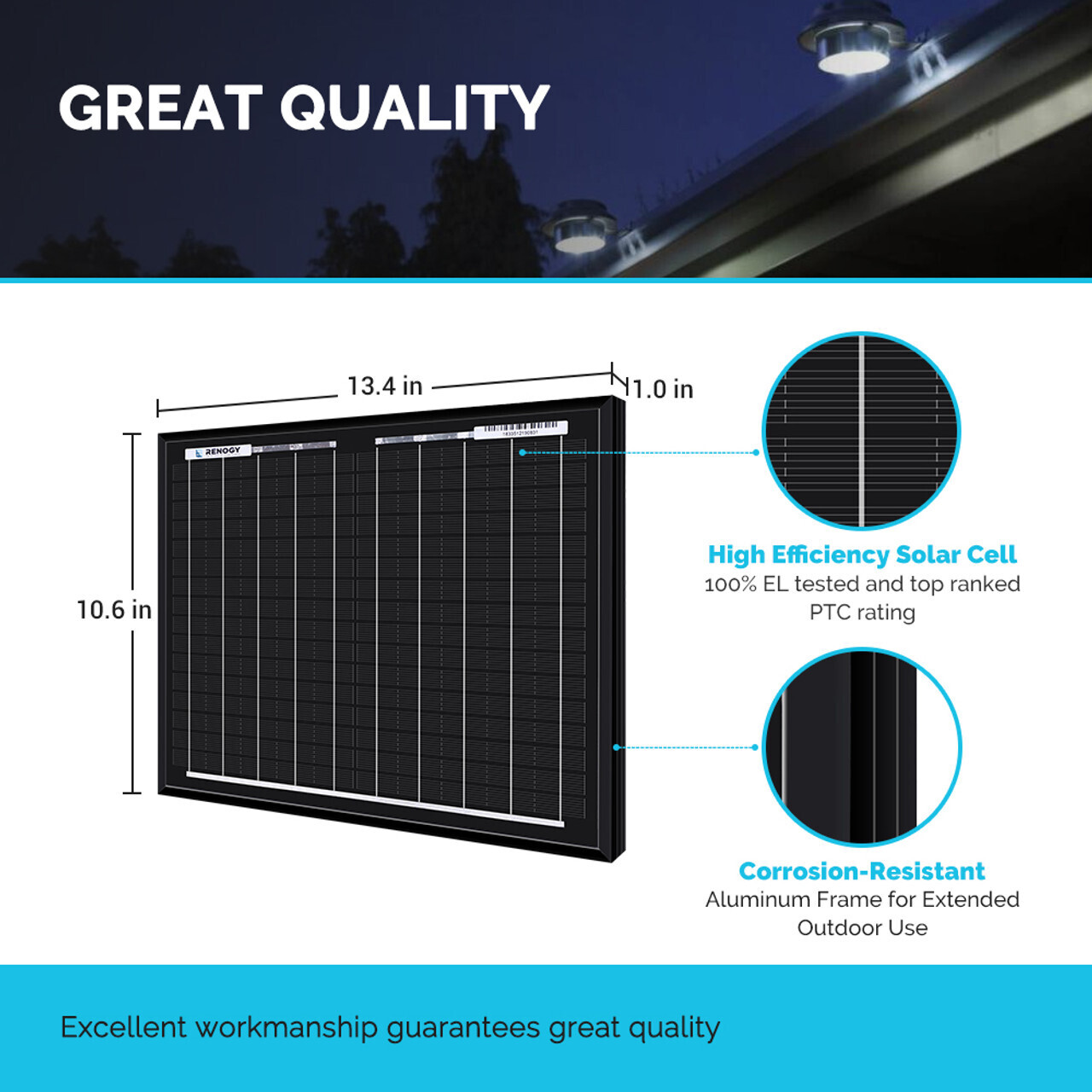

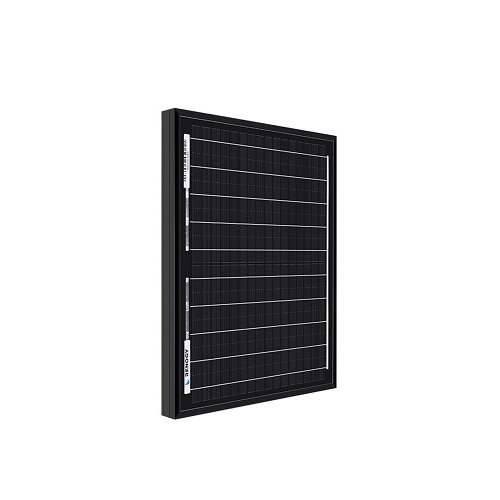

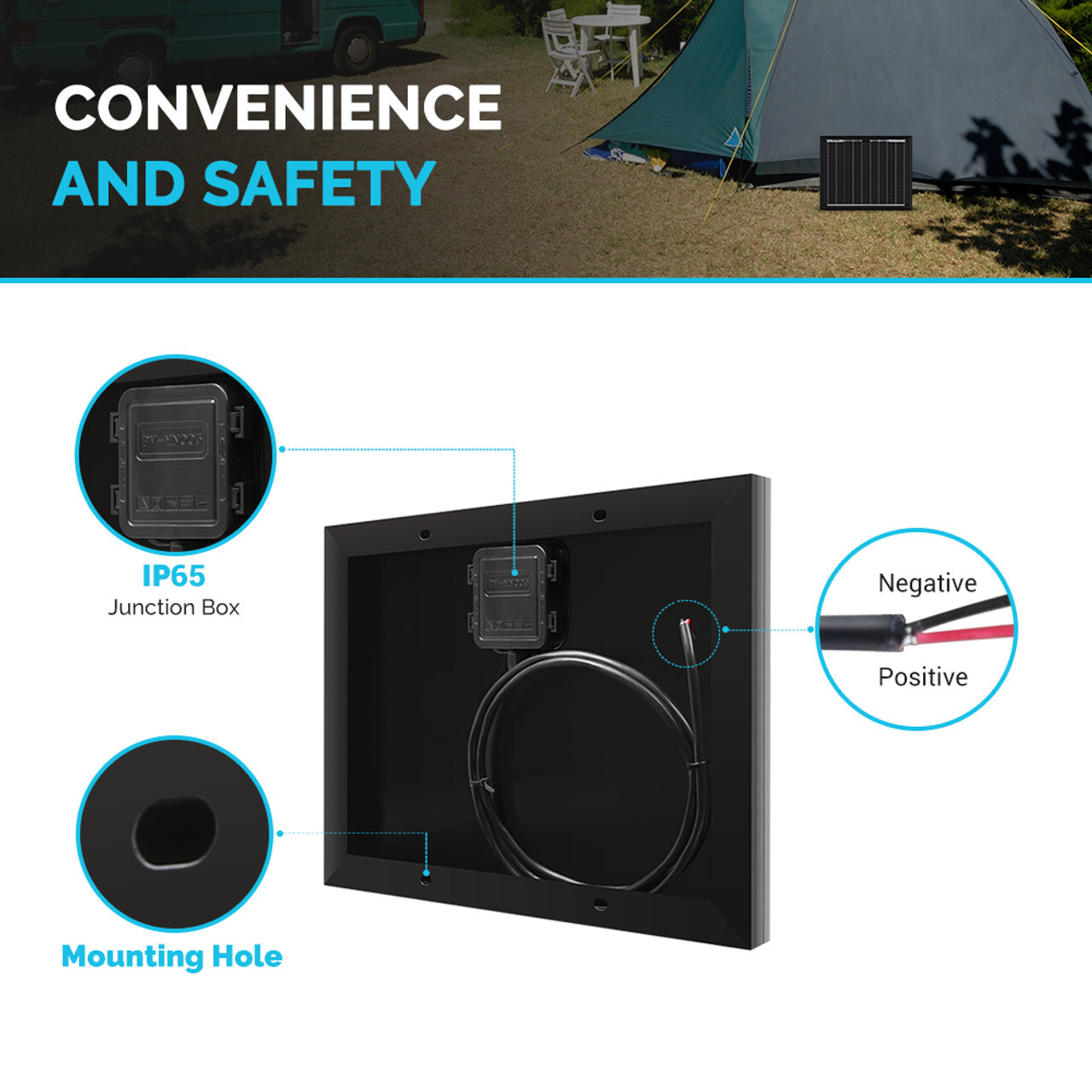

Renogy 10W 12V Monocrystalline Fixed Solar Panel

Renogy Wanderer 12/24V 10A PWM Charge Controller

The Renogy Wanderer 10A solar charge controller integrates efficient PWM charging to increase battery life and improve system performance. Designed with a simple interface for ease of use the controller uses an LCD to notify users of battery information. This advanced charge controller is designed for off-grid solar applications and can be used with a 12V/24V battery or battery bank. The compact size of the controller makes installation a breeze. The controller comes equipped with fully comprehensive self-diagnostics and electronic protection functions to prevent damage from installation mistakes or system faults.

Features:

• Optimized for a 12V/24V system; Deep cycle Sealed (AGM), Gel, Flooded and Lithium battery option ready.
• Smart 4 Stage PWM charging (Bulk, Boost, Float, and Equalization). Intelligent protection against reverse polarity, overcharging, short-circuit, and reverse current.
• Backlit LCD screen for displaying system operation, diverse load control and error codes.
• Integrated 5V 2A USB ports to charge USB devices.
• Compact in size makes it easy to install virtually anywhere.
• Capable of charging over-discharged lithium batteries.
• Integrated RS232 port allows communication with BT-1 Bluetooth module and usage of Renogy BT smartphone app.

Renogy 15A MC4-PV Diode Waterproof Connector

This product is a backflow prevention diode with MC4 connector. For example if solar panel is in shadow or has a fault in the process of paralleling solar panels, it prevents current from flowing to the solar panel with the lower voltage.

Features:

• System voltage <600V
• ISC≤15A
• IP67
• Aging resistance, UV resistance

Specifications:

• Rating Voltage: 600/1000V
• IP 67 Protection
• Max. Current: 15A
• Contact resistance:  ≤5mΩ
• Material:Brass,Tin plated
• Terminal size:4.0mm
• Safety Level: Class Ⅱ
• MC4 connector
• Temperature: -40°F to +185°F
• Flame class: UL94-V0

Renogy 4 to 1 Solar Branch Connectors MMMMF+FFFFM Pair

Make wiring parallel solar panels a breeze with these extended 4 to 1 Solar Branch connectors. Primarily suitable for 400W kits, these connectors allow you to install panels in portrait or landscape orientations without the messy wires in your way. Each package comes in pairs.

Features:

• Hard plastic
• Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
• Including one male to four female and one female to four male

Specifications:

• Withstanding voltage: 1000V DC(TUV), 600V(UL)
• Test Voltage: 6500V (50HZ, 5Min)
• Wiring Size: Main: 10AWG; Branch: 12AWG
• Length: Overall: 3.5ft; Branch: 1.5ft
• Protection Degree: IP67
• Rated Current: 30A
• Insulation Material: PC/PA
• Contact Material: Copper, silver plated
• Temperature: -40°F to +194°F


Renogy Solar Panel Roof Drill-Free Corner Bracket Mount

The Renogy Corner Bracket Mount is a great drill-free alternative mount for your solar system. These light weight brackets can be used with virtually any aluminum framed solar panels to provide drill-free and secure mounting to flat surfaces. This well constructed mount lifts your solar panel to provide an optimum height that establishes an air gap between the panel and the surface, assuring your panel stays cool in high temperatures. With the Renogy Corner Bracket installation on most motorhomes, caravans, RVS, and boats are cleaner and flexible.

Features:

• Non-corrosive, long lasting, and high quality ABS plastic construction.
• 100% recyclable and UV resistant.
• Drill-free mounting.
• Designated for virtually any aluminum framed solar panels.
• Best suitable for flat roofs of aluminum, wood, or GRP material.
• Easier and more flexible installation.
• Compatible with all Renogy solar panels.

Renogy Cable Entry Housing

The Renogy Cable Entry Housing is an ideal solution for cable entry through roofs. Made from ABS plastic, this waterproof and UV-resistant housing allows an easy cable entry solution for any condition. With its dual cable entry, this Renogy housing easily passes through solar cables for a smooth installation on virtually any roof surface.

Features:

• 100% recyclable and UV resistant.
• Waterproof rated cable entry glands.
• Designated for virtually any aluminum framed solar panels.
• Easier and more flexible installation.
• Compatible with all Renogy solar panels.

Specifications:

• Material: UV-resistant ABS Plastic
• Weight (each component): 4.3 oz.
• Recommended Adhesive: Sikaflex 252 or alike
• Dimensions (l x w x h): 3.9 x 3.5 x 2.0 in
• Cable Gland Diameter Range: 6mm – 12mm

Renogy Solar Connector Assembly Tool

The Solar Assembly Tool is a hard plastic material that is very handy for both the assembly of custom solar wires, making it easier for new and veteran users to quickly and easily tighten and take apart the connectors.

Please Note: The Renogy Solar Assembly Tool is not compatible with the Solar Connections found in any of Renogy's Solar Suitcase Products.

Features:

• Hard plastic
• Double-quick screw down.

Renogy 10Ft 16AWG Solar Connector to 5.5x2.1mm DC Connector Adapter Cable

Effortlessly connect any solar panels with solar connectors to PHOENIX 200 Portable Power Station with the Solar Connector to a 5.5x2.1mm DC Connector Adapter Cable. The 10-foot length ensures that the portable power station can be placed in the shade while allowing maximum sunlight exposure on the solar panels. The durable construction guarantees reliable performance in harsh outdoor environments and extended service life.

Features:

• Plug-n-Play Design: With universal solar connectors on one end for the solar panel connection and a 5.5x2.1 mm DC connector on the other end for the portable power station connection, the adapter cable connects almost any solar panels to PHOENIX 200 Portable Power Station without the need of additional tools.

• Premium Quality: Meets the requirements of UL standards for extremely safe operation.

• Durable Construction: The PVC insulation jacket ensures that the adapter cable can deliver charging current as expected under high temperatures up to 80°C (176°F) and be bent freely without cracking under low temperatures down to -40℃（-40℉).

• Extra Length: 10-foot length ensures that the portable power station can be placed in the shade while allowing maximum sunlight exposure on the solar panels.

Specifications:

• Length: 10 ft (3.05 m)
• Wire Gauge: 16AWG
• Rated Voltage: 300V
• Maximum Current: 10A
• Conductor Material: Tinned Stranded Copper
• Insulation Material: PVC
• Jacket Material: PVC
• Terminal Type: Solar Connectors, 5.5x2.1 mm DC Connector
• Rated Temperature: '80°C / 176°F
