Renogy 12/24V 200W Solar Panel Premium Kit with MPPT

Description

Renogy 12/24V 200W Solar Panel Premium Kit with MPPT

The Renogy 200W 12V Premium Kit is easy for you to install, and it is the most economical choice for the off-grid adventurer. Renogy Solar Kit comes with solar panels, charge controllers, and needed electrical wiring, fuses, and monitoring typically required for an off-grid installation, making it ideal for both off-grid and mobile solar power applications.

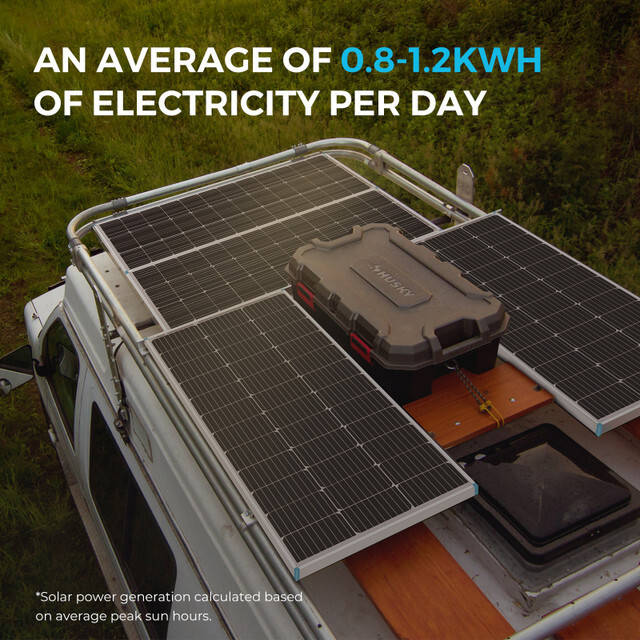

The Premium Kit will produce an average of 1000Wh of electricity per day (depending on sun availability). The 2×100W solar panels don't take up much roof space, but their energy can offset loads such as lighting, camera, and projector.

The Premium Kit can build a reliable and environmentally friendly power supply, perfect for all rooftops, RVs, boats, or campers. It can also be installed in a ground mount system as a power supply for outdoor appliances, emergencies, and a stand-alone power system.

• Efficient Performance. By bypassing the shaded cells with poor performance, the bypass diode minimizes the power drop caused by the shadow to ensure excellent performance in low-light environments.
• Full System Protection. Meant to safeguard your system, the self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery over-discharging, overload, short-circuiting, and reverse current.

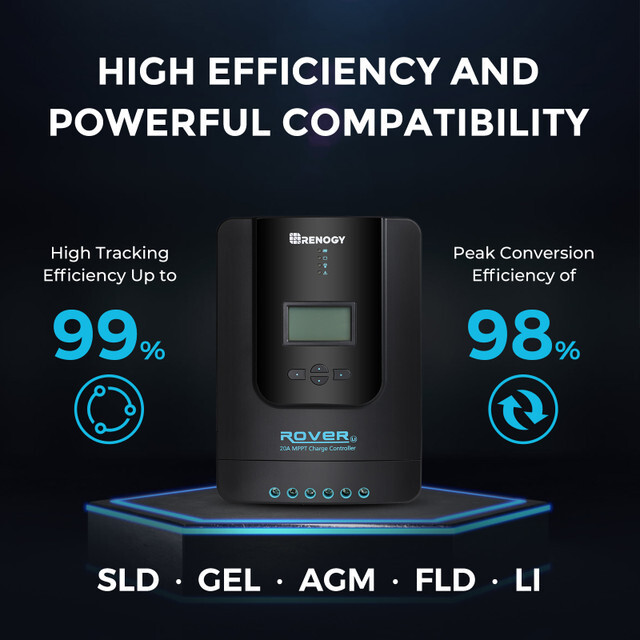

• Auto Detect and Powerful Compatibility. Automatically detects 12V or 24V DC system voltages, and the LCD screen and multiple LED indicators display the solar charging and battery operation information, customizable parameters, and error codes.

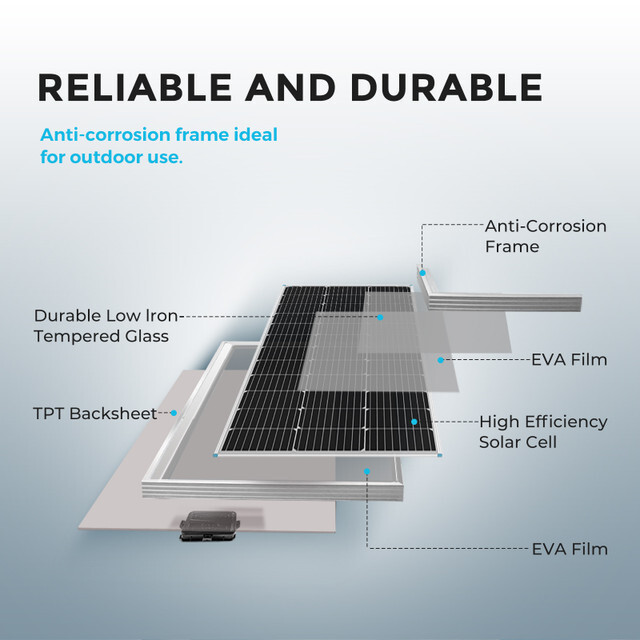

• Solid Quality. Advanced encapsulation material with multi-layered sheet laminations to protect cells from physical damage or distortion, improving cell performance and providing a long service life. EL tested, no hot-spot heating is guaranteed.
• No Fear of Weather Challenge. The IP65 Junction Box offers complete protection against environmental particles and low-pressure water jets. These IP67 waterproof solar connectors ensure that the water and dust will not enter the connector during extended outdoor use. Effectively preventing water from seeping in.
• Ready to Install. Pre-drilled holes on the back frame allow quick installation. The kit has a complete set of accessories and is equipped with an In-line fuse and ANL fuse components to offer more protection.

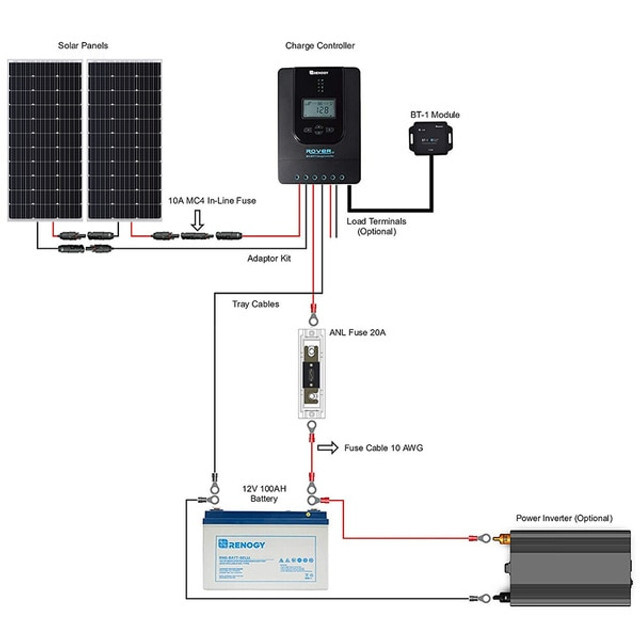

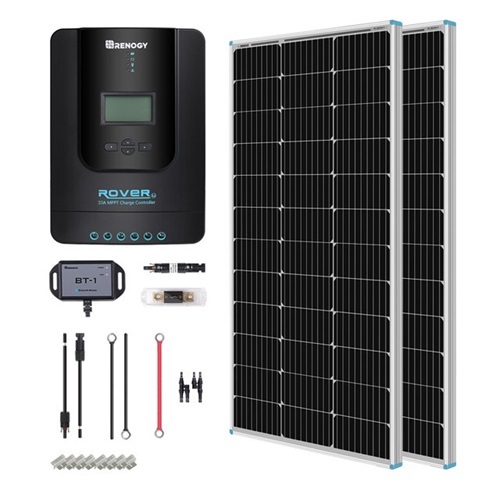

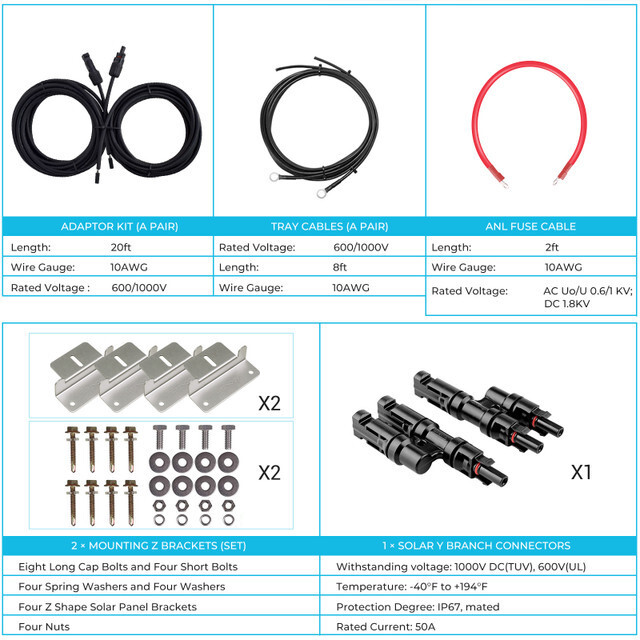

Package Includes:

• 2 x 100W Mono Solar Panel
• 1 x Rover 20A MPPT Charge Controller
• 1 x 20ft 10AWG AK
• 1 x 2ft 10AWG Fuse Cable
• 1 x 8ft 10AWG Tray Cable
• 2 x Mounting Z Brackets (Set)
• 1 x BT-1 Bluetooth Module
• 1 x 10A In-line Fuse and 20A ANL Fuse
• 1 x Solar Y Branch Connectors MMF+FFM Pair

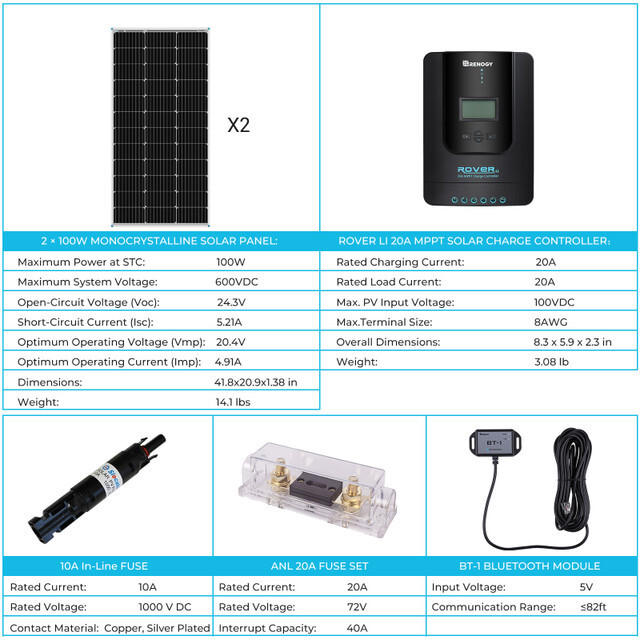

Specifications:

• Maximum Power: 100W
• Dimensions: 1062 x 532 x 36mm (Solar Panel)
• Weight: 6.4kg (Solar Panel)
• Nominal Voltage: 12V/24V DC Auto Recognition
• Rated Charging Current: 20A
• Rated Load Current: 20A
• Max. Battery Voltage: 32V
• Max. PV Input Power: 260W/12V, 520W/24V
• Max. PV Input Voltage: 100VDC
• Operating Temperature: -35°C to +45°C
• Max.Terminal Size: 8AWG
• Rated Load Current: 10% to 90% NC
• Overall Dimension: 211 x 150 x 59mm (Charge Controller)
