Renogy 12V 60A DC to DC Battery Charger
SKU: RNG-DCC1212-60 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Renogy 12V 60A DC to DC Battery Charger
The 60A DC to DC Battery Charger is the most effective way to charge your house/secondary batteries from the starter battery. Compatible with a multitude of alternator types, the DC-DC battery charger offers correct charging for AGM, Flooded, Gel, and even Lithium deep cycle batteries! Featuring a 3-stage battery charger and multiple electronic protections, users can feel confident that their batteries are being charged optimally and automatically. For additional safety, it isolates the input from the output preventing incorrect voltage transmission. Easily install the compact yet sturdy DC-DC battery charger on RV's, commercial vehicles, boats, yachts, and many more applications!
Features:
- Compatible with Multiple Battery Types: The DC-DC battery charger is highly compatible with AGM, Flooded, Gel, and Lithium batteries, ensuring optimal performance for various battery types.
-
Protect Your Starter Battery: Renogy's DC-DC battery charger works seamlessly with traditional and smart alternators. The included D+ Ignition cable identifies generator starts, safeguarding the starting battery from over-discharge and protecting the generator. (Recommended: 18-16AWG copper cable. D+ Ignition Cable not included.)
-
Smart Charging Protection: The DC-DC battery charger's LC wire automatically adjusts the charging current, safeguarding the house battery from potential damage due to excessive charging. (Recommended: 18-16AWG copper cable. LC cable not included.)
-

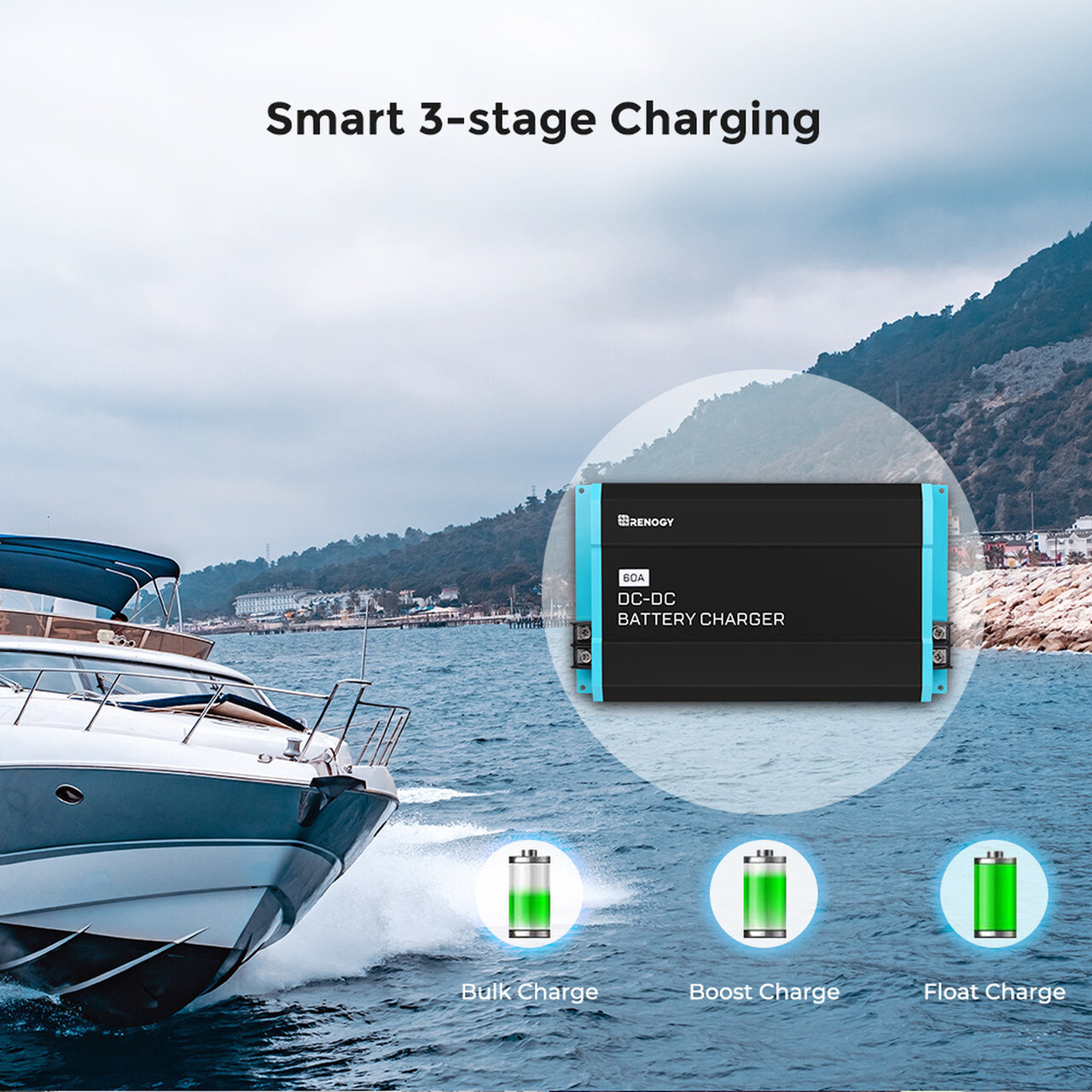

Smart 3-Stage Charging: Efficiently charge your house batteries from the starter battery with Bulk, Boost, and Float stages, ensuring automatic and optimal charging up to 100%.
-
Prolong Battery Lifespan: Automatically adapts charging modes to match battery voltages, while the temperature sensor provides -3mV/°C/2V compensation, ensuring optimal charging in varying temperatures. (Please note: Temperature sensor not included, not compatible with Lithium batteries.)
Specifications:
- Nominal Voltage: 12V
- Rated Charge Current: 60A
- Output: 750W
- Idle Power Consumption: <0.4A
- Input Voltage Range: 8V-16V
- Equalization Voltage: N/A
- Float Voltage: 13.2-13.8v
- Boost Voltage: 14.1-14.7v
- Operating Temperature: -20°C to +50°C
- Dimensions: 311 x 175 x 68mm
- Weight: 2.4kg
.png)
Specifications
SKU RNG-DCC1212-60
Brand Renogy
GTIN 00840315203549
Product Category Battery Chargers
Output Current Rating (Amps) 60
Operating temperature range -20°C-50°C
Weight (kg) 2.4
Dimensions 311 x 175 x 68 mm
Charger Voltage 12V
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
What is the purpose of a DC to Dc Charger?
Installed between the house battery and the starter battery is the DC-DC battery charger. It takes energy from the start battery in the vehicle and adjusts the voltage to match the requirements of the device being charged ie house battery
-
How can I pick a battery charger that works well?
1. Verify that the system is running on 12 volts throughout.
2. Make sure that the DC-DC battery charger's maximum charging current does not surpass the maximum charging current that the house battery permits.
-
How can I adjust the charger to charge different chemical batteries?
The DIP switch concept is included into the DC-DC battery charger. There are 5 dip switches that need setting based on the profile of the battery. Please refer to the manual for the correct setting for each profile.
-
Do I need to connect the included D+ ignition cable?
The D+ igntion cable is necessary to install as the Dc-Dc charger will not power on until it detects the 12v source from the vehicles alternator. This is also to prevent the Dc-Dc chargerfrom drain the start battery when the vehicle is not running.
