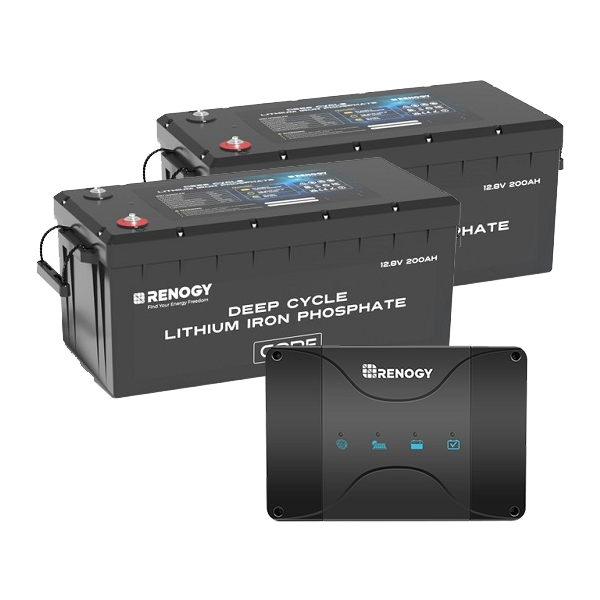

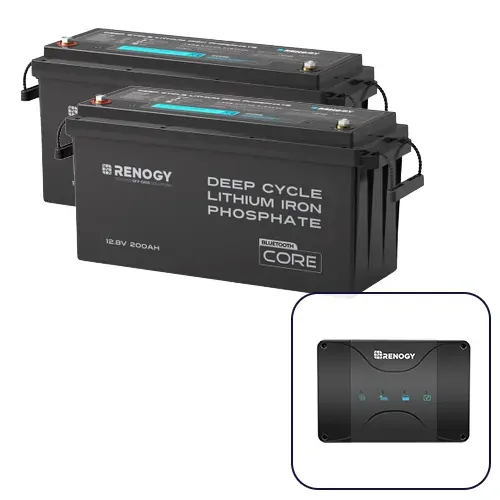

Renogy 2 x 200Ah Lithium Battery and 50A DC-DC Charger Bundle

Description

Renogy 2 x 200Ah Lithium Battery and 50A DC-DC Charger Bundle



Included in bundle:

• 2 x Renogy 12V 200Ah Core Series Deep Cycle Lithium Iron Phosphate Battery -  RBT12200LFP
• Renogy DCC50S 12V 50A Dual Input DC to DC Battery Charger with MPPT - RBC50D1S

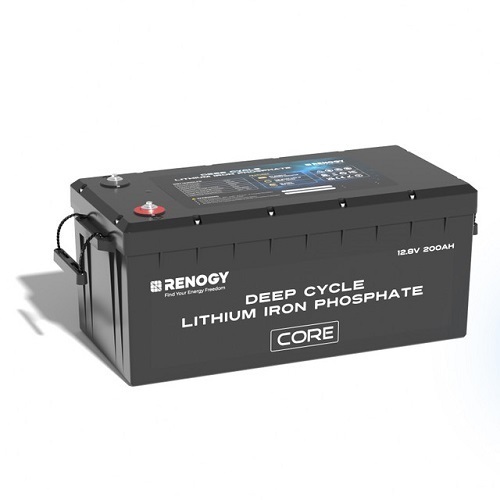

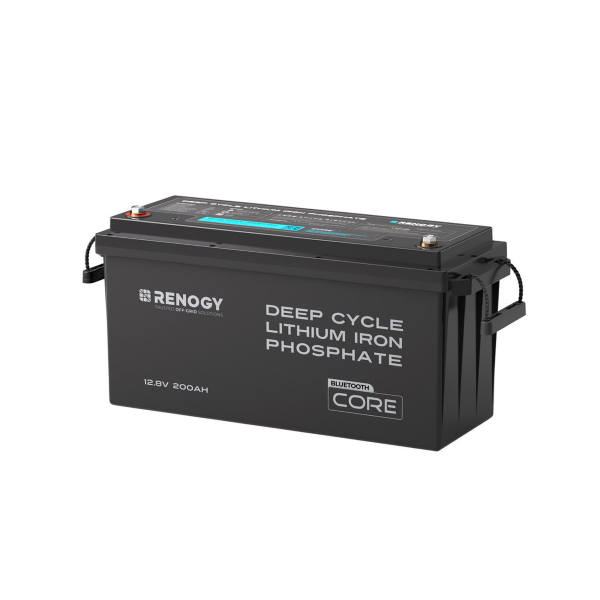

Renogy 12V 200Ah Core Series Deep Cycle Lithium Iron Phosphate Battery

Meet Renogy 12V 200Ah Core Series Battery, your trusted, one-stop solution for upgrading from Lead to Lithium. Compatible with Renogy's solar panels, solar charge controllers, and inverters, this battery delivers a seamless upgrade experience without any compatibility issues.

With a positive capacity tolerance of up to 6%, the Core series batteries provide extra power beyond their rated capacity, ensuring that you're covered during outages, hurricane season, and other emergencies. Connect multiple batteries in series-parallel to keep your system running longer and it can be used in trolling motor.

Off-grid living can be challenging, but the Renogy 12V 200Ah Core Battery offers a true 200A battery management system (BMS), low-temp cut-off (for charging), and IP65 protection, giving you the confidence to tackle any obstacles.

Whether you are planning an upgrade from old lead-acid batteries, or starting to build your first-ever off-grid power system, the Renogy 12V 200Ah Core LiFePO4 Battery is your go-to option to get your project done right in an easier & faster way.

Features:

• True All-Round BMS Protection. Built in with a reliable 200A battery management system (BMS) for regulating high discharge current of up to 200A. The included low-temperature cut-off makes for safer charging in winter and consistent performance in the long run.
• One-Stop Upgrade Solutions. Get solar panels, solar charge controllers, inverters, and accessories while upgrading from lead-acid batteries here at Renogy. No more worries about compatibility between each component. Have your system built up easier & faster in one go.
• Max. 6% More Capacity. Renogy 12V 200Ah Core Series Battery provides max. 6% more power compared with the rated capacity, ramping the usable capacity up to 212Ah.
• Versatile & Seamless Connection. Set up your system in the way you want, be it series, parallel, or series-parallel connection. Expandable up to 16 in series-parallel for maximum power up to 40.96kWh (4P4S, 51.2V 800Ah).
• True All-Round BMS Protection. Built in with a reliable 200A battery management system (BMS) for regulating high discharge current of up to 200A. The included low-temperature cut-off makes for safer charging in winter and consistent performance in the long run.
• Find Your Spot in Our Community. Register your products, share experiences, learn new knowledge, and connect with like-minded people all in one place-Renogy Power Plus Community. More benefits await your exploration.

Specifications:

• Rated Capacity (0.5C, 25°C): 200 Ah
• Operation Temperature Range Charge: 0°C to 55°C
• Nominal Voltage: 12.8 V
• Operation Temperature Range Discharge: -20°C to 60°C
• Energy: 1280Wh
• Storage Temperature Range: -13°F to 149°F / -25°C to 65°C
• Cycle Life(0.5C/1C, 25℃): 5000 Cycles (80% DOD 80% EOL)Operation Relative Humidity: 10% to 95%
• Charge Voltage: 14.4 V
• Protection Rating: IP65
• Maximum Continuous Charge Current: 100 A
• Maximum Continuous Discharge Current: 200 A
• Dimension (L x W x H): 522 x 240 x 219mm
• Weight: 21.45 kg

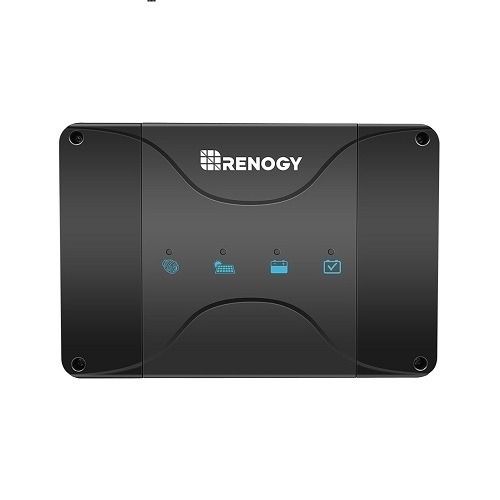

Renogy DCC50S 12V 50A Dual Input DC to DC Battery Charger with MPPT

Renogy's DC to DC MPPT on-board Battery Charger is designed to give you options! This multi-stage, multi-input battery charger can charge a service battery from a starting battery linked to an alternator or by utilizing solar panels connected directly to the unit. While your vehicle's alternator prioritizes your starting battery, this unit will allow your solar system to charge your service battery first! It's the smart way to keep yourself fully charged and off-grid longer! And with multi-stage charging and multi-chemistry functionality, Renogy's DC to DC MPPT Charger has you covered whether you're using Flooded, Gel, AGM, or Lithium batteries. With RJ45 communication port featured, you can unlock monitoring features exclusively using the BT-2 Bluetooth Module and Renogy DC Home App, control and monitor the device remotely through your phone in real time.

Features:

• Multi-Input Efficiency Charging: The Renogy DC-DC Battery Charger with unique dual charging options. This multi-stage, multi-input battery charger can charge the house battery from a starter battery linked to the car alternator or by utilizing solar panels connected directly to the unit. Both ways can be charged at the same time to minimize charging time. With up to 99% MPPT tracking efficiency and 94% convert efficiency, the charger can fully charge a 1kWh battery within 2 hrs with solar energy.

• Ingenious Structure Design: Removable side covers avoid contact between product terminals and the human body during transportation and daily use, which results in electrostatic damage, ensuring product stability and safety. The all-in-one NEG- terminal with partition design integrates the terminals for solar panels, the array starter battery, and the house battery, avoiding misconnection and making the simple installation.

• Diversified Smart Monitoring: The Renogy 50A DC-DC Battery Charger uses the Modbus protocol and allows it to be compatible with various monitoring devices, including the RMS-DCDC monitoring screen, DC Home App, and Renogy One integrated screen. Managing and monitoring your energy easily and remotely in any scenario and situation.

• Soft Start Circuit Design: The voltage at the input end of the Renogy 50A DC-DC battery charger will be rising gently, intending to avoid when the vehicle alternator starts, the instantaneous overvoltage which may cause damage to the battery charger or cause the starter battery to over-discharge and due to the vehicle can not start.

• Comprehensive Security Assurance: The Renogy DC-DC Battery Charger is multi-certified to CE, FCC, and PoHs. This high-quality battery charger has multiple intelligent protections including battery isolation, over-voltage protection, battery temperature protection, over-current protection, overheat protection, reverse current protection, solar panel and alternator reverse polarity protection, guaranteeing charging safety and protecting your batteries.

Specifications:

• System Voltage : 12VDC
• Battery Voltage Range : 9-16VDC
• Maximum Charging Current  : 50A
• Battery Type : SLD/AGM, GEL, FLD, LISER
• Service Battery Charging Mode: MPPT
• Charging Efficiency: Up to 97%
• Max. Solar Input Voltage: 25V
• Maximum Solar Input Power: 660W
• Alternator Input Voltage: Traditional Alternator: 13.2-16VDC
• Smart Alternator (Euro 6): 12-16VDC
• Maximum Alternator Input Power: 660W
• Self-consumption: 60mA
• Operating Temperature Range: -31°F ~ 149°F
• Communication Protocol: RS485
• Ground Type: Negative
• Terminal Size:M8*1.25 - 10mm
• Temperature Compensation: '-3mV/C/2V
• Storage Temperature Range: -40°F - 176°F
• Operating / Storage Humidity: 0%-95%, No Condensation
• Dimensions : 244mm x 146mm x  77mm
• Weight: 1.42 kg

Pack Included:

• 12V 50A DC-DC On-Board Battery Charger with MPPT
• Battery Temperature Sensor
• IGN Signal Wire
• RS485 Communication Cable
