Renogy 24V 10A AC to DC Lithium Iron Phosphate Battery Charger
SKU: RBC10A2P Learn More»
Description
Renogy 24V 10A AC to DC Lithium Iron Phosphate Battery Charger
Renogy 24V 10A AC charger is designed for lithium batteries (LifePO4 Battery). The charger has a 3-stage intelligent charging design (CC/CV/trickle) to ensure it charges the lithium battery quickly and efficiently. This battery charger has 6-layer protection functions to realize comprehensive monitoring and protection of the battery. This charger is suitable for RVs, motorbikes, boats, and camper-van.
Features:
-
Born for Lithium Batteries: This battery charger is designed for lithium batteries. When the lithium battery triggers the low temperature/low voltage while charging, the BMS will turn on the protection, which means the lithium battery cannot be charged and needs to be activated. This charger provides a lithium battery activation function that quickly exits the protection mode and recharges. Along with CE and UKCA certification, it provides a safe and stable AC charging environment.
-

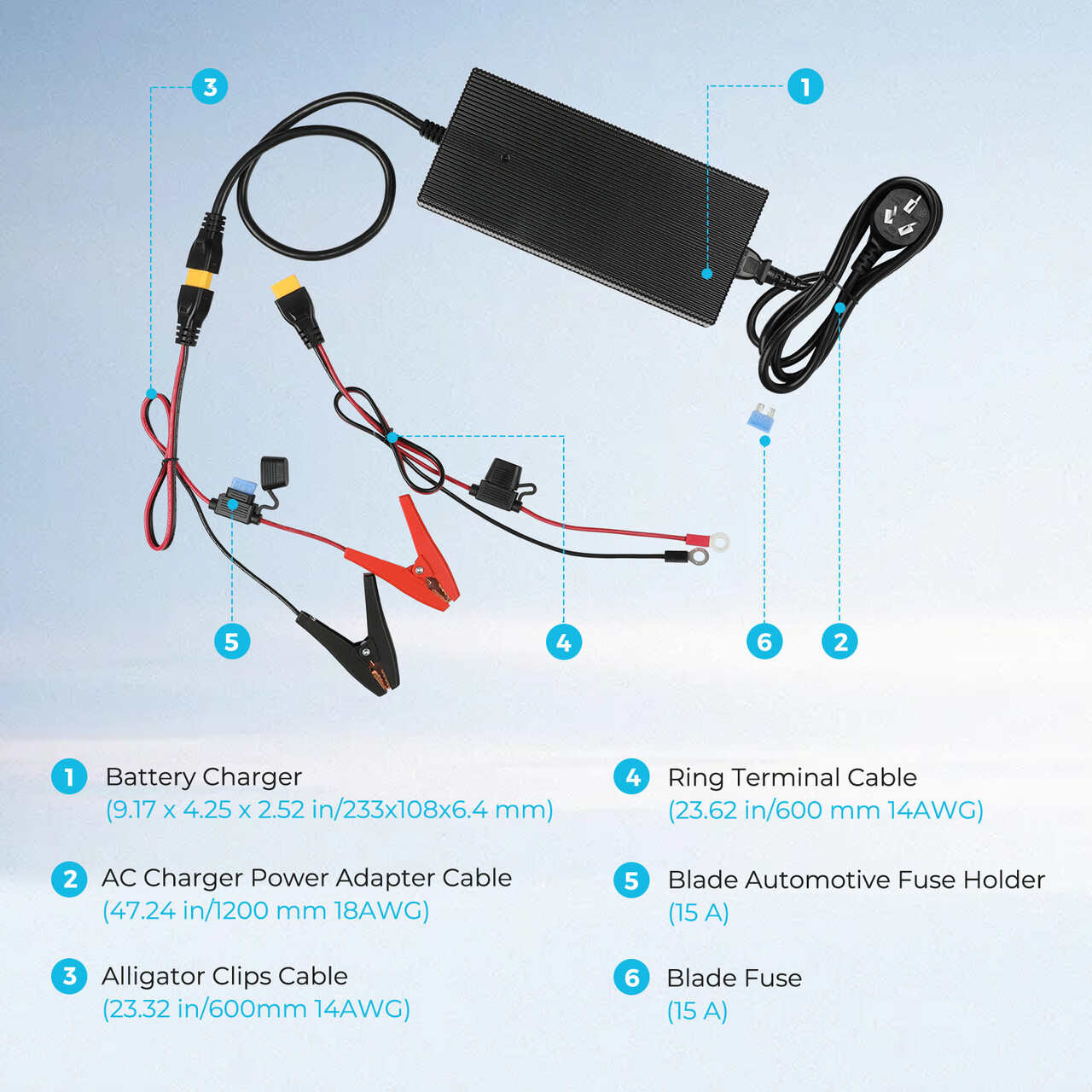

High Adaptability: This battery charger has a wide AC input voltage range, 100-240 VAC 50/60Hz, which is compatible with various needs. The charger comes with two battery charging cables, one with alligator clips and the other with ring terminals. Rich wiring design to match different needs allows users to quickly establish the connection between the battery and the charger.
-
Smart Charging: The charger has a 3-stage intelligent charging design: high current (cc), constant voltage (cv), trickle. It can accurately identify battery voltage and automatically switch charging mode and provide fast and efficient charging for lithium batteries; the charger's efficiency can reach up to 92%.
-
Light & Build-in Safety Protection: The charger has six built-in protection functions to ensure charging safety, including short-circuit protection, over-current protection, over-temperature protection, over-voltage protection, under-voltage protection, and reverse polarity protection. The charger's indicator light can remind the wrong charging status and achieves all-round monitoring and protection.
-
Easy to Use: Just plug and play operation to quickly establish the battery and charger connection. The product uses a patented plastic profile design, and the shell itself can achieve rapid heat dissipation. The fanless design brings users a zero-noise charging experience and reduces concerns about the installation angle and space of the product.
Specifications:
- Input Voltage: 100-240 VAC ~ 50/60Hz
- Input Amps: 5A Max
- Output Voltage: 28.8 VDC
- Output Amps: 10A
- Battery compatibility: LiFePO4 Battery
- Power Consumption: 290W
- Efficiency: 91%@ 110VAC ,93%@230 VAC
- Operating temperature range: -29°C~45°C
- Storage Temperature: -40°C~75°C
- Self-Consumption: 50mA
- Enclosure Rating: IP20
- Humidity: 90% - 95%
- Electronic Protections: Input Circuit/Short Circuit/Over voltage/Under voltage/Over temperature/Battery reverse connection
- Cable: 14 AWG
- Dimensions (L x W x D): 233mm x 108mm x 64mm
- Weight: 1.7kg
- Current Rating: 15A
Specifications
SKU RBC10A2P
Brand Renogy
GTIN 00810081404327
Product Category Battery Chargers
Output Current Rating (Amps) 10
Operating temperature range -29°-45.5°C
Dimensions 233mm x 108mm x 64mm
Weight (kg) 1.7
Charger Voltage 24V
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Which batteries work best with this charger?
This charger was created specifically to charge lithium batteries.
-
Can this charger activate a battery that has triggered it's BMS protection?
Yes, there is a lithium battery activation feature on this charger. This charger can be used to wake up a lithium battery that has triggered the BMS protection and is unable to be charged or drained.
-
What is the charge capacity of this charger?
This charger has an output of 10A.
-
How does the multi stage charging work?
- The charger's indicator light turns solid red to show that it is charging when it is in the fast high-current charging stage, which allows it to deliver a maximum charging current of 10A.
- The charging current will continue to drop to 1A and the charger's indicator light will turn solid red to show that it is charging while it is in the constant voltage charging stage.
- The charger's indicator light will be green, showing that it is fully charged, and the charging current will be less than 1A when it is in the trickle phase.
