Renogy 300Ah Lithium Battery, 50A DC-DC Charger & Bluetooth Module
SKU: RBT12300LFPSH-DC Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
.png)
Description

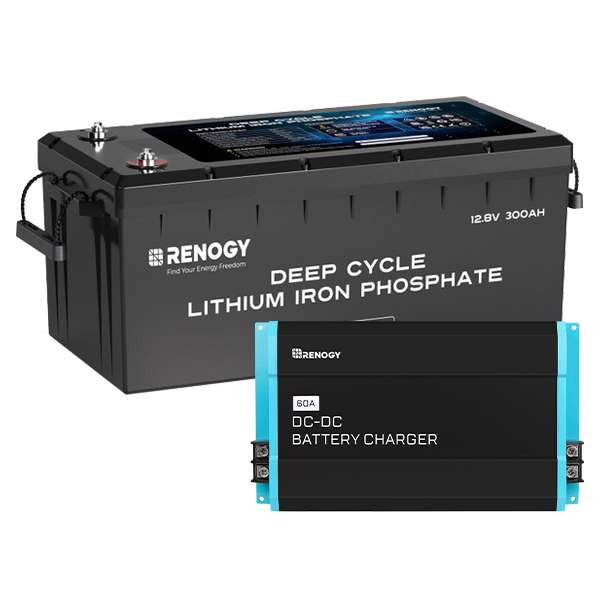

Renogy 300Ah Lithium Battery and Charger Bundle
Included in bundle:
- Renogy 12V 300Ah Core Series Deep Cycle Lithium Iron Phosphate Battery with Self Heating - RBT12300LFPSH
Optional:
- Renogy 12V 60A DC to DC Battery Charger - RNG-DCC1212-60
- Renogy DCC50S 12V 50A Dual Input DC to DC Battery Charger with MPPT - RBC50D1S + Renogy BT-2 Bluetooth Module for Renogy Products with RS485 Port - RCM-BT2
Note: This bundle includes 1 x Renogy Bluetooth Module (BT-2). You can connect this to the Renogy DCDC charger for monitoring via The Renogy DC Home App, One core or Renogy M1.
The Renogy Core batteries do not come with Bluetooth. To monitor these via the Renogy app/ One Core or M1 you would need to purchase and connect the Renogy Battery Shunt 300 and connect to it via bluetooth.
To effectively manage your power system with a Renogy 300Ah Core Series Deep Cycle Lithium Iron Phosphate Battery, a 60A DC2DC battery charger, 50A Dual Input DC to DC Battery Charger with MPPT and a Bluetooth Module, it's important to know how these components interact in your energy setup.
-
300Ah Lithium Battery: One stop for an upgrade from lead-acid to lithium.
- 2x faster self-heating triggered at 32℉ (0℃).
- Support series, parallel, or series-parallel connections.
- A true 200A BMS with low-temperature cut-off.
- 5-year limited warranty
- 60A DC to DC Battery Charger: The 60A DC to DC Battery Charger is the most effective way to charge your house/secondary batteries from the starter battery. Compatible with a multitude of alternator types, the DC-DC battery charger offers correct charging for AGM, Flooded, Gel, and even Lithium deep cycle batteries! Featuring a 3-stage battery charger and multiple electronic protections, users can feel confident that their batteries are being charged optimally and automatically. For additional safety, it isolates the input from the output preventing incorrect voltage transmission. Easily install the compact yet sturdy DC-DC battery charger on RV's, commercial vehicles, boats, yachts, and many more applications!
- 50A Dual Input DC to DC Battery Charger with MPPT: Renogy's DC to DC MPPT on-board Battery Charger is designed to give you options! This multi-stage, multi-input battery charger can charge a service battery from a starting battery linked to an alternator or by utilizing solar panels connected directly to the unit. While your vehicle's alternator prioritizes your starting battery, this unit will allow your solar system to charge your service battery first! It's the smart way to keep yourself fully charged and off-grid longer! And with multi-stage charging and multi-chemistry functionality, Renogy's DC to DC MPPT Charger has you covered whether you're using Flooded, Gel, AGM, or Lithium batteries. With RJ45 communication port featured, you can unlock monitoring features exclusively using the BT-2 Bluetooth Module and Renogy DC Home App, control and monitor the device remotely through your phone in real time.
- BT-2 Bluetooth Module: The Renogy BT-2 is the new generation Bluetooth module for select Renogy solar charge controllers, DC-DC battery chargers, and smart lithium batteries. Powered by its RJ45 communication port, the BT-2 provides wireless monitoring of the system data and allows users to change parameters through the Renogy DC Home smartphone App. The Renogy DC Home App can help make your off-grid power system smarter by giving you access to configure, monitor, update, and diagnose your Renogy products from the convenience of your smartphone or tablet. Connect the BT-2 to the component's RJ45 communication port to wirelessly check and adjust your system's parameters through the DC Home App (available in both the App Store and Google Play).
Battery Information:
60A DC to DC Battery Charger Information:
.png)
50A Dual Input DC to DC Battery Charger with MPPT Information:
Bluetooth Module Infomation:
Specifications
SKU RBT12300LFPSH-DC
Brand Renogy
Product Category Battery Bundle
Battery Voltage 12V
Amp Hours (Ah) 300
Battery Length (mm) 522
Battery Width (mm) 240
Battery Height (mm) 219
Battery Weight (kg) 31.3
DC Charger Output Current Rating (Amps) 50/60
Cycle Life (DOD – 80% under controlled conditions) 5000 Cycles
Maximum Charge Current 200A
Maximum Discharge Current 200A
Operating temperature range 0°C to 55°C (charge) | -20°C to 60°C (discharge)
IP Rating IP65
Charge Voltage 14.4V
Storage Temperature -25°C to 65°C
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Can this battery connect to my phone?
No, the battery doesn't have Bluetooth. However you can connect the Renogy Bluetooth Mdule BT-2 via the RS485 port on the DC-DC charger to monitor your system.
-
Will this DC-DC charger work with smart alternators?
Yes, the Renogy DC-DC range work with both standard and newer smart alternators. You will need a connection to your ignition. The charger will include a IGN Signal Wire for ignition connection.
-
What information does the Bluetooth module tell me?
Effectively manage real-time operational data for solar power generation, energy storage and inverter.
-
Can I hook up solar panels to this kit?
Yes! The DC-DC charger has an inbuilt MPPT regulator for solar. You will have to keep the panels within 660w and 25 VOC for the 50a charger.
-
How long will the battery in this bundle last?
This battery is capable of delivering 5000 cycles at the recommended 80% discharge.
