Renogy 300W 12V Monocrystalline Solar Starter Kit

Description

Renogy 300W 12V Monocrystalline Solar Starter Kit



Whether your journey takes you across the world or even just to your own backyard, a Renogy Solar Starter Kit is a perfect power solution. A Starter Kit can give you the freedom to travel further from the grid without having to worry about how you will recharge your most important small electronics. The Renogy 300W Monocrystalline Starter Kit is designed for customers new to solar, or those looking to expand on an existing power system.

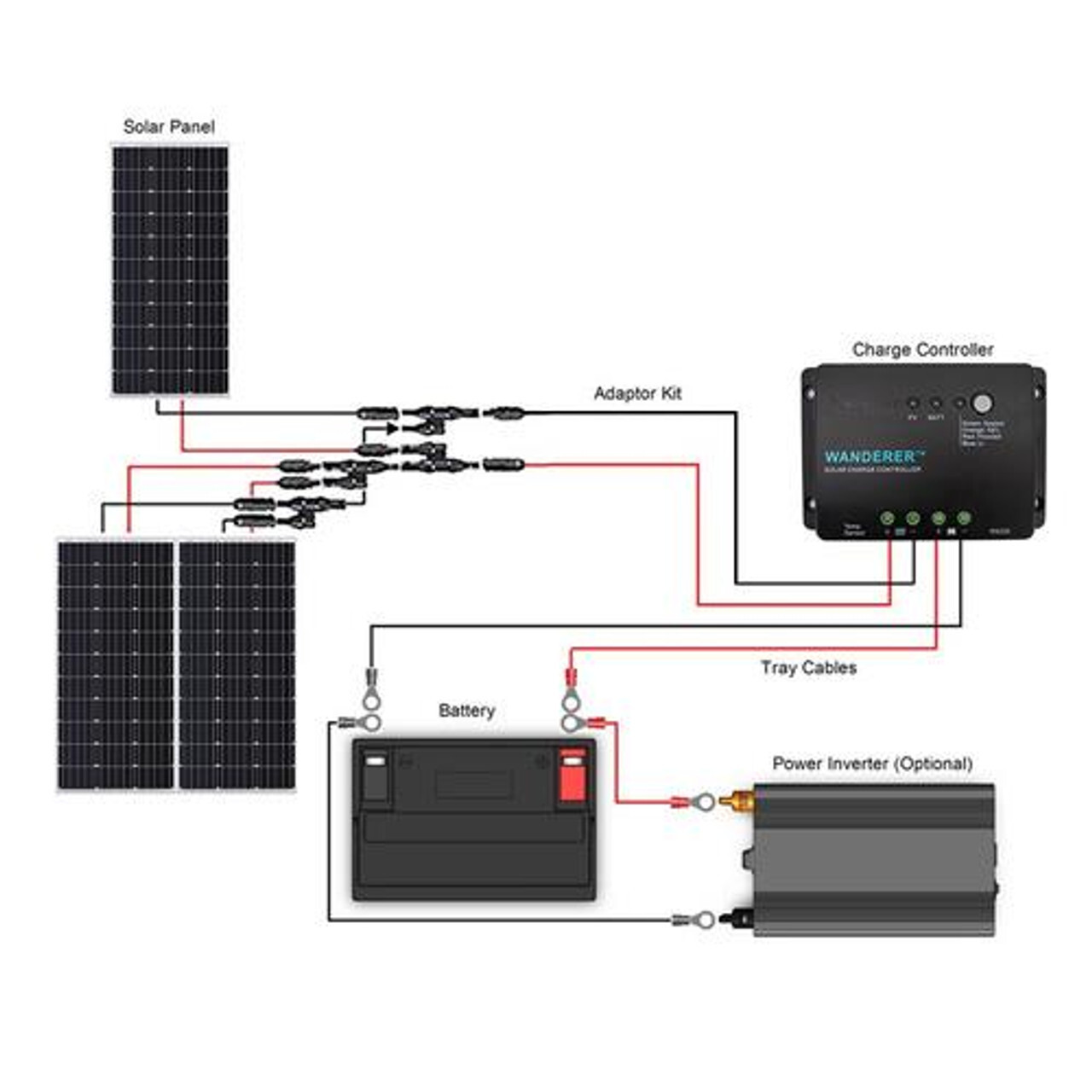

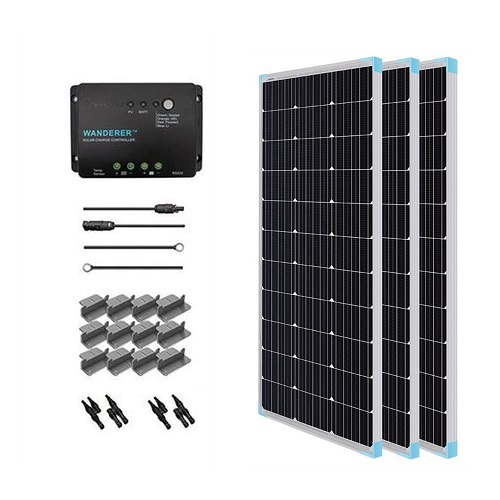

The Starter Kit is ideal for several off-grid applications, including RVs, trailers, boats, sheds, and cabins — providing many benefits, including, but not limited to, quiet power production and grid independence. This kit comes with the tools necessary for a new system:

• 3 x Renogy 100W 12V Monocrystalline Fixed Solar Panel, Compact Design,  RNG-100D-SS
• 1 x  Renogy Wanderer 12V Li 30A PWM Solar Charge Controller,  RNG-CTRL-WND30-LI
• 1 x Renogy Solar Adaptor Kit Cables 6mm² Connecting Solar Panel to Controller, 6 Metre RNG-AK-20FT-10
• 1 x Renogy Battery to Charge Controller Tray Cables for 3/8 in Lugs, 10 AWG/5.3mm² RNG-TRAYCB-8FT-10
• 2 x Solar Y Branch Connectors MMF+FFM Pair, RNG-CNCT-MC4Y
• 3 x  Renogy Solar Panel Mounting Z Bracket, Set of 4,  RNG-MTS-ZB

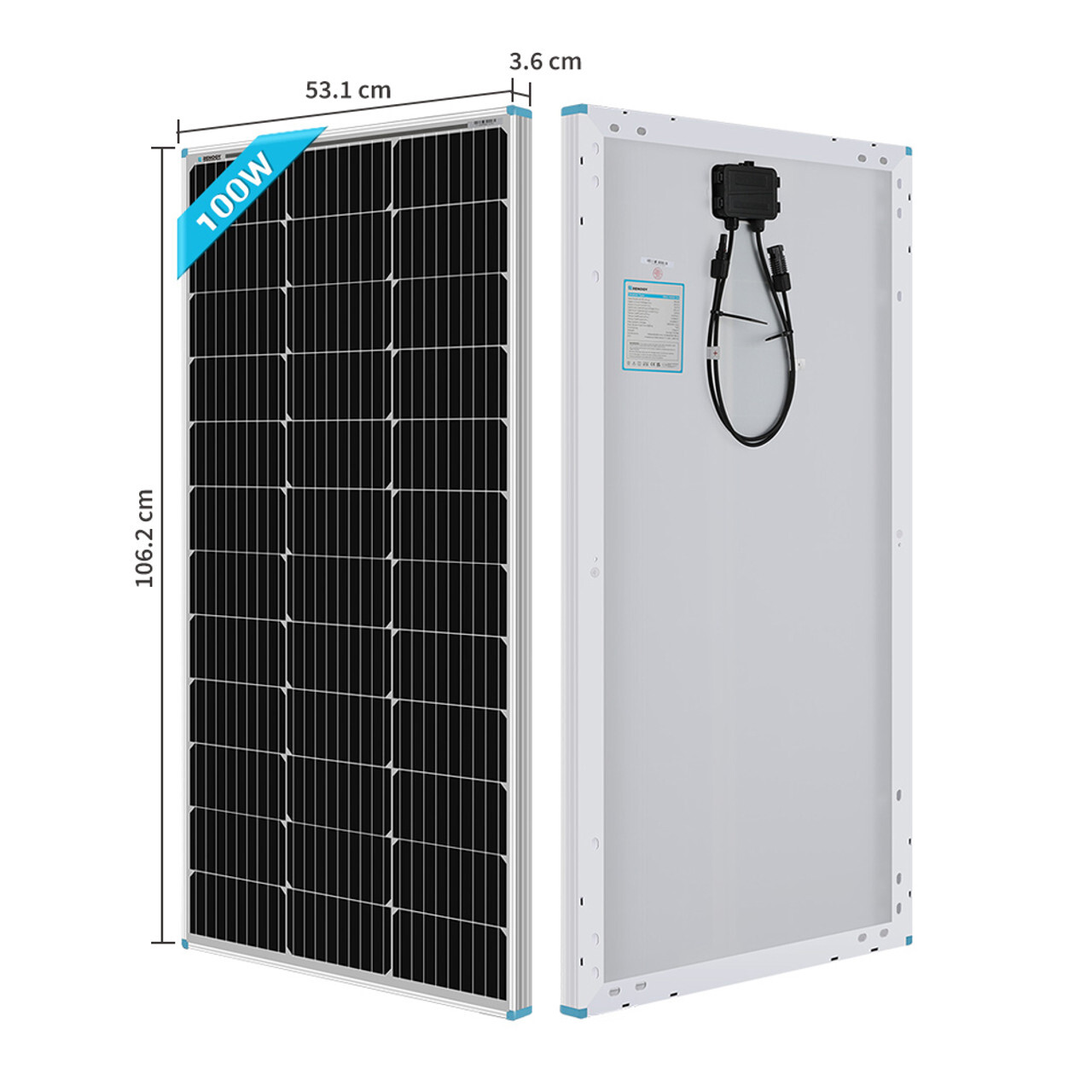

Renogy 100W 12V Monocrystalline Fixed Solar Panel, Compact Design



High in power, compact in size, this Renogy 100 Watt 12 Volt Monocrystalline Solar Panel is the perfect option for any off-grid application. Ideal for RVs, motorhomes, cabins, marine areas, home backup power, and more. The panels feature lightweight aluminum frames and shatter-resistant glass, making them perfect for outdoor applications.
It comes with pre-drilled mounting holes, solar connector leads, and a junction box. Allowing you to install, connect it to a controller, or expand with panels without breaking a sweat. The panels are made of premium Grade A+ monocrystalline solar cells that are more efficient than conventional polycrystalline solar cells.

Since 2010, Renogy has gained rich experience in designing and manufacturing the most efficient and robust solar panels and the most complete off-grid solar system. A focus on testing, quality control, and traceability ensures our solar power system offers an industry-leading warranty and reliability guarantee. Invest in yourself by going Renogy. This will be your most economical long-term investment yet.

Features:

• Reliable Power Output: Renogy's 100W monocrystalline solar panel can provide an average of 400-500 Watt-hours (Wh) or 33-41Amp-hours (Ah) of electricity per day (depending on sun availability).

• Efficient Performance: Bypass diodes protect the solar cells from overheating and allow the solar panel to continue working during accidental shading by bypassing the underperforming cells.

• Industry-Leading Technology: This Renogy 100W 12V Monocrystalline Panel is made from high purity silicon cells coated with advanced encapsulation material with multi-layered sheet laminations to enhance cell performance and provide long-lasting durability.

• Built to Last: Corrosion-resistant aluminum frame provides extended outdoor use that ensures the panel can last for decades. The IP65 rated junction box is versatile due to its ability to withstand dirt, dust, debris, and low-pressure water jets.

• Fast and Easy Installation: Pre-drilled holes on the back of the panel allow for fast mounting and securing, ideal for off-grid applications including RVs, rooftops, cabins, yachts, and more. They are directly compatible with Renogy ground mounts, Z Brackets, Corner Brackets, Pole Mounts, and Tilt Mounts.

Specifications:

• Maximum Power at STC: 100W
• Cell Efficiency: 22%
• Cell Type: Monocrystalline (6.5 x 3.3 in)
• Number of Cells: 36 (3 x 12)
• Panel Leads (Pair): 14 AWG (1.96ft)
• Optimum Operating Voltage (Vmp): 20.4V
• Open-Circuit Voltage (Voc): 24.3V
• Optimum Operating Current (Imp): 4.91A
• Short-Circuit Current (Isc): 5.21A
• Operating Temperature: -40°F to 176°F
• Maximum Series Fuse Rating: 15A
• Maximum System Voltage: 600V DC (UL)
• Certifications: CE, ISO
• Weight: 6.4 kg
• Dimensions: 1062mm x 530mm x 35 mm

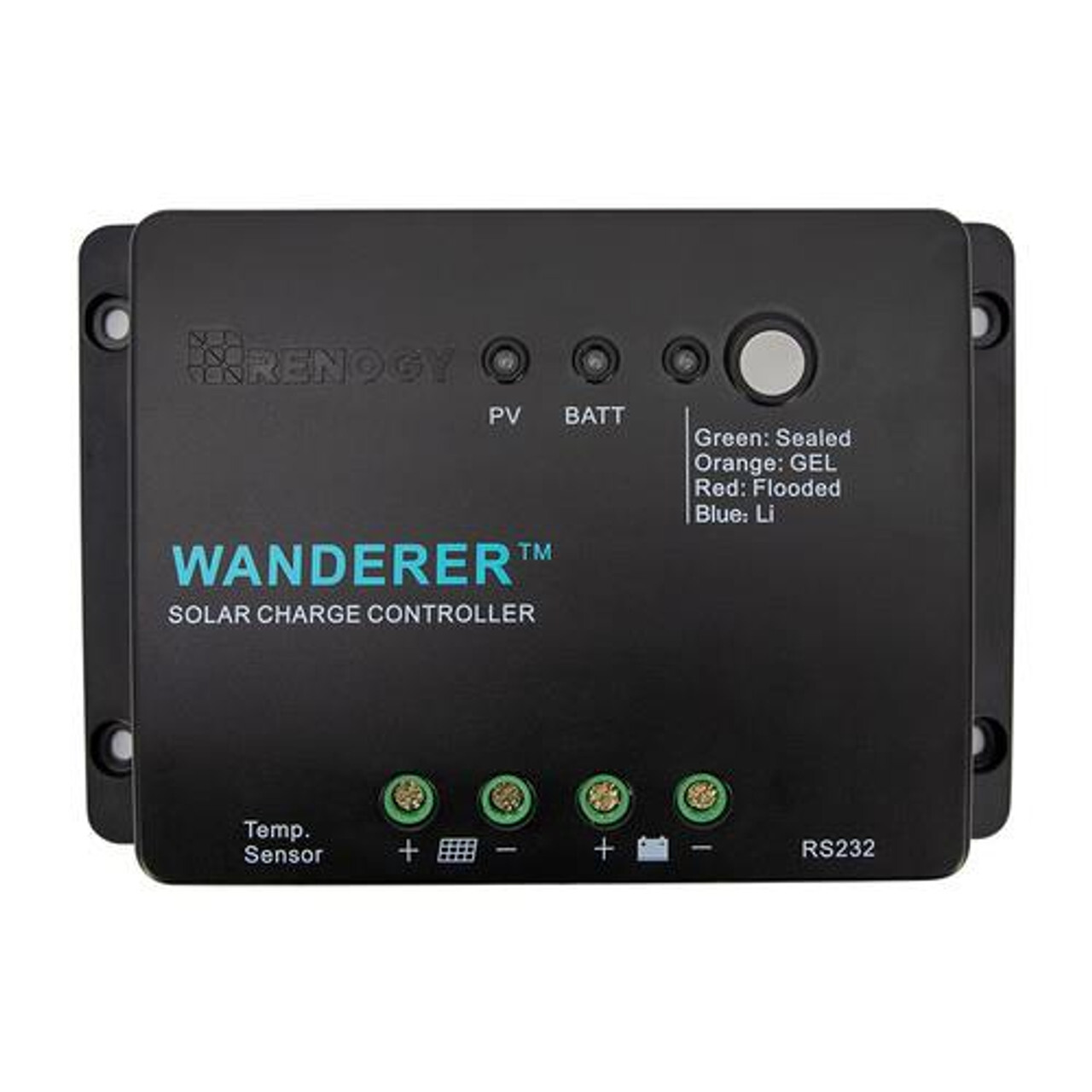

Renogy Wanderer 12V Li 30A PWM Solar Charge Controller



The Renogy Wanderer-Li is a 30A PWM solar charge controller that integrates efficient PWM charging to increase battery life and improve system performance. Designed with a simple interface for ease of use, the controller uses multiple LED indicators to notify users of charge status and battery information. This newly improved model has two advanced features: an RS232 port and Lithium battery charging. With the addition of the RS232 port, users can now connect and communicate with the Renogy BT-1 Bluetooth module. By adding the BT-1 to the Wanderer-Li, you can now use the smartphone app, the Renogy DC Home smartphone App, to monitor and adjust your solar system remotely. With the inclusion of the Lithium Battery Mode, the 30A negative-ground controller is now capable of charging various 12V battery types and banks, including most 12V lithium models available on the market.

Features:

• Optimized for a 12V system; Deep cycle Sealed, Gel, Flooded, and Lithium battery option ready.
• Smart 4 Stage PWM charging (Bulk, Boost, Float, and Equalization) and temperature compensation increase battery life and improve system performance.
• Intelligent protection against reverse polarity, overcharging, short-circuit, and reverse current. Multiple LED indicators for easy-to-read charge status and battery information.
• Integrated RS232 port allows communication with BT-1 Bluetooth module and usage of the Renogy DC Home smartphone App.

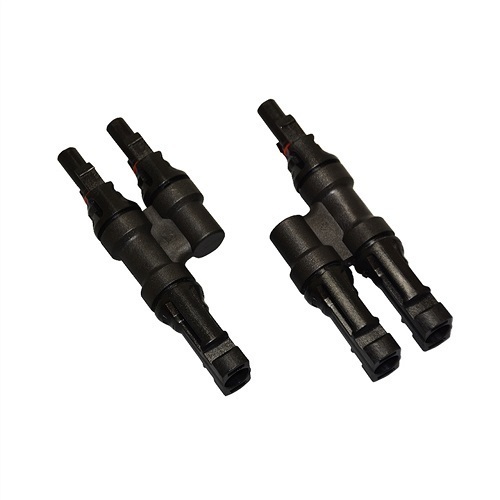

Renogy Solar Y Branch Connectors MMF+FFM Pair



Renogy Solar Branch Connectors are used for parallel wiring solar panels (PV modules). Sold as a pair, these “Y-Connectors” will maintain the voltage of the solar panel configuration to match the battery size. These connectors are solely compatible with solar connectors and come with one male (MMF) and one female (FFM) connector. Use these Solar Branch Connectors to make tight, waterproof connections.

Features:

• Hard plastic
• One FFM and one MMF

Specifications:

• Withstanding voltage: 1000V DC(TUV), 600V(UL)
• Contact Resistance: 1m
• Protection Class: Class II
• Temperature: -40°F to +194°F
• Protection Degree: IP67, mated
• Unmating Force:147.51Ft·lb
• Insulation Material: PC/PA
• Contact Material: Copper, silver plated
• Flame Class: UL94-V0 or UL94-5VA

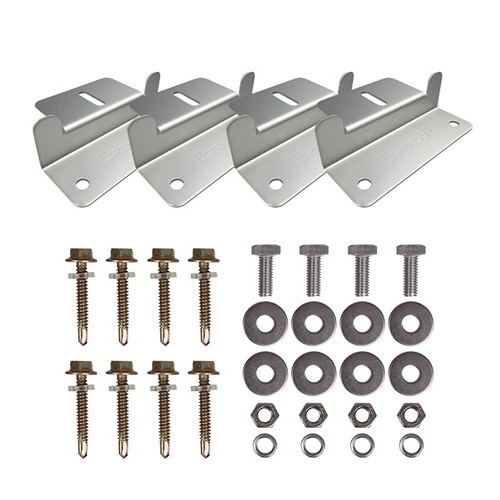

Renogy Solar Panel Mounting Z Bracket, 1 Set Pack



The Renogy Z-Bracket Mount System is designed to support the installation of single solar panel units, generally in off-grid installations. These units are ideal for installation on RV roofs and non-inhabited dwellings such as sheds or garages. It is also suited as attachment to a user made structure such as a wooden frame. The system comes complete with all fasteners to secure the system to the installation surface. This system makes the installation of small solar systems easy, affordable and quick.

Please Note: Not recommended for panels over 150 watt. If you do want to use this product for panels over 150 watt, you would need 2 sets of this Z bracket per panel.

Features:

• Lightweight
• Aluminum corrosion-free construction.
• Ease of installation
• Ideal for mounting small solar panels.
• Mounts panels to RVs, trailers, boats or yachts.
• Perfect for irregular surfaces
• Pre-assembled with bolts and washers

Included:

• Four Z Shape Solar Panel Brackets
• Four M6-16 Hex Cap Bolt
• Four M6 Split Lock Washer
• Eight M6 Flat Washer
• Four M6 Hexagonal Nut
• Eight #11 Self-Drilling Cap Screw and Plastic Retaining Ring

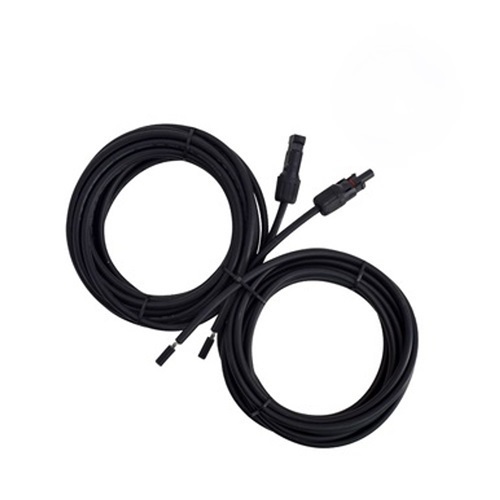

Renogy Solar Adaptor Kit Cables 6mm² Connecting Solar Panel to Controller, 6 Metre



The Renogy Adaptor Kit is a set of two wires designed specifically for connecting a Renogy solar panel to a charge controller. The Adaptor Kit includes MC4 connectors on one end for effortless connection to the solar panel, and exposed wire on the other end to lead directly into the charge controller. This wiring kit is essential for off-grid solar installations, roof or ground level, and is offered in a wide range of sizes. The wiring is weatherproof and designed to withstand extreme heat and cold. This wiring kit is ideal for Renogy Off-Grid Kits ranging from 100W to 400W.

Renogy offers a wide range of lengths, as well as two different gauge sizes to choose from. The different sizes allow for customization based on a customer's unique needs. The Renogy 10ft 10AWG Adaptor Kit allows for 10 feet of length between the solar panel and charge controller.

Features:

• Hard plastic connectors at each end.
• Female and male connectors for an unbreakable connection.
• Weatherproof, insullated wiring.
• Exposed ends for connection to the solar charge controller.
• Essential for off-grid solar power system setup.
• Black sunlight resistant cable.
• Extends and locks built-in cables.

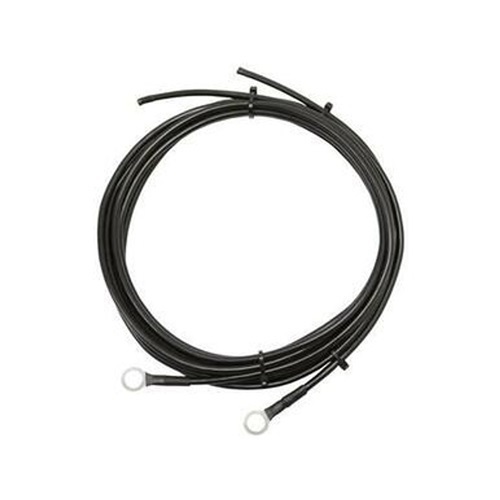

Renogy Battery to Charge Controller Tray Cables for 3/8 in Lugs, 10 AWG/5.3mm²



Connect your charge controller to the battery with a pair of Renogy high-quality copper tray cables. Specialized with battery rings on one end for effortless connection to your battery and exposed stranded wire on the other end to lead directly into your charge controller, this wire makes the system set up as easy as can be!

Features:

• Connect the Battery and Charge Controller. Renogy offers a range of different lengths, as well as four gauge sizes to choose from. 3/8 inch round center hole.
• TUV Listed. The cable meets TUV standards for PV solar application.UV resistant and waterproof. Produce optimal power output even in high-temperature conditions.
• Reliable Quality. Heat-shrink tubing insulates wires, provides abrasion resistance and electrical safety.
• Pure Copper. Tin-plated copper terminals to minimize corrosion and the pure oxygen-free copper wiring ensures maximum conductivity.
