Renogy 4 to 1 Solar Branch Connectors MMMMF+FFFFM Pair

SKU: RNG-CNCT-MC4BC Learn More»

Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Go to: Product Details

Go to: Specifications

Description

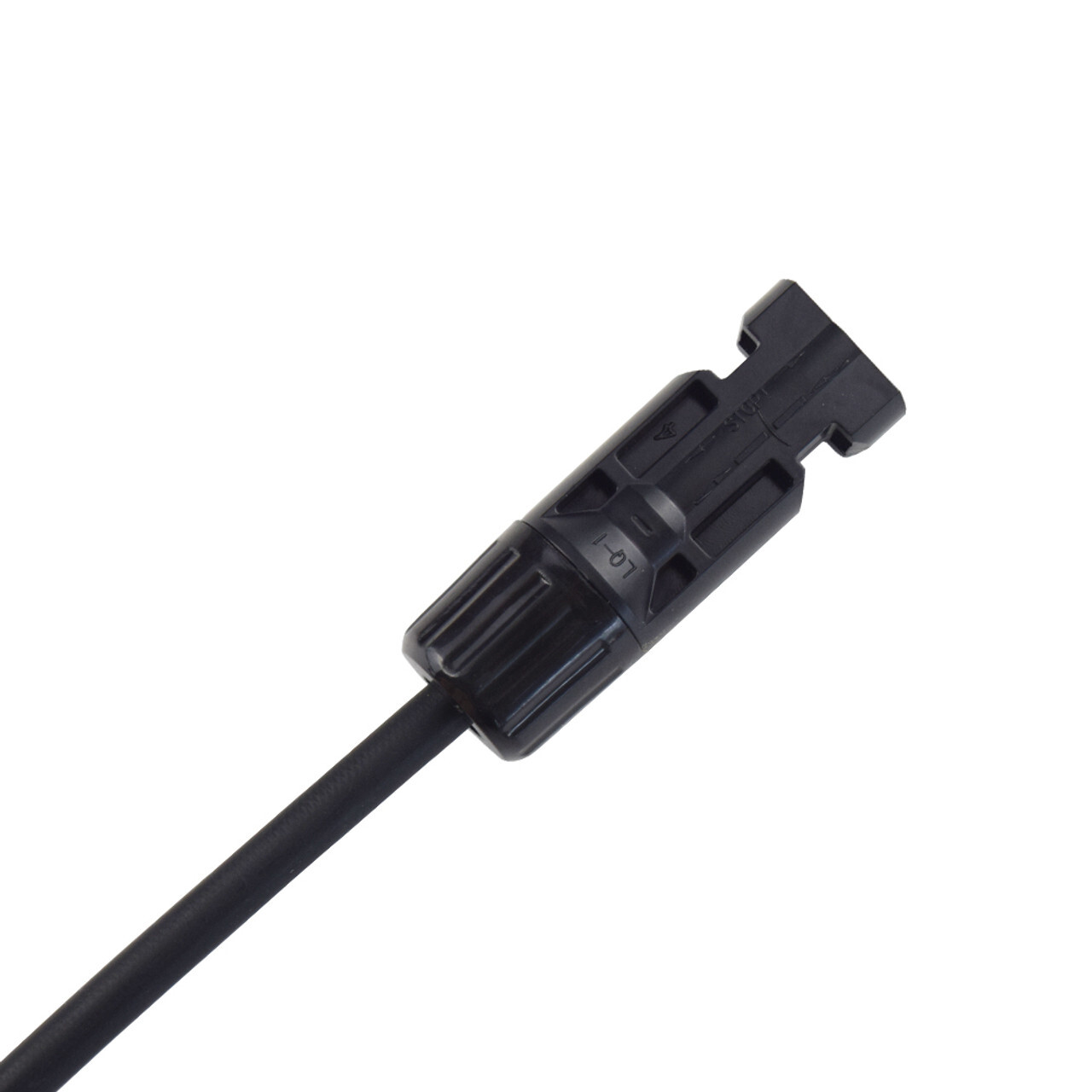

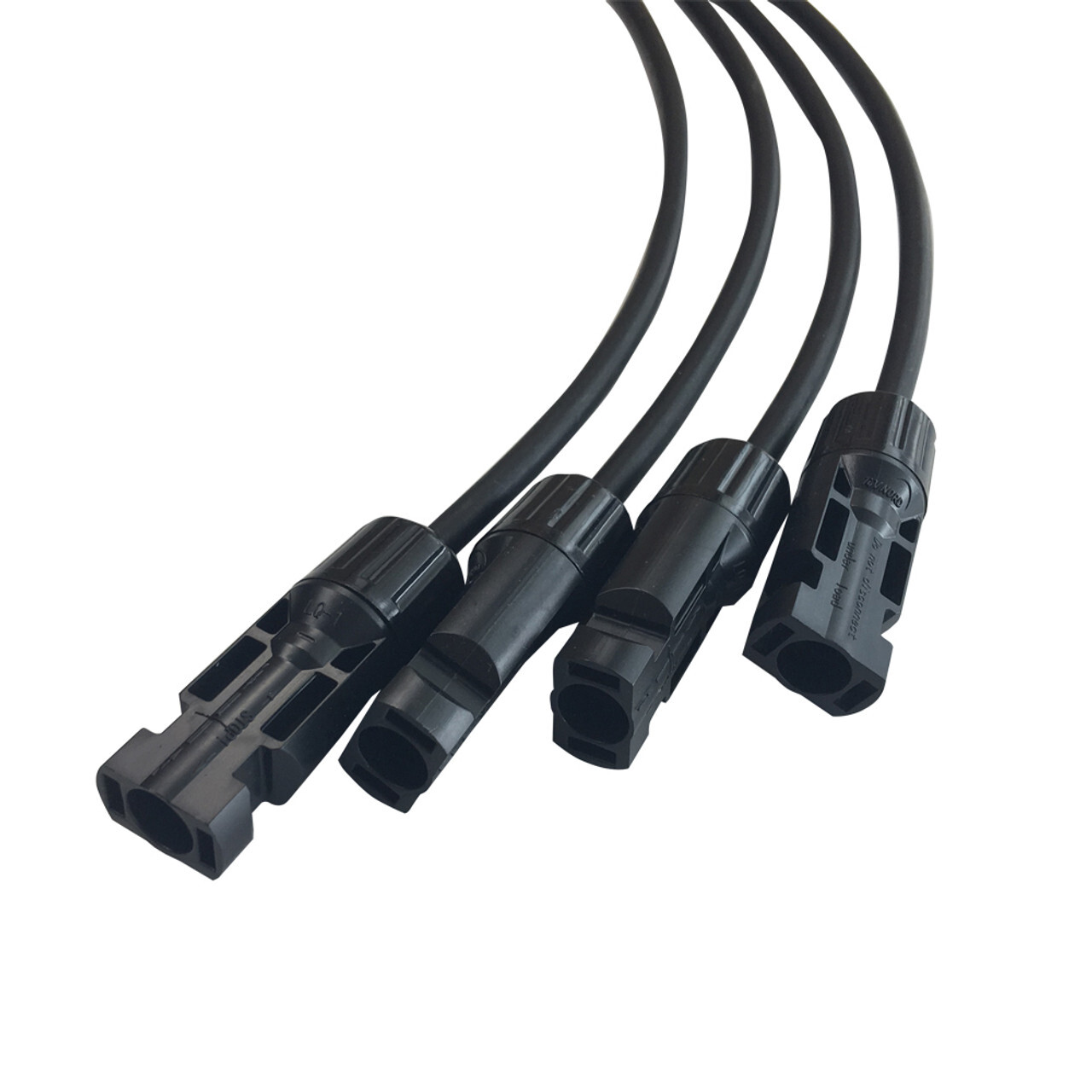

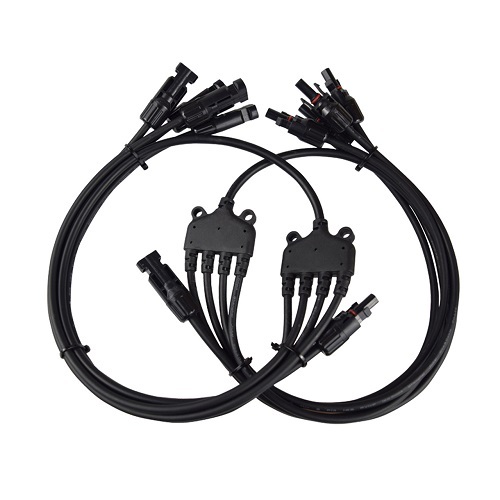

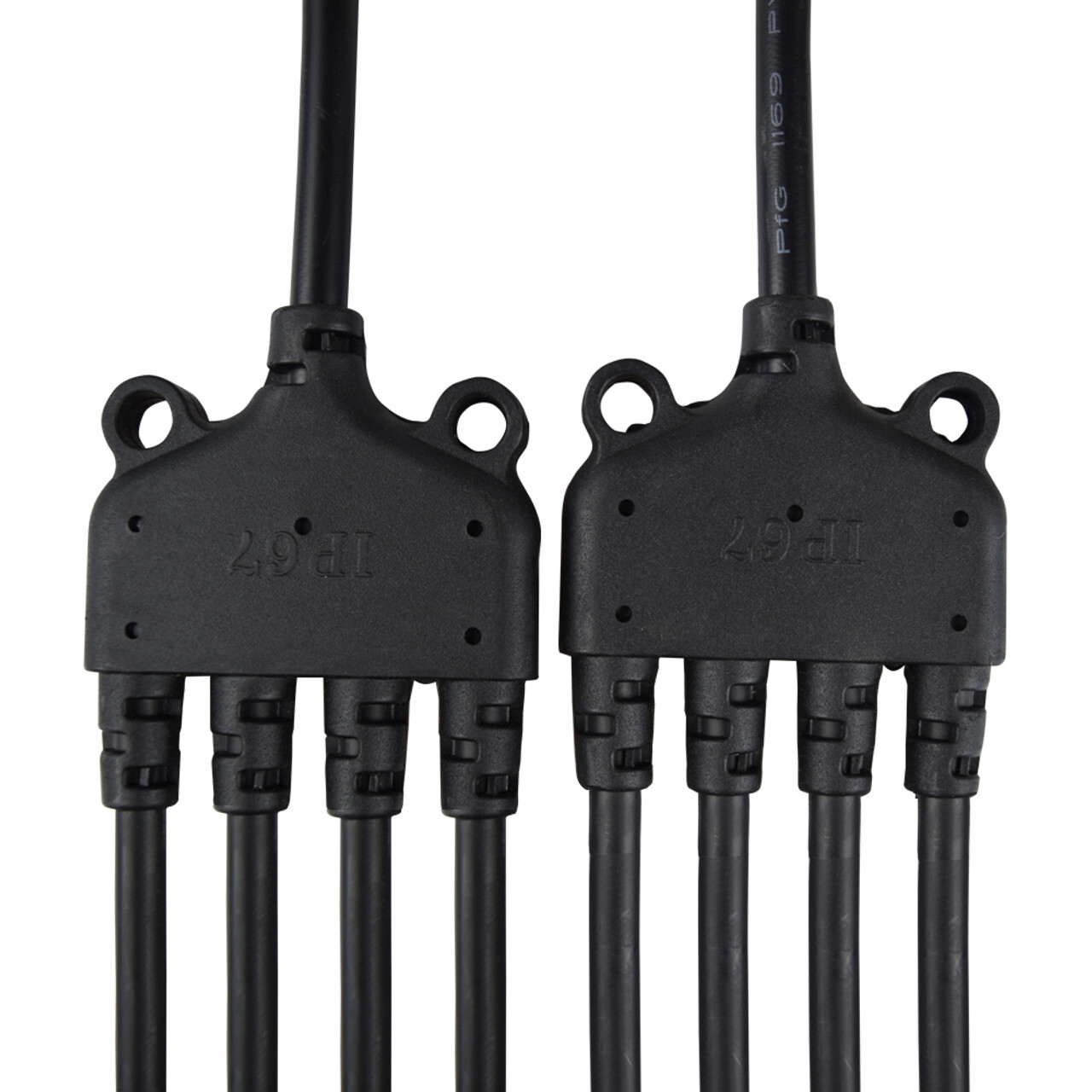

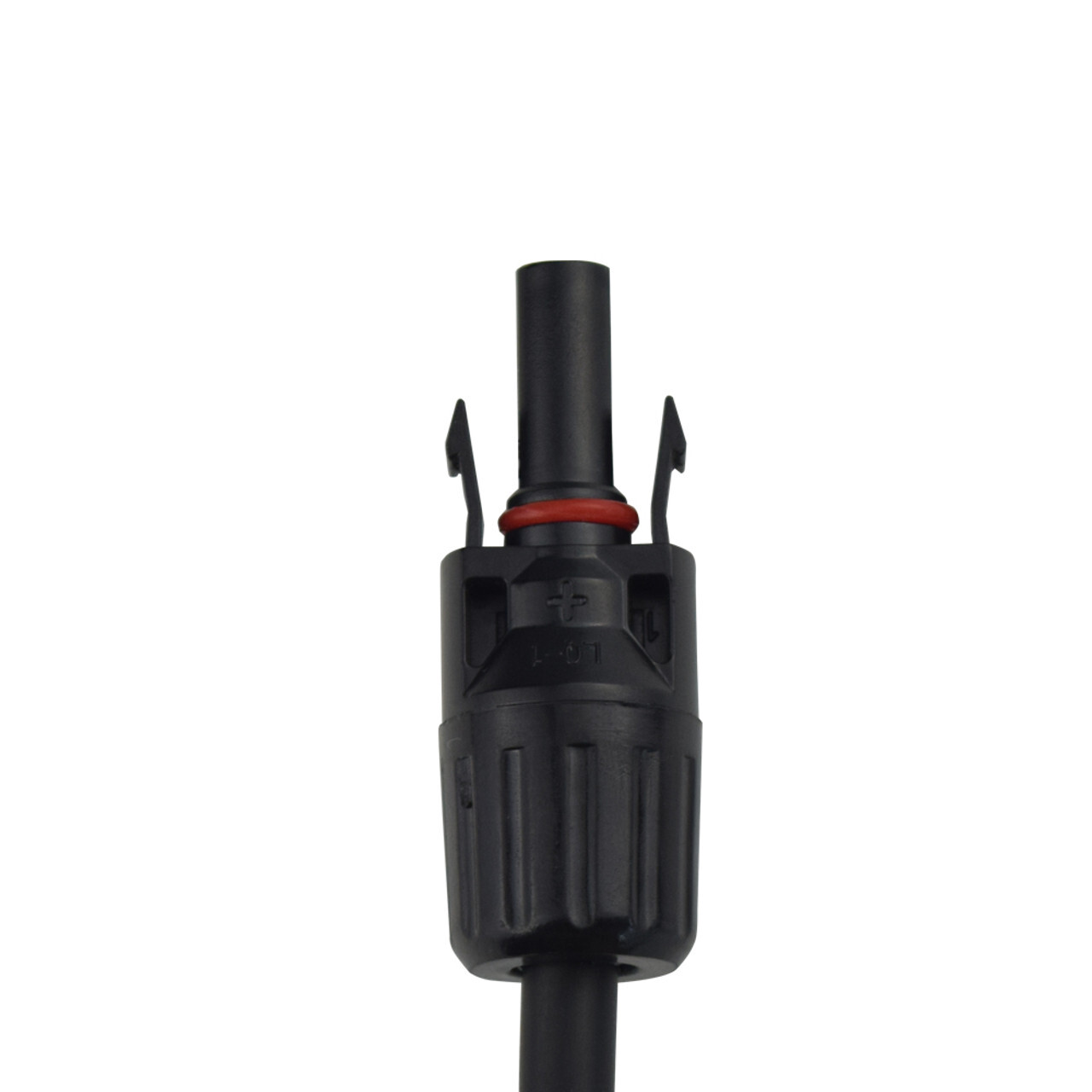

Renogy 4 to 1 Solar Branch Connectors MMMMF+FFFFM Pair

Make wiring parallel solar panels a breeze with these extended 4 to 1 Solar Branch connectors. Primarily suitable for 400W kits, these connectors allow you to install panels in portrait or landscape orientations without the messy wires in your way. Each package comes in pairs.

Features:

Hard plastic
Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument

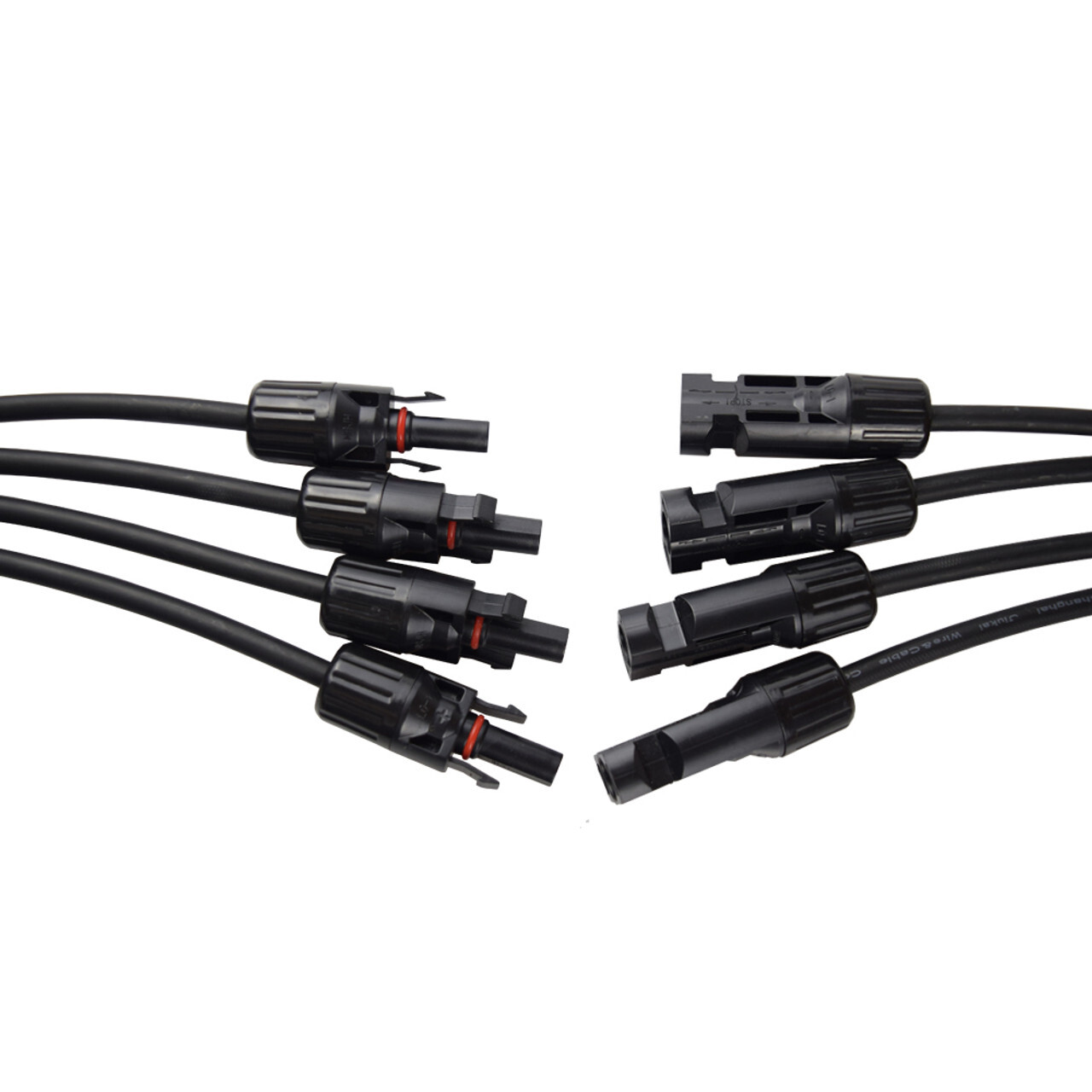

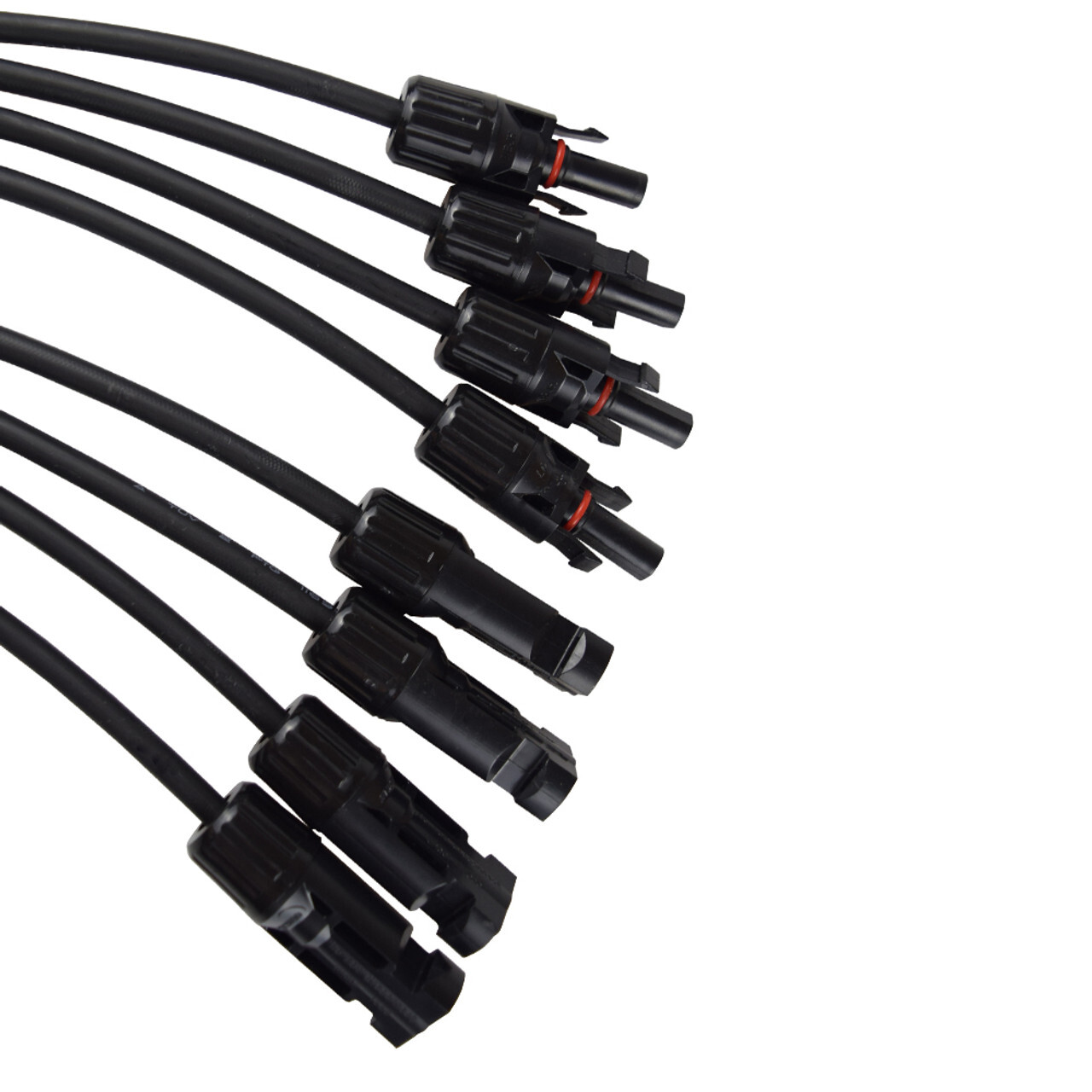

Including one male to four female and one female to four male

Specifications:

Withstanding voltage: 1000V DC(TUV), 600V(UL)
Test Voltage: 6500V (50HZ, 5Min)
Wiring Size: Main: 10AWG; Branch: 12AWG

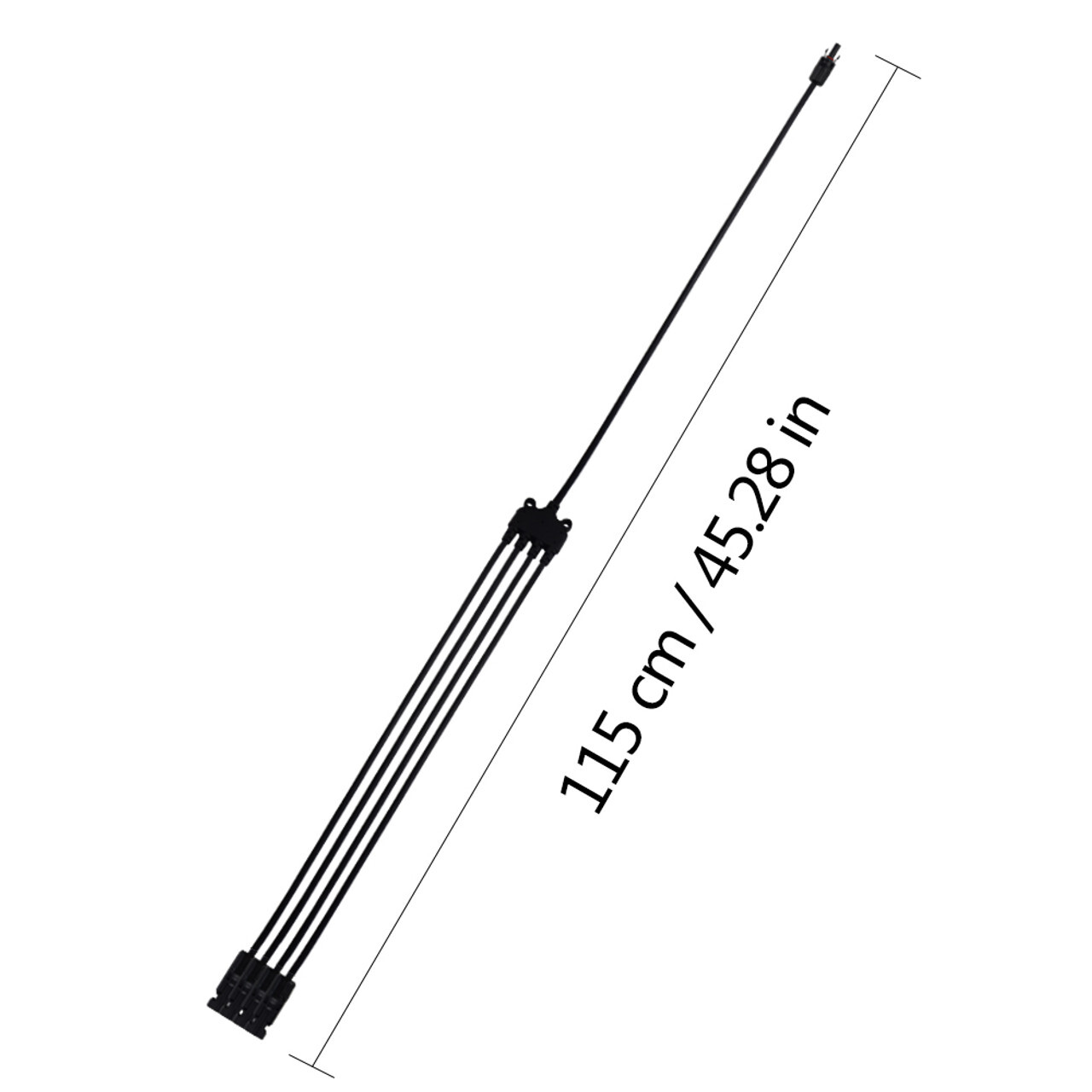

Length: Overall: 3.5ft; Branch: 1.5ft
Protection Degree: IP67
Rated Current: 30A
Insulation Material: PC/PA
Contact Material: Copper, silver plated
Temperature: -40°F to +194°F

Go to: Description

Go to: Q&A

Specifications

SKU RNG-CNCT-MC4BC

Brand Renogy

GTIN 00810009717379

Product Category Electrical Accessories
