Renogy 600W 24V Monocrystalline Solar Starter Kit with MPPT Charge Controller

Description

Renogy 600W 24V Monocrystalline Solar Starter Kit with MPPT Charge Controller



Renogy 600W Starter Kit MPPT allows you to get the most efficiency possible out of your 24V solar system. With its charge controller that uses Maximum Power Point Tracking technology; you won't have to wonder if you are getting the most out of your system — you are.

Efficiency is the key feature that Renogy Starter Kit MPPT has to offer; and could be perfect for you.

This solar kit conveniently includes the tools necessary for a new system:

• 6 x Renogy 100W 12V Monocrystalline Fixed Solar Panel, Compact Design,  RNG-100D-SS
• 1 x  Renogy Rover Li 12/24V 40A MPPT Solar Charge Controller,  RNG-CTRL-RVR40
• 1 x Renogy Solar Adaptor Kit Cables 6mm² Connecting Solar Panel to Controller, 6 Metre RNG-AK-20FT-10
• 1 x Renogy Battery to Charge Controller Tray Cables for 3/8 in Lugs, 10 AWG/5.3mm² RNG-TRAYCB-8FT-10
• 1 x Solar Y Branch Connectors MMF+FFM Pair, RNG-CNCT-MC4Y
• 6 x  Renogy Solar Panel Mounting Z Bracket, Set of 4,  RNG-MTS-ZB

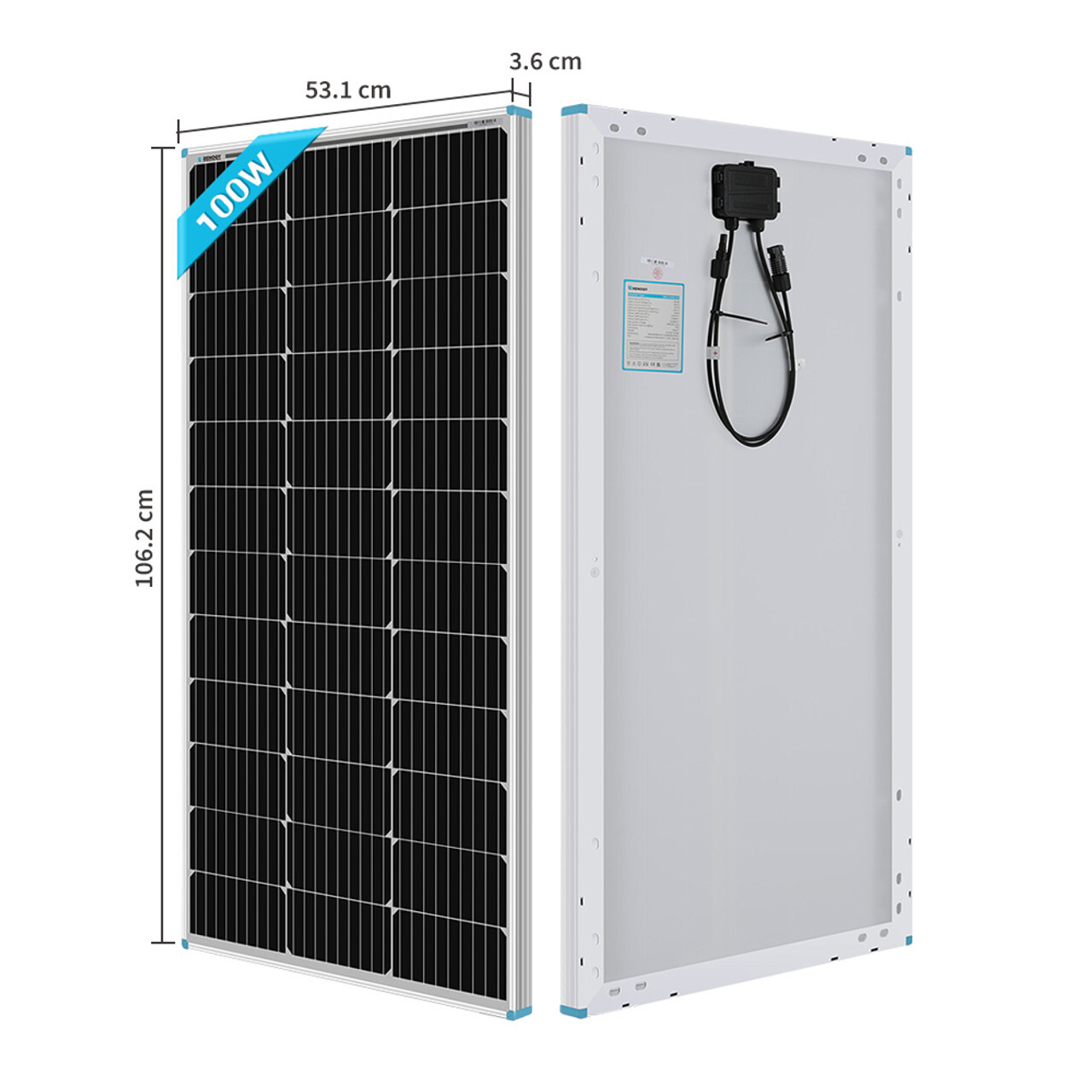

Renogy 100W 12V Monocrystalline Fixed Solar Panel, Compact Design



High in power, compact in size, this Renogy 100 Watt 12 Volt Monocrystalline Solar Panel is the perfect option for any off-grid application. Ideal for RVs, motorhomes, cabins, marine areas, home backup power, and more. The panels feature lightweight aluminum frames and shatter-resistant glass, making them perfect for outdoor applications.
It comes with pre-drilled mounting holes, solar connector leads, and a junction box. Allowing you to install, connect it to a controller, or expand with panels without breaking a sweat. The panels are made of premium Grade A+ monocrystalline solar cells that are more efficient than conventional polycrystalline solar cells.

Since 2010, Renogy has gained rich experience in designing and manufacturing the most efficient and robust solar panels and the most complete off-grid solar system. A focus on testing, quality control, and traceability ensures our solar power system offers an industry-leading warranty and reliability guarantee. Invest in yourself by going Renogy. This will be your most economical long-term investment yet.

Features:

• Reliable Power Output: Renogy's 100W monocrystalline solar panel can provide an average of 400-500 Watt-hours (Wh) or 33-41Amp-hours (Ah) of electricity per day (depending on sun availability).

• Efficient Performance: Bypass diodes protect the solar cells from overheating and allow the solar panel to continue working during accidental shading by bypassing the underperforming cells.

• Industry-Leading Technology: This Renogy 100W 12V Monocrystalline Panel is made from high purity silicon cells coated with advanced encapsulation material with multi-layered sheet laminations to enhance cell performance and provide long-lasting durability.

• Built to Last: Corrosion-resistant aluminum frame provides extended outdoor use that ensures the panel can last for decades. The IP65 rated junction box is versatile due to its ability to withstand dirt, dust, debris, and low-pressure water jets.

• Fast and Easy Installation: Pre-drilled holes on the back of the panel allow for fast mounting and securing, ideal for off-grid applications including RVs, rooftops, cabins, yachts, and more. They are directly compatible with Renogy ground mounts, Z Brackets, Corner Brackets, Pole Mounts, and Tilt Mounts.

Specifications:

• Maximum Power at STC: 100W
• Cell Efficiency: 22%
• Cell Type: Monocrystalline (6.5 x 3.3 in)
• Number of Cells: 36 (3 x 12)
• Panel Leads (Pair): 14 AWG (1.96ft)
• Optimum Operating Voltage (Vmp): 20.4V
• Open-Circuit Voltage (Voc): 24.3V
• Optimum Operating Current (Imp): 4.91A
• Short-Circuit Current (Isc): 5.21A
• Operating Temperature: -40°F to 176°F
• Maximum Series Fuse Rating: 15A
• Maximum System Voltage: 600V DC (UL)
• Certifications: CE, ISO
• Weight: 6.4 kg
• Dimensions: 1062mm x 530mm x 35 mm



Renogy Rover Li 12/24V 40A MPPT Solar Charge Controller

The Renogy 40A Rover MPPT Charge Controller is the most efficient type of charge controller. With up to 99% tracking efficiency, the Rover ensures maximum power point solar charging that gets more energy to your battery bank. Capable of automatically detecting 12V/24V lead acid battery systems, this crucial component is preset to also work with Gel, Flooded (wet cell), and Sealed batteries（manual setting is required for 24V Lithium battery）. When paired with the Renogy BT-2 Module and DC Home app you can view system performance in real-time and make parameter changes without having to get up!



Innovative MPPT Design

• Die-cast aluminium design ensuring excellent heat dissipation and Renogy Maximum Power Point Tracking technology with a high tracking efficiency of up to 99% and peak conversion efficiency of 98%. It is the best charging solution even in cloudy environments where the max power point of the solar panels will fluctuate all day.

12V/24V Automatically Detect

• Automatically detects 12V or 24V DC system voltages (for Non-Lithium battery types), and the LCD screen and multiple LED indicators display the solar charging and battery operation information, customizable parameters, and error codes

Full System Protection

• Meant to safeguard your system, the self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery over-discharging, overload, short-circuiting, and reverse current.

4-Stage Safely Charging

• Features 4-stage charging (Bulk, Absorption, Float, and Equalization) of Lead Acid Batteries and 2-stage charging (Bulk and Absorption) for Lithiuim batteries as well as Lithium Reactivation

Diverse Load Control

• Connect DC appliances directly to the optional Load Terminals and monitor consumption or set up timer controls directly from the controller

Remote Monitoring

•      RS232 communication port allows the Renogy Rover to communicate with the Renogy BT-2 Bluetooth module (NOT included in the package, highly recommend to add-on ) that will enable you to monitor the status and productivity of your panels through the Renogy DC Home App.

Included:

• Rover Li 40 Amp MPPT Charge Controller
• Remote Temperature Sensor

Optional Accessory:

• BT-2 Bluetooth Module



Specifications:

• Nominal Voltage: 12/24V Auto Recognition
• Rated Charge Current: 40 A
• Max. PV Input Power: 12V/520W, 24V/1040W
• Max. PV Input Voltage: 100 VDC
• Self-Consumption: < 100mA/12V; < 58mA/24V
• Equalization Voltage: Sealed:14.6V; Flooded: 14.8V; Gel: N/A; Lithium(LFP): N/A
• Float Voltage:    Sealed:13.8V; Flooded: 13.8V; Gel: 13.8V; Lithium(LFP): N/A
• Boost Voltage:     Sealed: 14.4V; Flooded: 14.6V; Gel: 14.2V ; Lithium(LFP): 14.4V
• Operating Temperature: -35°C to 45°C; -31°F to 113°F
• Temperature Compensation: -3mV/°C/2V
• Dimensions: 238 x 172 x 77 mm
• Weight:    2kg





Renogy Solar Y Branch Connectors MMF+FFM Pair



Renogy Solar Branch Connectors are used for parallel wiring solar panels (PV modules). Sold as a pair, these “Y-Connectors” will maintain the voltage of the solar panel configuration to match the battery size. These connectors are solely compatible with solar connectors and come with one male (MMF) and one female (FFM) connector. Use these Solar Branch Connectors to make tight, waterproof connections.

Features:

• Hard plastic
• One FFM and one MMF

Specifications:

• Withstanding voltage: 1000V DC(TUV), 600V(UL)
• Contact Resistance: 1m
• Protection Class: Class II
• Temperature: -40°F to +194°F
• Protection Degree: IP67, mated
• Unmating Force:147.51Ft·lb
• Insulation Material: PC/PA
• Contact Material: Copper, silver plated
• Flame Class: UL94-V0 or UL94-5VA



Renogy Solar Panel Mounting Z Bracket, 1 Set Pack



The Renogy Z-Bracket Mount System is designed to support the installation of single solar panel units, generally in off-grid installations. These units are ideal for installation on RV roofs and non-inhabited dwellings such as sheds or garages. It is also suited as attachment to a user made structure such as a wooden frame. The system comes complete with all fasteners to secure the system to the installation surface. This system makes the installation of small solar systems easy, affordable and quick.

Please Note: Not recommended for panels over 150 watt. If you do want to use this product for panels over 150 watt, you would need 2 sets of this Z bracket per panel.

Features:

• Lightweight
• Aluminum corrosion-free construction.
• Ease of installation
• Ideal for mounting small solar panels.
• Mounts panels to RVs, trailers, boats or yachts.
• Perfect for irregular surfaces
• Pre-assembled with bolts and washers

Included:

• Four Z Shape Solar Panel Brackets
• Four M6-16 Hex Cap Bolt
• Four M6 Split Lock Washer
• Eight M6 Flat Washer
• Four M6 Hexagonal Nut
• Eight #11 Self-Drilling Cap Screw and Plastic Retaining Ring



Renogy Solar Adaptor Kit Cables 6mm² Connecting Solar Panel to Controller, 6 Metre



The Renogy Adaptor Kit is a set of two wires designed specifically for connecting a Renogy solar panel to a charge controller. The Adaptor Kit includes MC4 connectors on one end for effortless connection to the solar panel, and exposed wire on the other end to lead directly into the charge controller. This wiring kit is essential for off-grid solar installations, roof or ground level, and is offered in a wide range of sizes. The wiring is weatherproof and designed to withstand extreme heat and cold. This wiring kit is ideal for Renogy Off-Grid Kits ranging from 100W to 400W.

Renogy offers a wide range of lengths, as well as two different gauge sizes to choose from. The different sizes allow for customization based on a customer's unique needs. The Renogy 10ft 10AWG Adaptor Kit allows for 10 feet of length between the solar panel and charge controller.

Features:

• Hard plastic connectors at each end.
• Female and male connectors for an unbreakable connection.
• Weatherproof, insullated wiring.
• Exposed ends for connection to the solar charge controller.
• Essential for off-grid solar power system setup.
• Black sunlight resistant cable.
• Extends and locks built-in cables.

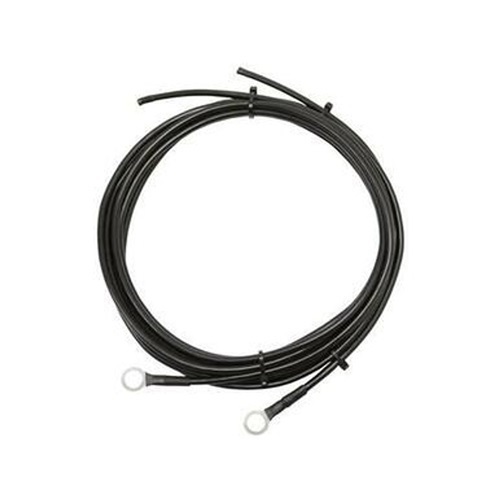

Renogy Battery to Charge Controller Tray Cables for 3/8 in Lugs, 10 AWG/5.3mm²



Connect your charge controller to the battery with a pair of Renogy high-quality copper tray cables. Specialized with battery rings on one end for effortless connection to your battery and exposed stranded wire on the other end to lead directly into your charge controller, this wire makes the system set up as easy as can be!

Features:

• Connect the Battery and Charge Controller. Renogy offers a range of different lengths, as well as four gauge sizes to choose from. 3/8 inch round center hole.
• TUV Listed. The cable meets TUV standards for PV solar application.UV resistant and waterproof. Produce optimal power output even in high-temperature conditions.
• Reliable Quality. Heat-shrink tubing insulates wires, provides abrasion resistance and electrical safety.
• Pure Copper. Tin-plated copper terminals to minimize corrosion and the pure oxygen-free copper wiring ensures maximum conductivity.
