Renogy DCC50S 12V 50A Dual Input DC to DC Battery Charger with MPPT & Renogy ONE M1
SKU: RBC50D1S-BT-M1 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Description
Renogy DCC50S 12V 50A Dual Input DC to DC Battery Charger with MPPT & Renogy ONE M1
Renogy's DC to DC MPPT on-board Battery Charger is designed to give you options! This multi-stage, multi-input battery charger can charge a service battery from a starting battery linked to an alternator or by utilizing solar panels connected directly to the unit. While your vehicle's alternator prioritizes your starting battery, this unit will allow your solar system to charge your service battery first! It's the smart way to keep yourself fully charged and off-grid longer! And with multi-stage charging and multi-chemistry functionality, Renogy's DC to DC MPPT Charger has you covered whether you're using Flooded, Gel, AGM, or Lithium batteries. With RJ45 communication port featured, you can unlock monitoring features exclusively using the BT-2 Bluetooth Module and Renogy DC Home App, control and monitor the device remotely through your phone in real time.
Features:
-
Multi-Input Efficiency Charging: The Renogy DC-DC Battery Charger with unique dual charging options. This multi-stage, multi-input battery charger can charge the house battery from a starter battery linked to the car alternator or by utilizing solar panels connected directly to the unit. Both ways can be charged at the same time to minimize charging time. With up to 99% MPPT tracking efficiency and 94% convert efficiency, the charger can fully charge a 1kWh battery within 2 hrs with solar energy.
-
Ingenious Structure Design: Removable side covers avoid contact between product terminals and the human body during transportation and daily use, which results in electrostatic damage, ensuring product stability and safety. The all-in-one NEG- terminal with partition design integrates the terminals for solar panels, the array starter battery, and the house battery, avoiding misconnection and making the simple installation.
-

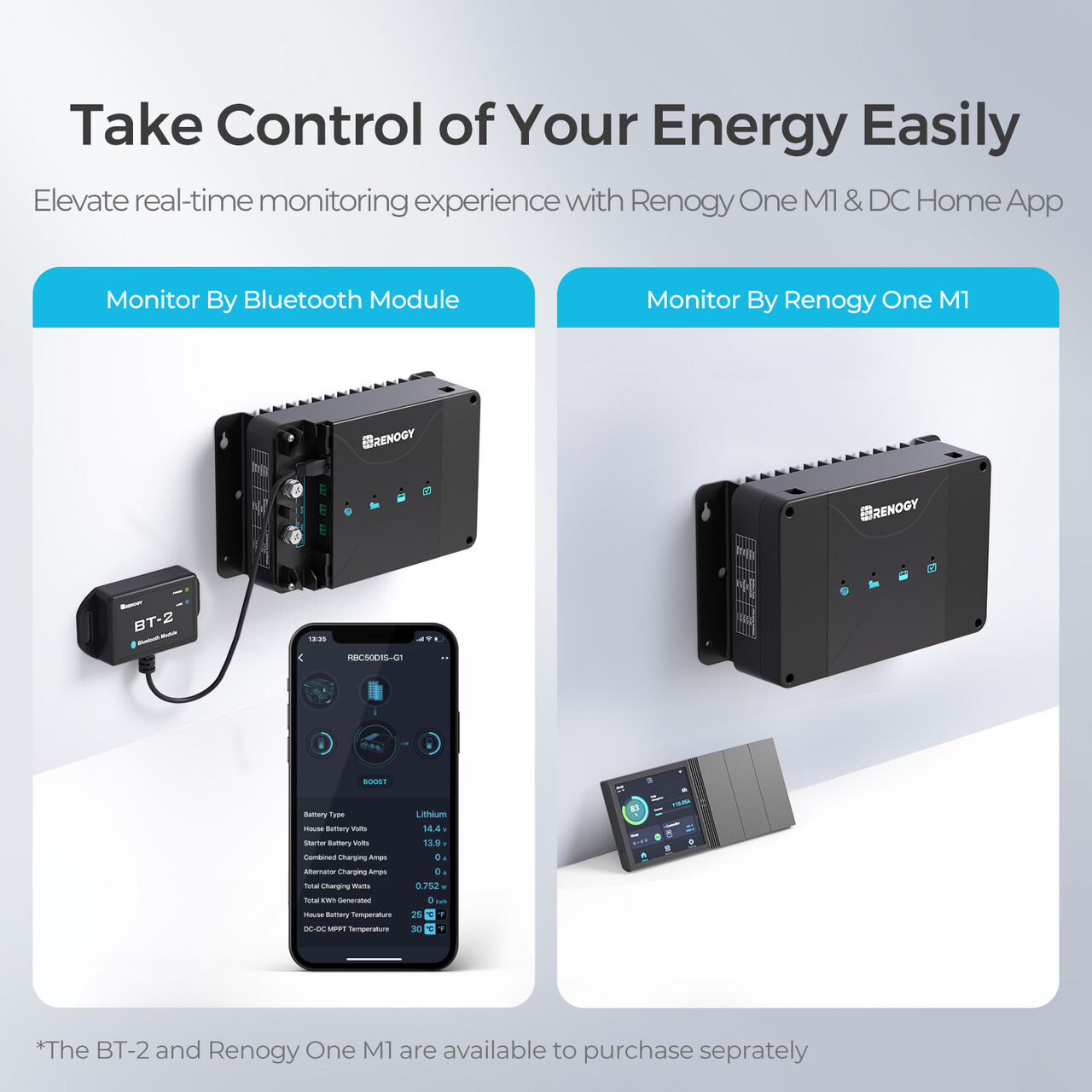

Diversified Smart Monitoring: The Renogy 50A DC-DC Battery Charger uses the Modbus protocol and allows it to be compatible with various monitoring devices, including the RMS-DCDC monitoring screen, DC Home App, and Renogy One integrated screen. Managing and monitoring your energy easily and remotely in any scenario and situation.
-
Soft Start Circuit Design: The voltage at the input end of the Renogy 50A DC-DC battery charger will be rising gently, intending to avoid when the vehicle alternator starts, the instantaneous overvoltage which may cause damage to the battery charger or cause the starter battery to over-discharge and due to the vehicle can not start.
-
Comprehensive Security Assurance: The Renogy DC-DC Battery Charger is multi-certified to CE, FCC, and PoHs. This high-quality battery charger has multiple intelligent protections including battery isolation, over-voltage protection, battery temperature protection, over-current protection, overheat protection, reverse current protection, solar panel and alternator reverse polarity protection, guaranteeing charging safety and protecting your batteries.
Specifications:
- System Voltage : 12VDC
- Battery Voltage Range : 9-16VDC
- Maximum Charging Current : 50A
- Battery Type : SLD/AGM, GEL, FLD, LISER
- Service Battery Charging Mode: MPPT
- Charging Efficiency: Up to 97%
- Max. Solar Input Voltage: 25V
- Maximum Solar Input Power: 660W
- Alternator Input Voltage: Traditional Alternator: 13.2-16VDC
- Smart Alternator (Euro 6): 12-16VDC
- Maximum Alternator Input Power: 660W
- Self-consumption: 60mA

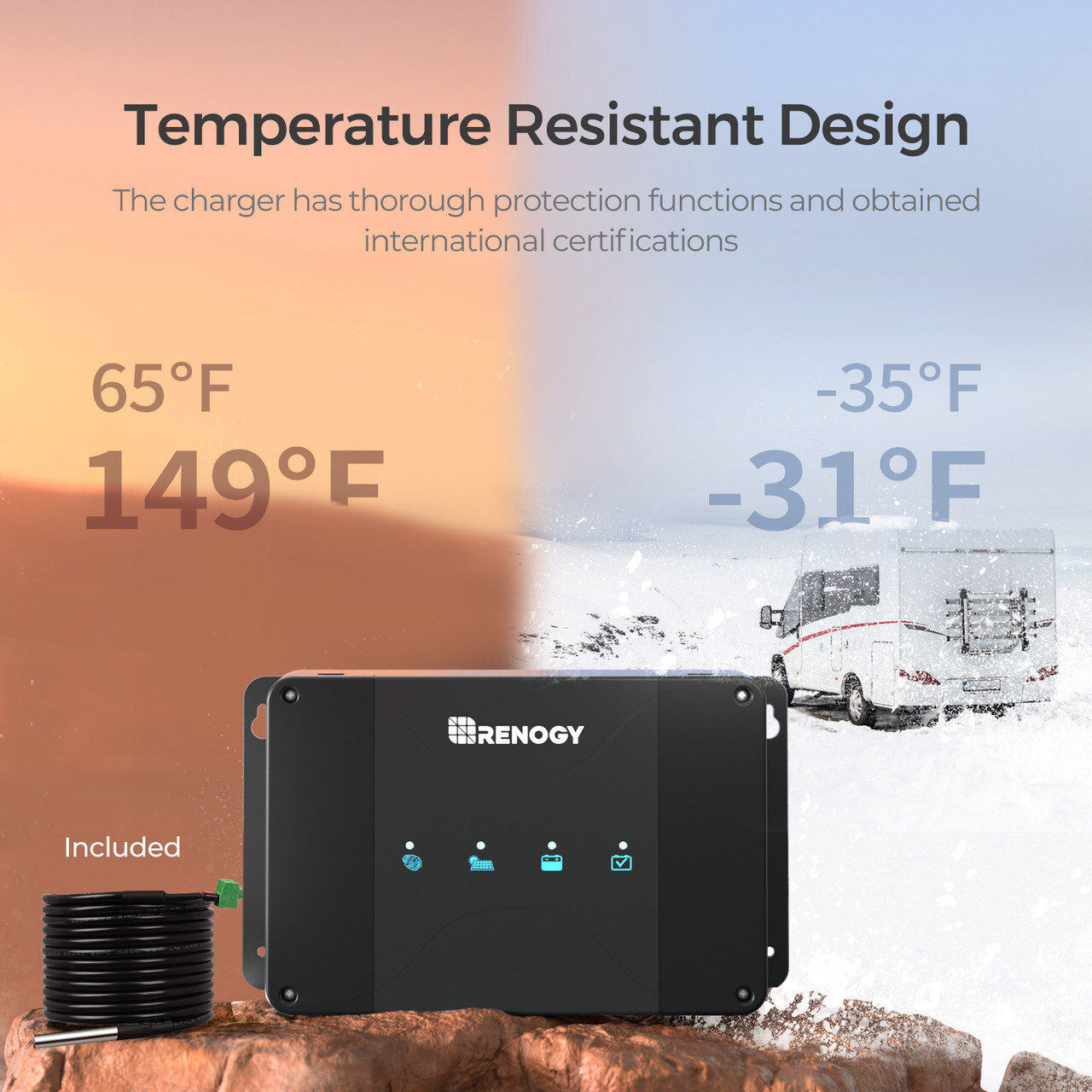

- Operating Temperature Range: -31°F ~ 149°F
- Communication Protocol: RS485
- Ground Type: Negative
- Terminal Size:M8*1.25 - 10mm
- Temperature Compensation: '-3mV/C/2V
- Storage Temperature Range: -40°F - 176°F
- Operating / Storage Humidity: 0%-95%, No Condensation
- Dimensions : 244mm x 146mm x 77mm
- Weight: 1.42 kg
Pack Included:
- 12V 50A DC-DC On-Board Battery Charger with MPPT
- Battery Temperature Sensor
- IGN Signal Wire
- RS485 Communication Cable
Specifications
SKU RBC50D1S-BT-M1
Brand Renogy
GTIN 00840315219144
Product Category Battery Chargers
Output Current Rating (Amps) 50
Operating temperature range -20°C-45°C
Weight (kg) 1.41
Dimensions 70 x 110 x 31.8 mm
Charger Voltage 12V
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Does the DC-DC charger stop once fully charged?
No, it will continue to trickle charge the battery maintaining 100% charge. This is achieved via a Voltage Sensitive Relay built into the DC to DC chargers MPPT.
-
How do I change the battery type?
You will need to click the button located on the PV+ and ALT+ side of the DCDC, continue pressing the button and it will display different colours for each battery type. Refer to page 15 of the operations manual, to identify your battery type.
-
How much solar will the charger be able to handle?
The charger has a maximum solar input of 660W
-
Can this unit be used with a smart alternator?
It is possible to use this battery charger with both conventional and smart alternators. The IGN Signal Wire that comes with the unit must be used to connect the charger to the smart alternator through the vehicle ignitions. Smart alternators have a controlled charging output based on operating conditions and the standard/traditional alternator has a fixed voltage when charging.
-
When the service battery is completely charged, what will happen?
With the help of an integrated Voltage Sensitive Relay (VSR), this Renogy DC to DC MPPT on-board battery charger can trickle charge both the starting battery and the house battery while maintaining a fully charged state. In order to prevent charging interference, the VSR also guarantees dependable isolation between the house battery and the starting battery.
-
Which battery types is the charger compatible with?
Gel, AGM, Flooded, and Lithium batteries can all be used with this controller; however, after installed, please make sure the battery type is selected correctly. Please refer to pages 12 and 15 of the Manual Book for information on battery settings.
-
Since there is not a display screen, how do I adjust the battery?
To change the battery type, locate the push button on both the PV+ and ALT+ sides of the DCDC. Press and hold the button, the LED light will display various colors, each representing a specific battery type. Refer to page 15 of the manual for the Battery Type LED reference
