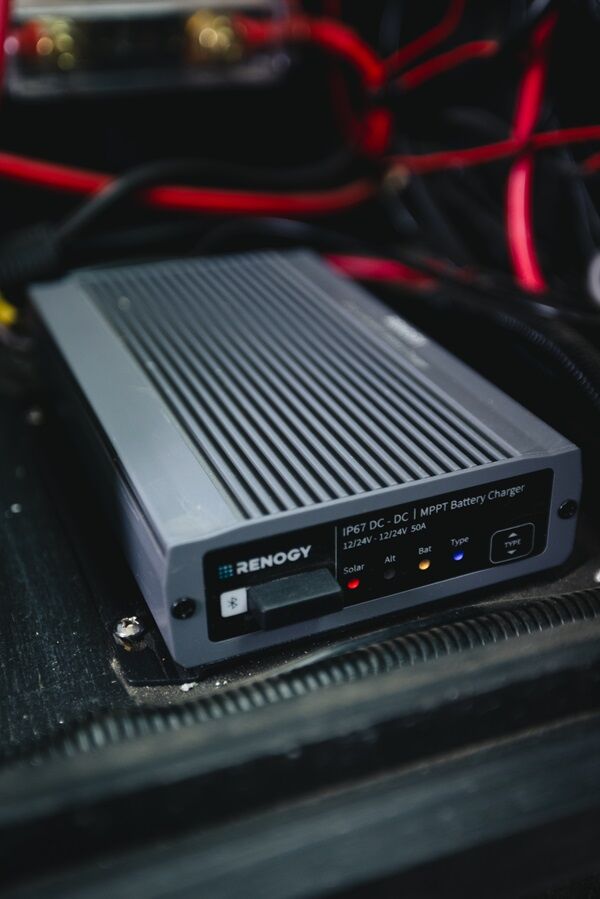

Renogy IP67 50A DC-DC Battery Charger with MPPT
SKU: RBC2125DS-21W Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
.png)
.png)
Description
Renogy IP67 50A DC-DC Battery Charger with MPPT
Features:
- Intelligent Boost and Buck Logic.
- Extremely Compact and Lightweight.
- Prioritize Solar Green Energy.
- Smart Living Unleashed.

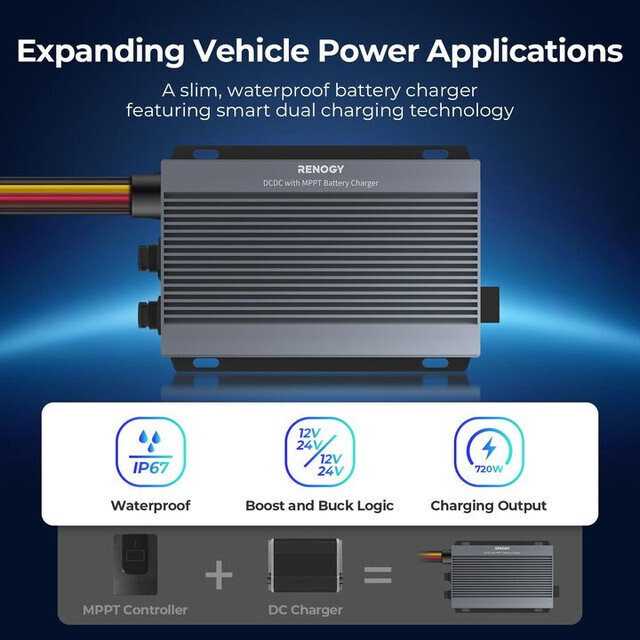

Adapt to Divers DIY Configuration
The device utilizes 'boost and buck' logic for efficient voltage management, allowing 12V solar panels or generators to power a 24V system. Conversely, when connected to 24V solar panels or generators, it seamlessly switches to 'buck' logic, automatically reducing the voltage to charge a 12V house battery.
Extremely Compact and Durable
Crafted from high-quality sheet metal, this charger features IP67 waterproof and withstands temperatures up to 600°C. It offers adaptable installation in tight spaces, giving you the ultimate off-grid energy freedom without compromising comfort.
Charging Mode Auto-Switching
Featuring dual charging options, this charger utilizes the alternator-linked starter battery and solar panels simultaneously, reducing charging time with 99% MPPT tracking efficiency. During travels, it maximizes solar charging in ample sunlight and seamlessly switches to alternator charging in unfavorable sunlight conditions.
Smart Living Unleashed
Equipped with built-in Bluetooth, this charger enables remote control via smartphones or other smart devices to monitor battery levels, adjust charging settings, and initiate remote starts. Additionally, it supports wired CAN communication, allowing connectivity with computer-based CAN monitoring tools for data transfer and sharing.
Specifications:
- System Voltage: 12V/24V - 12V/24V
- Solar Input Voltage: 50 VDC
- Output Voltage: 9-16 VDC
- Max. Alternator Input Voltage: 32V
- Maximum Output Current Rating: 50A
- Output Power: 720W
- Battery Types: AGM/SLD , GEL ,FLD ,LI,USER
- Input Fuse Rating: 75A-100A
- Output Fuse Rating: 75A-100A
- Charging Efficiency: 0.94
- Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium);0mV / ℃ / 2V; no compensation (Lithium)
- Idle Power Consumption: ＜100mA
- Terminal Range: 8AWG-4AWG
- Communication Protocol: Modbus ; RV-C
- Operating Temperature Range: -35℃ to 80℃
- Storage Temperature Range: -40℃ to 80℃
- Humidity: 0%-95%, No Condensation
- Maximum Operating Altitude: 3500m
- Enclosure Rating: IP67
- Dimensions: 178.2 x 121.5 x 37.5mm
- Weight: 1.86 kg
- Certification: CE;RoHS;FCC Part 15 class B
- Warranty: 3-year material warranty
Package Includes:
- 1 x RENOGY IP67 50A DC-DC Battery Charger with MPPT
- 1 x Battery Temperature Sensor
- 1 x Quick Guide
- 4 x Terminal Ring
- 1 x Install Screw
Specifications
SKU RBC2125DS-21W
Brand Renogy
GTIN 00840315223783
Product Category Battery Chargers
Output Current Rating (Amps) 50
Wattage (W) 720
Dimensions 178.2 x 121.5 x 37.5mm
Weight (kg) 1.86
Charger Voltage 12/24V
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
How much solar can I run through this charger?
This charger can receive up to 720w of solar and 50VOC.
-
Is this charger compatible with smart alternators?
Both conventional and smart alternators can use the charger; however, the voltage at which each operates will vary. The device itself has a Bluetooth connection feature. You can use this feature to connect to DC Home or Core via Bluetooth, and then modify the charger's input voltage value based on the various alternator kinds' operating voltage characteristics.
-
How can I configure this charger's battery type?
Method 1: There is a button on the charger itself to change the battery type. Press the button, which is adjacent to the "Type" indicator, for a brief moment to choose a different battery type.
Method 2: The charger has Bluetooth connectivity built in, so you may link it to our Core or DC Home to switch out the battery type.
-
How can data be viewed without a screen?
The charger itself has Bluetooth connectivity; to examine the charger's data, connect to our Core, DC Home.
