Renogy Monitoring Screen for DC-DC MPPT Battery Charger Series

SKU: RMS-DCDC Learn More»
Renogy Monitoring Screen for DC-DC MPPT Battery Charger Series
Free Shipping
$37
$41
In Stock1-2 Days Dispatch

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Description

Renogy Monitoring Screen for DC-DC MPPT Battery Charger Series

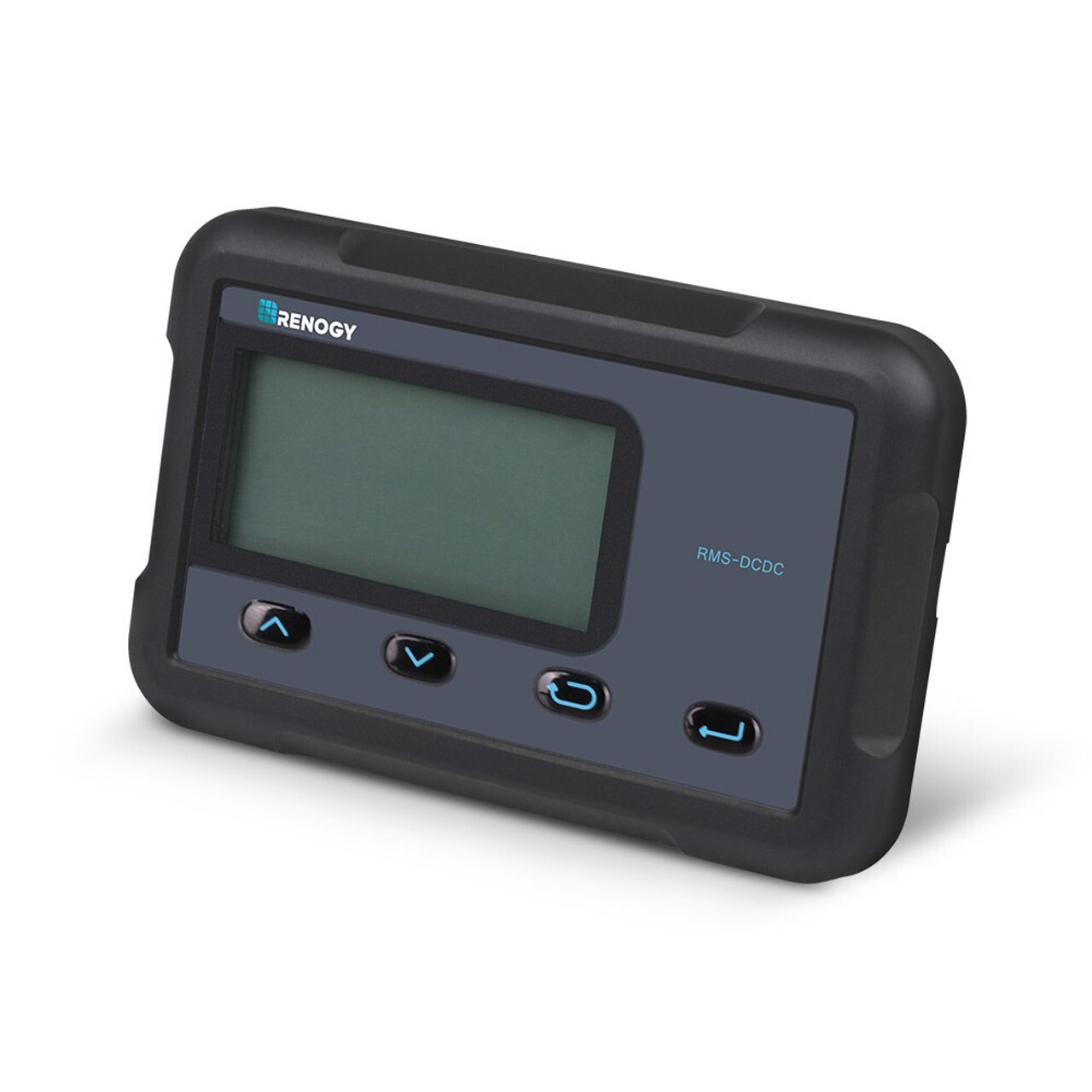

The RMS-DCDC is a high precision meter designed for DC-DC MPPT Series onboard battery chargers. Engineered for an aesthetically clean and professional look once mounted, this meter can be flush-mounted and features a backlit LCD. Utilize the 4-key input to navigate through the LCD for system information, configure charging parameters, as well as identify any error codes. The RMS-DCDC is the perfect companion, offering operator feedback on your 2-battery system and keeping you up to date with important system information.



Features:

Dual Battery Monitoring

  • Stay informed about your house and auxiliary battery's charging status and easily monitor the solar system's overall health.

Adjustable Parameters

  • Program your charger settings, volts, and amps directly through the monitoring screen.

Plug and Play

  • Simply connect an RJ45 directly to your DC-DC and let the screen take care of the rest.

 Accurate Readings

  • Precise tracking and monitoring ensure the latest real-time solar and alternator charging information.



Specifications:

  • Supply Voltage: 5VDC
  • Communication Port: RJ45 (RS485 Protocol)
  • Supply Current: 30mA
  • Display: Backlit LCD
  • Power Consumption: <1W
  • User Interface: 4 Front Menu Buttons
  • Operating Temperature Range: -20°C~45°C
  • Mounting System: Wall Mount
  • Voltage Accuracy: ±0.1V
  • Dimension: 70 x 110 x 31.8 mm
  • Current Accuracy: ±0.1A
  • Weight: 62 g
  • Wire Length: 5m

Show More

Specifications

SKU RMS-DCDC

Brand Renogy

GTIN 00810009716662

Product Category Battery Monitors

Dimensions 70 x 110 x 31.8 mm

Weight (kg) 0.062
