Renogy New Edition Voyager 12/24V 20A PWM Waterproof Solar Charge Controller

Description

Renogy New Edition Voyager 12/24V 20A PWM Waterproof Solar Charge Controller

The Voyager 20A is a class-leading 20-amp charge controller with an IP67 rating. It is perfect for outdoor use and can withstand water spray, rain, and condensation. Equipped with advanced PWM technology, it supports both 12V and 24V off-grid applications and is compatible with 4 different battery types, including Lithium Iron Phosphate. The Voyager 20A also ensures your system's longevity with solar panel, battery, and controller protections.

Features:

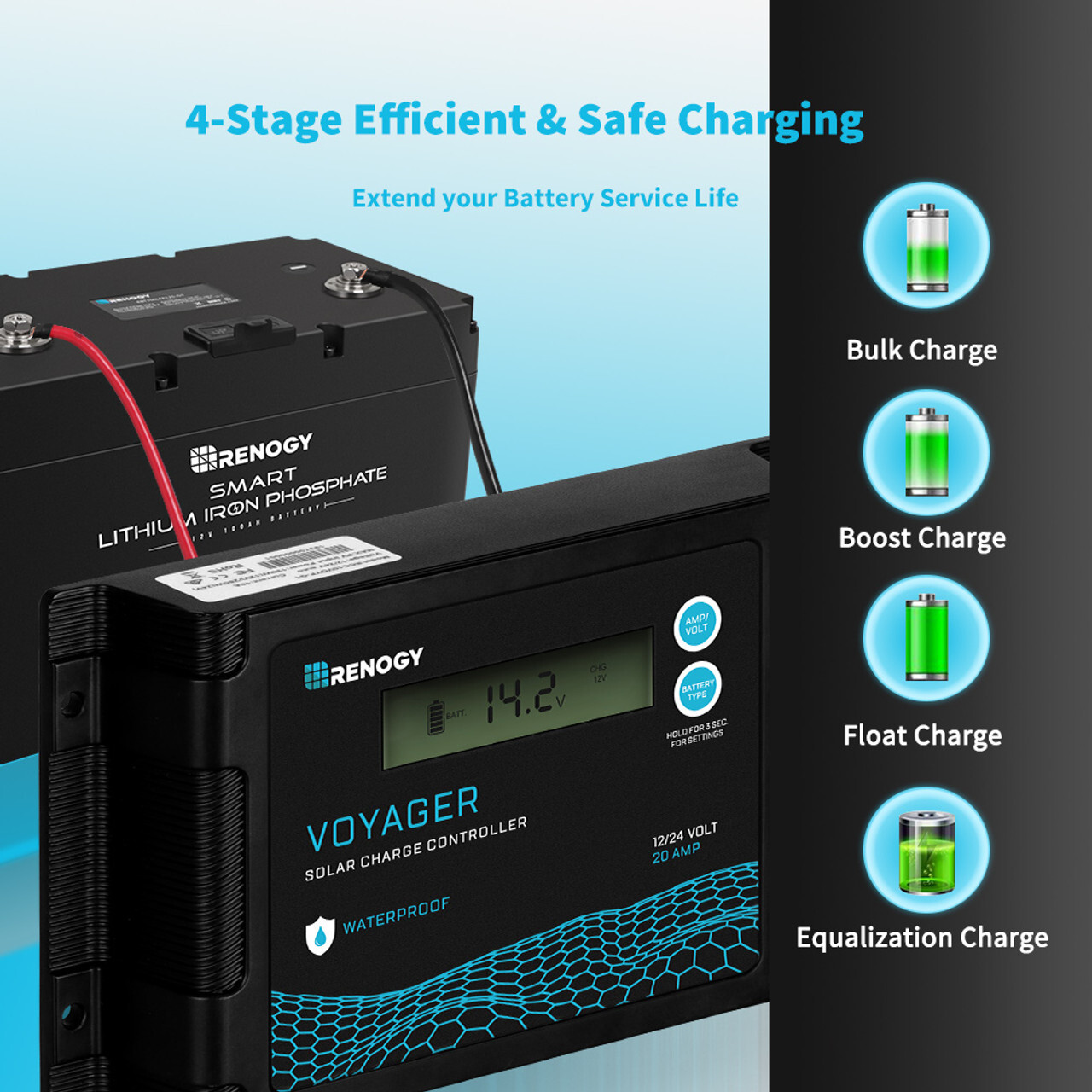

4-STAGE PWM Technology

• The Voyager controller is equipped with advanced smart PWM technology with high charging efficiency. It provides 4-stage charging (Bulk, Absorption, Float and Equalization) in order to protect the battery.

IP67 Rated Waterproof

• With an IP67-rated waterproof design, the Voyager controller is suitable for outdoor use and will remain fully operational when exposed to water spray, rain, or condensation.

Multiple Protections

• The Voyager controller has multiple intelligent protections against reverse polarity, overcharge, short-circuit, reverse current, overload, and over-discharge, keeping your battery fully protected.

Support Multiple Battery Types

• The Voyager controller can automatically sense 12V or 24V system voltage when paired with Gel, AGM, or Flooded batteries. It also comes with a Lithium activation feature.

Backlit LCD displaying system

• The Voyager comes with an LCD display showing accurate and timely information including charging current, generated energy, temperature, battery voltage, and error codes that allow users to monitor and control charging.

Specifications:

• Nominal System Voltage: 12V/24V Auto-Detect
• Rated Charge Current: 20A
• PV Input Voltage Range：15V-55V
• Max. PV Open Circuit Voltage：12V@25V 24V@55V
• Max. PV Input Power：12V @ 260W / 24V@520W
• Max Battery Voltage：32V
• Power Consumption：12V @ 0.24W / 24V@0.74W
• Battery Types： SLD/AGM, GEL, FLD, LI
• Protection Level： IP67
• Operating / Storage Humidity：10%-90%, No Condensation
• Operating Temperature Range： -31°F - 113°F
• Temperature Compensation：-3mV / C / 2V excludes LI
• Storage Temperature Range： -31°F - 167°F
• Dimensions: 1544 x 97 x 36mm
• Weight: 0.25kg
