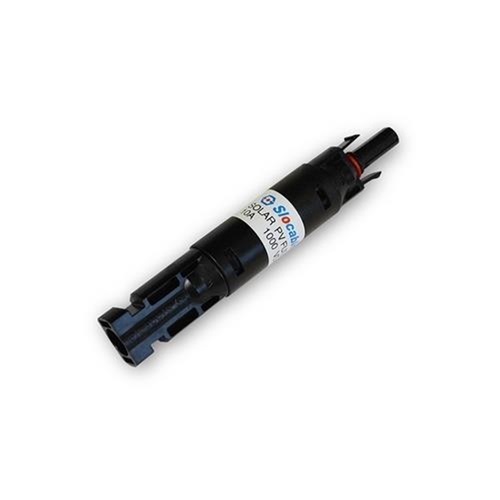

Renogy 10A Solar In-Line Fuse Holder Waterproof w/ Fuse

SKU: RNG-CNCT-FUSE Learn More»
Renogy 10A Solar In-Line Fuse Holder Waterproof w/ Fuse
Free Shipping

RNG-CNCT-FUSE10

$21

Unfortunately, this product is not available to purchase individually

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Description

Renogy Solar Connector Waterproof In-Line Fuse Holder w/ Fuse



Fuse Amps Options:

  • 10A
  • 15A
  • 20A
  • 30A



This product is a 10A/15A/20A/30A fuse embedded into a waterproof fuse holder. It features an solar connector lead on each end, making it compatible for use with an Adaptor Kit and solar panel leads. This Fuse Holder is designed to provide complete single circuit protection to your solar power array. The fuses prevent large currents from damaging the solar panels. Purchase this product for extra protection on your system.



KEY FEATURES:

Ease of Use

  • Compatible with PV cables with different insulation diameters.
  • Designed for a wide range of DC applications.
  • Simple plug-and-play.
  • Auto-lock equipment of male and female points render connections easy and reliable.

Safe

  • Waterproof - IP67 Class Protection.
  • Insulation material PPO.
  • High current-carrying capacity
  • Protection Class II
  • Connector adopts touch and insertion of reed with inner-knob type



Specifications:

  • Rated Current: 10A/20A/30A
  • Rated Voltage: 1000 V DC
  • Test Voltage: 6000V (50Hz,1 min)
  • Overvoltage Category: CATIII
  • Contact Resistance of Plug Connector:1mΩ
  • Contact Material: Copper, Silver Plated
  • Insulation Material: PPO
  • Degree of Protection: IP2*/IP67
  • Flame Class: UL94-V0
  • Safety Class: II
  • Suitable Connector: Solar Connector
  • Insertion Force / Withdrawal Force: ≤50N / ≥50N
  • Fuse Can Replace
  • Temperature Range: -40 to +125°C
Show More

Specifications

SKU RNG-CNCT-FUSE

Brand Renogy

GTIN 00810081401470

Product Category Fuses and Breakers

Temperature Range -40 to +125°C

Rated Voltage 1000V DC

Protection Class IP2* / IP67


NOTE: see full product specifications & further product info in the section on this page.
