Rotopax Side and Top Mount Kit - by Front Runner

Description

Rotopax Side and Top Mount Kit - by Front Runner

Features:

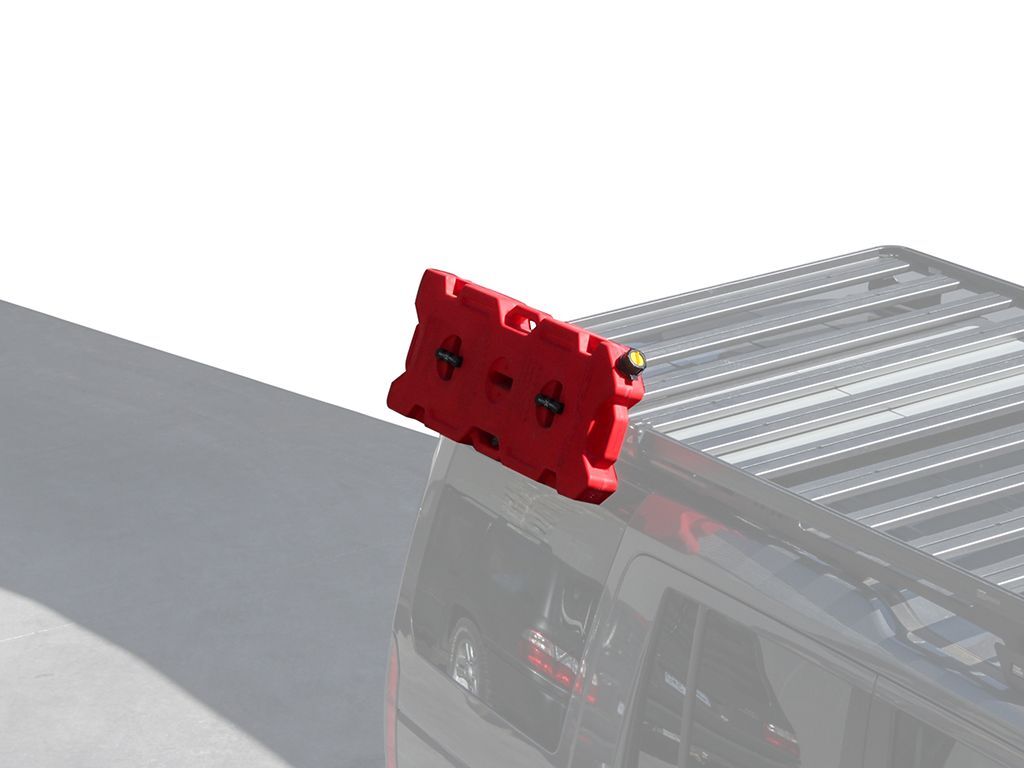

• Free up rack space and mount fuel and water to the side or top of a Slimline II Rack.
• The 3CR12 stainless steel Mounting Plate can hold either one (1) 15L/4 gallon or two (2) 7.5L/2 gallon RotoPax Fuel, Water or Emergency/Storage Packs on the top of the rack or using the Side Mount Brackets, off the side of the rack.

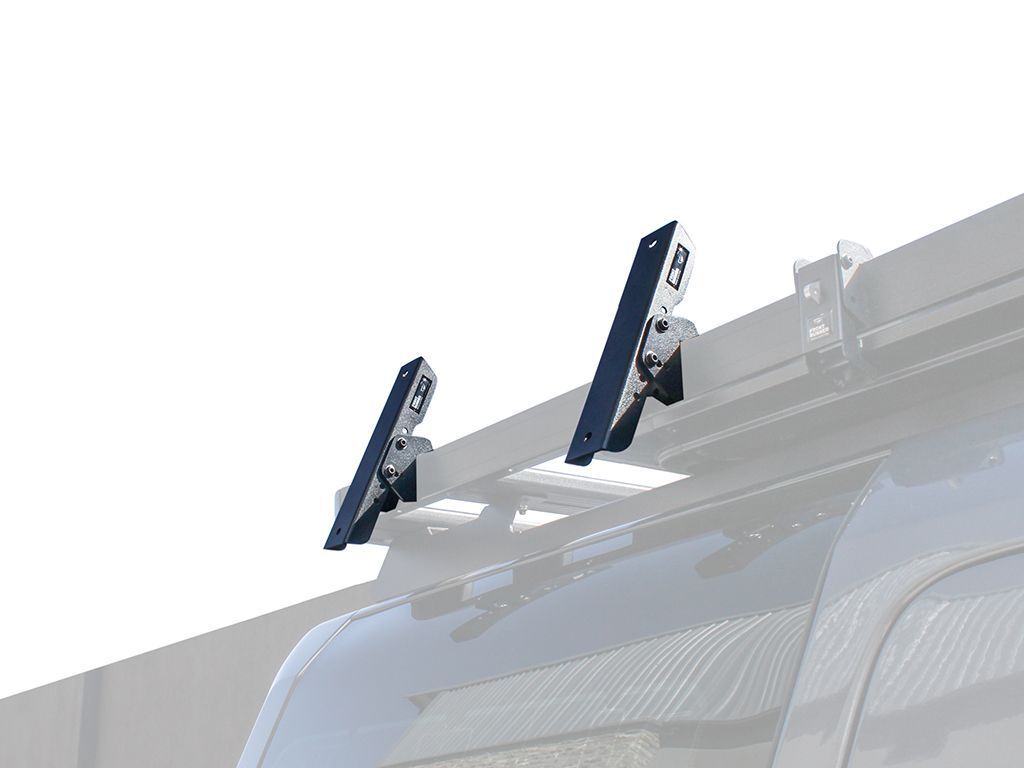

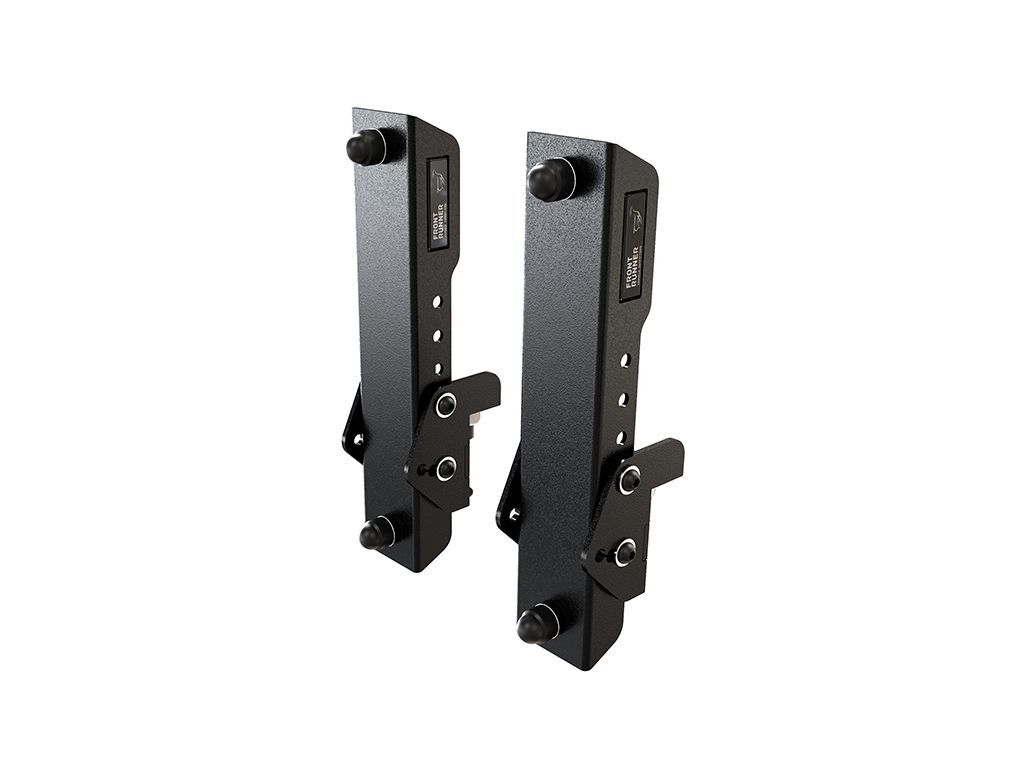

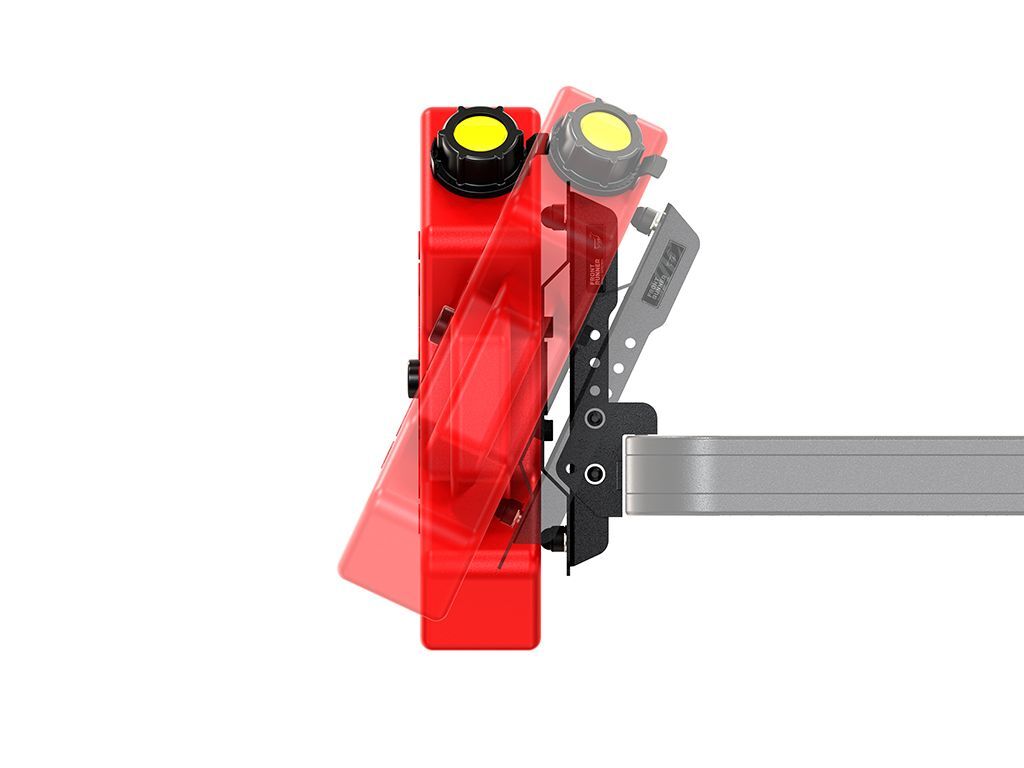

• The Side Mount Brackets hold the Mounting Plate and are height (50mm/1.96")) and tilt (12.5 degree increments up to 25 degrees) adjustable.

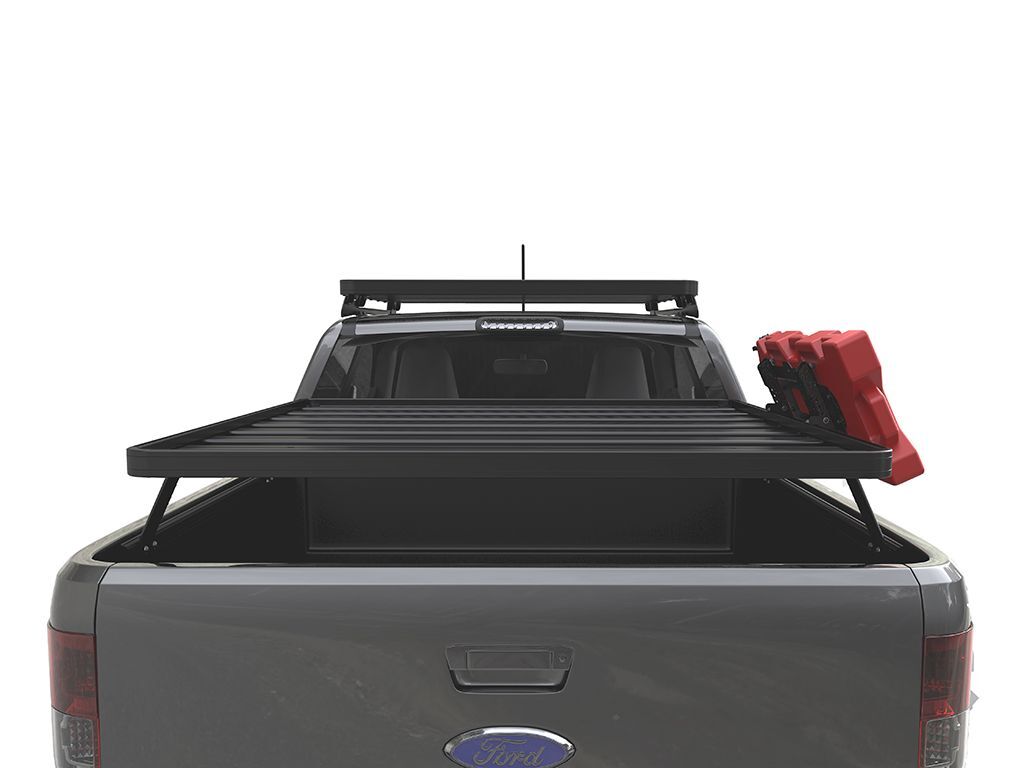

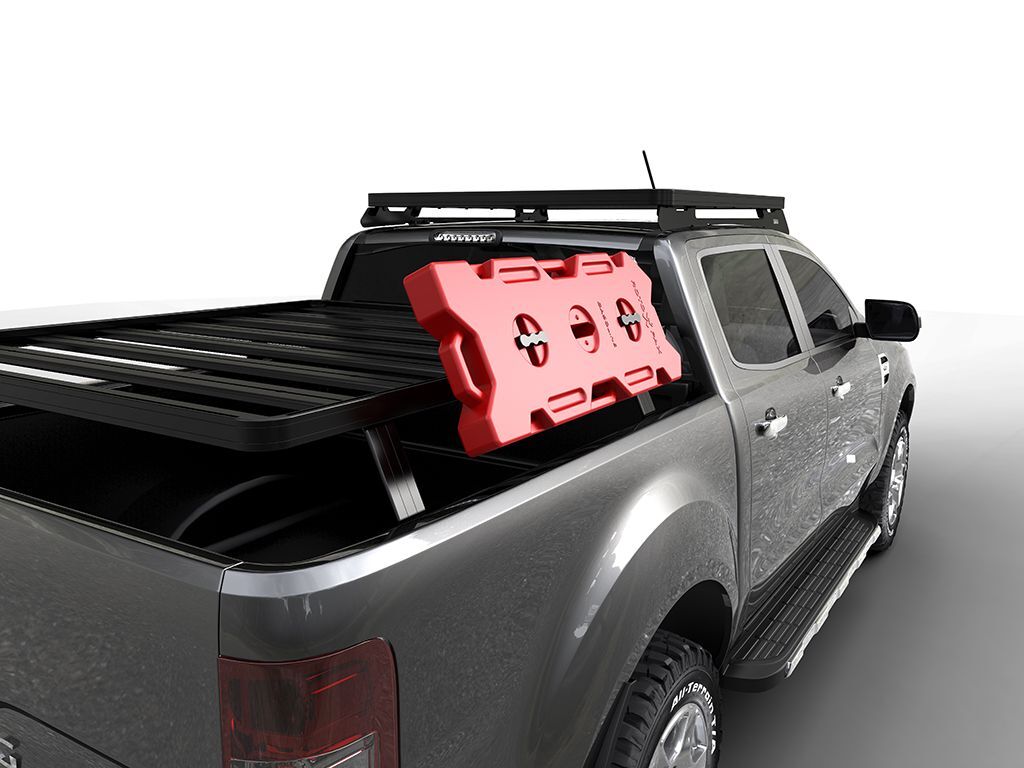

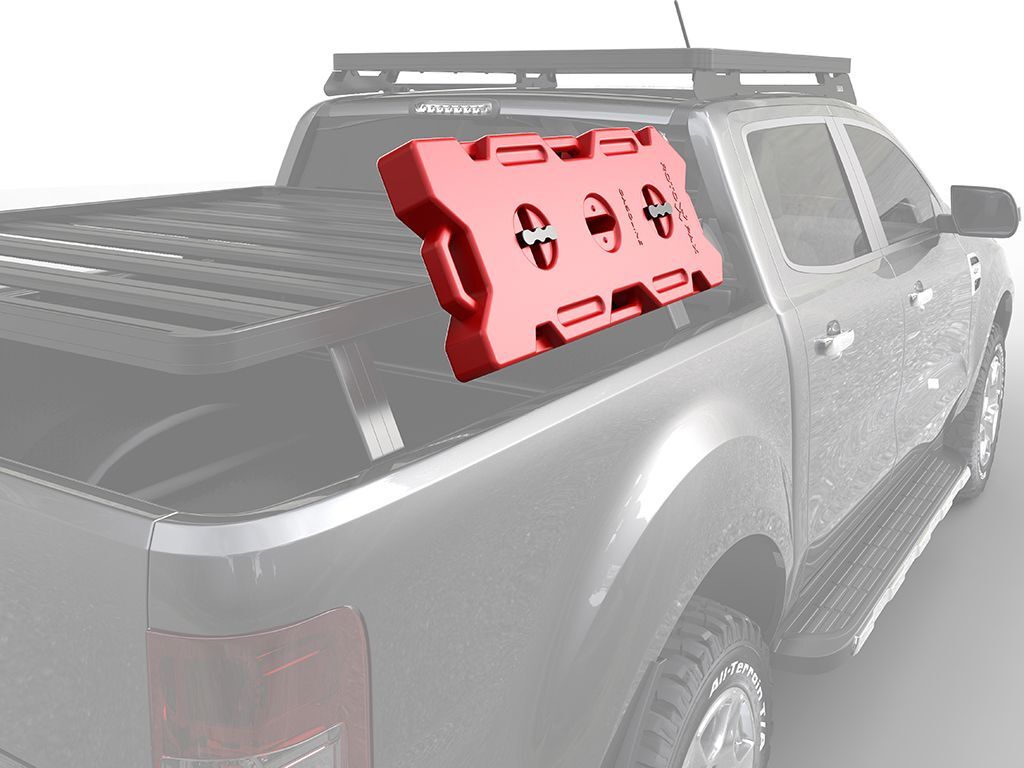

• Allows for RotoPax Packs to be positioned to suit the vehicle profile and rack contents. Also allows the RotoPax Packs to be slanted when fitted to the side of a Front Runner load bed rack, so as not to protrude excessively from the vehicle.

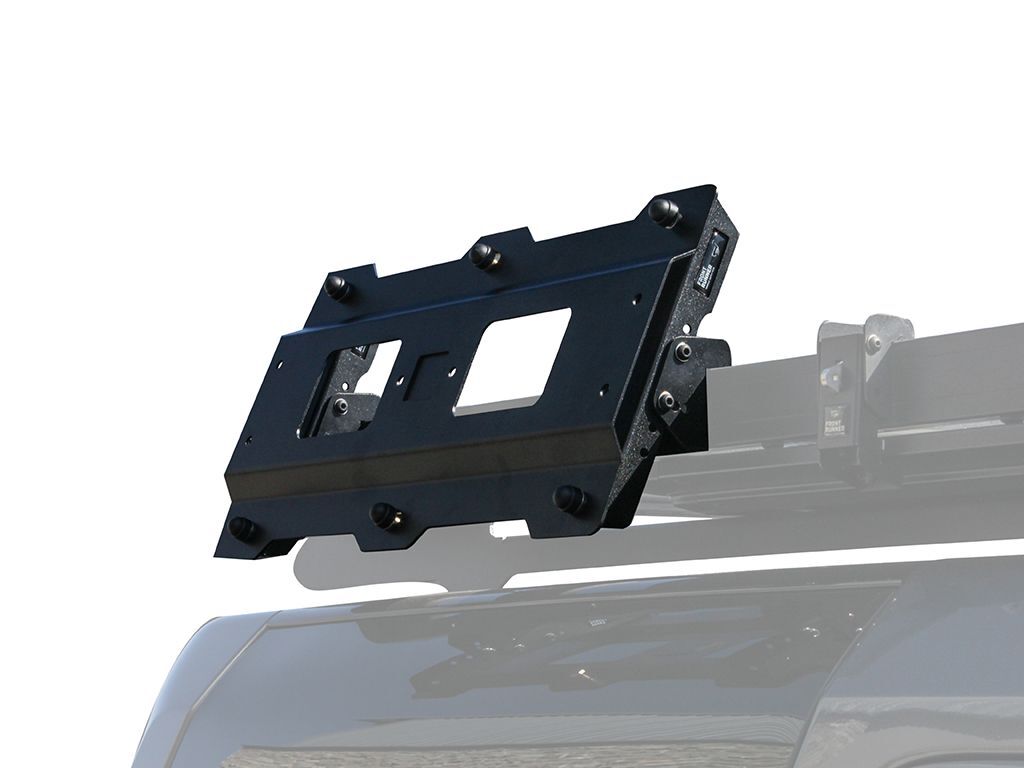

• Rotopax Rack Tray Mounting Plate measures in at 480mm (18.9") L x 250mm (9.8") W x 20mm (0.8") H, weighs 1,58kg (3.5lbs).
• Both the Side Mounting Plate and Side Mount Brackets are finished in the same durable, weather resistant black powder coating as the Slimline II Rack.
• Installation hardware and fitting instructions included.

PLEASE NOTE: RotoPax Pack Mounts (RX-PM, RX-DLX-PM and RX-LOX-PM) must be used to secure RotoPax to the Front Runner Rotopax Side Mount. The RotoPax brand Pack Mounts are SOLD SEPARATELY.

Consists of:

• 1 x RotoPax Mounting Plate (RRAC105)
• 1 x Pair of RotoPax Side Mount Brackets
• Installation Hardware
• Fitting Instructions

Specifications:

• Materials used: Black powder coated 3CR12 stainless steel
• Product Dimensions: 97mm (3.8") L x 480mm (18.9") W x 243mm (9.6") H
• Weight: 2.88kg (6.4lbs)
