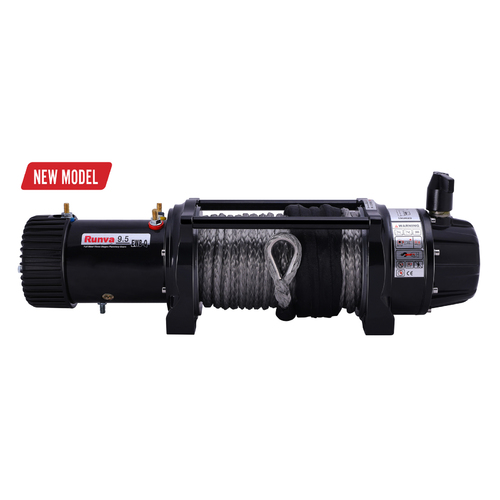

Runva EWB9500-Q Premium 12V Winch with Synthetic Rope
SKU: EWB9500Q-VD Learn More»
EWB9500Q12VD
Description
Runva EWB9500-Q Premium Winch with Synthetic Rope
The Runva 4X4 Electric Series offers a very extensive range of products. Runva have solutions for every application and every vehicle.
The Runva EWB9500-Q Premium is a IP67 Ingress protected, fast line speed, ratchet style brake in gearbox, air freespool clutch available, This product comes with a synthetic rope and you have the option of either 12V or 24V.
Voltage Options:
- Runva EWB9500-Q Premium 12V Winch with Synthetic Rope - EWB9500Q12VD
- Runva EWB9500-Q Premium 24V Winch with Synthetic Rope - EWB9500Q24VD
Included:
- Winch with synthetic rope

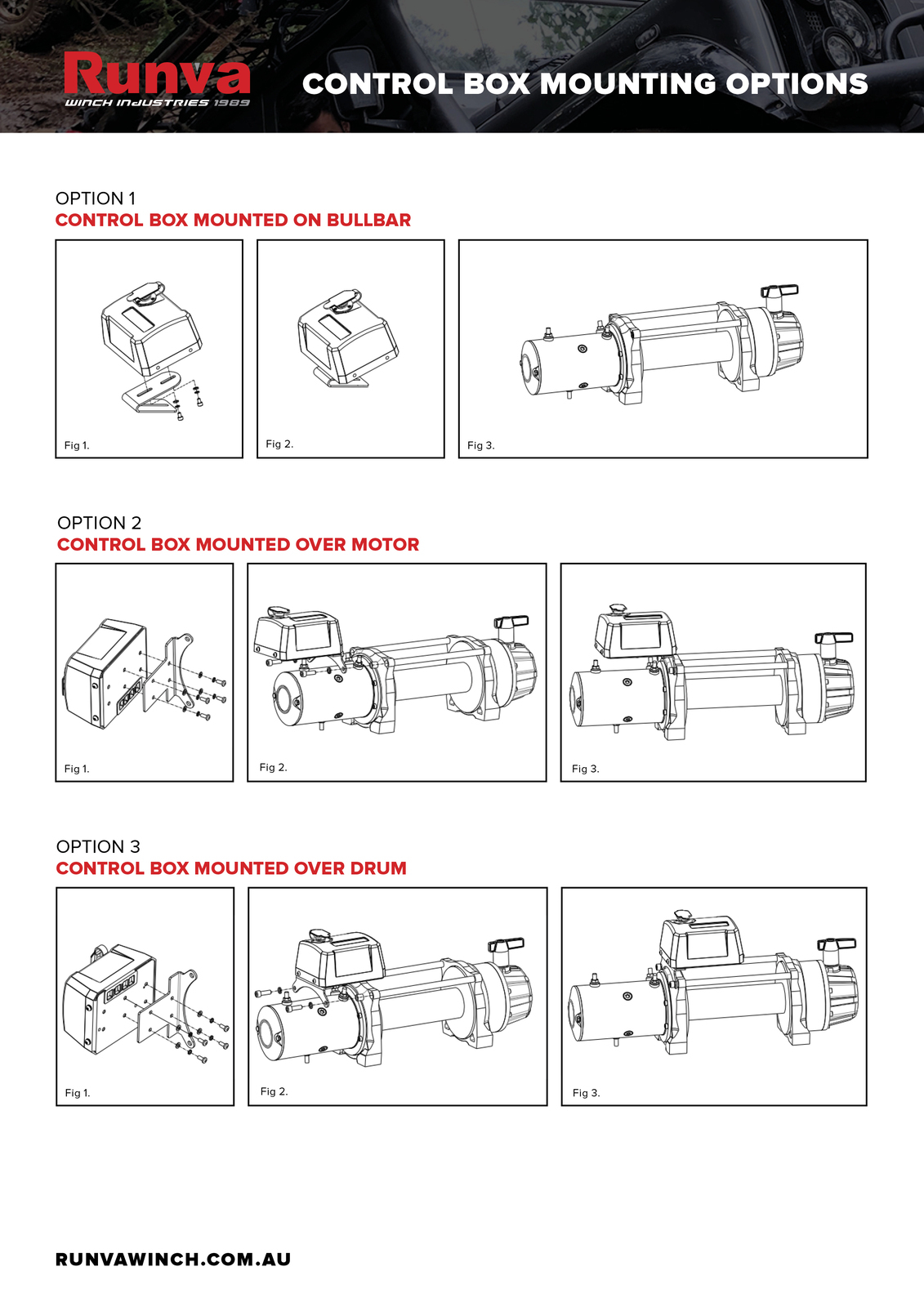

- Control box with power cables & Multiple Brackets for easy fitting
- Handheld & Wireless Remotes
- Large Recovery Hook
- Pulley Block
- 2 in 1 Hawse Fairlead (Offset & Standard)
- Power isolator switch & Bracket & Power Cable
- Mounting bolts
Runva EWB9500-Q Premium 12V Winch with Synthetic Rope
Specifications:

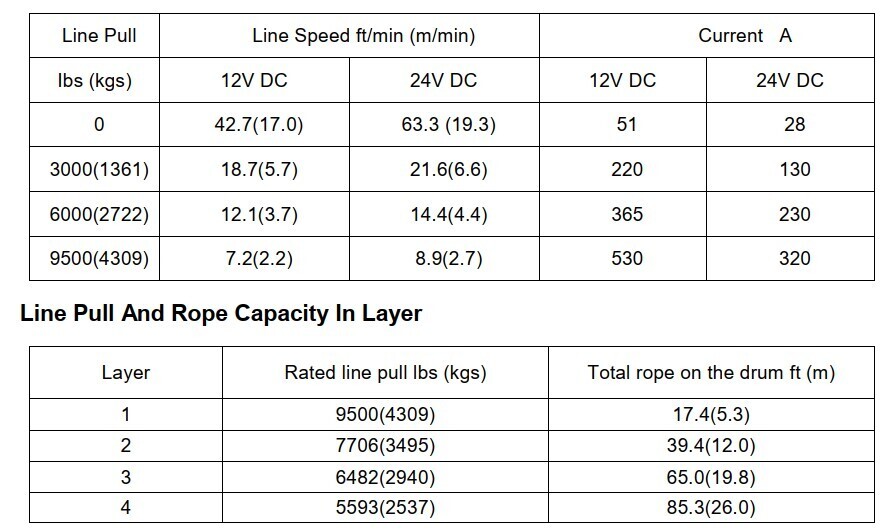

- Rated Line Pull: 9500lb (4309kg)
- Motor: Series Wound(12V) 5.4KW/7.2HP - IP67 Rated
- Gear Train: Full Steel 3 Stage Planetary
- Gear Ratio: 108:1
- Brake: Automatic Ratchet Load Holding in the Gearbox
- Cable Type: Synthetic Rope
- Cable Size: 11mm X 25mm

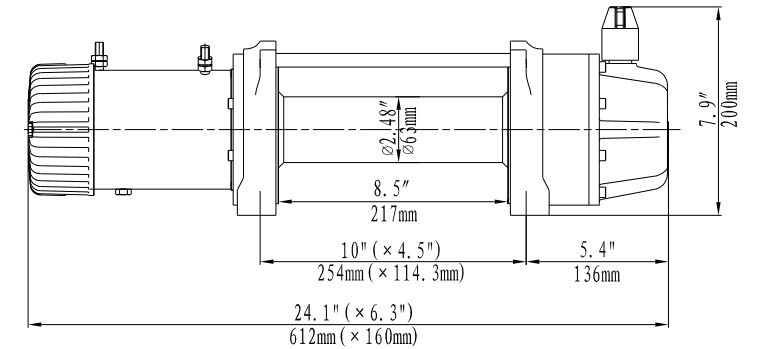

- Drum Size: 63mm x 217mm
- Mounting Bolt Pattern: 254mm X 114.3mm
- Overall Dimensions: 612mm X 160mm X 200mm
- Remote Control: 3.7m Handheld Remote/Wireless Remote
- Battery Leads: 2 x 1.8m Heavy Duty Leads
- Finish: Black Powder Coat
- New Weight: 31.4Kg
- Gross Weight: 33.4Kg (Includes Packaging)
- Warranty: 5 Year Electrical Limited Lifetime Mechanical
Runva EWB9500-Q Premium 24V Winch with Synthetic Rope
Specifications:
- Rated Line Pull: 9500lb (4309kg)
- Motor: Series Wound(24V) 5.3KW/7.1HP - IP67 Rated
- Gear Train: Full Steel 3 Stage Planetary
- Gear Ratio: 108:1
- Brake: Automatic Ratchet Load Holding in the Gearbox
- Cable Type: Synthetic Rope
- Cable Size: 11mm X 25mm
- Drum Size: 63mm x 217mm
- Mounting Bolt Pattern: 254mm X 114.3mm
- Overall Dimensions: 612mm X 160mm X 200mm
- Remote Control: 3.7m Handheld Remote/Wireless Remote
- Battery Leads: 2 x 1.8m Heavy Duty Leads
- Finish: Black Powder Coat
- New Weight: 31.4Kg
- Gross Weight: 33.4Kg (Includes Packaging)
- Warranty: 5 Year Electrical Limited Lifetime Mechanical
Specifications
SKU EWB9500Q-VD
Brand Runva
Product Category Winches
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Which Runva Winch should I choose?
It depends on your individual needs. Some factors to consider are:
- Which features you are looking for in a winch
- The rating of the winch bar or plate you are planning to use it on
- The size of the winch you are considering - you need to make sure it will fit the application. Some models state that they would fit all bars so they would be a good choice if you do not want to measure prior to buying a winch
-
Are the Runva Winches all IP67 Ingress Tested?
No, all models are not IP67 rated. The 'Premium' models are the only ones that are IP67 Ingress tested, along with a select other models. Runva states that their quality engineering is a standard across all of their products and only the Premium range is tested, but that does not mean the rest of the ranges are any less watertight.
-
What size battery should I use with the Runva winches?
Runva states that the ATV Series models can run off an ATV/UTV battery. For other applications a small car battery would be sufficient.
The minimum requirement for the Compact Series, Electric Series and Lifting Series is 750CCA. Using a too small battery can damage your winch.
The minimum requirement for the Competition Series is a battery setup of no less than 1000CCA.
