Runva EWX9500-Q 12V Winch with Synthetic Rope
SKU: EWX9500Q-VD Learn More»


EWX9500Q12VD
Description
Runva EWX9500-Q Winch with Synthetic Rope
The Runva 4X4 Electric Series offers a very extensive range of products. Runva have solutions for every application and every vehicle. This product comes with Synthetic rope and 12V.
Voltage:
- Runva EWX9500-Q 12V Winch with Synthetic Rope - EWX9500Q12VD
Included:
- Runva EWX9500-Q 9500lb 24v with Dyneema Rope
- Control box with cables + bracket for easy fitting
- Wireless remote control
- Wired handheld control
- Mounting Bolts, nuts etc.
- Power Isolator switch
- Limited lifetime manufacturers warranty
Runva EWX9500-Q 12V Winch with Synthetic Rope

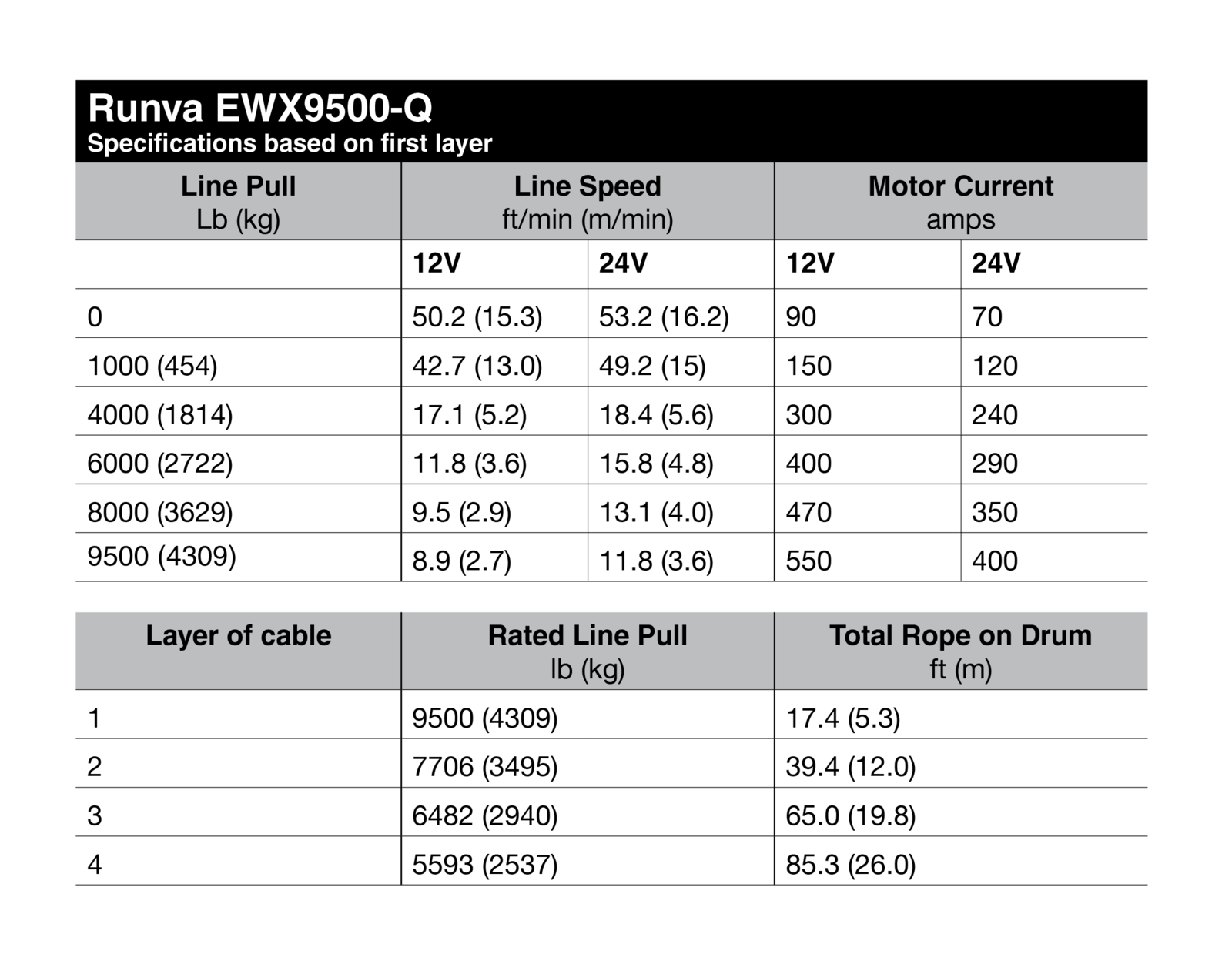

Specifications:
- Rated Line Pull: 9500lb (4309kg)
- Motor: Series Wound (12V) 6.4KW/8.6HP
- Gear Train: Full Steel 3 Stage Planetary
- Gear Ratio: 110:1 Extra Low For Extra Speed
- Brake: Automatic Load Holding Screw Cone
- Cable Type: Synthetic Rope
- Cable Size: 10mm X 26.5mm

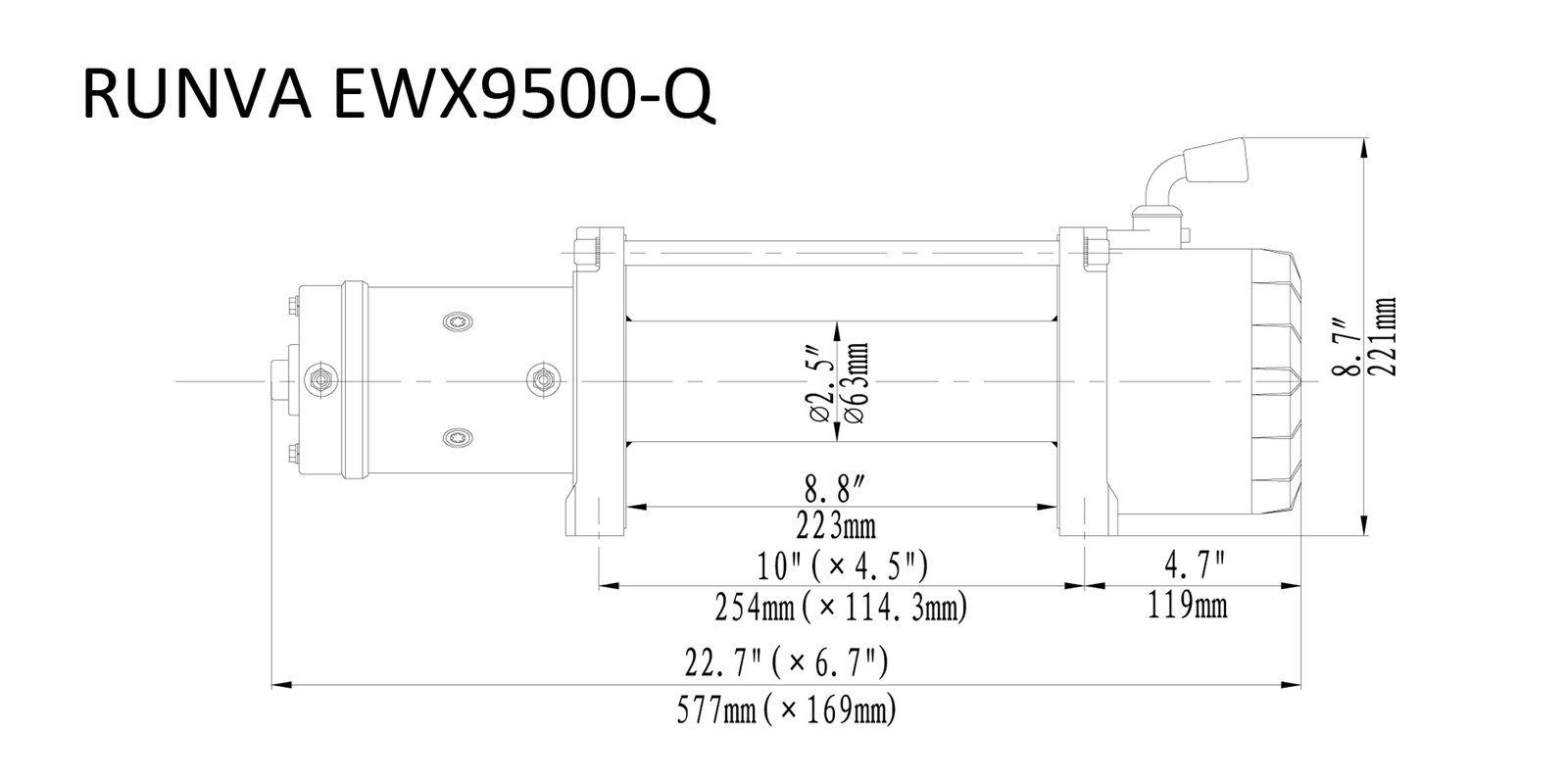

- Mounting Bolt Pattern: 254mm X 114.3mm
- Overall Dimensions: 577mm X 163mm X 217mm
- Remote Control: 3.7m Handheld Remote/Wireless Remote
- Battery Leads: 2 X 1.8M Heavy Duty Leads
- Finish: Grey Powder Coat
- New Weight: 31Kg
- Gross Weight: 33Kg (Includes Packaging)
- Warranty: Limited Lifetime
Specifications
SKU EWX9500Q-VD
Brand Runva
Product Category Winches
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Which Runva Winch should I choose?
It depends on your individual needs. Some factors to consider are:
- Which features you are looking for in a winch
- The rating of the winch bar or plate you are planning to use it on
- The size of the winch you are considering - you need to make sure it will fit the application. Some models state that they would fit all bars so they would be a good choice if you do not want to measure prior to buying a winch
-
Are the Runva Winches all IP67 Ingress Tested?
No, all models are not IP67 rated. The 'Premium' models are the only ones that are IP67 Ingress tested, along with a select other models. Runva states that their quality engineering is a standard across all of their products and only the Premium range is tested, but that does not mean the rest of the ranges are any less watertight.
-
What size battery should I use with the Runva winches?
Runva states that the ATV Series models can run off an ATV/UTV battery. For other applications a small car battery would be sufficient.
The minimum requirement for the Compact Series, Electric Series and Lifting Series is 750CCA. Using a too small battery can damage your winch.
The minimum requirement for the Competition Series is a battery setup of no less than 1000CCA.
