Runva EWX9500-Q EVO 12V Winch with Synthetic Rope
SKU: EWX9500QEVO-VD Learn More»![](/assets/thumbL/EWX9500QEVO-VD.jpg?20210728192039)
![](/assets/alt_1/EWX9500QEVO-VD.jpg?20210728192113)
![](/assets/alt_2/EWX9500QEVO-VD.jpg?20210728192117)
![](/assets/alt_3/EWX9500QEVO-VD.png?20210728193614)
EWX9500QEVO12VD
Description

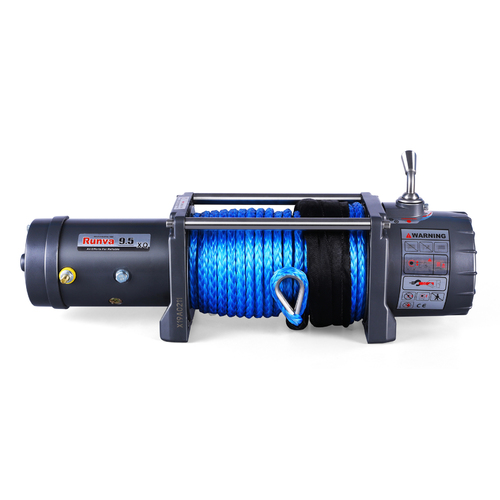

Runva EWX9500-Q EVO Winch with Synthetic Rope
The Runva Competition Series is for offroad applications that demand faster line speed. The EWX9500-Q EVO is a very capable and fast winch. Super low gearing and a massive motor make this a very attractive and affordable option. Available in 12V.
Voltage:
- Runva EWX9500-Q EVO 12V Winch with Synthetic Rope - EWX9500QEVO12VD
Included:
- Winch with synthetic rope
- Control box with power cables & Multiple Brackets for easy fitting
- Handheld & Wireless Remotes
- Large Recovery Hook
- 2 in 1 Hawse Fairlead (Offset & Standard)
- Mounting bolts
Runva EWX9500-Q EVO 12V Winch with Synthetic Rope

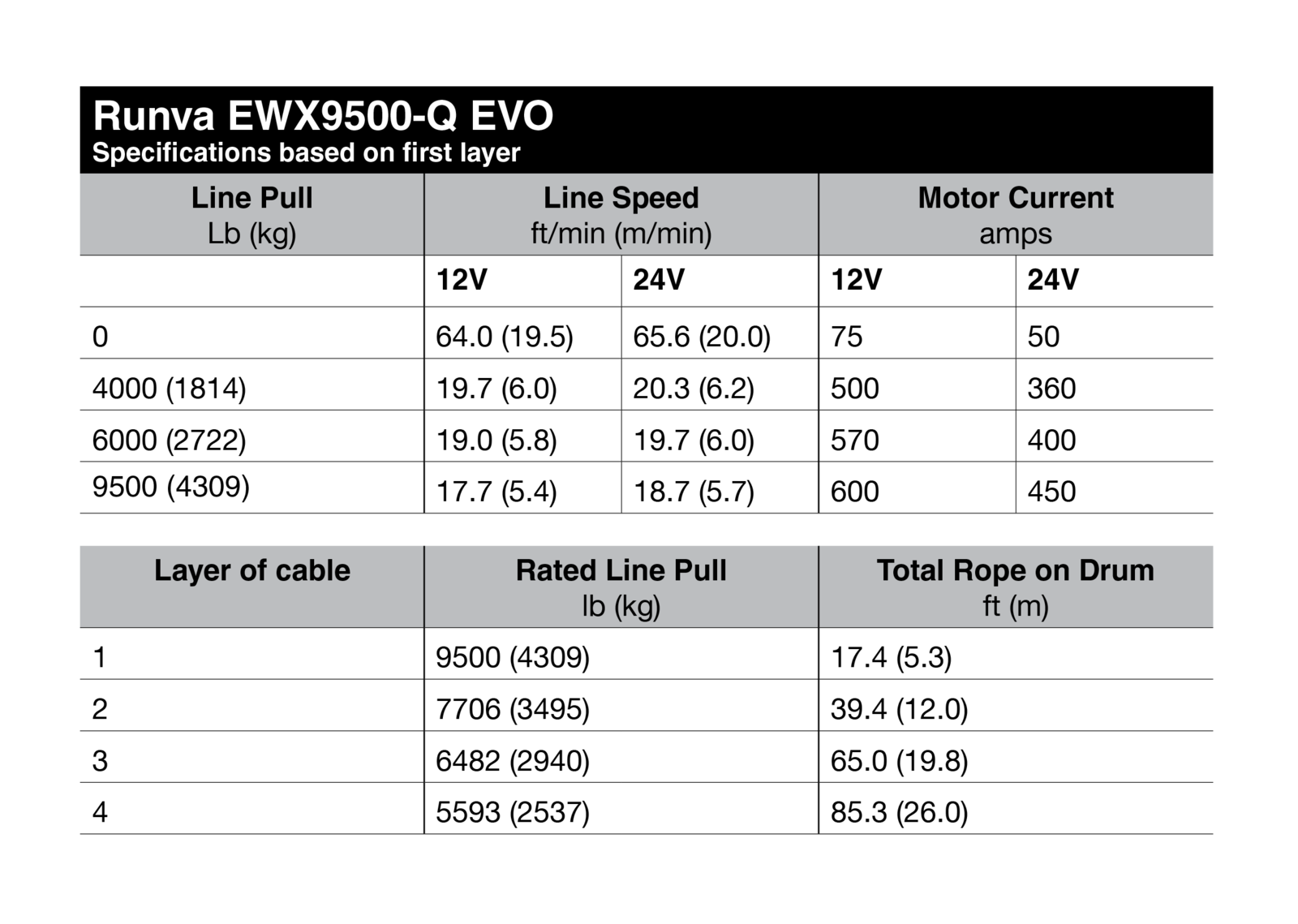

Specifications:
- Rated Line Pull: 9500lb (4309kg)
- Motor: Series Wound(12V) 6.4KW/8.6HP
- Gear Train: Full Steel 3 Stage Planetary
- Gear Ratio: 80:1 Extra Low For Extra Speed
- Brake: Automatic Load Holding Screw Cone
- Cable Type: Synthetic Rope
- Cable Size: 10mm X 26.5mm
- Mounting Bolt Pattern: 254mm X 114.3mm

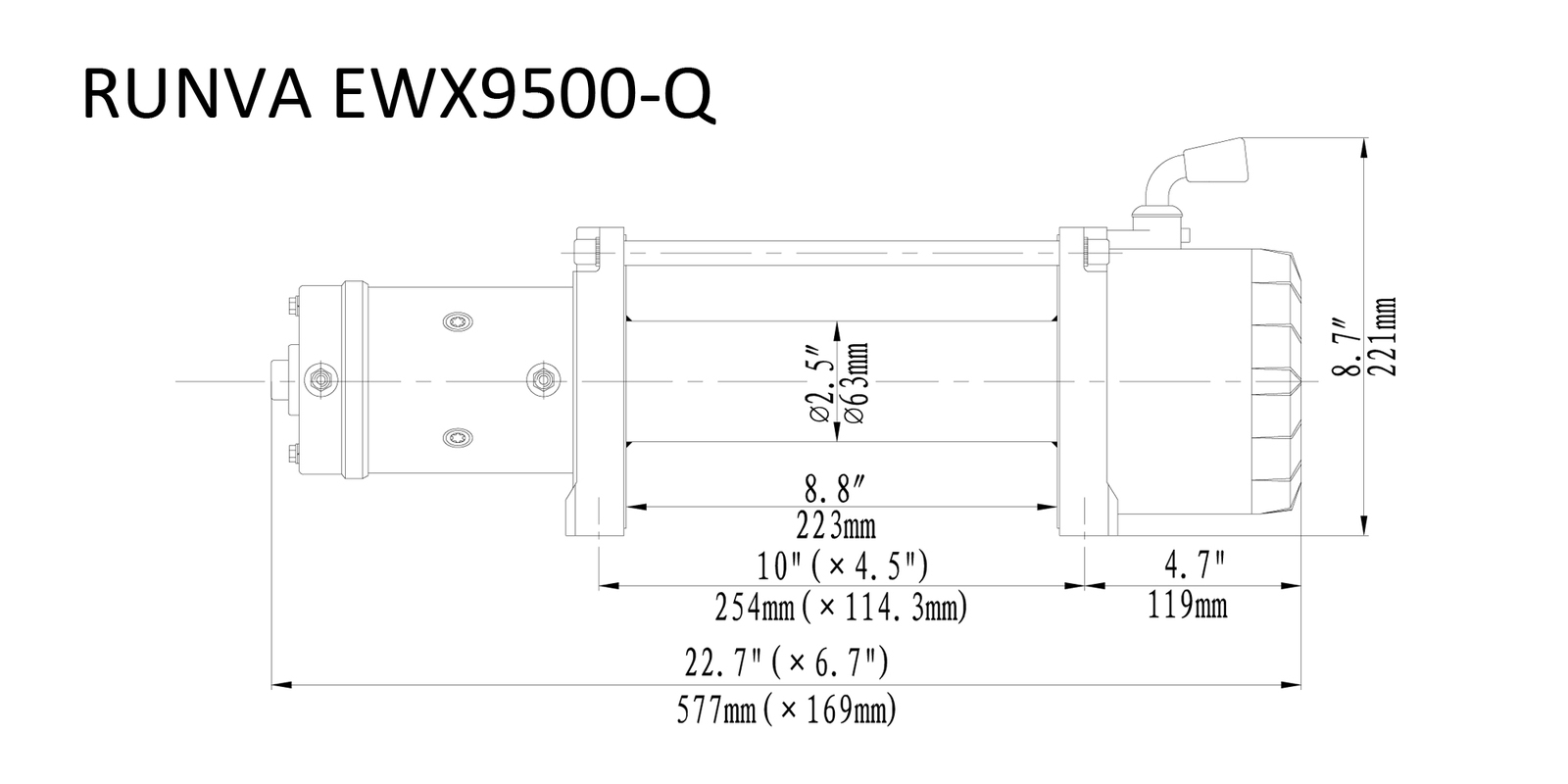

- Overall Dimensions: 577mm X 163mm X 217mm
- Remote Control: 3.7m Handheld Remote/Wireless Remote
- Battery Leads: All factory supplied cables must be upgraded to a minimum size of 70mm2
- Finish: Grey Powder Coat
- New Weight: 31Kg
- Gross Weight: 33.5Kg (Includes Packaging)
- Warranty: Limited Lifetime
Specifications
SKU EWX9500QEVO-VD
Brand Runva
Product Category 4WD Parts and Extras
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Which Runva Winch should I choose?
It depends on your individual needs. Some factors to consider are:
- Which features you are looking for in a winch
- The rating of the winch bar or plate you are planning to use it on
- The size of the winch you are considering - you need to make sure it will fit the application. Some models state that they would fit all bars so they would be a good choice if you do not want to measure prior to buying a winch
-
Are the Runva Winches all IP67 Ingress Tested?
No, all models are not IP67 rated. The 'Premium' models are the only ones that are IP67 Ingress tested, along with a select other models. Runva states that their quality engineering is a standard across all of their products and only the Premium range is tested, but that does not mean the rest of the ranges are any less watertight.
-
What size battery should I use with the Runva winches?
Runva states that the ATV Series models can run off an ATV/UTV battery. For other applications a small car battery would be sufficient.
The minimum requirement for the Compact Series, Electric Series and Lifting Series is 750CCA. Using a too small battery can damage your winch.
The minimum requirement for the Competition Series is a battery setup of no less than 1000CCA.
