Runva HWX12000 Winch with Synthetic Rope & 12V Directional Control

SKU: HWX12000-VD Learn More»
Runva HWX12000 Winch with Synthetic Rope & 12V Directional Control

HWX1200012VD

CALCULATE SHIPPING:

Notify Me When Back In Stock
Go to: Product Details
Go to: Specifications

Description

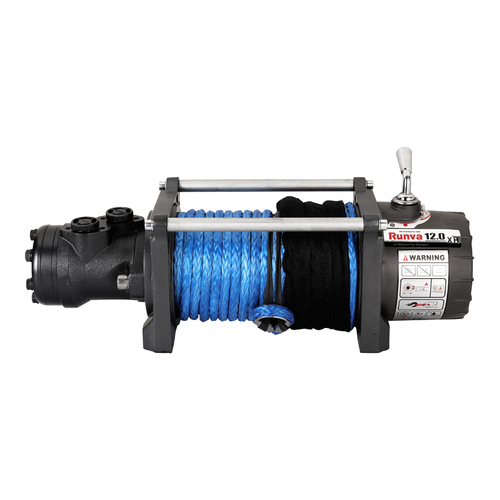

Runva HWX12000 with Synthetic Rope with Winch Directional Control



The Runva 4X4 Electric Series offers a very extensive range of products. Runva have solutions for every application and every vehicle.



Voltage Options:

  • Runva HWX12000 with Synthetic Rope with 12V Directional Control -  HWX1200012VD
  • Runva HWX12000 with Synthetic Rope with 24V Directional Control -   HWX1200024VD



Runva HWX12000 with Synthetic Rope with 12V Directional Control

Specifications:

  • Rated Line Pull: 12000lb (5897Kg)
  • Motor Displacement: 65ml/r
  • Oil Flow: 5-45l/min
  • Pressure: 11mpa
  • Gear Train: Full Steel Planetary
  • Gear Ratio: 28:1
  • Brake: Automatic Load Holding Screw One
  • Synthetic Rope: 10mm x 26m
  • Drum Size: 63mm x 223mm
  • Mounting Bolt Pattern: 254mm X 114.3mm
  • Overall Dimensions: 550mm X 174mm X 217mm
  • Finish: Grey Powder Coat
  • Net Weight: 35kg
  • Gross Weight: 36.5Kg (Includes Packaging)
  • Warranty: Limited Lifetime
Show More
Go to: Description
Go to: Q&A

Specifications

SKU HWX12000-VD

Brand Runva

Product Category Winches


NOTE: see full product specifications & further product info in the section on this page.

Go to: Specification
Go to: Review

Q & A

  • Which Runva Winch should I choose?

    It depends on your individual needs. Some factors to consider are:

    • Which features you are looking for in a winch
    • The rating of the winch bar or plate you are planning to use it on
    • The size of the winch you are considering - you need to make sure it will fit the application. Some models state that they would fit all bars so they would be a good choice if you do not want to measure prior to buying a winch
  • Are the Runva Winches all IP67 Ingress Tested?

    No, all models are not IP67 rated. The 'Premium' models are the only ones that are IP67 Ingress tested, along with a select other models. Runva states that their quality engineering is a standard across all of their products and only the Premium range is tested, but that does not mean the rest of the ranges are any less watertight.

  • What size battery should I use with the Runva winches?

    Runva states that the ATV Series models can run off an ATV/UTV battery. For other applications a small car battery would be sufficient.

    The minimum requirement for the Compact Series, Electric Series and Lifting Series is 750CCA. Using a too small battery can damage your winch.

    The minimum requirement for the Competition Series is a battery setup of no less than 1000CCA.
