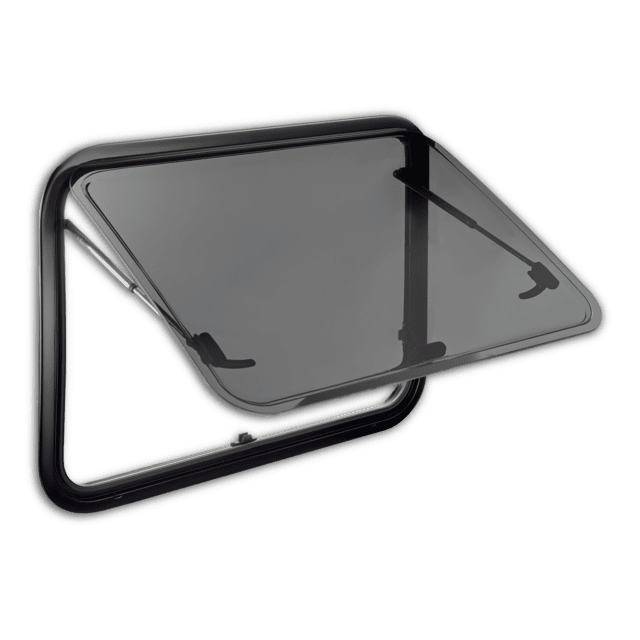

Dometic S7P R01 27 mm window 800 x 510 mm
SKU: DOM070176 Learn More»
9104115611
CALCULATE SHIPPING:
Accessories List:
Description
Dometic S7P R01 27 mm window 800 x 510 mm
Shut Tight

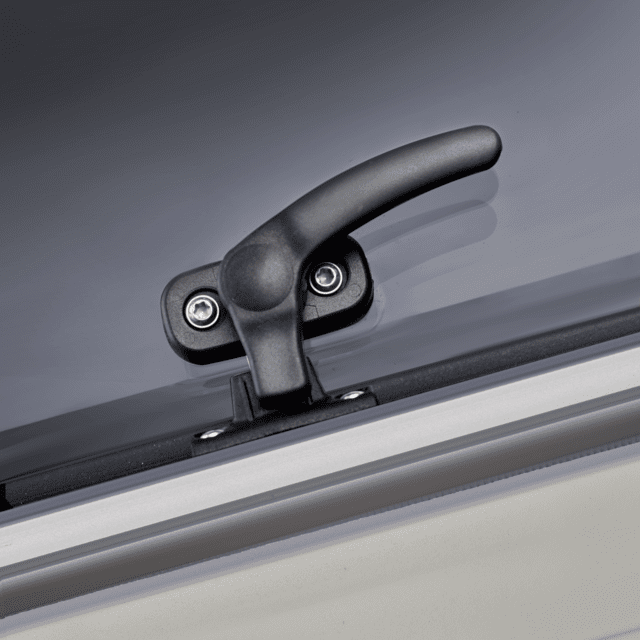

Multi-locking system with friction hinges for secure closure.
Features:
- Multilocking system provides security against intruders
- Powder-coated profiles for outstanding insulation
- Aluminum frame reduces the weight
- Double dark-tinted acrylic glazing
Please note- The Australian Dometic S7P windows are not curved
Are you looking for compatible blinds? Please CLICK HERE to find the Dometic S7 R01 Blinds
Identifying Your Window
Your Dometic window will have reference codes on the outside acrylic blade. The following reference codes indicate which Dometic Window you have:
AGS5- Dometic S4 Window
These codes will follow with numbers- remove the prefix and the first 0 and that will give you the size. Eg AGS50750x0450 this is a 750x 450 S4 Window.
AGP7- Dometic S7P Window
These codes will follow with numbers- remove the prefix and the first 0 and that will give you the size. Eg AGP71180x0575 this is a 1180 x 575 Dometic S7P Window.
MDL or MD1- Dometic DLux window
These codes will follow with numbers- remove the prefix and the first 0 and that will give you the size. Eg MDL0500x0300 this is a 500x300 Dlux Window
Mobicool - if you find a Mobicool brand on our window you will need to look for physical features to determine which one you need:
-
If it has a aluminium outer frame and flat roller blind it is a Dometic Mobicool CHAL window.
-
If it has a plastic outer frame and concertina blind it is a Dometic Mobicool ABS window.
Specifications
SKU DOM070176
Brand Dometic
Product Category RV Windows and Blinds
Dimensions from clear opening of window to hinged (w x h) 750 x 460mm
Weight (kg) 4.4
Cut-out Dimensions (w x h) 800 x 510mm
Window Dimension (w x h)828 x 538mm
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
How can I identify which inner blind and screen I have?
On select models you can identify the brand by the brand logo on the handle that separates the blind from the flyscreen. Alternatively, the outside of the window will have reference details printed on it that will help identify the brand and style of window.
-
My bus has a curved side. Is there windows available that have a curvature to match my bus wall?
There are currently no windows in the Australian market that come with a curvature.
-
Does this window have the blind included?
No, they don't come with the blind. You need to purchase the S7 Double Cassette Blind
-
Are the stays (struts) included with this window
Yes, they are included in the purchase of the window
