Simarine by Enerdrive Quad Shunt Mod 4 x 50A Input Current & 1 x Relay Output 1A

Description

Simarine by Enerdrive Quad Shunt Mod 4 x 50A Input Current & 1 x Relay Output 1A

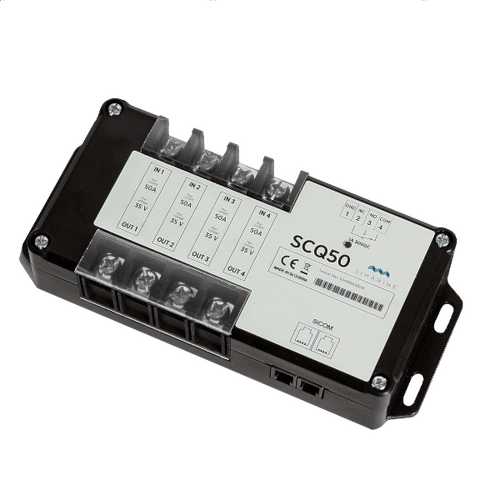

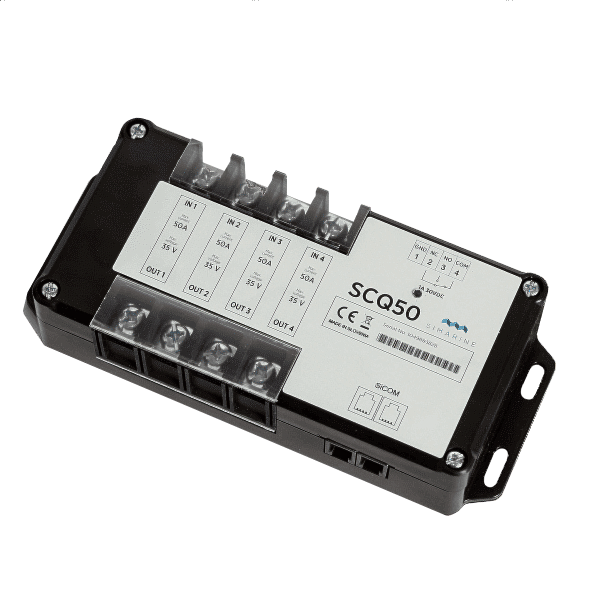

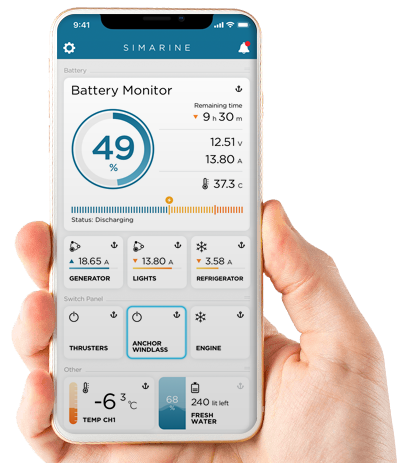

SCQ50 is an innovative shunt module for monitoring individual consumers and generators with, active shunt for PICO battery monitor with 4x current sensors up to 50A each. For 12V and 24V systems.

• 4 x  50A Current Sensors
• For 12v and 24v Systems

Connection Possibilities:

• Up To 4 x Consumer Devices
• Up To 4 x Generators
• Combination of 4 of both
• 1 x Relay Input

Specifications:

Operating

• Power source voltage range 6 – 35 V
• Temperature range -20 – +70 °C
• Power consumption at 12 V
• Operating 3,5 mA
• Current measuring channels 4
• Relay (monostable)
• Maximum Operating Current 1 A
• Maximum Common Input Voltage 6 – 30V

Voltage inputs

• Per channel 0,01 – 50 A
• Resolution 0,01 A
• Accuracy ± 0,6 %
• Sampling rate 100 ms

Maximal current

• Continuous 50 A
• Peak current (<1 min) 60 A
• Peak current (<5 sec) 60 A
• Voltage drop at 50 A 35 mV
• Maximum voltage on connections 35 V

Connectivity Up to

• Current sensors 4
• Relay Common Input (COM) 1
• Relay Output Normaly Open (NO) 1
• Relay Output Normaly Closed (NC) 1
• SiCOM RJ9 Sockets 2

Installation and Dimension

• Dimensions (length x width x depth) 182 x 80 x 37 mm
• Weight 230 g
